SUNROOF

DESCRIPTION AND OPERATION

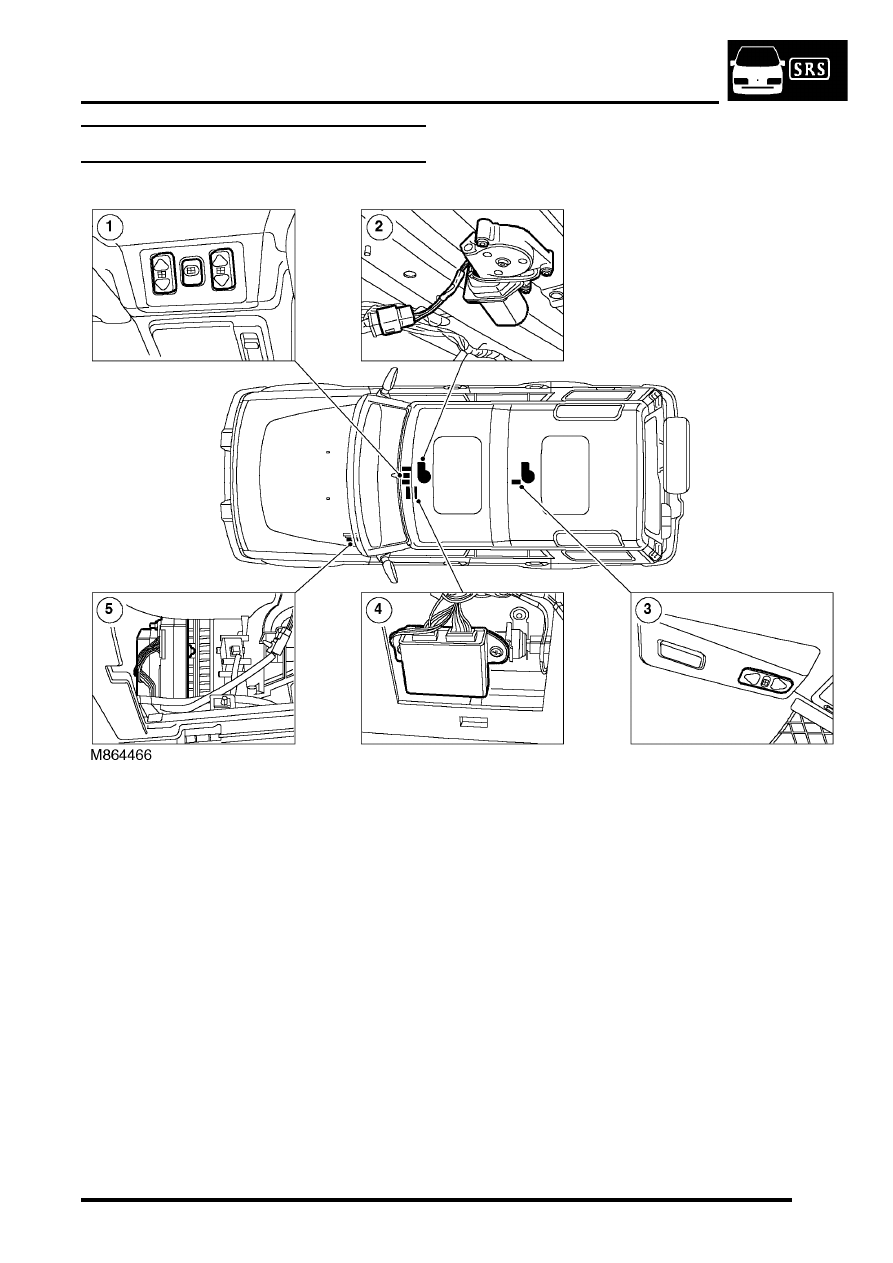

Electric sunroof component location

RHD shown, LHD similar

1 Sunroof front switches
2 Front sunroof motor and microswitch
3 Rear sunroof - rear switch

4 Sunroof ECU
5 BCU

SUNROOF

76-6-2

DESCRIPTION AND OPERATION

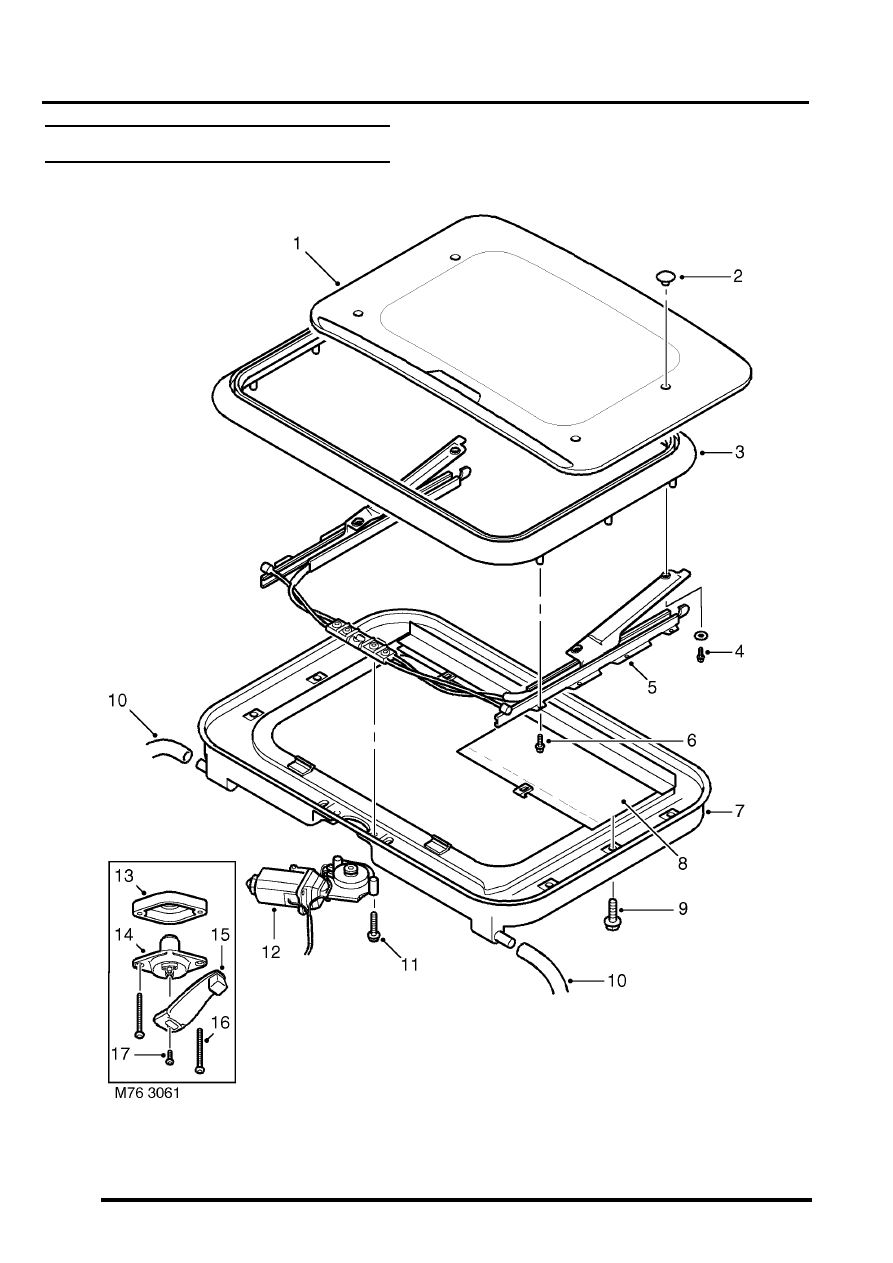

Sunroof components

SUNROOF

DESCRIPTION AND OPERATION

76-6-3

1 Glass panel
2 Nut - glass panel
3 Frame - glass panel
4 Bolt - glass panel
5 Drive cables and lifting assembly
6 Screw - glass panel frame
7 Sunroof frame
8 Sunroof blind
9 Screw - sunroof frame

10 Drain tubes
11 Screw - motor
12 Motor and gearbox
13 Spacer - manual sunroof regulator
14 Regulator - manual sunroof
15 Handle - manual sunroof
16 Screw - manual sunroof regulator
17 Screw - manual sunroof handle

SUNROOF

76-6-4

DESCRIPTION AND OPERATION

System block diagram

1 Passenger compartment fuse box
2 BCU
3 Sunroof ECU
4 Front sunroof switch
5 Front sunroof motor and microswitch

6 Rear sunroof - front switch
7 Rear sunroof isolation switch
8 Rear sunroof - rear switch
9 Rear sunroof motor and microswitch
