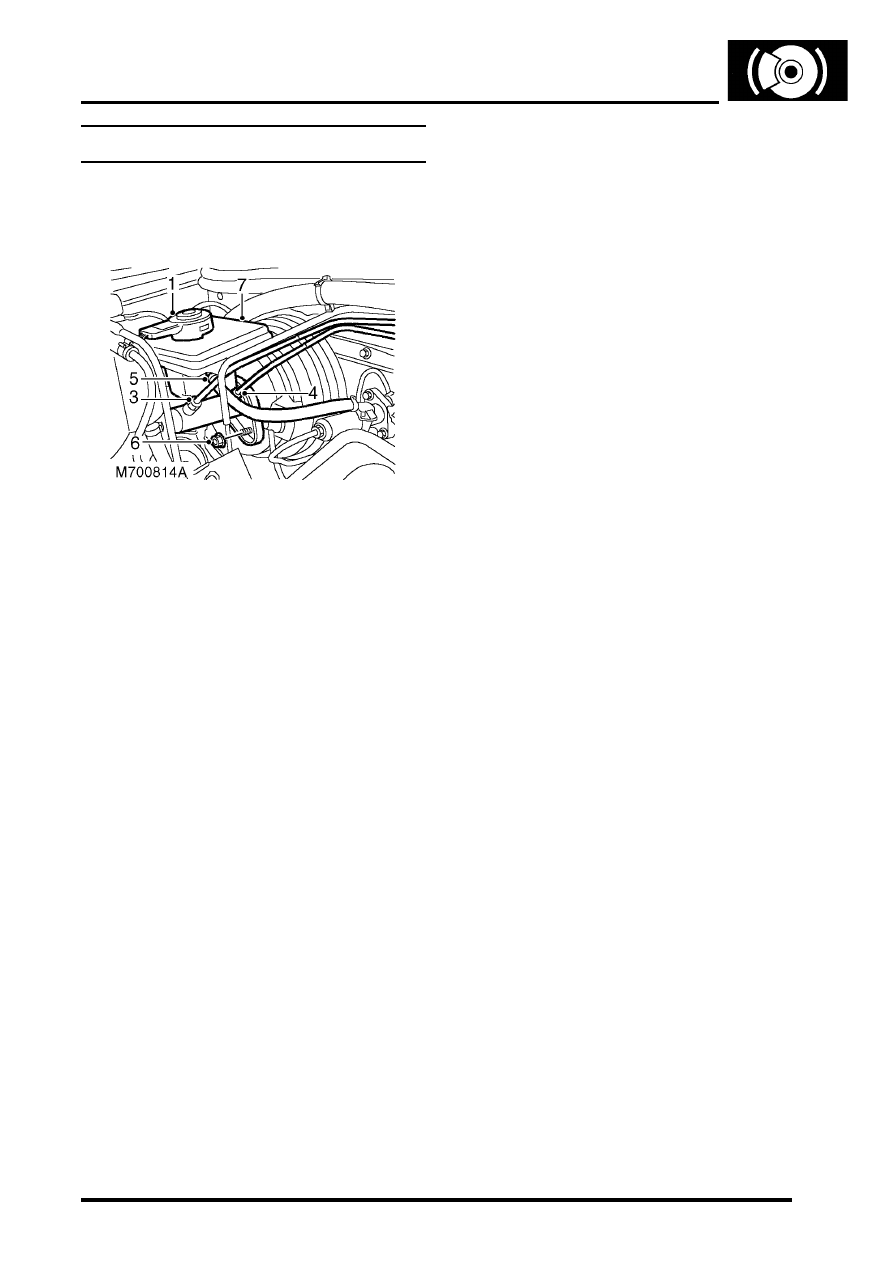

BRAKES REPAIRS 70-35 Master cylinder - brake $% 70.30.08 Remove 1. Disconnect multiplug from fluid level switch. spilled fluid. CAUTION: Brake fluid will damage paint 3. Disconnect secondary system pipe union from master cylinder. 4. Disconnect primary system pipe union from master cylinder. 5. Manual gearbox only: Release clip and disconnect clutch fluid supply hose from CAUTION: Always fit plugs to open 6. Remove 2 nuts and washers securing master cylinder to servo. 7. Remove master cylinder. Refit 1. Clean master cylinder and servo mating surfaces. 2. Align push rod and position master cylinder to servo. 3. Fit nuts and washers securing master cylinder to servo and tighten to 25 Nm (18 lbf.ft). 4. Connect primary and secondary brake pipes, and tighten unions to 25 Nm (18 lbf.ft). 5. Manual gearbox only: Connect clutch fluid hose to reservoir, secure with clip. 6. Connect fluid level switch multiplug. |
