TRANSFER BOX - LT230SE
DESCRIPTION AND OPERATION
41-11

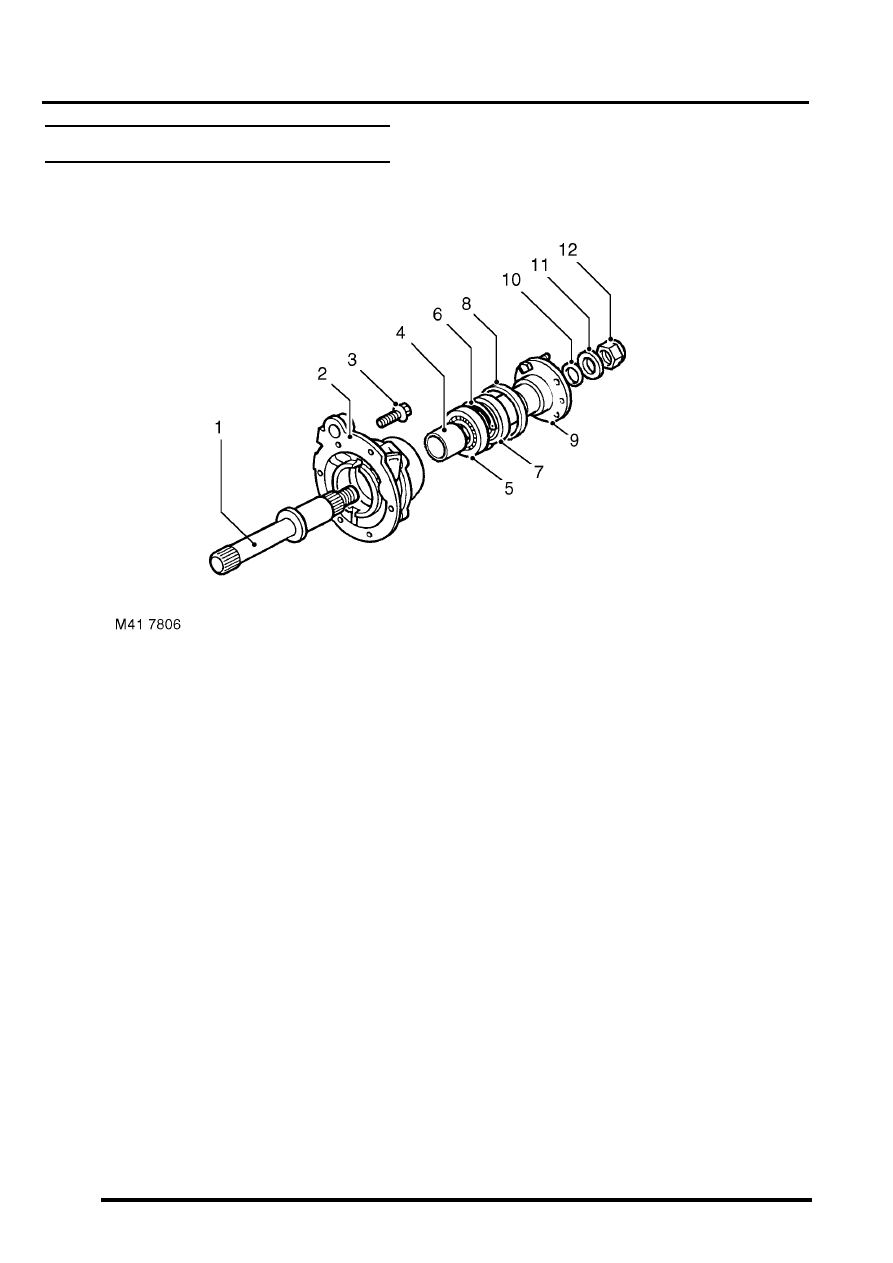

1 Breather pipe, banjo bolt and sealing washers
2 Bolt - high/low cross shaft housing and
abutment bracket
3 Selector cable abutment bracket
4 Multiplug bracket
5 Hollow plug
6 High/low cross shaft housing
7 'O' ring
8 High/low cross shaft and lever
9 Front output shaft
10 Dog clutch - Differential lock
11 Warning lamp switch - Differential lock
12 Warning lamp switch - Differential lock
13 Aluminium sealing washers
14 Selector shaft - Differential lock
15 Aluminium sealing washer
16 Front output housing
17 Spring and clips - Differential lock
18 Bolt - cover plate
19 Cover plate
20 Selector fork - Differential lock
21 Bolt - front output housing
22 Detent plug - Differential lock
23 Detent spring - Differential lock
24 Detent ball - Differential lock
25 Hollow plug
26 Circlip
27 Front output flange
28 Steel washer
29 Self-locking nut
30 Felt washer
31 Oil seal
32 Output shaft bearing
33 Bearing spacer
34 High/low detect switch
35 Selector finger and shaft - Differential lock
36 'O' rings - Differential lock
37 Bolt - selector housing - Differential lock
38 Selector housing - Differential lock
39 High/low selector finger
40 Washer
41 Nut
42 Differential lock selector lever
