MANIFOLDS AND EXHAUST SYSTEMS - V8

DESCRIPTION AND OPERATION

30-2-1

MANIFOLDS AND EXHAUST SYSTEMS - V8

DESCRIPTION AND OPERATION

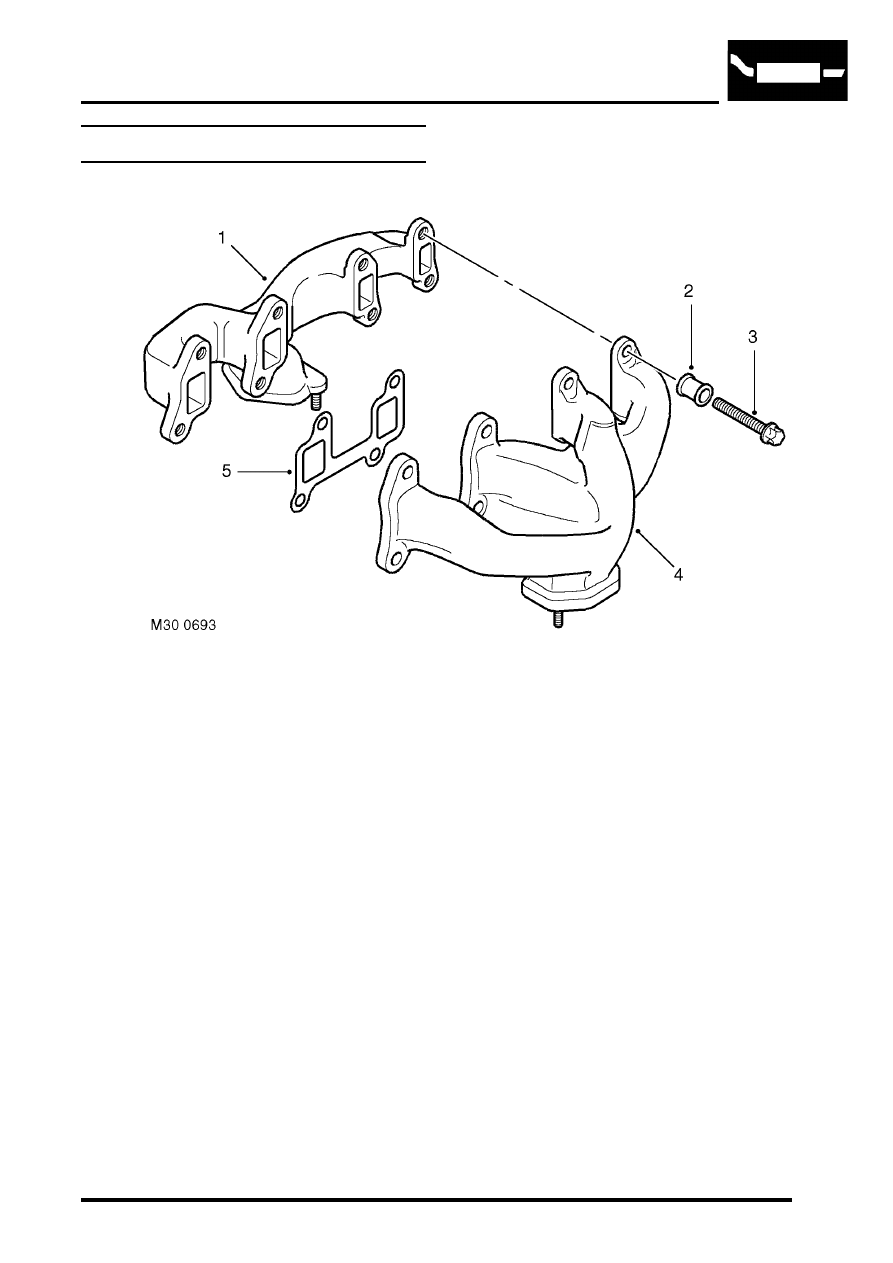

Exhaust manifold component layout

1 Exhaust manifold RH
2 Spacer 16 off
3 Torx bolt 16 off

4 Exhaust manifold LH
5 Gasket 4 off

MANIFOLDS AND EXHAUST SYSTEMS - V8

30-2-2

DESCRIPTION AND OPERATION

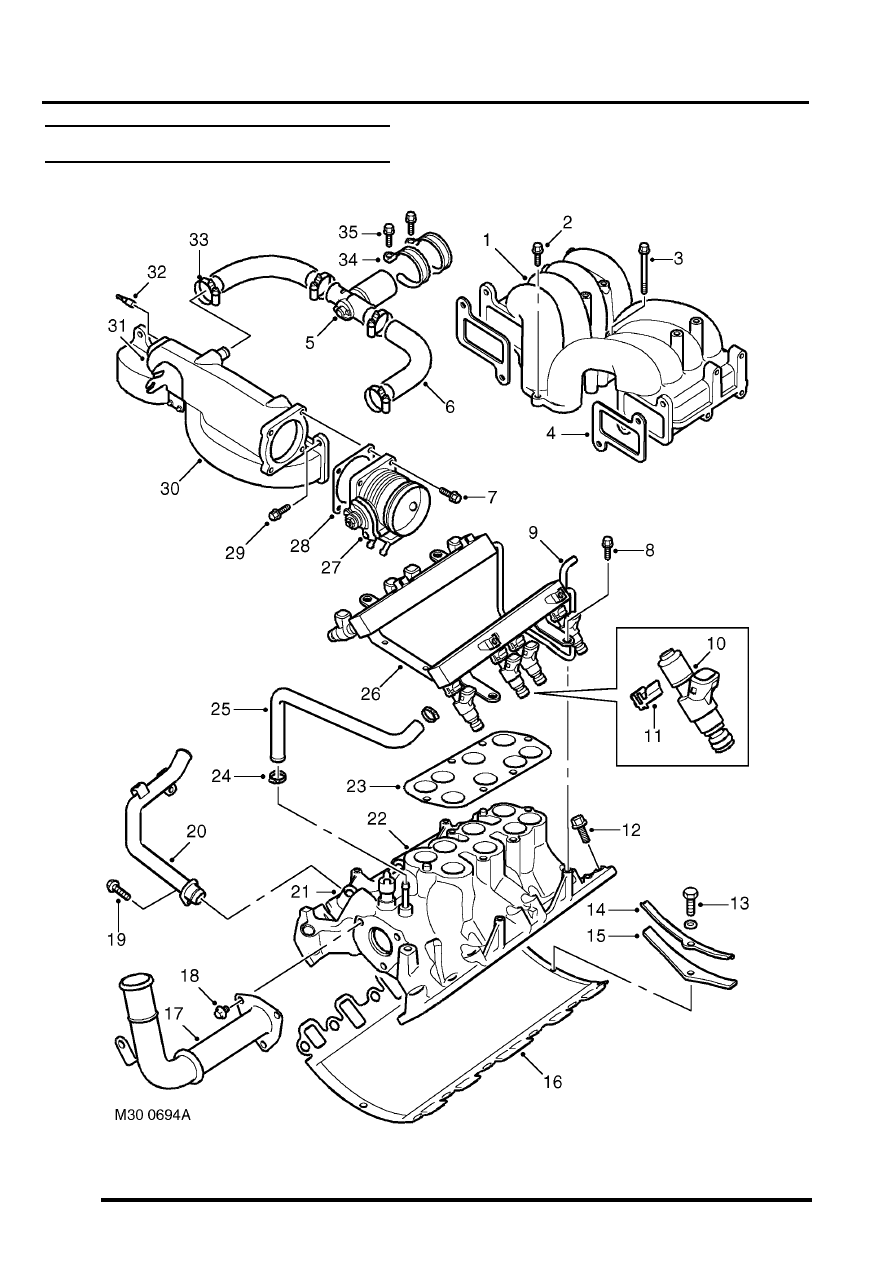

Inlet manifold component layout

MANIFOLDS AND EXHAUST SYSTEMS - V8

DESCRIPTION AND OPERATION

30-2-3

1 Upper manifold
2 Bolt 5 off
3 Bolt 1 off
4 Gasket
5 IAC Valve
6 IAC valve hose 2 off
7 Bolt 4 off
8 Bolt 4 off
9 Schraeder valve

10 Injector 8 off
11 Retaining clip 8 off
12 Bolt 12 off
13 Bolt 2 off
14 Clamp 2 off
15 Seal 2 off
16 Lower manifold/engine gasket
17 Coolant pipe

18 Bolt 3 off
19 Bolt
20 Heater return pipe
21 Pipe connection
22 Lower manifold
23 Gasket
24 Hose clip 2 off
25 Throttle housing coolant hose
26 Fuel rail
27 Throttle housing
28 Gasket
29 Bolt 4 off
30 Plenum
31 Rocker cover breather hose connection
32 Brake servo vacuum pipe connection
33 Hose clip 4 off

MANIFOLDS AND EXHAUST SYSTEMS - V8

30-2-4

DESCRIPTION AND OPERATION

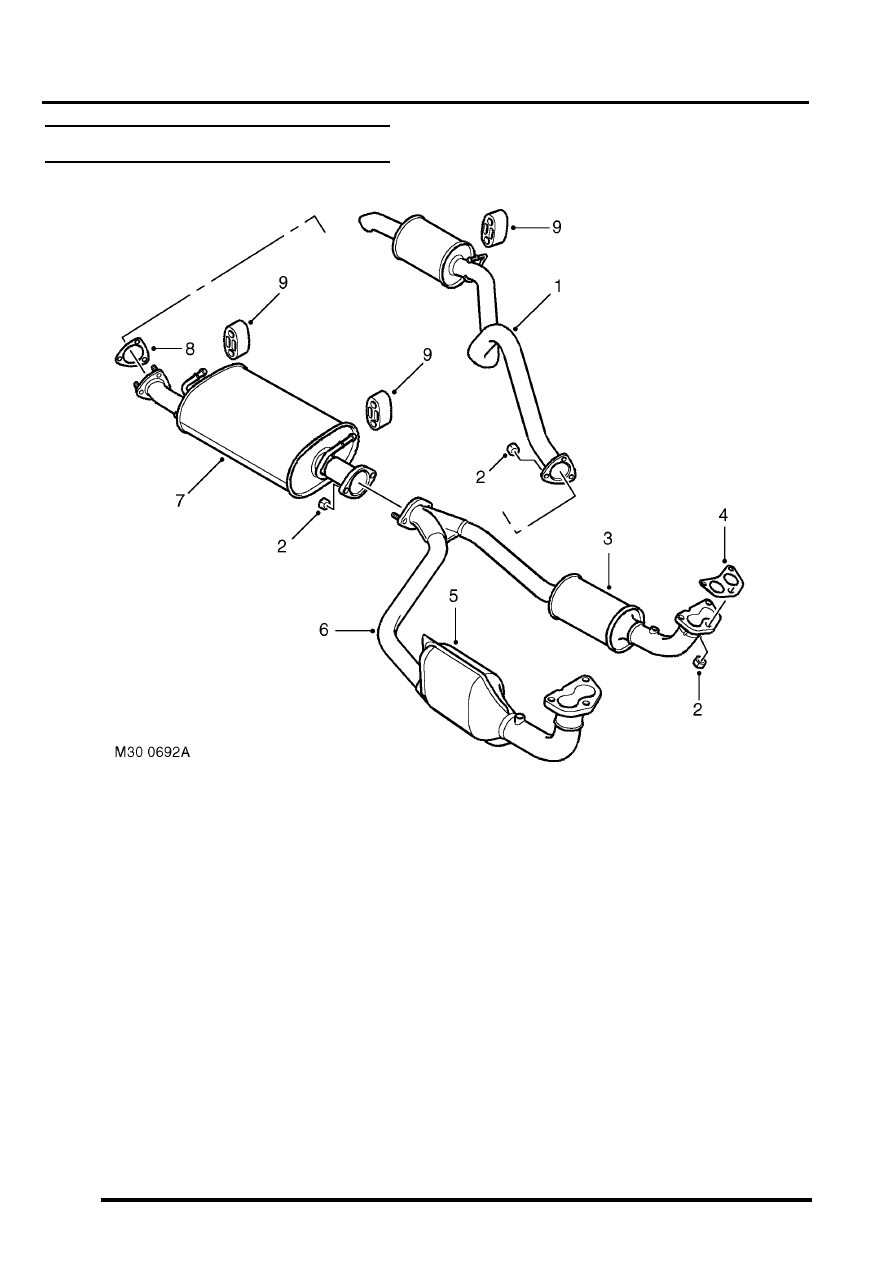

Exhaust system component layout

1 Tail pipe assembly
2 Nut 11 off
3 Catalytic converter
4 Front pipe to manifold gasket 2 off
5 Catalytic converter

6 Front pipe assembly
7 Intermediate pipe/silencer assembly
8 Gasket
9 Mounting rubber 3 off
