FUEL DELIVERY SYSTEM - V8
DESCRIPTION AND OPERATION
19-2-3

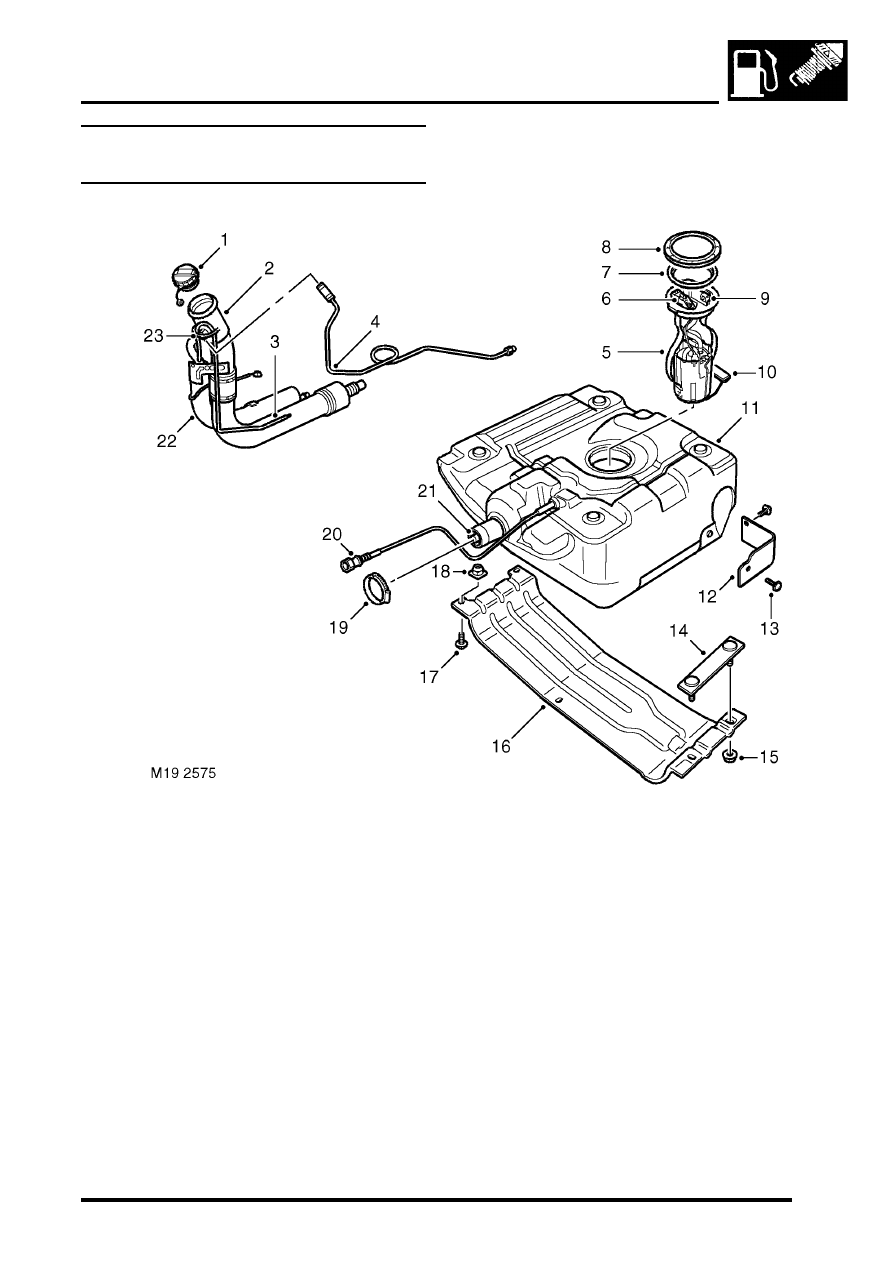

Fuel tank and breather components
(NAS)
1 Fuel filler cap
2 Filler tube
3 OBD pressure sensor atmospheric pipe
4 Vent pipe to EVAP canister

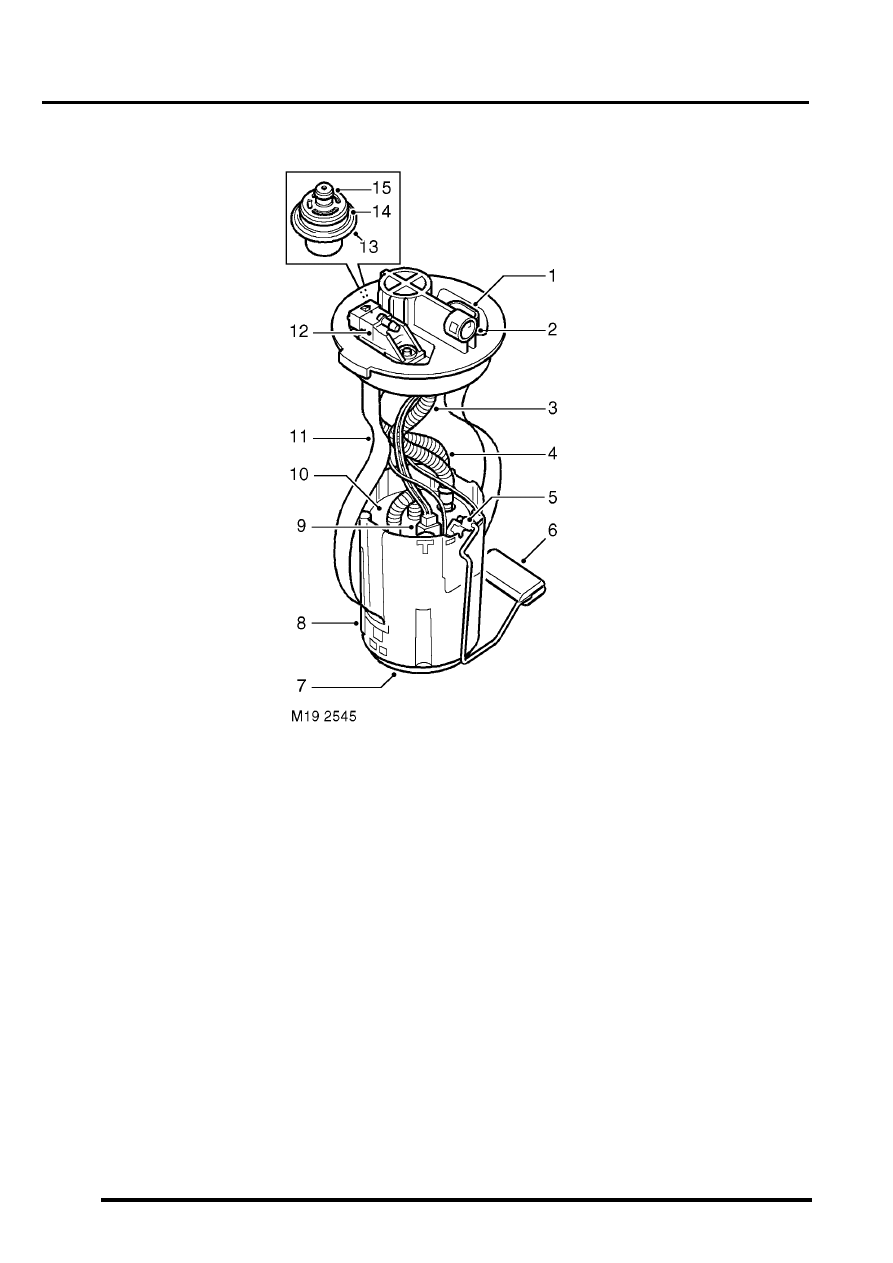

5 Fuel pump, regulator and fuel gauge sender
assembly
6 OBD pressure sensor (vacuum type, EVAP
system leak detection capability only)
7 Seal
8 Locking ring
9 Fuel feed connection
10 Fuel gauge sender float
11 Fuel tank and breather assembly
12 Heat shield
13 Scrivet 2 off
14 Stud plate
15 Nut 2 off
16 Cradle
17 Bolt 2 off
18 Nut plate 2 off
19 Hose clip
20 LVS vent pipe
21 Tank breather connection
22 Liquid vapour separator (LVS)
23 Anti-trickle fill valve
