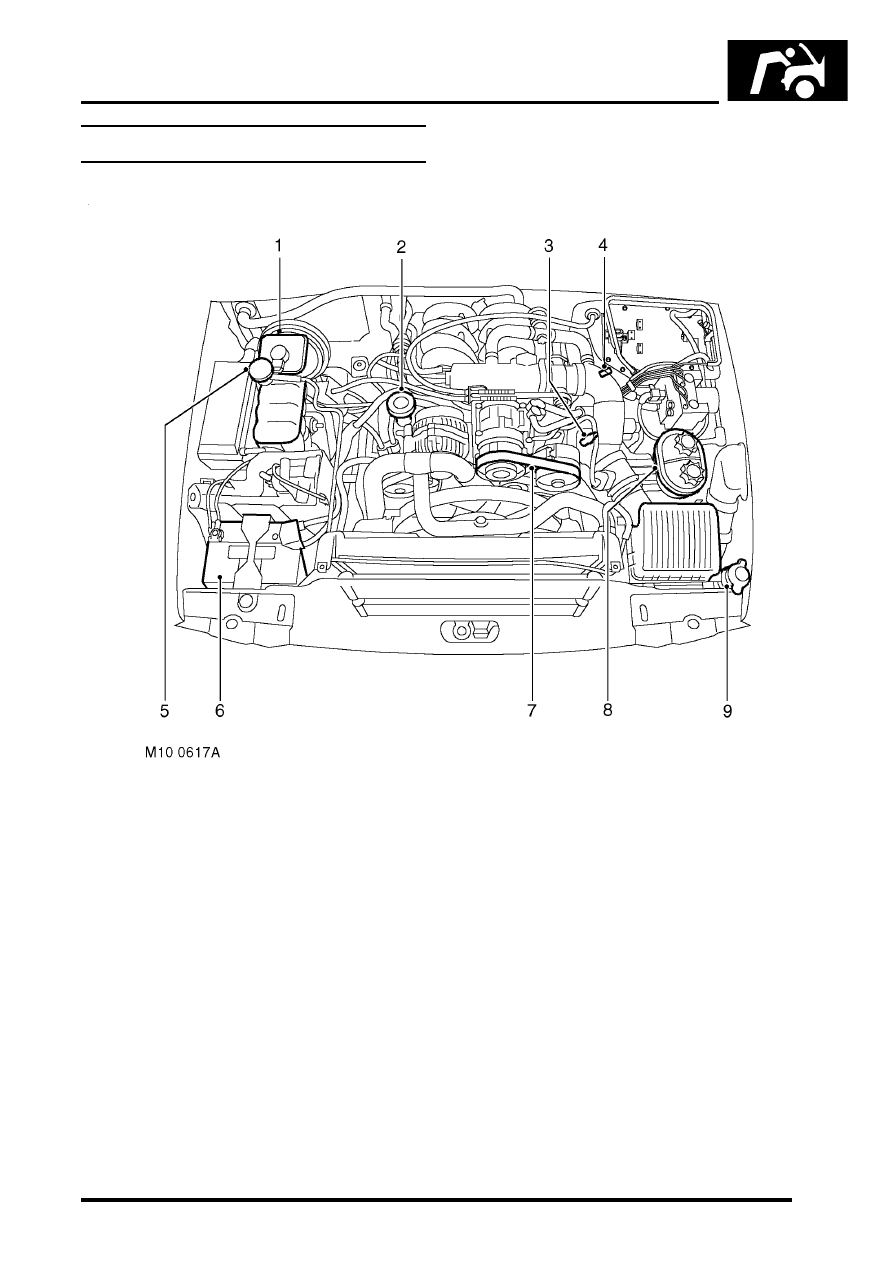

V8 engine underbonnet view

1 Brake/clutch fluid reservoir filler caps
2 Engine oil filler cap
3 Spark plug
4 Engine oil dipstick
5 Coolant header tank

6 Battery
7 Auxiliary drive belt
8 ACE/PAS fluid reservoirs
9 Windscreen washer reservoir

MAINTENANCE

10-2

PROCEDURES

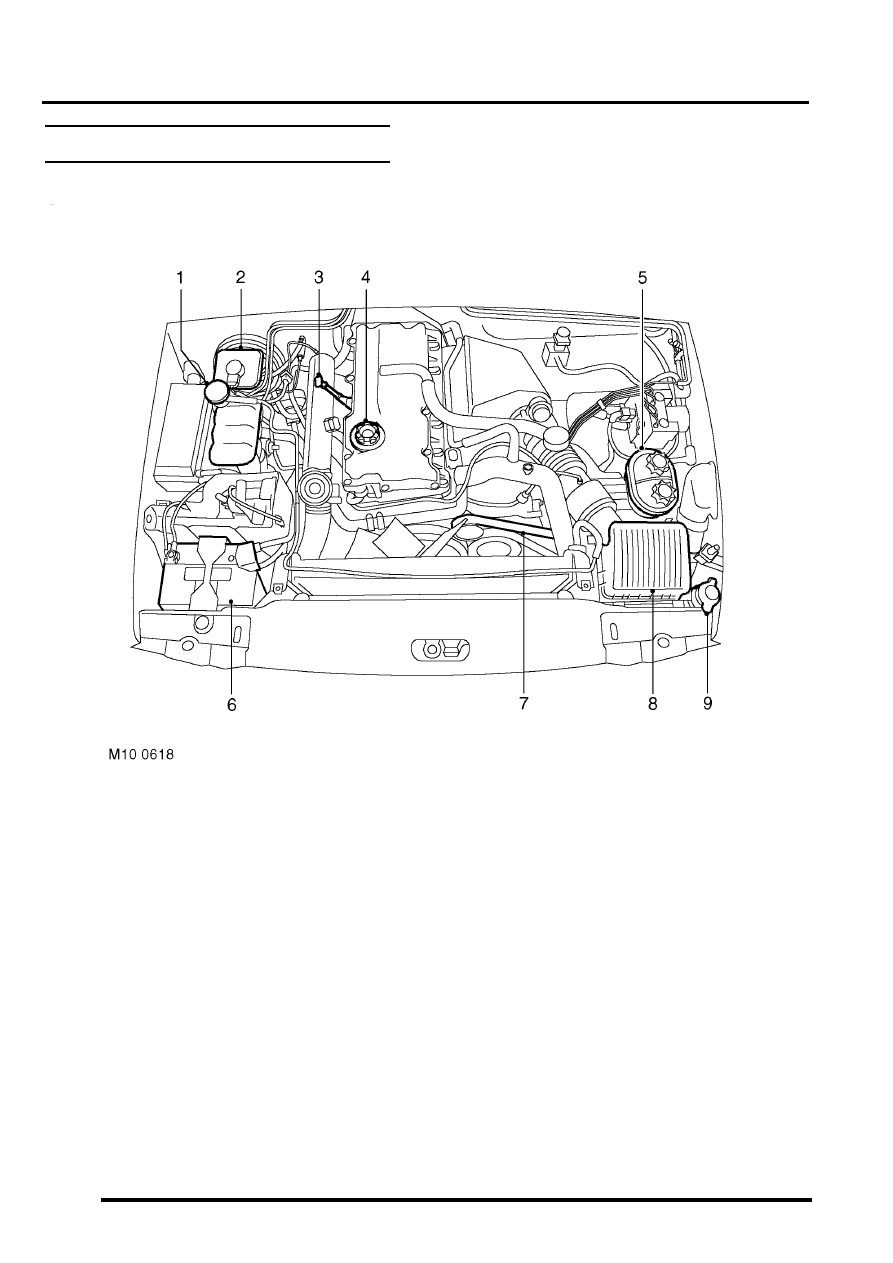

Diesel underbonnet view

1 Coolant header tank
2 Brake/clutch fluid reservoir filler caps
3 Engine oil dipstick
4 Engine oil filler cap
5 ACE/PAS fluid reservoirs

6 Battery
7 Auxiliary drive belt
8 Air cleaner
9 Windscreen washer reservoir

MAINTENANCE

PROCEDURES

10-3

Seats and seat belts

 Check

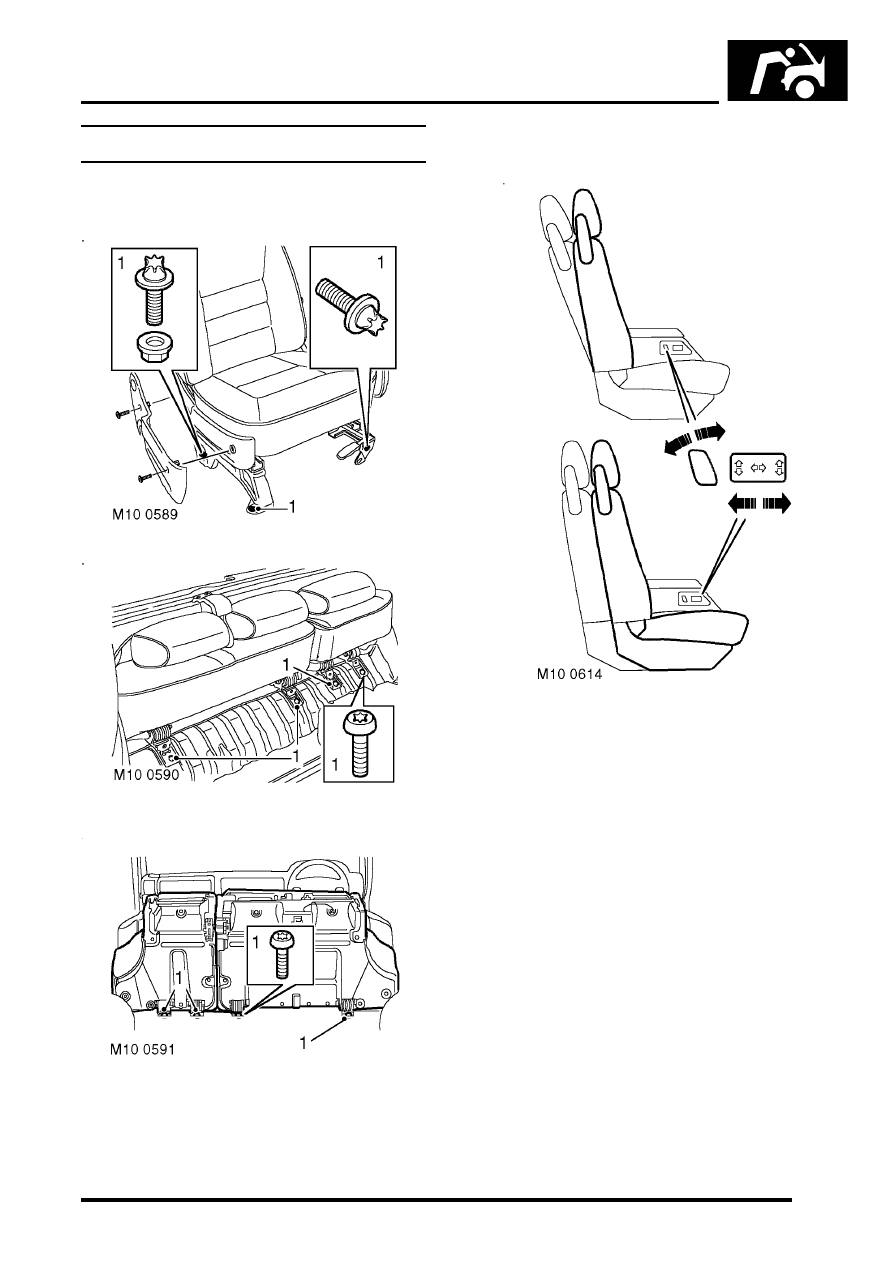

Front seat

Rear seat rear fixings

Rear seat front fixings

1. Check seat frames are secured to floor and

show no signs of movement.

2. Check operation of seat slide and tilt

mechanisms, ensuring there is no excessive
play between seat cushion and seat back.

3. Fully extract seat belt and allow it to return

under its own recoil mechanism. Repeat for
other belts.

4.  Check entire length of seat belt webbing for

signs of fraying or damage. Repeat for other
belts.

MAINTENANCE

10-4

PROCEDURES

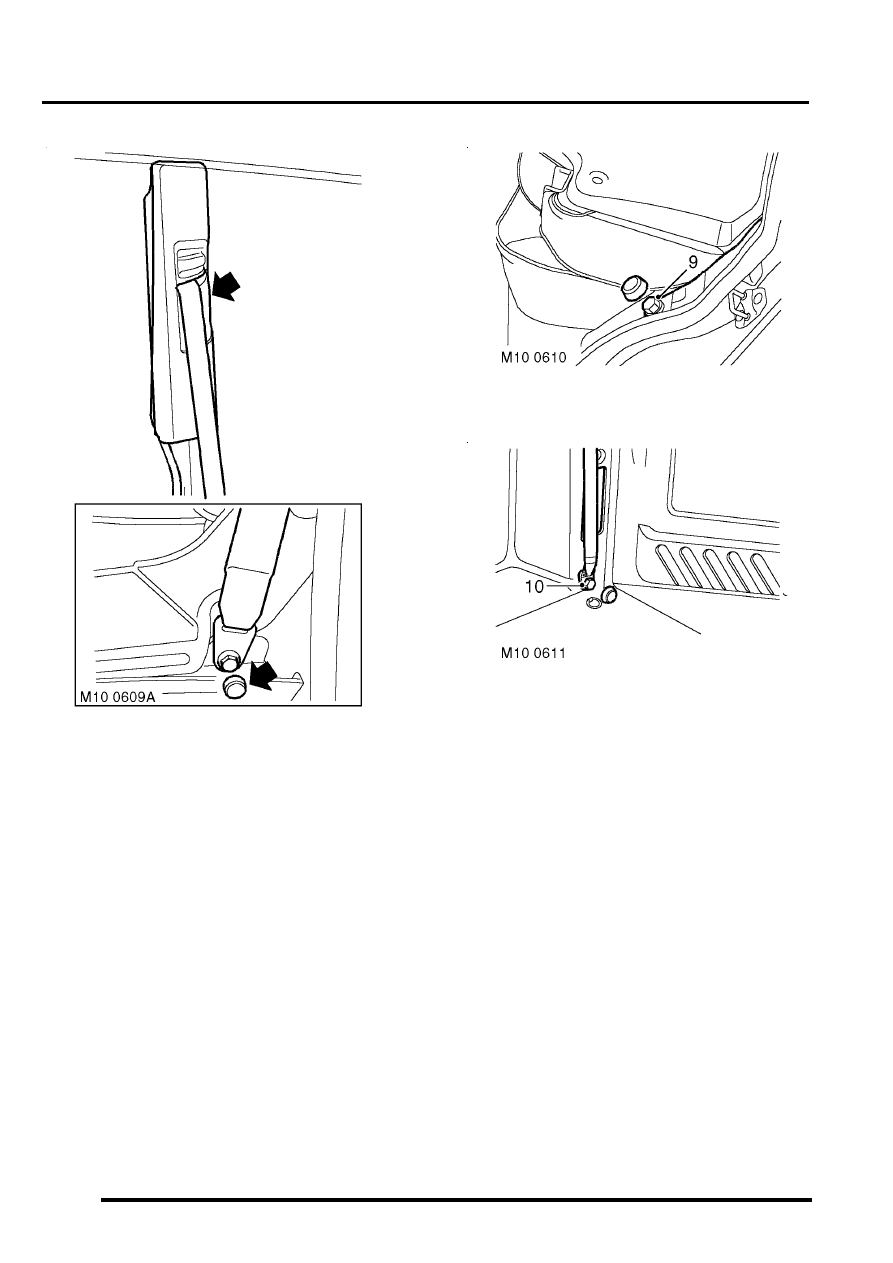

5.  Check security of seat belt upper mountings.
6.  Check for correct operation of seat belt height

adjusters.

7. Check security of seat belt buckle mountings.
8. Connect each belt to the correct buckle, check

seat  buckle and tongue are secure. Release
seat belt buckle and  check for correct
operation.

9. Check tightness of accessible seat belt fixings.

10. Check tightness of accessible seat  belt

mountings.
