Jeep Wrangler (2018 year). Instruction

Customer Programmable Features — Uconnect 3
Settings

Push the “Settings” button on the touchscreen to display

the settings menu screen. In this mode the Uconnect

system allows you to access all of the available program-

mable features.

NOTE:

Only one touchscreen area may be selected at a

time.
When making a selection, press the button on the touch-

screen to enter the desired mode. Once in the desired

mode, press and release the preferred setting and make

your selection. Once the setting is complete, either press

the back arrow/Done button on the touchscreen or the

Back button on the faceplate to return to the previous

menu. Pressing the Up or Down Arrow buttons on the

right side of the screen will allow you to toggle up or down

through the available settings.

NOTE:

All settings should be changed with the ignition in

the “RUN” position.
The following tables list the settings that may be found

within the Uconnect 3 radio, along with the selectable

options pertaining to each setting.

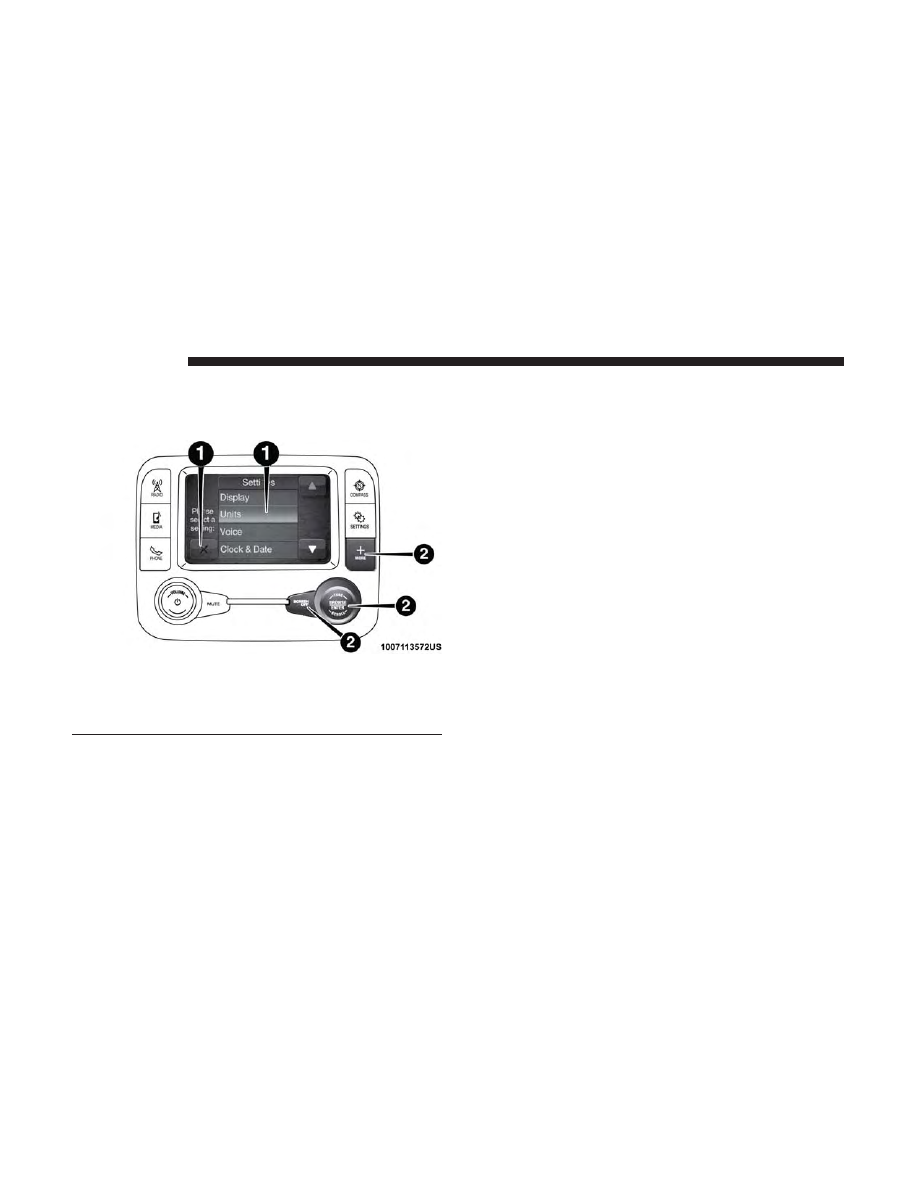

Uconnect 3 Buttons On The Touchscreen And Buttons On

The Faceplate

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

502

MULTIMEDIA

Display

After pressing the “Display” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Display Mode

Auto

Manual

Brightness

NOTE:
The “Brightness” setting can also be adjusted by selecting any point on the scale between the “+” and “-” buttons on

the touchscreen.

Language

English

Français

Español

NOTE:
Selecting any option within the “Language” setting will change the language for all displayed nomenclature, includ-

ing the trip functions and the navigation system (if equipped).

Touchscreen Beep

Off

MULTIMEDIA

503

Units

After pressing the “Units” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Units

Metric

Custom

NOTE:

• The “Metric” option changes the instrument cluster display to metric units of measure.

• The “Custom” option allows setting the “Fuel Consumption” (L/100km, or km/L) and “Pressure” (kPa, or bar)

units of measure independently.

Clock & Date

After pressing the “Clock & Date” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Set Time and Format

12 hour

24 hour

NOTE:
Within the “Set Time and Format” setting, press the corresponding arrow buttons on the touchscreen to adjust to the

correct time.

Show Time Status — If

Equipped

Off

Sync Time — If Equipped

Off

504

MULTIMEDIA

Safety/Assistance

After pressing the “Safety/Assistance” button on the

touchscreen, the following settings will be available:

Setting Name

Selectable Options

ParkView Backup Camera

Delay — If Equipped

Off

NOTE:
The “ParkView Backup Camera Delay” setting determines whether or not the screen will display the rear view image

with dynamic grid lines for up to ten seconds after the vehicle is shifted out of REVERSE. This delay will be canceled

if the vehicle’s speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to

the OFF position.

ParkView Backup Camera

Active Guide Lines — If

Equipped

Off

NOTE:
The “ParkView Backup Camera Active Guide Lines” setting overlays the Rear Backup Camera image with active, or

dynamic, grid lines to help illustrate the width of the vehicle and its project back up path, based on the steering

wheel position when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist

with parking or aligning to a hitch/receiver.

MULTIMEDIA

505

Setting Name

Selectable Options

ParkSense — If Equipped

Sound Only

Sound and Display

Rear ParkSense Volume — If

Equipped

Low

Medium

High

Blind Spot Alert — If

Equipped

Off

Lights

Lights and Chime

NOTE:
If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not damaged,

the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor alignment. A sen-

sor that is misaligned will result in the Blind Spot Monitor (BSM) not operating to specification.

Auto Park Brake

Off

506

MULTIMEDIA

Lights

After pressing the “Lights” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights

remain on after the engine is shut off.

Automatic High Beam Head-

lamps — If Equipped

Off

Daytime Running Lights

Yes

Flash Lights With Lock — If

Equipped

Off

Interior Ambient Lights

NOTE:
The “Interior Ambient Lights” setting can also be adjusted by selecting any point on the scale between the “+” and

“-” buttons on the touchscreen.

MULTIMEDIA

507

Doors & Locks
After pressing the “Doors & Locks” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Auto Door Locks

Off

NOTE:
When this feature is selected, all doors will lock automatically when the vehicle reaches a speed of 12 mph (20 km/h).

Auto Unlock On Exit

Off

NOTE:
When this feature is selected, all doors will unlock when the vehicle is stopped and the transmission is in the PARK

or NEUTRAL position and the driver’s door is opened.

Flash Lights With Lock

Off

Horn With Lock

Off

Horn With Remote Start — If

Equipped

Off

Remote Door Unlock/Door Unlock

Driver

All

NOTE:
When “Driver” is selected, only the driver’s door will unlock on the first push of the key fob unlock button, you must

push the key fob unlock button twice to unlock the passenger’s doors. When “All” is selected, all of the doors will unlock

on the first press of the key fob unlock button. If “All” is programmed, all doors will unlock no matter which Passive

Entry equipped door handle is grasped. If “Driver” is programmed, only the driver’s door will unlock when the driver’s

door is grasped. Touching the handle more than once will only result in the driver’s door opening once. If the driver’s

door is opened, the interior door lock/unlock switch can be used to unlock all doors (or use key fob).

508

MULTIMEDIA

Auto Comfort Systems — If Equipped

After pressing the “Auto-On Comfort Systems” button on

the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Auto-On Driver Heated/Ventilated Seat & Steering

Wheel With Vehicle Start — If Equipped

Off

Remote Start

All Starts

NOTE:
When this feature is selected, the driver’s heated seat and heated steering wheel will automatically turn on when

temperatures are below 40° F (4.4° C). When temperatures are above 80° F (26.7° C), the driver vented seat will turn

on.

Engine Off Options

After pressing the “Engine Off Options” button on the

touchscreen, the following settings will be available:

Setting Name

Selectable Options

Headlight Off Delay

0 sec

30 sec

60 sec

90 sec

NOTE:
When this feature is selected, it allows the adjustment of the amount of time the headlights remain on after the en-

gine is shut off.

MULTIMEDIA

509

Audio

After pressing the “Audio” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Equalizer

Bass

Mid

Treble

NOTE:
When in this display you may adjust the “Bass”, “Mid”, and “Treble” settings. Adjust the settings with the “+” and

“–” setting buttons on the touchscreen or by selecting any point on the scale between the “+” and “–” buttons on the

touchscreen. Bass/Mid/Treble also allow you to simply slide your finger up or down to change the setting as well as

press directly on the desired setting.

Balance/Fade

Up Arrow

Button

Down Arrow

Button

Left Arrow

Button

Right Ar-

row Button

Center “C”

Button

NOTE:
When in this display you may adjust the “Balance/Fade” of the audio by using the “Arrow” button on the touch-

screen to adjust the sound level from the front and rear or right and left side speakers. Press the “Center ‘C’ Button”

on the touchscreen to reset the balance and fade to the factory setting.

Speed Adjusted Volume

Off

Surround Sound — If Equipped

Off

Loudness

Off

NOTE:
The “Loudness” feature improves sound quality at lower volumes when enabled.

510

MULTIMEDIA

Setting Name

Selectable Options

AUX Volume Offset — If Equipped

NOTE:
The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through

the AUX input.

Phone/Bluetooth

After pressing the “Phone/Bluetooth” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Paired Phones

List of Paired Phones

NOTE:
This feature shows which phones are paired to the Phone/Bluetooth system. For further information, refer to the

Uconnect Owner’s Manual Supplement.

MULTIMEDIA

511

SiriusXM Setup — If Equipped

After pressing the “SiriusXM Setup” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Channel Skip

List of Channels

NOTE:
SiriusXM can be programmed to designate a group of channels that are the most desirable to listen to or to exclude

undesirable channels while scanning. This feature allows you to select the channels you would like to skip.

Subscription Info

Sirius ID

NOTE:
New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your

radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription

Information screen to re-subscribe.
1. Press the “Subscription Info” button on the touchscreen to access the Subscription Information screen.
2. Write down the Sirius ID numbers for your receiver. To reactivate your service, either call the number listed on the

screen or visit the provider online.

SiriusXM Travel Link is a separate subscription.

512

MULTIMEDIA

Restore Settings

After pressing the “Restore Settings” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Restore Settings

Cancel

NOTE:
When the “Restore Settings” feature is selected, it will reset all settings to their default settings.

Clear Personal Data

After pressing the “Clear Personal Data” button on the

touchscreen, the following settings will be available:

Setting Name

Selectable Options

Clear Personal Data

Cancel

NOTE:
When the “Clear Personal Data” feature is selected it will remove all personal data including Bluetooth devices and

presets.

MULTIMEDIA

513

Customer Programmable Features — Uconnect 4
Settings

Press the “Settings” button on the bottom bar, or press the

“Apps

” button, then press the “Settings” button on

the touchscreen to display the menu setting screen. In

this mode the Uconnect system allows you to access all

of the available programmable features.

NOTE:
• Only one touchscreen area may be selected at a time.
• Depending on the vehicles options, feature settings may

vary.

When making a selection, press the button on the touch-

screen to enter the desired mode. Once in the desired

mode, press and release the preferred setting “option” until

a check-mark appears next to the setting, showing that

setting has been selected. Once the setting is complete,

either press the Back Arrow button on the touchscreen to

return to the previous menu, or press the “X” button on the

touchscreen to close out of the settings screen. Pressing the

Up or Down Arrow button on the right side of the screen

will allow you to toggle up or down through the available

settings.
The following tables list the settings that may be found

within the Uconnect 4 with 7-inch display radio, along

with the selectable options pertaining to each setting.

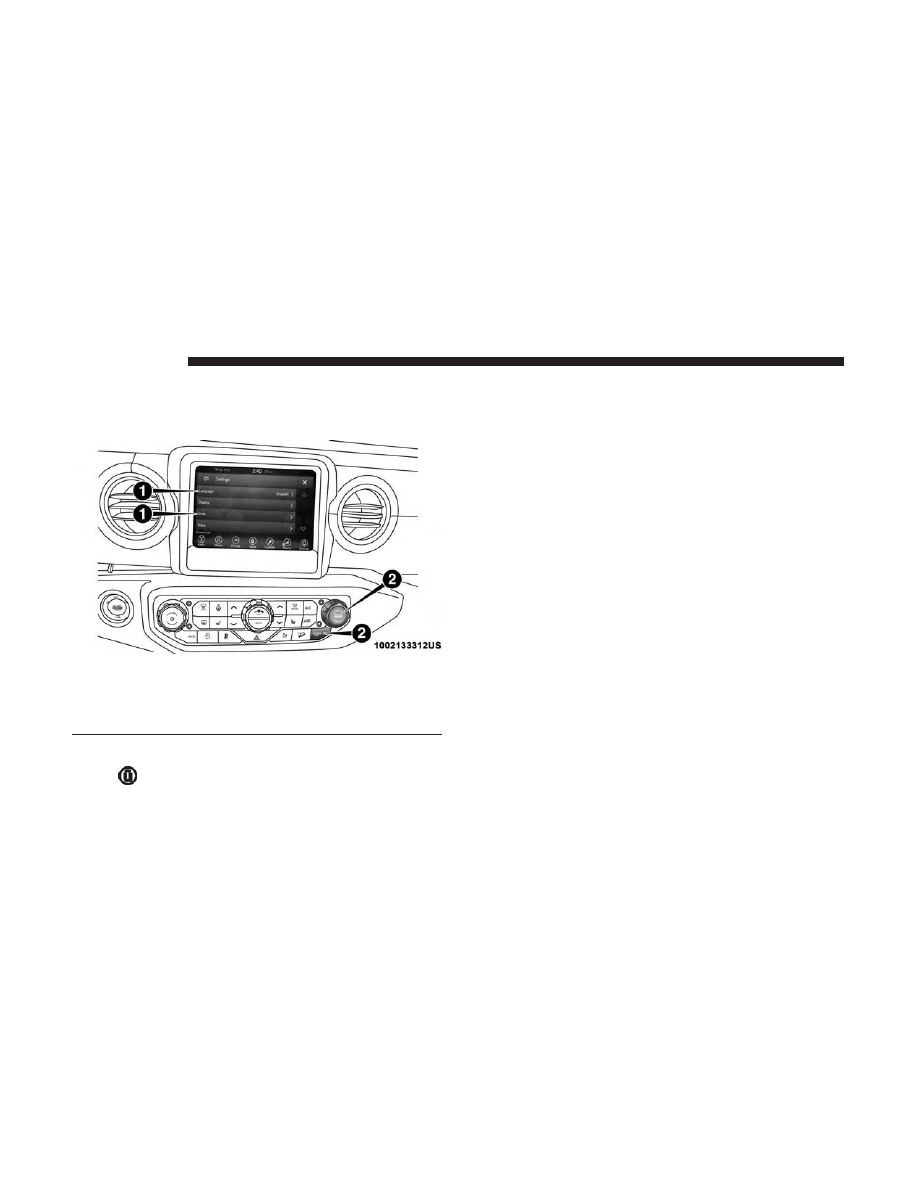

Uconnect 4 With 7-inch Display Touchscreen and Faceplate

Buttons

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

514

MULTIMEDIA

Language

After pressing the “Language” button on the touchscreen,

the following settings will be available:

Setting Name

Selectable Options

Language

English

Espanol

Francais

Display

After pressing the “Display” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Display Mode

Auto

Manual

Display Brightness Headlights On

Display Brightness Headlights Off

AutoShow

Off

Touchscreen Beep

Off

Control Screen Timeout

Off

Phone Pop-ups Displayed in Cluster

Off

MULTIMEDIA

515

Units

After pressing the “Units” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Units

Metric

Custom

NOTE:

• The “Metric” option changes the instrument cluster display to metric units of measure.

• The “Custom” option allows setting the “Distance, Fuel Consumption” (MPG (US), MPG(UK), L/100km, or km/

L),“Pressure” (kPa, or bar) and “Temperature” (C, or F) units of measure independently.

Voice

After pressing the “Voice” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Voice Response Length

Brief

Detailed

Show Command List

Always

With Help

Never

516

MULTIMEDIA

Time & Date

After pressing the “Time & Date” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Set Time Hours

NOTE:
The “Set Time Hours” feature will allow you to adjust the hours.

Set Time Minutes

NOTE:
The “Set Time Minutes” feature will allow you to adjust the minutes.

Time Format

12hrs

24hrs

MULTIMEDIA

517

Jeep Wrangler (2018 year). Instruction - part 32
