Jeep Renegade (2018 year). Instruction - part 19

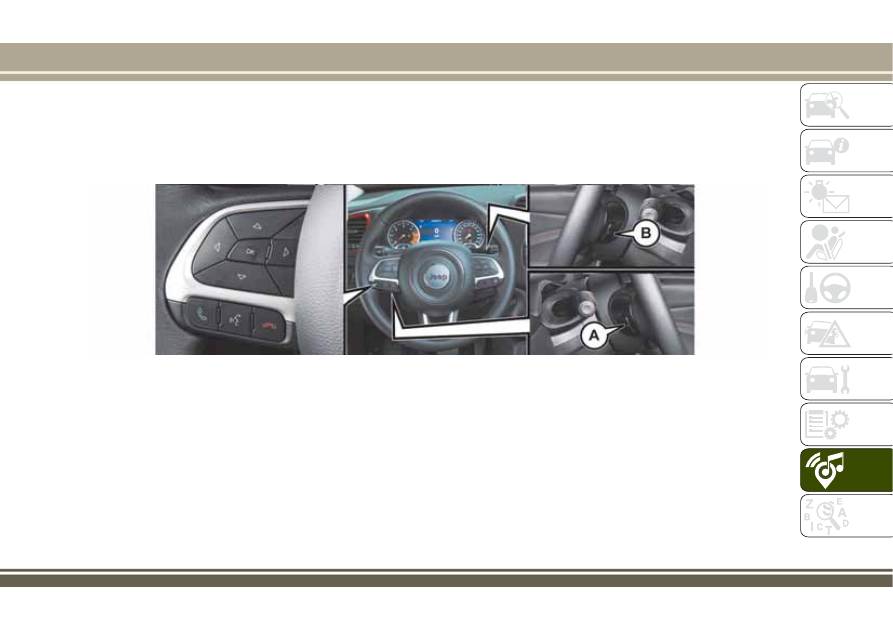

Controls behind the steering wheel

Buttons

Interaction

Button A (steering wheel left side)

Upper button

Brief button press

: search for next radio station or selection of USB next track

Long button press

: scan of higher frequencies until released/fast forward of USB

track

Central button

With each press it scrolls through sources AM, FM, USB, AUX (where provided).
Only the available sources will be selected.

Lower button

Brief button press

: search for next radio station or select USB previous track

Long button press

: scan of lower frequencies until released/fast forward of USB

track.

Button B (steering wheel right side)

Upper button

Increasing volume

Brief button press

: single volume increase

Long button press

: fast volume increase

Central button

Activation/deactivation of Mute function

Lower button

Decreasing volume

Brief button press

: single volume decrease

Long button press

: fast volume decrease

301

"TOUCH SCREEN" FUNCTION

The system uses the "touch screen”
function; to interact with the different
functions, press the "graphic buttons"
displayed.
Press the “OK” button to confirm the
selection.
To go back to the previous screen, press
the

(Delete) button or

/Done,

depending on the active screen.

USB/AUX SOURCE

The car has a USB/AUX port (where
provided) on the central tunnel.

RADIO MODE

for selecting the previous or

next radio station.
At the bottom: display of the following
buttons:

“Browse”: list of the radio stations

available;

“AM/FM”, “AM/DAB”, “FM/DAB”:

selection of the desired frequency band
(button reconfigurable according to the
band selected: AM,FM or DAB);

"Tune" : manual radio station tuning

(not available for DAB radios);

“Info”: additional information on the

source being listened to;

“Audio”: access to the “Audio

Settings” screen.

Audio menu

The following adjustments can be carried
out using the "Audio" menu:

“Equaliser” (where provided);
“Balance/Fader” (left/right and

front/rear audio balance adjustment);

“Volume/Speed” (excluding versions

with Hi-Fi system) speed-dependent
automatic volume adjustment;

“Loudness” (where provided);
"Auto-On Radio" (selects the radio

operation when the ignition device is
turned to MAR).

MEDIA MODE

IMPORTANT Applications used on
portable devices may be not
compatible with the Uconnect™
system.

Track selection (Browse)

With Media mode active, briefly press
buttons

to play the

previous/next track or keep buttons

pressed to fast rewind/forward the

track.
NOTE For languages not supported by
the system which feature special
characters (e.g. Greek), the keyboard is
not available. In these cases this
function will be limited.

Bluetooth SOURCE

Pairing an audio device

Bluetooth®

Proceed as follows:

activate the Bluetooth® function on

the device;

Press the MEDIA button on the front

panel;

if the "Media" source is active, press

the "Source" button;

select the Bluetooth® Media source;

press the "Add Device" button;

search for Uconnect™ on the

Bluetooth® audio device (during the
pairing stage a screen is displayed
showing the progress of the operation);

when requested by the audio device,

enter the PIN code shown on the system
display or confirm on the device the PIN
displayed;

302

MUL

TIMEDIA

if the pairing procedure is completed

successfully, a screen is displayed.
Answer "Yes" to the question to pair the
Bluetooth® audio device as favourite (the
device will have priority over all other
devices that will be paired subsequently).
If "No" is selected, the priority is
determined according to the order of
pairing. The last device connected will
have the highest priority;

an audio device can also be paired by

pressing the

PHONE button on the

front panel and by selecting "Settings" or,
from the "Settings" menu, selecting
"Phone/Bluetooth".

IMPORTANT If the

Bluetooth

® pairing

between mobile phone and system is
lost, consult the mobile phone owner's
handbook.

PHONE MODE

Activation of phone mode: press the

PHONE button on the frontplate.

Use the buttons on the display to:

dial the phone number (using the

graphic keypad on the display);

display and call the contacts in the

mobile phone phonebook;

display and call contacts from the

registers of previous calls;

pair up to 10 phones/audio devices to

make access and connection easier and
quicker;

transfer calls from the system to the

mobile phone and vice versa and
deactivate the microphone audio for
private conversations.
NOTE: Cell phone audio is transmitted
via the car audio system: the system
automatically deactivates the audio
system when you use the Phone function.
NOTE To consult the list of mobile
phones and supported functions, visit the
www.driveuconnect.eu website

Pairing a mobile phone

Proceed as follows:

activate the Bluetooth® function on

the cell phone;

press the

PHONE button on the

front panel;

if no phone is paired with the system

yet, the display shows a dedicated
screen;

select “Yes” to start the pairing

procedure, then search for the
Uconnect™ device on the mobile phone
(if "No" is selected, the Phone main
screen is displayed);

when prompted by the mobile phone,

use its keypad to enter the PIN code
shown on the system display or confirm
on the mobile phone the PIN displayed;

from the “Phone” screen you can

always pair a mobile phone by pressing
the “Settings” button: press the “Add
Device” button and proceed as described
above;

during the pairing stage a screen is

displayed showing the progress of the
operation;

when the pairing procedure is

completed successfully, a screen is
displayed: answer "Yes" to the question to
pair the mobile phone as favourite (the
mobile phone will have priority over all
other mobile phones to be paired
subsequently). If no other devices are
paired, the system will consider the first
associated device as favourite.
NOTE To ensure proper operation after
updating the phone software, it is
recommended to remove the phone from
the list of devices linked to the radio,
delete the previous system pairing also
from the list of Bluetooth devices on the
phone and make a new pairing.

Making a phone call

Proceed as follows:

selecting the

icon (mobile phone

phonebook);

selecting “Recent Calls”;
selecting the

icon (graphic

keyboard);

pressing the “Redial” button.

303

Call browsing

(where provided)
Using the

steering wheel

controls, you can view and manage your
latest calls on the instrument panel
display.
Pressing the

steering wheel command

button will display the last 10 calls
(missed/received/made).
Using the

steering wheel

controls, you can select the desired
number from the last 10 calls and call
back by pressing the

button again

To exit the menu and/or terminate the
ongoing call, press the "handset down"

steering wheel command button.

NOTE: the operations described above
are accessible only if supported by the
cell phone in use.

Text message reader

The system can read the messages
received by the mobile phone. To use this
function the mobile phone must support
the SMS exchange function through
Bluetooth®.

If this function is not supported by the
phone, the corresponding

button is

deactivated (greyed out).
When a text message is received, the

display will show a screen where the
options "Listen", "Call" or "Ignore" can be
selected.
You can access the SMS message list
received by the cell by pressing the
graphic

button (the list shows a

maximum of 60 received messages).
NOTE On some mobile phones, to make
the SMS voice reading function
available, the SMS notification option on
the phone must be enabled; this option
is usually available on the phone, in the
Bluetooth® connections menu for a
device registered as Uconnect™. After
enabling this function on your phone, you
need to disconnect and reconnect the
phone using the Uconnect™ system to
effect enabling.

IMPORTANT Some mobile phones may
not take the SMS delivery confirmation
settings into account when interfacing
with Uconnect™. If an SMS message is
sent via Uconnect™, the user could
face an additional cost, without any
warning, due to the SMS delivery
confirmation request sent by the
phone. For any problems related to the
above, contact your telephone service
provider.

SMS message options

Default SMS messages are stored in the
system memory and can be sent to
answer a received message or as a new
message.

Yes
No
Okay
I can't talk right now
Call me
I'll call you later
I'm on my way
Thanks
I'll be late
Stuck in traffic
Start without me
Where are you?
Are you there yet?
I need directions
I'm lost
See you later
I will be 5 (or 10, 15, 20, 25, 30, 45,

60) (*) minutes late

See you in 5 (or 10, 15, 20, 25, 30,

45, 60) (*) minutes
(*) Only use the numbers listed,
otherwise the system will not take the
message.
NOTE For details on how to send an SMS
using the voice commands, refer to the
dedicated paragraph.

304

MUL

TIMEDIA

Uconnect™ LIVE SERVICES

(where fitted)
Pressing the APPS button you get to the
menu where all the system's application
functions are, such as: Settings,
Compass (if available in the navigation
system), Uconnect™LIVE applications.
If the Uconnect™ icon is there, the
system is prepared for services linked to
the use of applications for more efficient
and evolved use of the car, directly from
the radio. The application functions are
present according to the vehicle
configuration and to the market.
To use the Uconnect™LIVE services, you
need to:

download the App Uconnect™LIVE

from: The "App Store" or "Google play" on
your compatible smart phone, making
sure you have the enabled information

from the www.driveuconnect.eu site or
the www.jeep-official.it site.

start App Uconnect™LIVE on your

smart phone and enter your credentials.
For more information relating to the
services available on the market, consult
the www.driveucoinnect.eu site.

First access to the vehicle

After starting App Uconnect™LIVE and
entering your credentials, to access the
App Uconnect™LIVE services in the car

you need Bluetooth® coupling between
your smart phone and the system as
described in the "Registering your cell
phone" chapter. The list of supported
mobile phones is available on
www.driveuconnect.eu.

Once coupling is done, press the
Uconnect™ icon on the screen will let
you access the connected services.
A dedicated message will appear on the
display when the activation process has
been completed. In the case of services
that require a personal profile, you can
connect your own account through App
Uconnect™LIVE or in the reserved area on
the www.driveuconnect.eu site.
The presence of the application my:Car
does not replace the information
described in the car's Use and
Maintenance Handbook.

User not connected

If the Bluetooth® coupling has not been
effected, by pressing the Uconnect™
button, the system menu shows the
disabled icons, with the exception of the
eco:Drive™. Further information about
the eco:Drive™ functions is available in
the dedicated chapter.

Settings for Uconnect LIVE managed
through the radio.

Through the Radio menu dedicated for
the Uconnect™LIVE services you can
access the "Settings" section by pressing
the

icon. In this section you can check

the system options and change them
according to your preferences.

System updating

In case a system update is available for
Uconnect™ during use of the
Uconnect™LIVE services, a message to
this effect will appear on the screen.
The update provides downloading the
new software version for Uconnect™LIVE
services management. Updating is
effected when using the traffic data from
the coupled smart phone: the amount of
traffic generated will be communicated
to the driver.
In order not to compromise the proper
functioning of the Uconnect™ during
installation, do not carry out any other
operations but wait until it is finished.

305

App Uconnect™

LIVE

To access services linked to onboard the
car, you need to have installed App
Uconnect™LIVE on your smart phone
through which you can manage your profile
and personalise your own Uconnect™LIVE
experience.
The App can be downloaded by: The
"App Store" or "Google play". For safety
reasons, the App cannot be accessed
when the phone is paired with the radio.
Access to Uconnect™LIVE services via
radio requires the entry of personal
credentials (email and password), so the
contents of your own personal account
are protected and accessible only by the
real user.

Connected services that can be accessed
on the vehicle

The Uconnect™LIVE services available in
the radio menu can vary according to the
market.
The eco:Drive™ and my:Car have been
developed for the customer's greater
driving experience and therefore are
usable in all markets where the
Uconnect™LIVE are accessible. For
further information visit the
www.driveuconnect.eu website.
If the radio has installed the navigation
system, access to Uconnect™LIVE

services facilitates use of the TomTom
"LIVE" services. Further details of the
"LIVE" operations are available on the
dedicated section

eco:Drive™

The eco:Drive™ system lets you view your
driving behaviour in real time, with the
aim of helping you achieve more efficient
driving from the point of view of
consumption and emissions.
In addition, you can also save the data
on a USB key or thanks to App
Uconnect™LIVE and effect data processing
on your own computer thanks to the
desktop application eco:Drive™ available
on www.jeep-official.it or
www.driveuconnect.eu.
Evaluation of the driving style is linked to
four indexes that monitor the following
parameters: acceleration/deceleration/
gear shift/speed.

Viewing eco:Drive

To interact with the function, press the
graphic eco:Drive™ button.
A screen will be displayed showing the
4 indices described above. These indices
are grey until the system has enough
data to evaluate the driving style.
Once sufficient data are available, the
indices will have 5 colours depending on

the evaluation: dark green (very good),
light green, yellow, orange and red (very
bad).
" Current route index" refers to the entire
value calculated in real time based on
the average of the described indices. It
represents eco-friendliness of the driving
style: from 0 (low) to 100 (high).
In case of prolonged stops, the screen
will show the average indexes obtained
up to that moment (the " Average Index")
to later start recolouring the indexes in
real time when the car starts moving
again.
If you want to confirm the data averages
from the previous trip (by "trip" a cycle of
positioning the starting device in MAR
and later in STOP is meant), select the
graphic button " Previous Route".
The details of the previous trip can also
be displayed by pressing the " Details"
button, in which journey duration (time
and mileage) and average speed will be
reported.

Trip data storage and transfer

The travel data can be saved in the
system memory and transferred via a
USB key that has been purposefully
configured or thanks to the App
Uconnect™LIVE. This allows you to
display the history of the collected data,
showing the complete analysis of the trip

306

MUL

TIMEDIA

data and of your driving style.
More information is available on the
www.driveuconnect.eu site.

IMPORTANT Do not remove the USB
key or uncouple the smart phone with
the App Uconnect™LIVE before the
system has downloaded the data,
because it could be lost. During the
transfer of data to the devices,
messages may appear on the radio
display to guide the user correctly
through the operation; follow these
instructions. These messages are
viewed only on the starter device in
STOP position and when a delay is set
in turning off the system. The data are
automatically transferred to the
devices when the engine is switched
off. Transferred data will be deleted
from the system memory in this
manner. You can decide to register the
travel data or not by pressing the
graphic button " Settings" and setting
registration activation and the mode of
transfer to USB or Cloud.

When the USB key memory is full, the
radio screen will show messages to that
effect.
When the eco:Drive™ data have not been
transferred to the USB key for a while,
the internal memory system

Uconnect™LIVE could become saturated:
in this case, follow the recommendations
provided by the messages on the
Uconnect™ screen.

my:Car

my:Car lets you always have the car's
health status under control.
The my:Car application is capable of
detecting malfunctioning in real time and
lets the driver know about the expiry of
maintenance coupons,
To interact with the application, press the
graphic button "my:Car": on the screen
there is a section "care:Index" where all
the detailed information on the car's
status will be shown. Pressing the
graphic button "Active signalling" you can
see (if there are any) the details of the
fault detected on the car which has
caused a warning light to go on.
The car's status can be viewed on both
the www.driveuconnect.eu and via App
Uconnect™LIVE.

SETTINGS

Press the SETTINGS

button on the

front panel to display the “Settings”
main menu.
NOTE The menu items displayed vary
according to the versions.

Indicatively, the menu includes the
following items:

Display;
Units;
Voice;
Clock & Date
Safety/Assistance (where provided)
Brakes (where provided)
Lights (where provided)
Doors & Locks
Vehicle Off Options
Audio
Phone/Bluetooth
Setup SiriusXM (where provided)
Radio Setup
Restore settings
Clear personal data
Restore apps

Safety/Assistance

(where provided)
This function can be used to carry out
the following adjustments:

ParkView Camera
(where provided)
This function can be used to carry out
the following adjustments:

“Active Guidelines” (where provided):

enables dynamic grids that indicate the
path of the car on the display.

“ParkView Camera Delay” (where

provided): lets you delay turning off the

307

camera images when disengaging reverse
gear.

Forward Collision Warning
(where provided)
With this function you can select the way
the Forward Collision Warning operates.
The options available are:

“Off”: disables the system;
“Active Braking Only”: the system

intervenes by activating automatic
braking (where provided);

“Alarm + Active Braking”: the system

intervenes by providing an acoustic
signal and activating automatic braking.

Fwd Coll. Sensitivity
(where provided)
With this function, you can select the
"reactivity" of the system intervention
based on the distance from the obstacle.
The available options are “Near”, “Med”
(where provided), “Far”.

ParkSense
(where provided)
This function can be used to select the
type of warning provided by the
ParkSense system.
The options available are:

“Off”: disables the system;
“Sound Only”: the system warns the

driver that there is an obstacle using

acoustic warnings only, via the car
speakers.

“Sound & Display”: the system warns

the driver that there is an obstacle using
acoustic (via the car speakers) and visual
(on the instrument panel) warnings.

Front ParkSense Vol.
(where provided)
With this function, you can select the
acoustic signal volume provided by the
front Parksense system.

Rear ParkSense Vol.
(where provided)
With this function, you can select the
acoustic signal volume provided by the
rear Parksense system.

LaneSense Warning
(where provided)
With this function, you can select the
"readiness" of the LaneSense system
operation.

LaneSense Intensity
(where provided)
This function can be used to select the
force to apply to the steering wheel to
put the car back in the lane through the
electric steering system, in the event of
LaneSense system intervention.

Side Distance Warning
(where provided)
With this function, you can select the
type of signalling for the Side Distance
Warning.
The options available are:

“Off”: disables the system;
“Sound Only”: the system warns the

driver that there is an obstacle using
acoustic warnings only, via the car
speakers.

“Sound & Display”: the system warns

the driver that there is an obstacle using
acoustic (via the car speakers) and visual
(on the instrument panel) warnings.

Side Distance Warning Intensity
(where provided)
With this function, you can select the
acoustic system volume for the Side
Distance Warning.

Blind Spot Alert
(where provided)
With this function, you can select the
type of warning (“Sound Only” or “Sound
& Display”) used to indicate an object in
the outside rear view mirror blind spot.

Rain sensor
(where provided)
With this function, you can select the
activate/deactivate automatic windscreen
wipers in case of rain.

308

MUL

TIMEDIA

VOICE COMMANDS

NOTE For languages not supported by
the system, voice commands are not
available.
To use the voice commands, press the
“Voice”

button on the steering wheel

controls and say the function you want to
activate aloud.

Global voice commands

The following voice commands can be
given after pressing the

button on the

steering wheel:

Help
Cancel
Repeat
Voice Prompts

Phone voice commands

The following voice commands can be
given after pressing the

button on the

steering wheel:

Call <Mario Rossi>
Call <Mario Rossi mobile>
Dial
Re-dial
Call back
Recent calls
Calls made
Missed calls
Calls received
PhoneBook
Search <Mario Rossi> in phonebook

Search <Mario Rossi mobile> in

phonebook

Show SMS
Send text message to <0127457322>
Show messages

Radio voice commands

The following voice commands can be
given after pressing the

button on the

steering wheel:

Tune to <105.5> <FM>
Tune to <940> <AM>
Tune to <EMMEDUEO>
Tune to DAB channel <Radio Deejay>

Media voice commands

The following voice commands can be
given after pressing the

button on the

steering wheel:

Play song...
Play album…
Play artist…
Play genre…
Play playlist…
Play podcast…
Play audiobook…
Play the track number...
Select the source...
View...

eco:Drive voice commands

(where provided)
The following voice commands can be
given after pressing the

button on the

steering wheel:

Enable eco:Drive
Disable eco:Drive
Show current trip
Show previous trip

309

Uconnect™ 7” HD LIVE

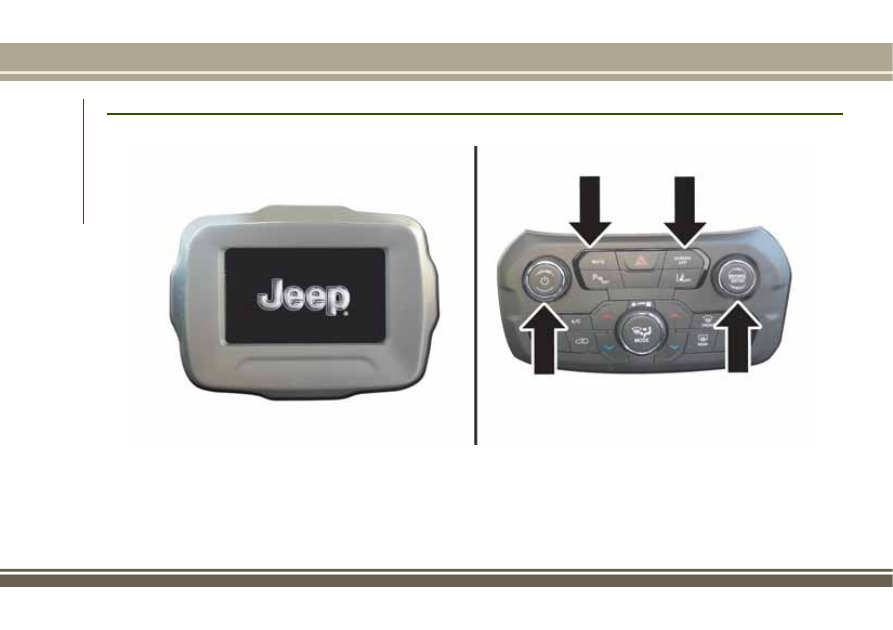

CONTROLS

213

J0A0633C

310

MUL

TIMEDIA

GRAPHIC BUTTONS ON DISPLAY

Button

Functions

Mode

Radio

Access to the Radio mode

Press button

Media

Source selection: USB, AUX (where provided),

Bluetooth®

Press button

Phone

Access to the Phone mode

Press button

Apps

Access to additional functions (display of Time,

Compass, Outside temperature, Media Player and

Uconnect

™

LIVE service, where fitted)

Press button

Compass

Viewing compass information

Press button

Settings

Access the settings menu

Press button

Audio

Access the Audio settings menu

Press button

Clima

Access the Climate Control settings menu

Press button

311

CONTROLS ON DASHBOARD

Button

Functions

Mode

/ VOLUME

On/off

Short button press

Volume adjustment

Left/right rotation of knob

SCREEN OFF

Display on/off

Short button press

MUTE

Volume activation/deactivation (Mute/Pause)

Short button press

TUNE SCROLL / BROWSE

ENTER

Confirmation of the option displayed

Open browsing list (Radio or Media mode)

Short button press

Scrolling the list or tuning to a radio station

Display list of stations (Radio mode)

Scroll contents of sources (Media mode)

Media source track change

Station change (RADIO mode)

Left/right rotation of knob

312

MUL

TIMEDIA

STEERING WHEEL CONTROLS

(where provided)
The controls for the main system functions are present on the steering wheel to make control easier. The activation of the function
selected is controlled, in some cases, by how long the button is pressed (short or long press) as described in the table below.

313

214

J0A0004C

Controls on steering wheel summary table

Button

Interaction

Acceptance of incoming call

Acceptance of the second incoming call and putting the active call on hold

The instrument panel displays a list of the last 10 calls and favourite phone numbers (only with call browsing active)

Activation of voice recognition

Interruption of the voice message in order to give a new voice command

Interruption of voice recognition

Rejection of incoming call

Ending of call in progress

Exits from the instrument panel display of the last calls (only with call browsing active)

Short press (Phone mode): selection, on the instrument panel display, of the last calls/text messages (only with call

browsing active)

314

MUL

TIMEDIA

CONTROLS BEHIND THE STEERING WHEEL

Buttons

Interaction

Button A (steering wheel left side)

Upper button

Brief button press

: search for next radio station or selection of USB next track

Long button press

: scan of higher frequencies until released/fast forward of USB

track

Central button

With each press it scrolls through sources AM, FM, USB, AUX (where provided).
Only the available sources will be selected.

Lower button

Brief button press

: search for next radio station or select USB previous track

Long button press

: scan of lower frequencies until released/fast forward of USB

track.

Button B (steering wheel right side)

Upper button

Increasing volume

Brief button press

: single volume increase

Long button press

: fast volume increase

Central button

Activation/deactivation of Mute function

Lower button

Decreasing volume

Brief button press

: single volume decrease

Long button press

: fast volume decrease

315

"TOUCH SCREEN" FUNCTION

(Delete) button or

/Done,

depending on the active screen.

RADIO MODE

After the desired radio station is
selected, the following information is
shown on the display:
At the top: the list of radio stations stored
(preset) is displayed; the station currently
playing is highlighted.
At the centre: the name of station being
listened too is displayed.
On the left side: displays the “AM”, “FM”,
“DAB” (where provided) buttons for
selecting the desired frequency band (the
button corresponding to the selected
band is highlighted).
On the right side: displays the “Info”
button: Additional information on the
source being listened to.
At the bottom: display of the following
buttons:

“Browse”: list of the radio stations

available;

selecting previous/next

radio station;

“Tune” : manual radio station tuning;
“Audio”: access to the “Audio

Settings” screen.

Audio menu

To access the "Audio" menu press the
Audio" button located at the bottom of
the display.
The following adjustments can be carried
out using the “Audio” menu:

“Balance & Fader" (left/right and

front/rear audio balance adjustment)

“Equaliser” (where provided)
“Speed Adj Volume” (speed-

dependent automatic volume control)

“Loudness” (where provided)
“AUX Volume compensation” (only

active if an AUX device is inserted)
(where provided)

“AutoPlay”
“Auto-On Radio”
“Radio Off with Door”

MEDIA MODE

Press the "Media" button to select the
desired audio source among those
available: USB, Bluetooth® and AUX
(where provided).

IMPORTANT Applications used on
portable devices may be not
compatible with the Uconnect™
system.

After Media mode is selected, the
following information is shown on the
display.
At the top: information on the track being
played and the following graphic buttons:

“Repeat”: to repeat the track being

played;

“Shuffle”: to play the tracks in

random order;

Track progress and duration.

In the middle: information on the track
being played.
On the left: display of the following
buttons:

Selected device or audio source;
“Select Source”: select the required

audio source.
On the right: display of the following
buttons:

“Info”: additional information on the

track being played;

“Tracks”: list of available tracks.

At the bottom: information on the track
being played and the following graphic
buttons:

“Bluetooth”: for a Bluetooth® audio

source, opens the list of devices;

316

MUL

TIMEDIA

Content .. 17 18 19 20 ..
