Jeep Renegade (2018 year). Instruction - part 2

IMPORTANT If this function is
activated with engine off the battery
may run down.

Auto On Comfort (where provided)

The electric heated steering wheel is
switched on automatically whenever the
engine is started and the outside
temperature is lower than 4.4°C. This
functionality can be enabled or disabled
from the Uconnect™ system Menu.

WARNING

16) All adjustments must be carried out
only with the car stationary and engine
off.
17) It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g. installation of
anti-theft device) that could adversely
affect performance and safety, invalidate
the warranty and also result in the car not
meeting type-approval requirements.

REAR VIEW MIRRORS

INTERIOR MIRROR

The mirror is fitted with a safety device
that causes its release in the event of a
violent impact with the passenger.
Operate lever A fig. 27 to adjust the
mirror into two different positions:
normal or anti-glare.

ELECTROCHROMIC INTERIOR
MIRROR

(where provided)
On some versions, an electrochromic
mirror is available, that can automatically
modify its reflecting action to prevent
dazzling the driver fig. 28.

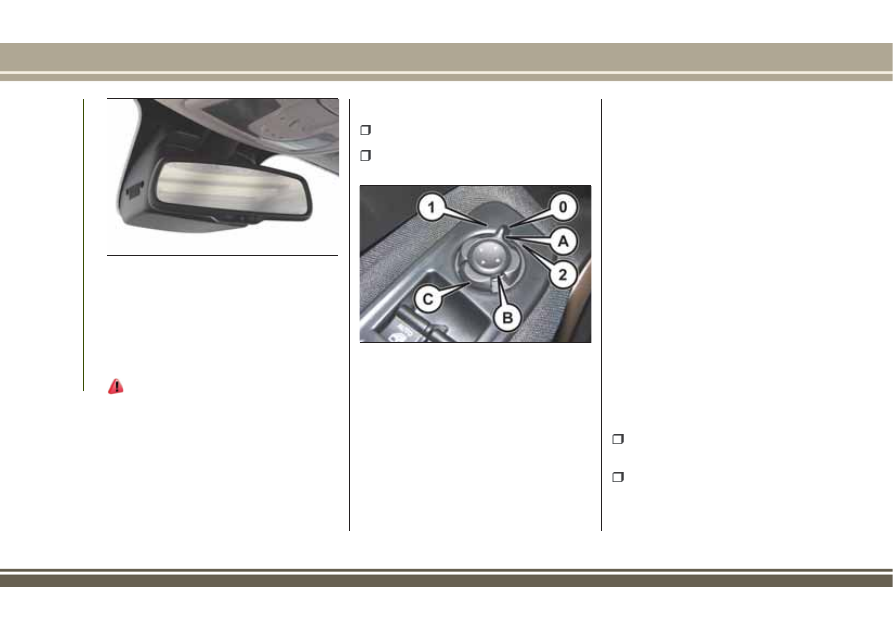

J0A0899C

J0A0060C

The electrochromic mirror has an
ON/OFF button to activate/deactivate the
electrochromic anti-glaring function.

DOOR MIRRORS

Electric adjustment

18)

Adjusting the mirrors is possible with the
ignition device at MAR and for about
3 minutes after the ignition device
switches to STOP (or also after the
mechanical key has been extracted, for
cars equipped with mechanical key with
remote control). When one of the front
doors is opened this operation is
disabled.

Select the desired mirror using device A
fig. 29:

device in position 1: left mirror

selected;

device in position 2: right mirror

selected.

To adjust the selected mirror, press
button B fig. 29 in the four directions
shown by the arrows.

IMPORTANT To prevent accidental
movement once adjustment is
complete, rotate device A fig. 29 to
position 0.

Electric mirror folding

(where provided)
To fold the mirrors, press button C

fig. 29. Press the button again to restore
the mirrors to the driving position. If
button C is pressed during door mirror
folding (from closed to open position and
vice versa), their movement direction is
reversed.
You can fold or open the mirrors with the
ignition device at MAR and for about
3 minutes after switching the ignition
device to STOP (or also after extracting
the mechanical key, for cars equipped
with a mechanical key with remote
control). When one of the front doors is
opened this operation is disabled.

IMPORTANT While driving mirrors
must always be open and should never
be folded.

Mirrors realignment operation

In case one of the door mirrors has been
moved manually it may occur that the
mirror itself does not retain its position in
a stable way while driving.
In that case it is necessary to carry out
the following realignment operation:

manually close the mirror to the

parking position by folding it from
position 1 to position 2 fig. 30;

operate the mirror opening control C

fig. 29 once or twice to realign the
system and bring both mirrors to the
driving position.

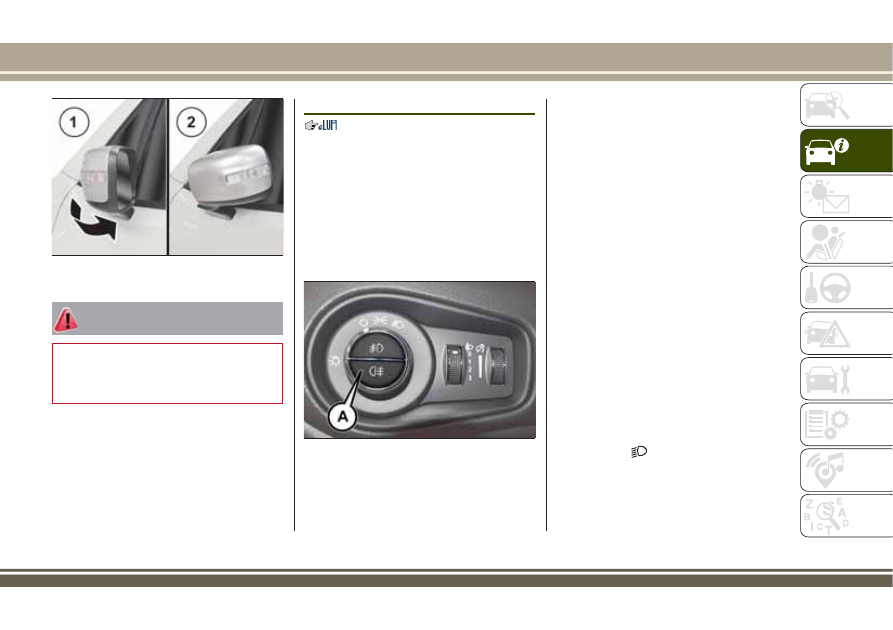

J0A0059C

J0A0061C

GETTING

KNOW

YOUR

CAR

WARNING

18) As the driver's door mirror is curved, it
may slightly alter the perception of
distance.

EXTERIOR LIGHTS

LIGHT SWITCH

Light switch A fig. 31, located on the left
side of the instrument panel (left hand
drive versions) or on the right side (right
hand drive versions), controls the
headlamp operations, parking lights,
daytime lights, low beams, fog lights,
rear fog lights, and regulates the
instrument panel lighting and the
symbols on the control buttons.

Outside lighting can happen only when
the starter is in position MAR.
The instrument panel and the various

controls on the dashboard will be lit up
when the exterior lights are switched on.

AUTO FUNCTION

(Dusk sensor)
(where provided)
This is an infrared LED sensor that works
in conjunction with the rain sensor and is
located on the windscreen. It is able to
detect variations in outside lighting
based on the light sensitivity and adjusts
the display Menu or the Uconnect™
system.
The higher the sensitivity, the lower the
amount of external light needed to switch
the lights on.
Function activation: turn the light switch
to AUTO.
Function deactivation: turn the light
switch to a position other than AUTO.

IMPORTANT This function can only be
activated with the ignition device at
MAR.

DIPPED BEAM HEADLIGHTS

With the ignition device on MAR, turn
the switch to

. If the dipped beam

headlights are activated, the daytime
lights are switched off and the dipped
beam headlights, side lights and number
plate lights are switched on. The

J0A0209C

J0A0888C

warning light switches on in the

instrument panel.

DAYTIME RUNNING LIGHTS
(DRL)

"Daytime Running Lights"
(where provided)

19) 20)

With the ignition device turned to MAR
and the light switch turned to position O
the daytime running/side lights are
automatically activated; the other lights
and interior lighting remain off.
The daytime running lights are
temporarily deactivated when the
direction indicators are activated. When
the direction indicators are deactivated,
the daylight running lights are
reactivated.

FRONT FOG LIGHTS

(where provided)
With the ignition device in MAR, with the
side lights and dipped beam headlights
on, press switch

to turn on the fog

lights.
To switch off the fog lights press the
switch again or turn it to position O.

“Cornering Lights” function

The function activates with the main
beam headlights switched on with a
speed lower than 40 km/h - For wide

wheel rotation angles or at the switching
on the direction indicator, a light will
turn on (built in the front fog light)
referring to the turning side which will
extend the night visibility angle.

REAR FOG LIGHT

With ignition device in MAR, press the

button to switch the light on/off.

The rear fog light switches on only when
the dipped beam headlights or fog lights
are switched on. The light switches off by
pressing the

button or by switching off

the main beam headlights or the fog
lights.

PARKING LIGHTS

These can be turned on by turning the
light switch ring to the

position. The

warning light on the instrument

panel turns on.
IMPORTANT NOTE Do not select this
light switch position when the car is
moving, but only to indicate that the car
is parked when prescribed by the
regulations in force in the country where
you are driving (Highway Code).
To turn the lights off, turn the light
switch ring to the O position

HEADLIGHTS OFF TIMER

Function activation

It is possible to enable switching on the
lights for the preset time by turning the
ignition device to STOP, with the light
switch ring nut in position

and then

turning the ring nut to position O.

IMPORTANT To activate this function
the headlights must be deactivated
within 2 minutes after the ignition
device has been taken to STOP.

Automatic function activation

(where provided)
If the car is equipped with a dusk sensor,
it is possible to enable the function
automatically: with the ignition device in
MAR, turn the light switch ring nut to
AUTO, if the sensor reports low light
levels, it will enable the dipped beam
headlights.
The headlights off delay is enabled
automatically when the ignition device is
turned to STOP with the headlights on
for the time selected in the Menu.

Function deactivation

This function is disabled by waiting for
the time set from the Menu, or by turning
the ignition device to the MAR position.

GETTING

KNOW

YOUR

CAR

If the headlights are switched off before
the ignition, they will switch off normally.

MAIN BEAM HEADLIGHTS

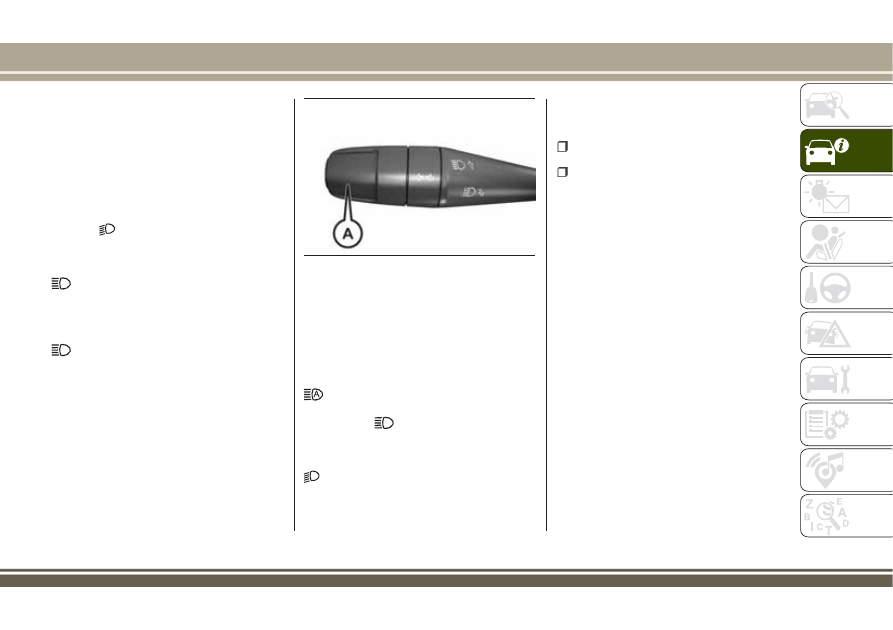

To activate the fixed main beam
headlights, with the ignition device in
MAR, push left lever A fig. 32 (car travel
direction). The light switch should be
turned to AUTO with the dipped beam
headlights on, or it should be turned to
position

To flash, the unstable position is used
(activate by pulling the lever towards
you). With main beam headlights on, the

warning light on the instrument

panel will come on at the same time.
The main beam headlights are
deactivated bringing the lever back to the
central stable position. Warning light

switches off in the instrument panel.

Automatic main beam headlights

This function is enabled with the display
Menu or the Uconnect™ system, and with
the light switch turned to AUTO.
The first time the main beam headlights
are activated (pushing the left lever), the
function is activated (green warning light

comes on in the instrument panel).

If the main beam headlights are actually
on, the blue

warning light will also

come on in the instrument panel.
To deactivate the automatic function
rotate the light switch ring nut to position

DIRECTION INDICATORS

Bring left lever A fig. 32 to the (stable)
position:

upwards: activates the right direction

indicator;

downwards: activates the left direction

indicator.

"Lane Change" function

If you wish to signal a lane change, place
the left lever in the unstable position for
less than half a second. The direction
indicator on the side selected will flash
five times and then switch off
automatically.

COURTESY LIGHTS

This function, with the ignition device in
MAR, allows activating the side lights
and the number plate lights for
25 seconds, each time the car is
unlocked with the key with remote
control, or the “Passive Entry” system
(where present).
Enabling the function can be adjusted
through the display Menu or the
Uconnect™system.
The function is automatically disabled
once the activation time elapses
(25 seconds), or when the car doors are
locked again, or by turning the ignition
device to a non-MAR position.

J0A0063C

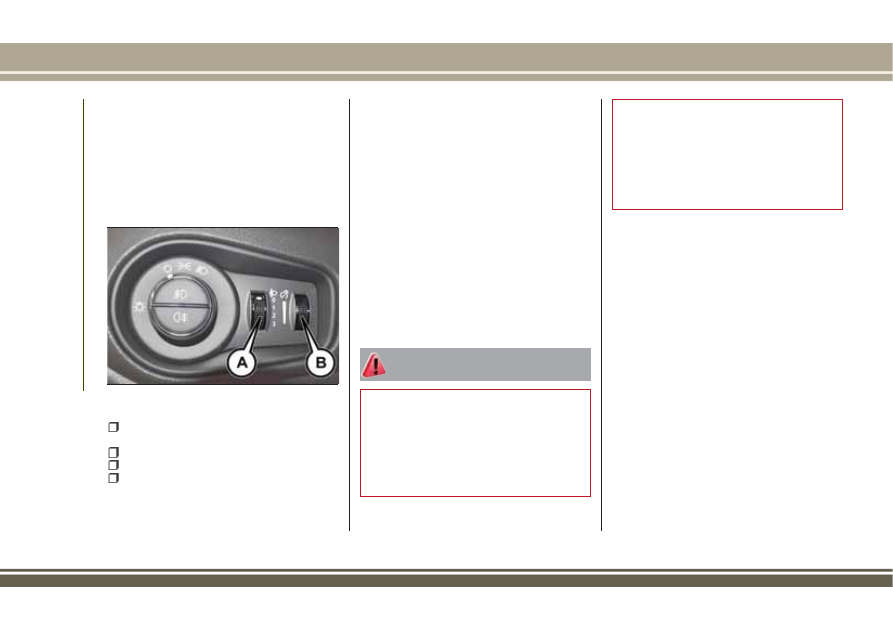

HEADLIGHT REGULATION

Headlight corrector

It only works with the starter device in
position MAR and the low beams on.
To regulate, turn the A ring fig. 33,
located on the left side of the instrument
panel (left hand drive version) or on the
right side (right hand drive).

Position 0: one or two people in the front

seats;

Position 1: 4 people
Position 2: 4 people + load in boot
Position 3: Driver + maximum load

allowed stowed in the boot

IMPORTANT Check the headlight
position every time the load weight is
changed.

INSTRUMENT PANEL AND
CONTROL BUTTON GRAPHIC
BRIGHTNESS ADJUSTMENT

The ring nut is located on the left side
(left hand drive versions) or on the right
side (right hand drive versions) of the
dashboard.
With side lights or headlights on, turn
ring nut B fig. 33 upwards to increase
light brightness of the instrument panel
and of the control button graphics, or
turn the ring nut downwards to decrease
it.

WARNING

19) The daytime running lights are an
alternative to the dipped headlights for
driving during the daytime in countries
where it is compulsory to have lights on
during the day; where it is not compulsory,
the use of daytime running lights is
permitted.

20) Daytime running lights cannot replace
dipped beam headlights when driving at
night or through tunnels. The use of
daytime running lights is governed by the
highway code of the country in which you
are driving. Comply with legal
requirements.

J0A0889C

GETTING

KNOW

YOUR

CAR

INTERIOR LIGHTS

FRONT CEILING LIGHT

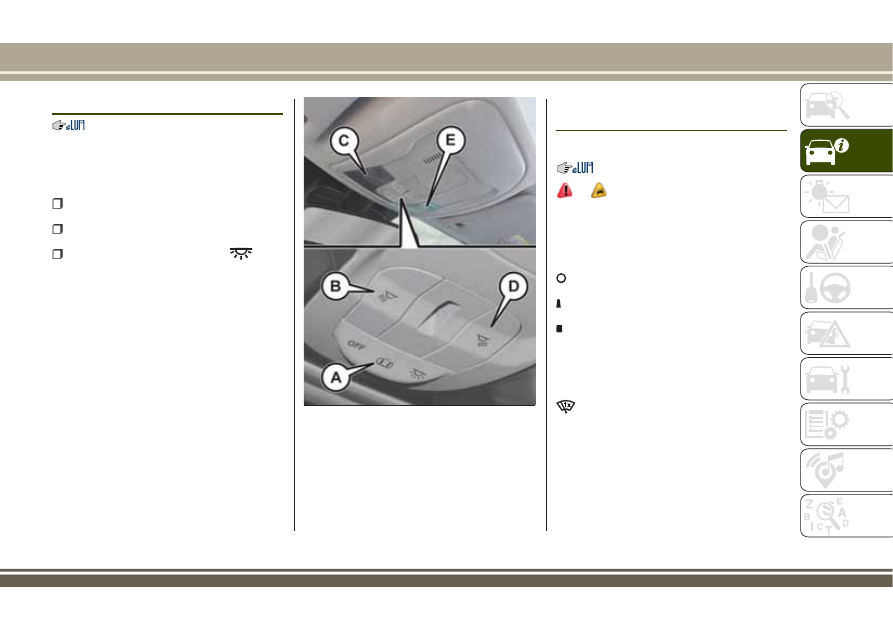

Switch A fig. 34 is used to switch on/off
the roof light bulbs.
Switch positions:

central position: lights C and E switch

on/off when the doors are opened/closed;

pressed to the left (position OFF):

lights C and E are always switched off;

pressed to the right (position

lights C and D are always switched on.
The lights switch on/off gradually.
Switch B fig. 34 switches light C on/off.
Switch D fig. 34 switches on/off light E.

Ceiling light timing

On certain versions, to facilitate getting
in/out of the vehicle at night or in
poorly-lit areas, two timed modes have
been provided: to enter and exit the car.

WINDSCREEN/REAR
WINDOW WIPER

WINDSCREEN WIPER / WASHER

21)

7) 8)

This operates only with the ignition
device at MAR.

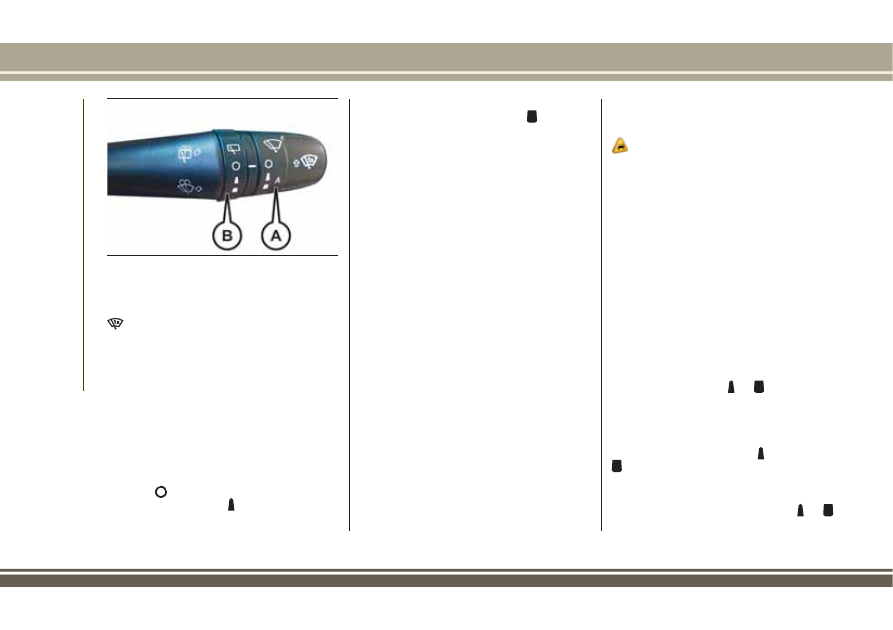

Ring nut A fig. 35 can be set to the
following positions:

windscreen wiper off.

fixed intermittent wipe (slow)

speed-dependant intermittent wipe

LO continuous slow operation

HI continuous fast operation

MIST function

J0A0024C

Move the stalk upwards (unstable
position) to activate the MIST

function: operation is limited to the

time for which the stalk is held in this
position. When released, the stalk will
return to its default position and the
windscreen wiper will be automatically
stopped.
IMPORTANT This function does not
activate the windscreen washer;
windscreen washer fluid will not
therefore be sprayed onto the
windscreen. To spray windscreen washer
fluid onto the windscreen, the washing
function must be used. With the ring A in
position

, the windscreen wiper is not

activated. In position

, the pause time

between the strokes of the windscreen

wiper is 10 seconds, independently of
the vehicle speed. In position

, the

pause time between two strokes is set
according to the vehicle speed: when the
speed increases, the time between two
strokes decreases. In position LO or HI,
the windscreen wiper moves
continuously, i.e. without a pause
between two strokes.

“Smart washing” function

Pull the stalk towards the steering wheel
(unstable position) to operate the
windscreen washer.
When the stalk is held pulled for longer
than half a second, the windscreen wiper
moves with active control. Releasing the
stalk will activate three strokes.
With the ring A in the LO or HI position,
the smart washing function is not
performed.
The windscreen wiper stops working
three strokes after the stalk is released.
IMPORTANT If the stalk is activated for
less than half a second, only the
windscreen washer jet is activated. Do
not prolong the activation of the "Smart
Washing" function for more than
30 seconds. Do not activate the
windscreen washer control when the
reservoir is empty.

RAIN SENSOR

(where provided)

9) 10)

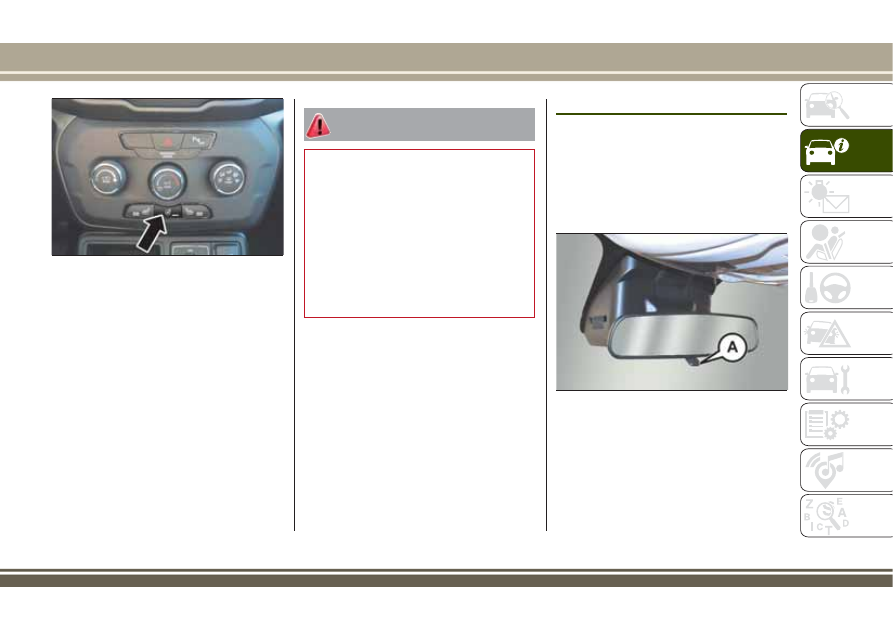

It is located behind the interior rear view
mirror, in contact with the windscreen,
and can detect the presence of rain and,
consequently, manage the automatic
windscreen wiping mode depending on
the amount of water on the screen (see
the “Automatic Wiping” paragraph).
The sensor will be activated when the
ignition device is turned to MAR, and will
be disabled with the ignition device in
the STOP position.

Automatic Wiping

Activation
You can choose automatic wiping by
selecting the rain sensor from the display
Menu or on the Uconnect™ system and
turning ring A to the

position.

Activation of the automatic wiping
function is signalled by a flick. The same
stroke will be visible every time the
sensor sensitivity is increased, by rotating
the ring nut from position

to position

Inhibition
If the ignition device is turned to STOP,
leaving the ring nut A in position

when the engine is next started (ignition

J0A0774C

GETTING

KNOW

YOUR

CAR

device at MAR), no wiping cycle occurs
for system protection reasons.
It is possible to reactivate the automatic
wiping mode in three ways:

by rotating ring A to the

position

and back to the

position

by moving the stalk upwards to

position MIST

upon exceeding the 5 km/h speed with

the rain sensor
Deactivation
Use the display Menu or the Uconnect

(TM)

system, or turn ring A to any

non-intermittent position (

REAR WINDOW WIPER /
WASHER

Activation

Ring B can be set to the following
positions:

rearscreen wiper off

intermittent wipe

continuous operation, without

pausing between two strokes.
By operating ring nut B, the rear window
wiper can function in the following
modes:

continuous: when the ring is turned to

the

position;

intermittent: when the ring nut is in

position

and the rear window wiper is

stopped;

synchronous: when the ring nut is in

position

and the rear window wiper is

moving or set to AUTO. In this mode, the
rear window wiper makes one stroke for
each two strokes of the windscreen
wiper;

single stroke: when the ring is in the

position, the windscreen wiper is

active and reverse gear is engaged.
Push the stalk towards the dashboard
(rocking position) to activate the rear
window washer jet. Keep pushing the
lever to automatically activate both the
rear window washer jet and the rear
window wiper with a single movement.

Deactivation

The function stops when the stalk is
released.

WARNING

21) Make sure the device is switched off
whenever the windscreen must be
cleaned.

IMPORTANT

7) Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor cut-out
switch, which prevents operation for a few
seconds, may intervene. If operation is not
subsequently restored, even after
restarting the engine, contact a Jeep
Dealership.
8) Do not operate the windscreen wiper
with the blades lifted from the windscreen.
9) Do not activate the rain sensor when
washing the car in an automatic car wash.
10) Make sure the device is switched off if
there is ice on the windscreen.

CLIMATE CONTROL SYSTEM

GETTING

KNOW

YOUR

CAR

MANUAL CLIMATE CONTROL SYSTEM

Controls

J0A0897C

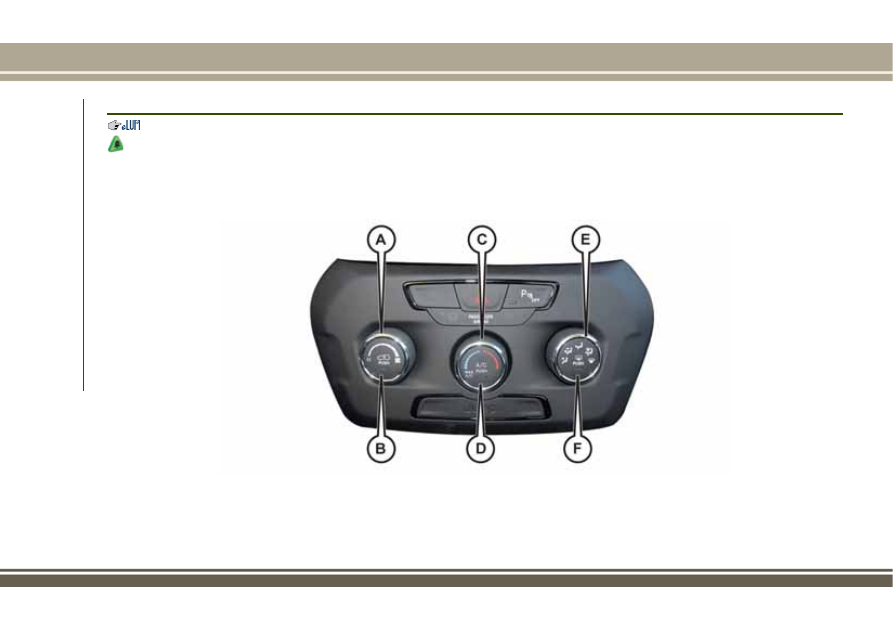

A - fan activation/adjustment knob:

0 = fan off

= fan speed (7 different speeds can be chosen)

B - air recirculation on/off button (LED on: internal air recirculation on / LED off: internal air recirculation off)
C - air temperature adjustment and MAX A/C function activation knob (to obtain maximum cooling of the passenger compartment
move the knob to the position marked by wording MAX A/C): blue section = cold air / red section = hot air

D - climate control system compressor on/off button;
E - air distribution knob:

air flow from central and side vents

air flow from central vents, side vents and front/rear footwell vents

air flow from the front and rear footwell vents and a light air flow also from the side vents on the dashboard

air flow from the front and rear footwell vents, to the windscreen, the side windows and a light air flow also at the side vents on
the dashboard

air flow to the windscreen, the side windows and a light air flow also at the side vents on the dashboard

4 further intermediate positions are also possible in the 5 main distributions described above.
F - heated rear window on/off button and, where provided, door mirror electric heating. For some versions, press the

button to

activate demisting/defrosting of door mirrors and of heated windscreen wiper blades area.

IMPORTANT Do not apply stickers to the inside of the heated rear window over the heating filaments, to avoid damage that
might cause them to stop working properly.

IMPORTANT Internal air recirculation makes it possible to reach the required ("heating" or "cooling") conditions more quickly
depending on the mode selected. Do not use the air recirculation function on rainy/cold days as it would considerably
increase the possibility of the windows misting inside.

GETTING

KNOW

YOUR

CAR

Additional heater

(where provided)
The additional heater ensures more rapid
passenger compartment heating.
It activates in cold weather conditions, if
the following conditions occur:

outside temperature low;
engine coolant temperature low;
engine on;
fan speed set at least to first speed;
air temperature knob turned

completely clockwise to red section.
The heater is switched off when at least
one of the conditions above is no longer
verified.
NOTE The power of the electric heater is
modulated according to the battery
voltage.

AUTOMATIC DUAL-ZONE CLIMATE CONTROL SYSTEM

(where provided)

Controls on the climate control front panel

J0A0903C

GETTING

KNOW

YOUR

CAR

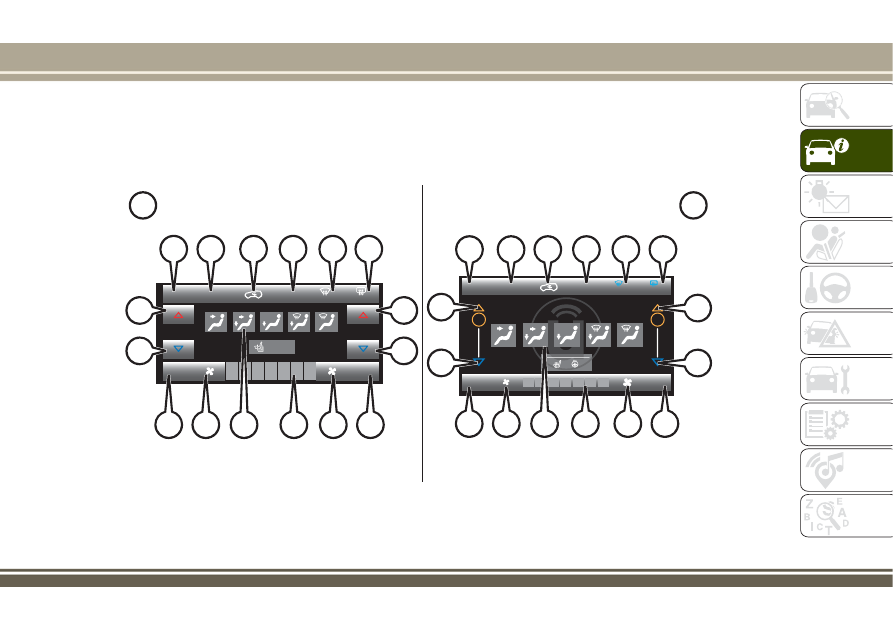

Controls on Uconnect™ system display

There are graphic buttons on the Uconnect™ 7” HD LIVE/ Uconnect™ 8.4” HD Nav LIVE system that let you turn on the functions
described in this section.
1: versions with Uconnect™ 7” HD LIVE / 2: versions with Uconnect™ 8,4” HD Nav LIVE

Max A/C

A/C

Off

Sync

AUTO

Auto

Max

Posteriore

Off

Sync

Max A/C

A/C

Auto

Posteriore

Max

Controlli

Auto

J0A0622C

Description

Controls

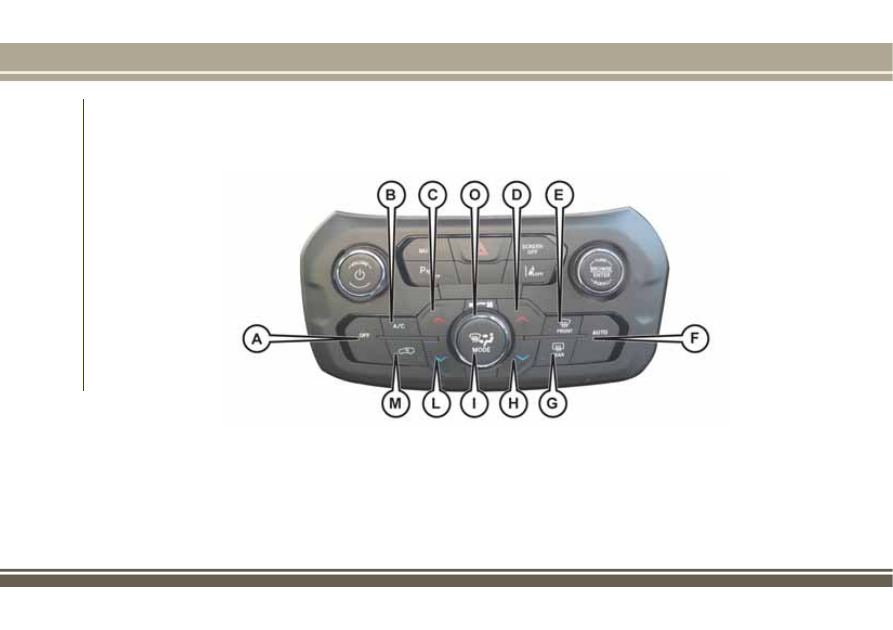

A - climate control system on/off button;
B - climate control compressor on/off
button;
C - required temperature increase button
(drivers side);
D - required temperature increase button
(passengers side);
E - rapid window defrosting/de-misting
on/off button (MAX-DEF operation);
F - AUTO function activation button
(automatic operation);
G - heated rear windscreen on/off button;
H - required temperature decrease button
(passengers side);
I - air distribution selection buttons;
L - required temperature decrease button
(drivers side);
M - internal air recirculation on/off
button;
N - maximum cooling on/off button (MAX
A/C operation);
O - fan speed adjustment knob;
P - fan speed decrease button;
Q - fan speed increase button;

R - air distribution buttons
(dashboard/dashboard + feet/feet/
windscreen + feet/windscreen);
S - align passenger to driver temperature
button.

Operation
The automatic dual zone climate control
system regulates the air temperatures in
the passenger compartment in two zones:
driver side and passenger side.
The system maintains comfort inside the
passenger compartment and
compensates for possible variations in
outside weather conditions.
The automatically controlled parameters
and functions are:

air temperature at the driver/front

passenger side vents;

air distribution at the driver/front

passenger side vents;

fan speed (continuous variation of the

air flow);

compressor engagement (for

cooling/dehumidifying the air);

air recirculation.

All these functions can be adjusted
manually by operating the system and
selecting one or more functions and
modifying their parameters.
The temperature of the air sent is always
automatically controlled according to the
temperature set on the display (except

for when the system is off or in certain
conditions when the compressor is not
running).

Notes

Do not apply stickers to the inside of the
heated rear window over the heating
filaments, to avoid damage that might
cause them to stop working properly.
Internal air recirculation makes it
possible to reach the required ("heating"
or "cooling") conditions more quickly
depending on the mode selected. Do not
use the air recirculation function on
rainy/cold days as it would considerably
increase the possibility of the windows
misting inside.
The dual zone automatic climate control
manages the Stop&Start system (engine
off and car at a standstill) in order to
guarantee sufficient comfort inside the
car.
With Stop&Start function on (engine off
and car stopped), the flow is reduced as
much as possible, to keep the
compartment comfort conditions for
longer.

GETTING

KNOW

YOUR

CAR

Content .. 1 2 3 ..
