Jeep Patriot (2017 year). Instruction

FLUIDS AND LUBRICANTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology) or equivalent meeting the requirements of FCA
Material Standard MS.90032.

Engine Oil

We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as MOPAR, Pennzoil, and Shell Helix. Refer
to your engine oil filler cap for correct SAE grade.

Engine Oil Filter

We recommend you use MOPAR Engine Oil Filter or
equivalent.

Spark Plugs

We recommend you use MOPAR Spark Plugs.

Fuel Selection

87 Octane, 0-15% Ethanol.

336

TECHNICAL SPECIFICATIONS

CAUTION!

• Mixing of engine coolant (antifreeze) other than

specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.

• Do not use water alone or alcohol-based engine

coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.

• This vehicle has not been designed for use with

propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.

TECHNICAL SPECIFICATIONS

337

Chassis

Component

Fluid, Lubricant, or Genuine Part

Automatic Transmission (CVT) — If Equipped

Use only MOPAR CVTF+4 Continuously Variable Trans-
mission Fluid or equivalent. Failure to use the correct fluid
may affect the function or performance of your transmis-
sion.

Automatic Transmission (Six-Speed) — If Equipped

Use only MOPAR SP-IV M Automatic Transmission Fluid
or equivalent. Failure to use the correct fluid may affect the
function or performance of your transmission.

Manual Transmission — If Equipped

We recommend you use MOPAR ATF+4 Automatic Trans-
mission Fluid.

Rear Drive Assembly (RDA)

We recommend you use MOPAR Gear & Axle Lubricant
SAE 80W-90 API GL 5.

Power Transfer Unit (PTU)

We recommend you use MOPAR Gear & Axle Lubricant
SAE 80W-90 API GL 5.

Brake Master Cylinder

We recommend you use MOPAR DOT 3, SAE J1703 should
be used. If DOT 3, SAE J1703 brake fluid is not available,
then DOT 4 is acceptable.

Power Steering Reservoir

We recommend you use MOPAR Power Steering Fluid +4,
MOPAR ATF+4 Automatic Transmission Fluid.

338

TECHNICAL SPECIFICATIONS

RADIO 130

Operating Instructions — Radio Mode

NOTE:

The ignition switch must be in the ON/RUN or

ACC position to operate the radio.

Power Switch/Volume Control (Rotary)

Push the ON/VOLUME control knob to turn on the radio.
Push the ON/VOLUME control knob a second time to turn
off the radio.

Electronic Volume Control

The electronic volume control turns continuously (360
degrees) in either direction, without stopping. Turning the
ON/VOLUME control knob to the right increases the
volume, and to the left decreases it.

When the audio system is turned on, the sound will be set
at the same volume level as last played.

SEEK Buttons

Push and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Push the right switch
to seek up and the left switch to seek down. The radio will
remain tuned to the new station until you make another
selection. Holding either button will bypass stations with-
out stopping, until you release it.

Clock Setting Procedure

1. Push and hold the TIME button until the hours blink.

2. Adjust the hours by turning the right side TUNE/

SCROLL control knob.

3. After adjusting the hours, push the right side TUNE/

SCROLL control knob to set the minutes. The minutes
will begin to blink.

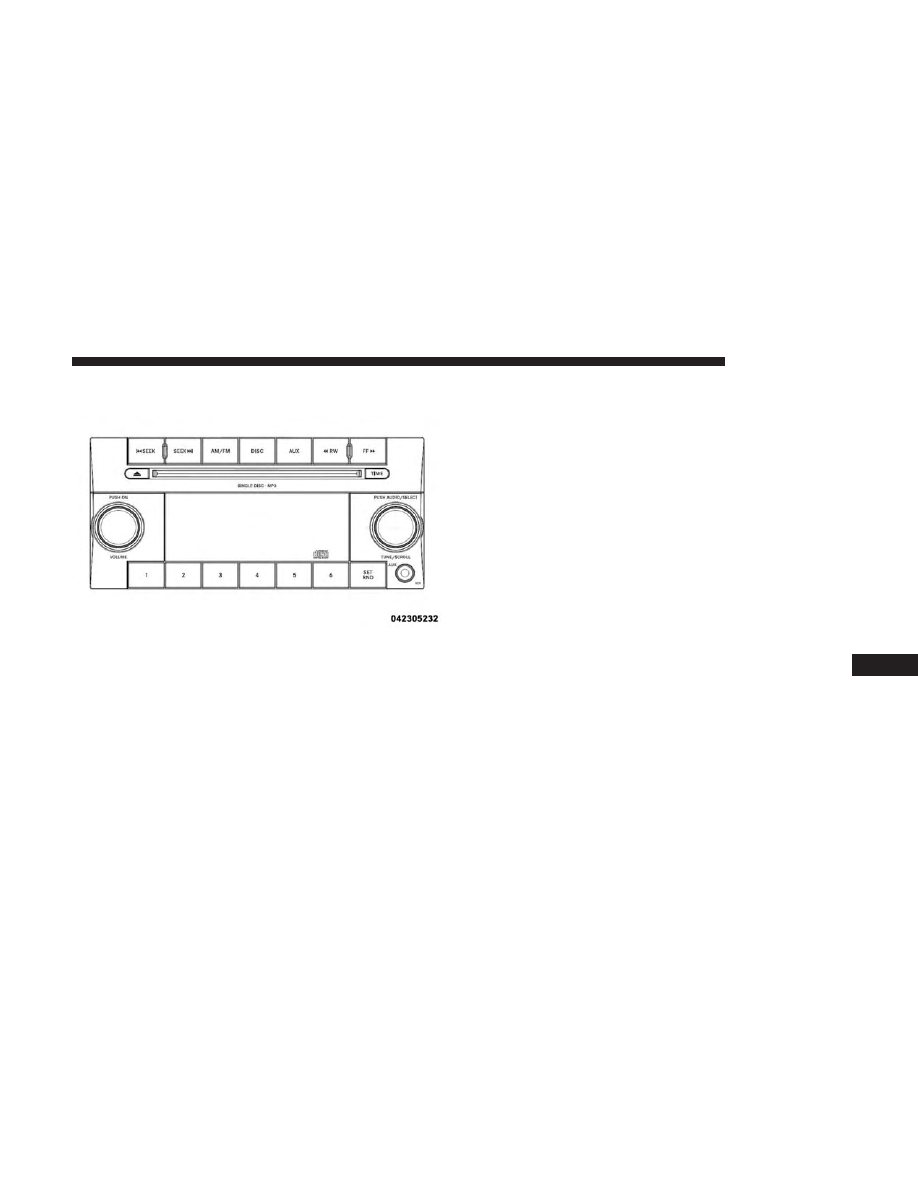

Radio 130

MULTIMEDIA

341

4. Adjust the minutes using the right side TUNE/SCROLL

control knob. Push the TUNE/SCROLL control knob to
save time change.

5. To exit, push any button/knob, or wait five seconds.

RW/FF

Pushing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either AM
or FM frequencies.

TUNE Control

Turn the rotary TUNE/SCROLL control knob clockwise to
increase or counterclockwise to decrease the frequency.

Setting The Tone, Balance And Fade

Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to the
right or left to increase or decrease the bass tones.

Push the rotary TUNE/SCROLL control knob a second
time and MID will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
mid-range tones.

Push the rotary TUNE/SCROLL control knob a third time
and TREBLE will display. Turn the TUNE/SCROLL control
knob to the right or left to increase or decrease the treble
tones.

Push the rotary TUNE/SCROLL control knob a fourth time
and BALANCE will display. Turn the TUNE/SCROLL
control knob to the right or left to adjust the sound level
from the right or left side speakers.

Push the rotary TUNE/SCROLL control knob a fifth time
and FADE will display. Turn the TUNE/SCROLL control
knob to the left or right to adjust the sound level between
the front and rear speakers.

Push the rotary TUNE/SCROLL control knob again to exit
setting tone, balance, and fade.

AM/FM Button

Push the buttons to select either AM or FM mode.

SET/RND Button — To Set The Pushbutton Memory

When you are receiving a station that you wish to commit
to pushbutton memory, push the SET/RND button. The
symbol SET 1 will now show in the display window. Select
the button (1 to 6) you wish to lock onto this station and
push and release that button. If a button is not selected

342

MULTIMEDIA

within five seconds after pushing the SET/RND button,
the station will continue to play but will not be stored into
pushbutton memory.

You may add a second station to each pushbutton by
repeating the above procedure with this exception: Push
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and SET
2 in both AM and FM. This allows a total of 12 AM and 12
FM stations to be stored into pushbutton memory. The
stations stored in SET 2 memory can be selected by
pushing the pushbutton twice.

Every time a preset button is used, a corresponding button
number will display.

Buttons 1 - 6

These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM sta-
tions).

Operation Instructions — CD MODE For CD And
MP3 Audio Play

NOTE:

• The ignition switch must be in the ON/RUN or ACC

position to operate the radio.

• This radio is capable of playing compact discs (CD),

recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.

Inserting Compact Disc(s)

Gently insert one CD into the CD player with the CD label
facing up. The CD will automatically be pulled into the CD
player and the CD icon will illuminate on the radio display.
If a CD does not go into the slot more than 1.0 inch (2.5 cm),
a disc may already be loaded and must be ejected before a
new disc can be loaded.

If you insert a disc with the ignition ON/RUN and the
radio ON, the unit will switch from radio to CD mode and
begin to play when you insert the disc. The display will
show the track number, and index time in minutes and
seconds. Play will begin at the start of track 1.

CAUTION!

• This CD player will accept 4–3/4 inch (12 cm) discs

only. The use of other sized discs may damage the
CD player mechanism.

(Continued)

MULTIMEDIA

343

CAUTION! (Continued)

• Do not use adhesive labels. These labels can peel

away and jam the player mechanism.

• The Radio 130 is a single CD player. Do not attempt

to insert a second CD if one is already loaded.

• Dual-media disc types (one side is a DVD, the other

side is a CD) should not be used, and they can cause
damage to the player.

EJECT Button — Ejecting A CD

Push the EJECT button to eject the CD.

If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.

A disc can be ejected with the radio and ignition OFF.

NOTE:

Ejecting with the ignition OFF is not allowed on

convertible or soft-top models (if equipped.)

SEEK Button

Push the right SEEK button for the next selection on the
CD. Push the left SEEK button to return to the beginning of
the current selection, or return to the beginning of the
previous selection if the CD is within the first second of the
current selection. Pushing and holding the SEEK button
will allow faster scrolling through the tracks in CD and
MP3 modes.

TIME Button

Push this button to change the display from a large CD
playing time display to a small CD playing time display.

RW/FF

Push and hold the FF (Fast Forward) button and the CD
player will begin to fast forward until FF is released, or RW
or another CD button is pushed. The RW (Reverse) button
operates in a similar manner.

AM/FM Button

Push the button to select either AM or FM mode.

344

MULTIMEDIA

SET/RND Button (Random Play Button)

Push this button while the CD is playing to activate
Random Play. This feature plays the selections on the
compact disc in random order to provide an interesting
change of pace.

Push the right SEEK button to move to the next randomly
selected track.

Push the RND button a second time to stop Random Play.

Notes On Playing MP3 Files

The radio can play MP3 files; however, acceptable MP3 file
recording media and formats are limited. When writing
MP3 files, pay attention to the following restrictions.

Supported Media (Disc Types)

The MP3 file recording media supported by the radio are
CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.

Supported Medium Formats (File Systems)

The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension. When
reading discs recorded using formats other than ISO 9660

Level 1 and Level 2, the radio may fail to read files properly
and may be unable to play the file normally. UDF and
Apple HFS formats are not supported.

The radio uses the following limits for file systems:

• Maximum number of folder levels: 8
• Maximum number of files: 255
• Maximum number of folders. (The radio display of file

names and folder names is limited. For large numbers of
files and/or folders, the radio may be unable to display
the file name and folder name, and will assign a number
instead. With a maximum number of files, exceeding 20
folders will result in this display. With 200 files, exceed-
ing 50 folders will result in this display.)

Maximum number of characters in file/folder names:

• Level 1: 12 (including a separator ⬙.⬙ and a three-

character extension)

• Level 2: 31 (including a separator ⬙.⬙ and a three-

character extension)

Multi-session disc formats are supported by the radio.
Multi-session discs may contain combinations of normal
CD audio tracks and computer files (including MP3 files).

MULTIMEDIA

345

Discs created with an option such as

⬙keep disc open after

writing

⬙ are most likely multi-session discs. The use of

multi-session for CD audio or MP3 playback may result in
longer disc loading times.

Supported MP3 File Formats

The radio will recognize only files with the *.MP3 exten-
sion as MP3 files. Non-MP3 files named with the *.MP3
extension may cause playback problems. The radio is
designed to recognize the file as an invalid MP3 and will
not play the file.

When using the MP3 encoder to compress audio data to an
MP3 file, the bit rate and sampling frequencies in the
following table are supported. In addition, variable bit
rates (VBR) are also supported. The majority of MP3 files
use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or VBR
bit rate.

MPEG Specifi-

cation

Sampling Fre-

quency (kHz)

Bit Rate (kbps)

MPEG-1 Audio

Layer 3

48, 44.1, 32

320, 256, 224,
192, 160, 128,

112, 96, 80, 64,

56, 48, 40, 32

MPEG Specifi-

cation

Sampling Fre-

quency (kHz)

Bit Rate (kbps)

MPEG-2 Audio

Layer 3

24, 22.05, 16

160, 128, 144,

112, 96, 80, 64,

56, 48, 40, 32, 24,

16, 8

ID3 Tag information for artist, song title, and album title
are supported for version 1 ID3 tags. ID3 version 2 is not
supported by the radios.

Playlist files are not supported. MP3 Pro files are not
supported.

Playback Of MP3 Files

When a medium containing MP3 data is loaded, the radio
checks all files on the medium. If the medium contains a lot
of folders or files, the radio will take more time to start
playing the MP3 files.

Loading times for playback of MP3 files may be affected by
the following:

• Media - CD-RW media may take longer to load than

CD-R media

346

MULTIMEDIA

• Medium formats - Multisession discs may take longer to

load than non-multisession discs

• Number of files and folders - Loading times will increase

with more files and folders

To increase the speed of disc loading, it is recommended to
use CD-R media and single-session discs. To create a
single-session disc, enable the “Disc at Once” option before
writing to the disc.

Operation Instructions — Auxiliary Mode

The auxiliary (AUX) jack is an audio input jack, which
allows the user to plug in a portable device, such as an MP3
player, or iPod, and utilize the vehicle’s audio system to
amplify the source and play through the vehicle speakers.

Pushing the DISC/AUX button will change the mode to
auxiliary device if the AUX jack is connected.

NOTE:

The AUX device must be turned on and the

device’s volume set to proper level. If the AUX audio is not
loud enough, turn the device’s volume up. If the AUX
audio sounds distorted, turn the device’s volume down.

TIME Button (Auxiliary Mode)

Push this button to change the display to time of day. The
time of day will display for five seconds (when ignition is
OFF).

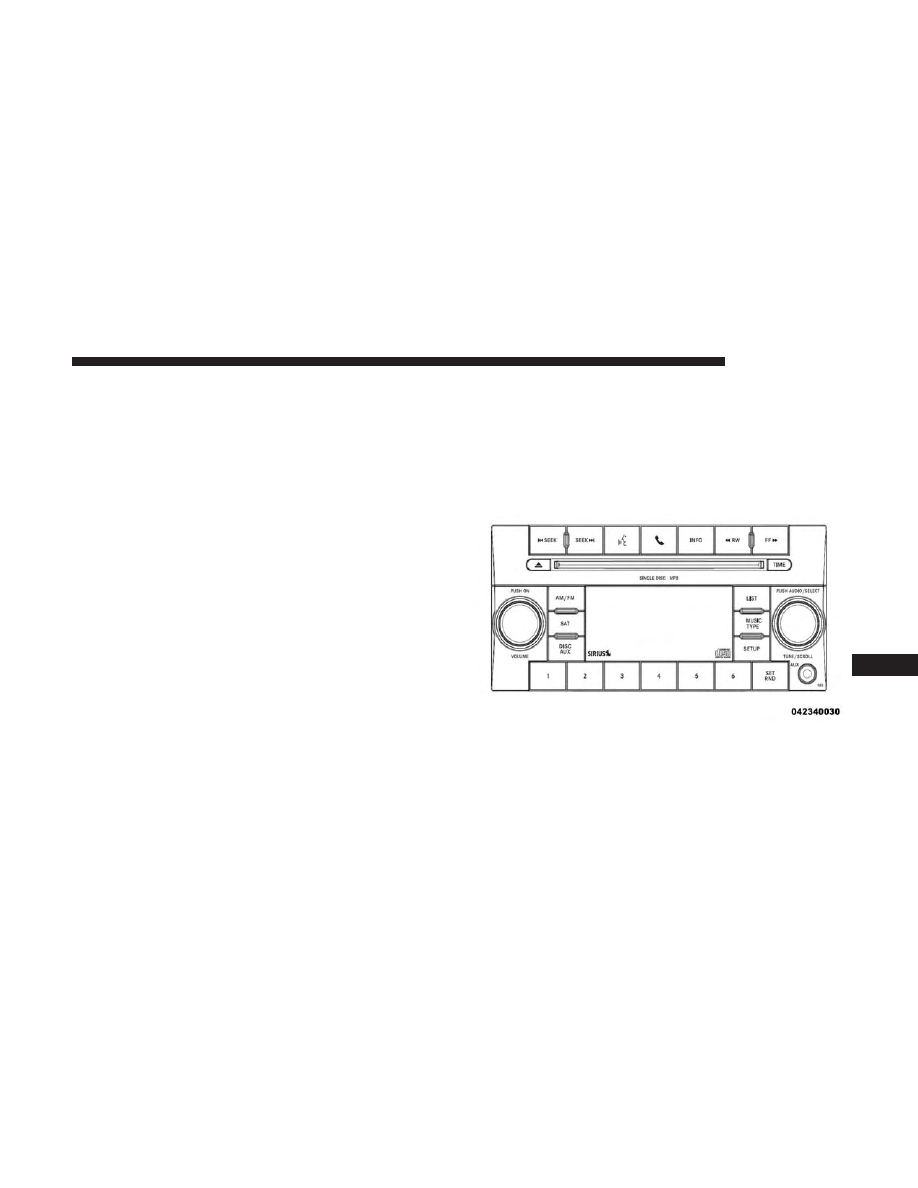

RADIO 130 WITH SATELLITE RADIO

Radio 130

MULTIMEDIA

347

Operating Instructions — Radio Mode

NOTE:

The ignition switch must be in the ON/RUN or

ACC position to operate the radio.

Power Switch/Volume Control (Rotary)

Push the ON/VOLUME control knob to turn on the radio.
Push the ON/VOLUME control knob a second time to turn
off the radio.

Electronic Volume Control

When the audio system is turned on, the sound will be set
at the same volume level as last played.

SEEK Buttons

Voice Command System (Radio) — If Equipped

Refer to “Voice Command” in “Multimedia”.

Voice Command Button Uconnect Phone — If
Equipped

Push this button to operate the Uconnect Phone feature (if
equipped). Refer to “Uconnect Phone” in “Multimedia”.

If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With Uconnect
Phone” message will display on the radio screen.

Phone Button Uconnect Phone — If Equipped

Push this button to operate the Uconnect Phone feature (if
equipped). Refer to “Uconnect Phone” in “Multimedia”.

If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With Uconnect
Phone” message will display on the radio screen.

TIME Button

Push the TIME button to alternate display of the time and
radio frequency.

Clock Setting Procedure

1. Push and hold the TIME button until the hours blink.

348

MULTIMEDIA

2. Adjust the hours by turning the right side TUNE/

SCROLL control knob.

3. After adjusting the hours, push the right side TUNE/

SCROLL control knob to set the minutes. The minutes
will begin to blink.

4. Adjust the minutes using the right side TUNE/SCROLL

control knob. Push the TUNE/SCROLL control knob to
save time change.

5. To exit, push any button/knob, or wait five seconds.

INFO Button

Push the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).

RW/FF

Pushing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either AM
or FM frequencies.

TUNE Control

Turn the rotary TUNE/SCROLL control knob clockwise to
increase or counterclockwise to decrease the frequency.

Setting The Tone, Balance And Fade

Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to the
right or left to increase or decrease the bass tones.

Push the rotary TUNE/SCROLL control knob a second
time and MID will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
mid-range tones.

Push the rotary TUNE/SCROLL control knob a third time
and TREBLE will display. Turn the TUNE/SCROLL control
knob to the right or left to increase or decrease the treble
tones.

Push the rotary TUNE/SCROLL control knob a fourth time
and BALANCE will display. Turn the TUNE/SCROLL
control knob to the right or left to adjust the sound level
from the right or left side speakers.

Push the rotary TUNE/SCROLL control knob a fifth time
and FADE will display. Turn the TUNE/SCROLL control
knob to the left or right to adjust the sound level between
the front and rear speakers.

Push the rotary TUNE/SCROLL control knob again to exit
setting tone, balance, and fade.

MULTIMEDIA

349

MUSIC TYPE Button

Pushing this button once will turn on the Music Type mode
for five seconds. Pushing the MUSIC TYPE button or
turning the TUNE/SCROLL control knob within five sec-
onds will allow the program format type to be selected.
Many radio stations do not currently broadcast Music Type
information.

Toggle the MUSIC TYPE button to select the following
format types:

Program Type

16-Digit Character

Display

No program type or un-

defined

None

Adult Hits

Adlt Hit

Classical

Classicl

Classic Rock

Cls Rock

College

Country

Foreign Language

Language

Information

Inform

Jazz

Program Type

16-Digit Character

Display

News

Nostalgia

Nostalga

Oldies

Personality

Persnlty

Public

Rhythm and Blues

R & B

Religious Music

Rel Musc

Religious Talk

Rel Talk

Rock

Soft

Soft Rock

Soft Rck

Soft Rhythm and Blues

Soft R&B

Sports

Talk

Top 40

Weather

By pushing the SEEK button when the Music Type icon is
displayed, the radio will be tuned to the next frequency

350

MULTIMEDIA

station with the same selected Music Type name. The
Music Type function only operates when in the FM mode.

If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be exited
and the radio will tune to the preset station.

SETUP Button

Pushing the SETUP button allows you to select between
the following items:

• Set Clock — Pushing the SELECT button will allow you

to set the clock. Adjust the hours by turning the TUNE/
SCROLL control knob. After adjusting the hours, push
the TUNE/SCROLL control knob to set the minutes. The
minutes will begin to blink. Adjust the minutes using the
right side TUNE/SCROLL control knob. Push the
TUNE/SCROLL control knob to save time change.

AM/FM Button

Push the buttons to select either AM or FM mode.

SET/RND Button — To Set The Pushbutton Memory

push and release that button. If a button is not selected
within five seconds after pushing the SET/RND button,
the station will continue to play but will not be stored into
pushbutton memory.

Every time a preset button is used, a corresponding button
number will display.

Buttons 1 - 6

These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM sta-
tions).

DISC/AUX Button

Pushing the DISC/AUX button will allow you to switch
from AM/FM modes to DISC/AUX mode.

MULTIMEDIA

351

Jeep Patriot (2017 year). Instruction - part 22
