Jeep Patriot (2017 year). Instruction

Infant And Child Restraints

Safety experts recommend that children ride rear-facing in
the vehicle until they are two years old or until they reach
either the height or weight limit of their rear-facing child
restraint. Two types of child restraints can be used rear-
facing: infant carriers and convertible child seats.

The infant carrier is only used rear-facing in the vehicle. It
is recommended for children from birth until they reach
the weight or height limit of the infant carrier. Convertible
child seats can be used either rear-facing or forward-facing
in the vehicle. Convertible child seats often have a higher
weight limit in the rear-facing direction than infant carriers
do, so they can be used rear-facing by children who have
outgrown their infant carrier but are still less than at least
two years old. Children should remain rear-facing until
they reach the highest weight or height allowed by their
convertible child seat.

WARNING!

• Never place a rear-facing child restraint in front of an

air bag. A deploying passenger front air bag can
cause death or serious injury to a child 12 years or

(Continued)

WARNING! (Continued)

younger, including a child in a rear-facing child
restraint.

• Only use a rear-facing child restraint in a vehicle

with a rear seat.

Older Children And Child Restraints

Children who are two years old or who have outgrown their
rear-facing convertible child seat can ride forward-facing in
the vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who are over two years old or who have outgrown the
rear-facing weight or height limit of their rear-facing convert-
ible child seat. Children should remain in a forward-facing
child seat with a harness for as long as possible, up to the
highest weight or height allowed by the child seat.

All children whose weight or height is above the forward-
facing limit for the child seat should use a belt-positioning
booster seat until the vehicle’s seat belts fit properly. If the
child cannot sit with knees bent over the vehicle’s seat
cushion while the child’s back is against the seatback, they
should use a belt-positioning booster seat. The child and
belt-positioning booster seat are held in the vehicle by the
seat belt.

176

SAFETY

WARNING!

• Improper installation can lead to failure of an infant

or child restraint. It could come loose in a collision.
The child could be badly injured or killed. Follow
the child restraint manufacturer’s directions exactly
when installing an infant or child restraint.

• After a child restraint is installed in the vehicle, do

not move the vehicle seat forward or rearward be-
cause it can loosen the child restraint attachments.
Remove the child restraint before adjusting the ve-
hicle seat position. When the vehicle seat has been
adjusted, reinstall the child restraint.

• When your child restraint is not in use, secure it in

the vehicle with the seat belt or LATCH anchorages,
or remove it from the vehicle. Do not leave it loose in
the vehicle. In a sudden stop or accident, it could
strike the occupants or seatbacks and cause serious
personal injury.

Children Too Large For Booster Seats

Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend over
the front of the seat when their back is against the seatback,
should use the seat belt in a rear seat. Use this simple 5-step
test to decide whether the child can use the vehicle’s seat
belt alone:

1. Can the child sit all the way back against the back of the

vehicle seat?

2. Do the child’s knees bend comfortably over the front of

the vehicle seat – while they are still sitting all the way
back?

3. Does the shoulder belt cross the child’s shoulder be-

tween their neck and arm?

4. Is the lap part of the belt as low as possible, touching the

child’s thighs and not their stomach?

5. Can the child stay seated like this for the whole trip?

SAFETY

177

If the answer to any of these questions was “no,” then the
child still needs to use a booster seat in this vehicle. If the
child is using the lap/shoulder belt, check seat belt fit
periodically and make sure the seat belt buckle is latched.
A child’s squirming or slouching can move the belt out of
position. If the shoulder belt contacts the face or neck,
move the child closer to the center of the vehicle, or use a
booster seat to position the seat belt on the child correctly.

WARNING!

Never allow a child to put the shoulder belt under an
arm or behind their back. In a crash, the shoulder belt
will not protect a child properly, which may result in
serious injury or death. A child must always wear both
the lap and shoulder portions of the seat belt correctly.

Recommendations For Attaching Child Restraints

Restraint Type

Combined

Weight of the

Child + Child

Restraint

Use any attachment method shown with an “X” Below

LATCH – Lower

Anchors Only

Seat Belt Only

LATCH – Lower

Anchors + Top

Tether Anchor

Seat Belt + Top

Tether Anchor

Rear-Facing

Child Restraint

Up to 65 lbs

(29.5 kg)

Rear-Facing

Child Restraint

More than 65 lbs

(29.5 kg)

Forward-Facing

Child Restraint

Up to 65 lbs

(29.5 kg)

Forward-Facing

Child Restraint

More than 65 lbs

(29.5 kg)

178

SAFETY

Lower Anchors And Tethers For CHildren (LATCH)
Restraint System

Your vehicle is equipped with the child restraint anchorage
system called LATCH, which stands for Lower Anchors
and Tethers for CHildren. The LATCH system has three
vehicle anchor points for installing LATCH-equipped child
seats. There are two lower anchorages located at the back
of the seat cushion where it meets the seatback and one top
tether anchorage located behind the seating position. These
anchorages are used to install LATCH-equipped child seats
without using the vehicle’s seat belts. Some seating posi-
tions may have a top tether anchorage but no lower

anchorages. In these seating positions, the seat belt must be
used with the top tether anchorage to install the child
restraint. Please see the following table for more
information.

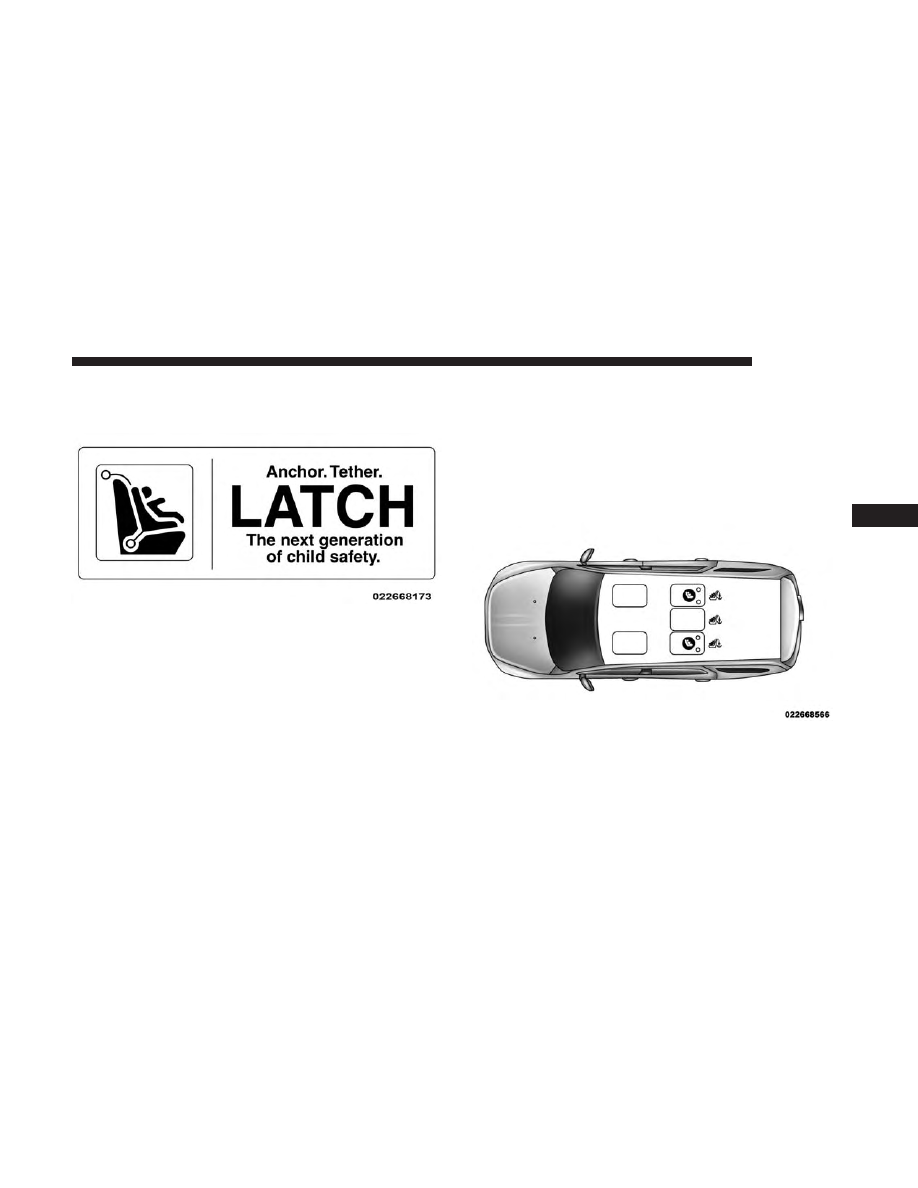

Latch Positions For Installing Child Restraints In
This Vehicle

LATCH Label

LATCH Positions

SAFETY

179

Frequently Asked Questions About Installing Child Restraints With LATCH

What is the weight limit (child’s weight

+ weight of the child restraint) for using

the LATCH anchorage system to attach

the child restraint?

65 lbs (29.5 kg)

Use the LATCH anchorage system until

the combined weight of the child and

the child restraint is 65 lbs (29.5 kg). Use

the seat belt and tether anchor instead of

the LATCH system once the combined

weight is more than 65 lbs (29.5 kg).

Can the LATCH anchorages and the seat

belt be used together to attach a rear-

facing or forward-facing child restraint?

Do not use the seat belt when you use the

LATCH anchorage system to attach a rear-

facing or forward-facing child restraint.

Can a child seat be installed in the center

position using the inner LATCH lower

anchorages?

Yes

You can install child restraints with flex-

ible lower anchors in the center position.

The inner anchorages are 15.5 inches

(390 mm) apart. Do not install child re-
straints with rigid lower anchors in the

center position.

Can two child restraints be attached us-

ing a common lower LATCH anchorage?

Never “share” a LATCH anchorage with

two or more child restraints. If the center

position does not have dedicated LATCH

lower anchorages, use the seat belt to in-

stall a child seat in the center position

next to a child seat using the LATCH an-

chorages in an outboard position.

180

SAFETY

Frequently Asked Questions About Installing Child Restraints With LATCH

Can the rear-facing child restraint touch

the back of the front passenger seat?

Yes

The child seat may touch the back of the

front passenger seat if the child restraint

manufacturer also allows contact. See

your child restraint owner’s manual for

more information.

Can the head restraints be removed?

Locating The LATCH Anchorages

The lower anchorages are round bars that are
found at the rear of the seat cushion where it
meets the seatback. They are just visible when
you lean into the rear seat to install the child

restraint. You will easily feel them if you run your finger
along the gap between the seatback and seat cushion.

Lower LATCH Anchors

SAFETY

181

Locating The Upper Tether Anchorages

There are tether strap anchorages behind each
rear seating position located on the back of the
seat.

LATCH-compatible child restraint systems will be
equipped with a rigid bar or a flexible strap on each side.
Each will have a hook or connector to attach to the lower
anchorage and a way to tighten the connection to the
anchorage. Forward-facing child restraints and some rear-
facing child restraints will also be equipped with a tether
strap. The tether strap will have a hook at the end to attach
to the top tether anchorage and a way to tighten the strap
after it is attached to the anchorage.

Center Seat LATCH

Do not install child restraints with rigid lower attachments
in the center seating position. Only install this type of child
restraint in the outboard seating positions. Child restraints
with flexible, webbing mounted lower attachments can be
installed in any rear seating position.

Rear Seat Tether Anchors

182

SAFETY

WARNING!

Never use the same lower anchorage to attach more
than one child restraint. If you are installing LATCH-
compatible child restraints next to each other, you must
use the seat belt for the center position. You can then
use either the LATCH anchors or the vehicle’s seat belt
for installing child seats in the outboard positions.
Please refer to “Installing The LATCH-Compatible
Child Restraint System” for typical installation in-
structions.

Always follow the directions of the child restraint manu-
facturer when installing your child restraint. Not all child
restraint systems will be installed as described here.

To Install A LATCH-Compatible Child Restraint

If the selected seating position has a Switchable Automatic
Locking Retractor (ALR) seat belt, stow the seat belt,
following the instructions below. See the section “Installing
Child Restraints Using the Vehicle Seat Belt” to check what
type of seat belt each seating position has.

1. Loosen the adjusters on the lower straps and on the tether

strap of the child seat so that you can more easily attach
the hooks or connectors to the vehicle anchorages.

2. Place the child seat between the lower anchorages for

that seating position. For some second row seats, you
may need to recline the seat and / or raise the head
restraint to get a better fit. If the rear seat can be moved
forward and rearward in the vehicle, you may wish to
move it to its rear-most position to make room for the
child seat. You may also move the front seat forward to
allow more room for the child seat.

3. Attach the lower hooks or connectors of the child

restraint to the lower anchorages in the selected seating
position.

4. If the child restraint has a tether strap, connect it to the

top tether anchorage. See the section “Installing Child
Restraints Using the Top Tether Anchorage” for direc-
tions to attach a tether anchor.

5. Tighten all of the straps as you push the child restraint

rearward and downward into the seat. Remove slack in
the straps according to the child restraint manufactur-
er’s instructions.

6. Test that the child restraint is installed tightly by pulling

back and forth on the child seat at the belt path. It
should not move more than 1 inch (25.4 mm) in any
direction.

SAFETY

183

How To Stow An Unused Switchable-ALR (ALR)
Seat Belt

When using the LATCH attaching system to install a child
restraint, stow all ALR seat belts that are not being used by
other occupants or being used to secure child restraints. An
unused belt could injure a child if they play with it and
accidentally lock the seat belt retractor. Before installing a
child restraint using the LATCH system, buckle the seat
belt behind the child restraint and out of the child’s reach.
If the buckled seat belt interferes with the child restraint
installation, instead of buckling it behind the child re-
straint, route the seat belt through the child restraint belt
path and then buckle it. Do not lock the seat belt. Remind
all children in the vehicle that the seat belts are not toys and
that they should not play with them.

WARNING!

• Improper installation of a child restraint to the

LATCH anchorages can lead to failure of the re-
straint. The child could be badly injured or killed.
Follow the child restraint manufacturer’s directions
exactly when installing an infant or child restraint.

(Continued)

WARNING! (Continued)

• Child restraint anchorages are designed to withstand

only those loads imposed by correctly-fitted child
restraints. Under no circumstances are they to be
used for adult seat belts, harnesses, or for attaching
other items or equipment to the vehicle.

Installing Child Restraints Using The Vehicle Seat
Belt

Child restraint systems are designed to be secured in
vehicle seats by lap belts or the lap belt portion of a
lap/shoulder belt.

WARNING!

• Improper installation or failure to properly secure a

child restraint can lead to failure of the restraint. The
child could be badly injured or killed.

• Follow the child restraint manufacturer’s directions

exactly when installing an infant or child restraint.

The seat belts in the passenger seating positions are
equipped with a Switchable Automatic Locking Retractor
(ALR) that is designed to keep the lap portion of the seat
belt tight around the child restraint so that it is not

184

SAFETY

necessary to use a locking clip. The ALR retractor can be
“switched” into a locked mode by pulling all of the
webbing out of the retractor and then letting the webbing
retract back into the retractor. If it is locked, the ALR will
make a clicking noise while the webbing is pulled back into
the retractor. Refer to the “Automatic Locking Mode”
description under “Occupant Restraints” for additional
information on ALR.

Lap/Shoulder Belt Systems For Installing Child
Restraints In This Vehicle

Frequently Asked Questions About Installing Child Restraints With Seat Belts

What is the weight limit (child’s

weight + weight of the child re-

straint) for using the Tether Anchor

with the seat belt to attach a forward

facing child restraint?

Weight limit of the

Child Restraint

Always use the tether anchor when using the seat belt

to install a forward facing child restraint, up to the

recommended weight limit of the child restraint.

Automatic Locking Retractor (ALR) Locations

SAFETY

185

Frequently Asked Questions About Installing Child Restraints With Seat Belts

Can the rear-facing child restraint

touch the back of the front passenger

seat?

Yes

Contact between the front passenger seat and the child

restraint is allowed, if the child restraint manufacturer

also allows contact.

Can the head restraints be removed?

Can the buckle stalk be twisted to

tighten the seat belt against the belt

path of the child restraint?

Do not twist the buckle stalk in a seating position

with an ALR retractor.

Installing A Child Restraint With A Switchable
Automatic Locking Retractor (ALR)

Child restraint systems are designed to be secured in
vehicle seats by lap belts or the lap belt portion of a
lap/shoulder belt.

WARNING!

• Improper installation or failure to properly secure a

child restraint can lead to failure of the restraint. The
child could be badly injured or killed.

• Follow the child restraint manufacturer’s directions

exactly when installing an infant or child restraint.

1. Place the child seat in the center of the seating position.

For some second row seats, you may need to recline the

seat and/or raise the head restraint to get a better fit. If
the rear seat can be moved forward and rearward in the
vehicle, you may wish to move it to its rear-most
position to make room for the child seat. You may also
move the front seat forward to allow more room for the
child seat.

2. Pull enough of the seat belt webbing from the retractor

to pass it through the belt path of the child restraint. Do
not twist the belt webbing in the belt path.

3. Slide the latch plate into the buckle until you hear a

“click.”

4. Pull on the webbing to make the lap portion tight

against the child seat.

186

SAFETY

5. To lock the seat belt, pull down on the shoulder part of

the belt until you have pulled all the seat belt webbing
out of the retractor. Then, allow the webbing to retract
back into the retractor. As the webbing retracts, you will
hear a clicking sound. This means the seat belt is now in
the Automatic Locking mode.

6. Try to pull the webbing out of the retractor. If it is

locked, you should not be able to pull out any webbing.
If the retractor is not locked, repeat step 5.

7. Finally, pull up on any excess webbing to tighten the lap

portion around the child restraint while you push the
child restraint rearward and downward into the vehicle
seat.

8. If the child restraint has a top tether strap and the

seating position has a top tether anchorage, connect the
tether strap to the anchorage and tighten the tether
strap. See the section “Installing Child Restraints Using
the Top Tether Anchorage” for directions to attach a
tether anchor.

9. Test that the child restraint is installed tightly by pulling

back and forth on the child seat at the belt path. It
should not move more than 1 inch (25.4 mm) in any
direction.

Any seat belt system will loosen with time, so check the
belt occasionally, and pull it tight if necessary.

Installing Child Restraints Using the Top Tether
Anchorage

WARNING!

Do not attach a tether strap for a rear-facing car seat to
any location in front of the car seat, including the seat
frame or a tether anchorage. Only attach the tether
strap of a rear-facing car seat to the tether anchorage
that is approved for that seating position, located
behind the top of the vehicle seat. See the section
“Lower Anchors and Tethers for CHildren (LATCH)
Restraint System” for the location of approved tether
anchorages in your vehicle.

SAFETY

187

1. Look behind the seating position where you plan to

install the child restraint to find the tether anchorage.
You may need to move the seat forward to provide
better access to the tether anchorage. If there is no top
tether anchorage for that seating position, move the
child restraint to another position in the vehicle if one is
available.

2. Route the tether strap to provide the most direct path for

the strap between the anchor and the child seat, routing
it over the center of the head restraint.

3. Attach the tether strap hook of the child restraint to the

top tether anchorage as shown in the diagram.

4. Remove slack in the tether strap according to the child

restraint manufacturer’s instructions.

WARNING!

• An incorrectly anchored tether strap could lead to

increased head motion and possible injury to the
child. Use only the anchorage position directly be-
hind the child seat to secure a child restraint top
tether strap.

• If your vehicle is equipped with a split rear seat,

make sure the tether strap does not slip into the
opening between the seatbacks as you remove slack
in the strap.

Transporting Pets

Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in a
collision.

Pets should be restrained in the rear seat in pet harnesses or
pet carriers that are secured by seat belts.

188

SAFETY

SAFETY TIPS

Transporting Passengers

NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.

WARNING!

• Do not leave children or animals inside parked

vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

• It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat belts.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

Exhaust Gas

WARNING!

Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can even-
tually poison you. To avoid breathing (CO), follow
these safety tips:
• Do not run the engine in a closed garage or in

confined areas any longer than needed to move your
vehicle in or out of the area.

• If you are required to drive with the trunk/liftgate/

rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is set
at high speed. DO NOT use the recirculation mode.

• If it is necessary to sit in a parked vehicle with the

engine running, adjust your heating or cooling con-
trols to force outside air into the vehicle. Set the
blower at high speed.

The best protection against carbon monoxide entry into the
vehicle body is a properly maintained engine exhaust
system.

SAFETY

189

Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the complete
exhaust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams or
loose connections could permit exhaust fumes to seep into
the passenger compartment. In addition, inspect the ex-
haust system each time the vehicle is raised for lubrication
or oil change. Replace as required.

Safety Checks You Should Make Inside The Vehicle

Seat Belts

Inspect the seat belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.

Front seat belt assemblies must be replaced after a collision.
Rear seat belt assemblies must be replaced after a collision
if they have been damaged (i.e., bent retractor, torn web-
bing, etc.). If there is any question regarding seat belt or
retractor condition, replace the seat belt.

Air Bag Warning Light

The Air Bag warning light

will turn on for four to

eight seconds as a bulb check when the ignition switch

is first turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while driving,
have the system inspected at an authorized dealer as
soon as possible. This light will illuminate with a single
chime when a fault with the Air Bag Warning Light has
been detected, it will stay on until the fault is cleared. If
the light comes on intermittently or remains on while
driving, have an authorized dealer service the vehicle
immediately. Refer to “Occupant Restraint Systems” in
“Safety” for further information.

Defroster

Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle. Only use
a floor mat that does not interfere with the operation of the
accelerator, brake or clutch pedals. Only use a floor mat that
is securely attached using the floor mat fasteners so it cannot
slip out of position and interfere with the accelerator, brake
or clutch pedals or impair safe operation of your vehicle in
other ways.

190

SAFETY

WARNING!

An improperly attached, damaged, folded, or stacked
floor mat, or damaged floor mat fasteners may cause
your floor mat to interfere with the accelerator, brake,
or clutch pedals and cause a loss of vehicle control. To
prevent SERIOUS INJURY or DEATH:
• ALWAYS securely attach

your floor mat using

the floor mat fasteners. DO NOT install your floor
mat upside down or turn your floor mat over.
Lightly pull to confirm mat is secured using the
floor mat fasteners on a regular basis.

• ALWAYS REMOVE THE EXISTING FLOOR MAT

FROM THE VEHICLE

before installing any

other floor mat. NEVER install or stack an addi-
tional floor mat on top of an existing floor mat.

• ONLY install floor mats designed to fit your vehicle.

NEVER install a floor mat that cannot be properly
attached and secured to your vehicle. If a floor mat
needs to be replaced, only use a FCA approved floor
mat for the specific make, model, and year of your
vehicle.

• ONLY use the driver’s side floor mat on the driver’s

side floor area. To check for interference, with the

(Continued)

WARNING! (Continued)

vehicle properly parked with the engine off, fully
depress the accelerator, the brake, and the clutch
pedal (if present) to check for interference. If your
floor mat interferes with the operation of any pedal,
or is not secure to the floor, remove the floor mat
from the vehicle and place the floor mat in your
trunk.

• ONLY use the passenger’s side floor mat on the

passenger’s side floor area.

• ALWAYS make sure objects cannot fall or slide into

the driver’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.

• NEVER place any objects under the floor mat (e.g.,

towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.

• If the vehicle carpet has been removed and re-

installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for

(Continued)

SAFETY

191

Jeep Patriot (2017 year). Instruction - part 12
