Jeep Patriot (2017 year). Instruction

Fog Lights — If Equipped

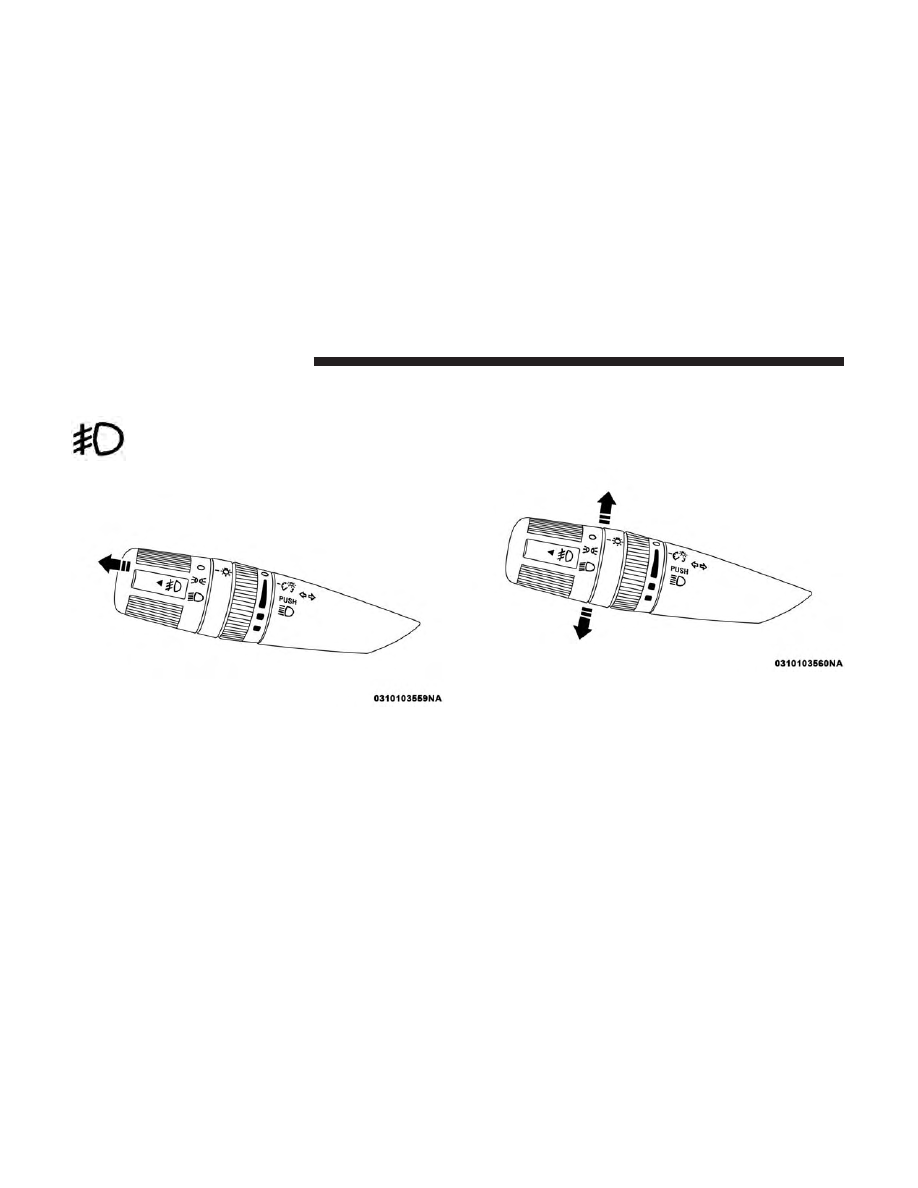

The front fog light switch is on the multifunction
lever. To activate the front fog lights, turn on the
parking lights or the low beam headlights and

pull out the end of the multifunction lever.

NOTE:

The fog lights will only operate with the headlights

on low beam. Selecting high beam headlights will turn off
the fog lights.

Turn Signals

Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show proper
operation of the front and rear turn signal lights.

NOTE:

If either light remains on and does not flash, or

there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is defec-
tive.

Front Fog Light Operation

Turn Signal Operation

GETTING TO KNOW YOUR VEHICLE

Lane Change Assist

Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash three
times then automatically turn off.

Lights-On Reminder

If the headlights or parking lights are left on after the
ignition is turned OFF, a chime will sound to alert the
driver when the driver’s door is opened.

Headlights On With Wipers (Available With
Automatic Headlights Only)

When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on if
the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.

NOTE:

The Headlights On with Wipers feature can be

turned on or off using the instrument cluster display. Refer
to “Instrument Cluster Display” in “Getting To Know Your
Instrument Panel” for further information.

INTERIOR LIGHTS

Instrument Panel Dimming

Rotate the center portion of the lever to the extreme bottom
position to fully dim the instrument panel lights and
prevent the interior lights from illuminating when a door is
opened.

Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the parking
lights or headlights are on.

Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.

GETTING TO KNOW YOUR VEHICLE

Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.

Map/Reading Lights

These lights are mounted between the sun visors above the
rear view mirror. Each light is turned on by pushing the
button. Push the button a second time to turn the light off.
The lights also come on when a door is opened or the
dimmer control is turned fully upward, past the second
detent.

NOTE:

The lights will remain on until the switch is

pushed a second time, so be sure they have been turned off
before leaving the vehicle. They will not turn off automati-
cally.

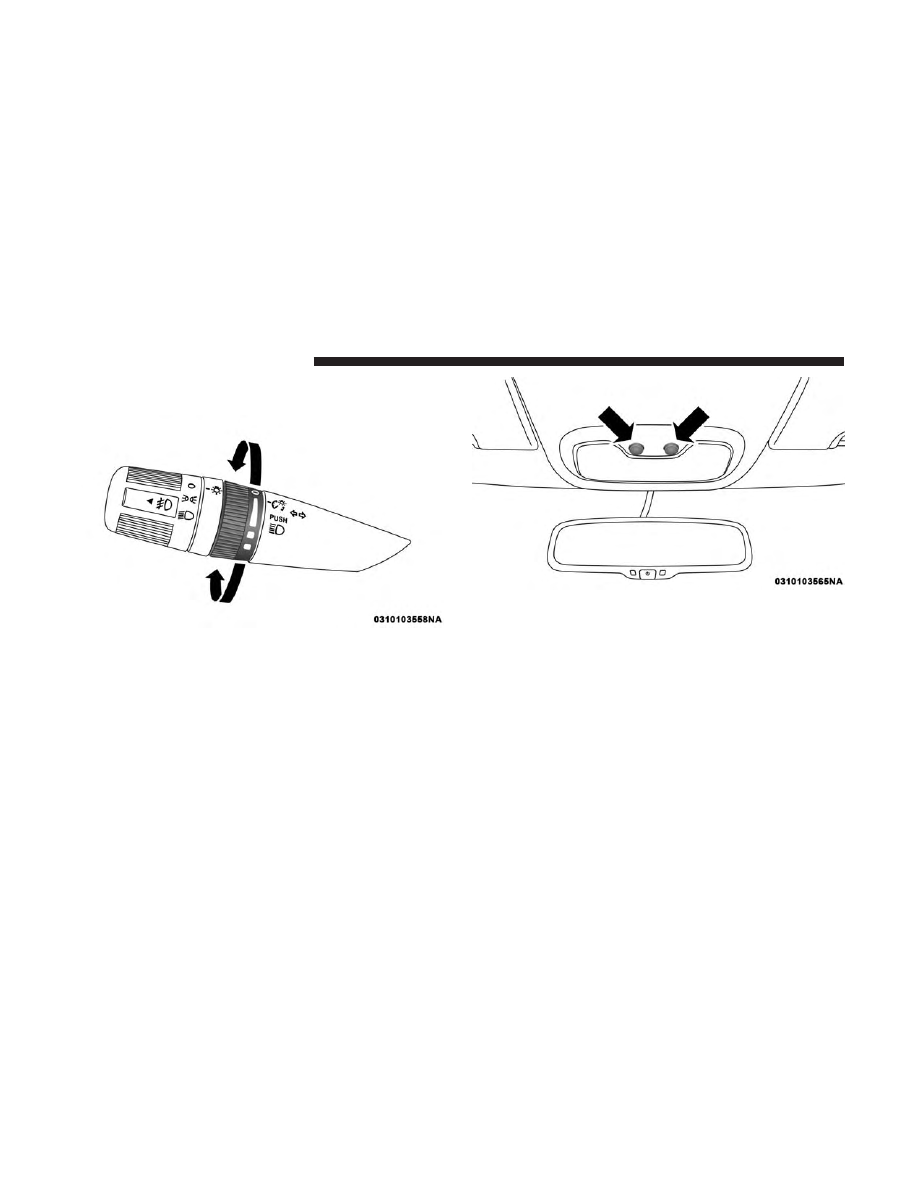

Dimmer Control

Map/Reading Lights

GETTING TO KNOW YOUR VEHICLE

WINDSHIELD WIPERS AND WASHERS

The windshield wiper/washer control lever is lo-
cated on the right side of the steering column. The
front wipers are operated by rotating a switch,

located on the end of the lever. For information on the rear
wiper/washer, refer to “Rear Window Wiper/Washer” in
“Getting To Know Your Vehicle”.

CAUTION!

• Turn the windshield wipers off when driving

through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.

• In cold weather, always turn off the wiper switch and

allow the wipers to return to the “Park” position
before turning off the engine. If the wiper switch is
left on and the wipers freeze to the windshield,
damage to the wiper motor may occur when the
vehicle is restarted.

• Always remove any buildup of snow that prevents

the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.

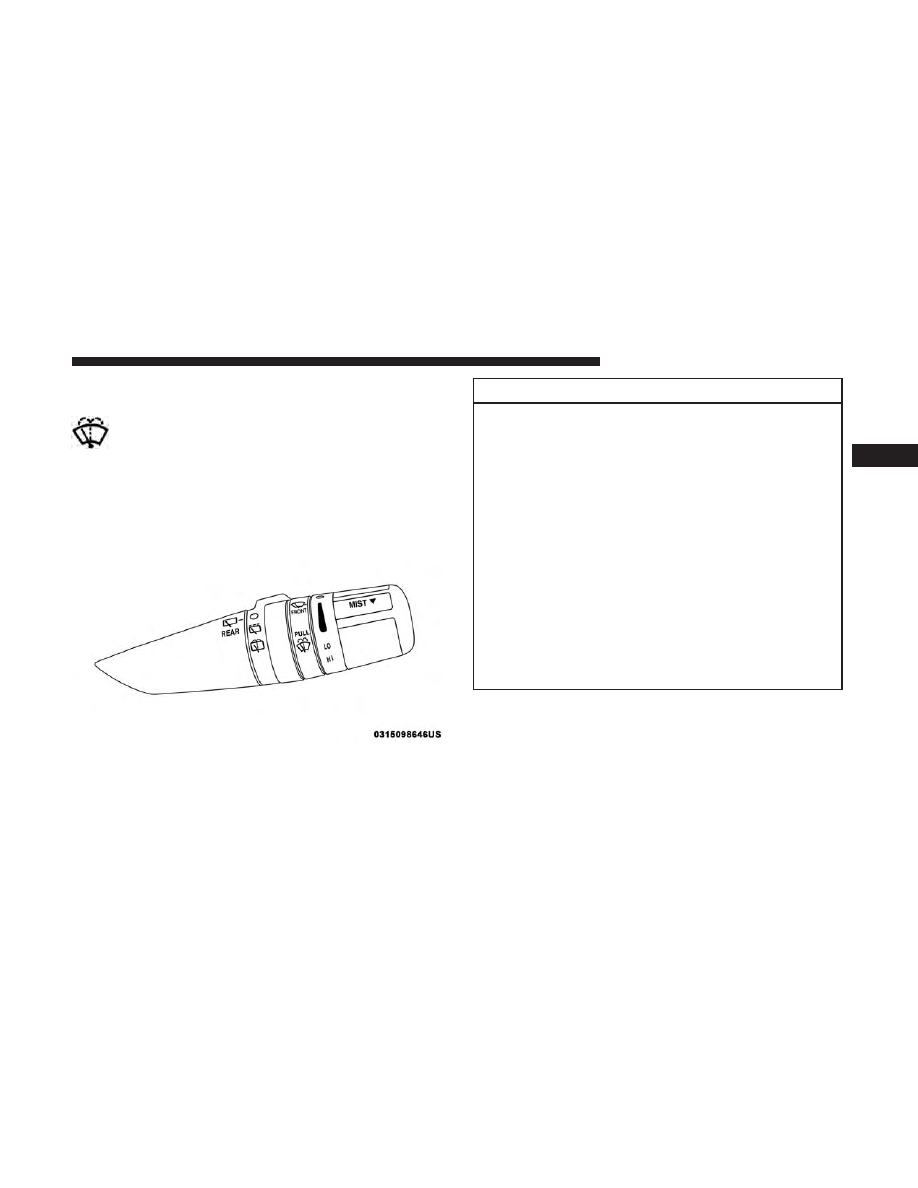

Wiper/Washer Control Lever

GETTING TO KNOW YOUR VEHICLE

Windshield Wiper Operation

Rotate the end of the lever upward to the second detent
past the intermittent settings for low-speed wiper opera-
tion. Rotate the end of the lever upward to the third detent
past the intermittent settings for high-speed wiper opera-
tion.

Intermittent Wiper System

Use the intermittent wiper when weather conditions make
a single wiping cycle, with a variable pause between cycles,
desirable. Select the delay interval by turning the end of the
lever. Rotate the end of the lever upward (clockwise) to
decrease the delay time and downward (counterclockwise)
to increase the delay time. The delay can be regulated from
a maximum of approximately 18 seconds between cycles,
to a cycle every second.

NOTE:

The wiper delay times depend on vehicle speed. If

the vehicle is moving less than 10 mph (16 km/h), delay
times will be doubled.

Windshield Washers

To use the washer, pull the control lever toward you and
hold while spray is desired. If the lever is pulled while in
the delay range, the wiper will operate in low-speed while
the lever is pulled and for two wipe cycles after the lever is
released, and then resume the intermittent interval previ-
ously selected.

If the lever is pulled while in the off position, the wipers
will operate for two wipe cycles, then turn off.

Windshield Wiper Operation

GETTING TO KNOW YOUR VEHICLE

WARNING!

Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.

Headlights On With Wipers (Available With
Automatic Headlights Only)

NOTE:

The Headlights On with Wipers feature can be

turned on or off using the instrument cluster display. Refer
to “Instrument Cluster Display” in “Getting To Know Your
Instrument Panel” for further information.

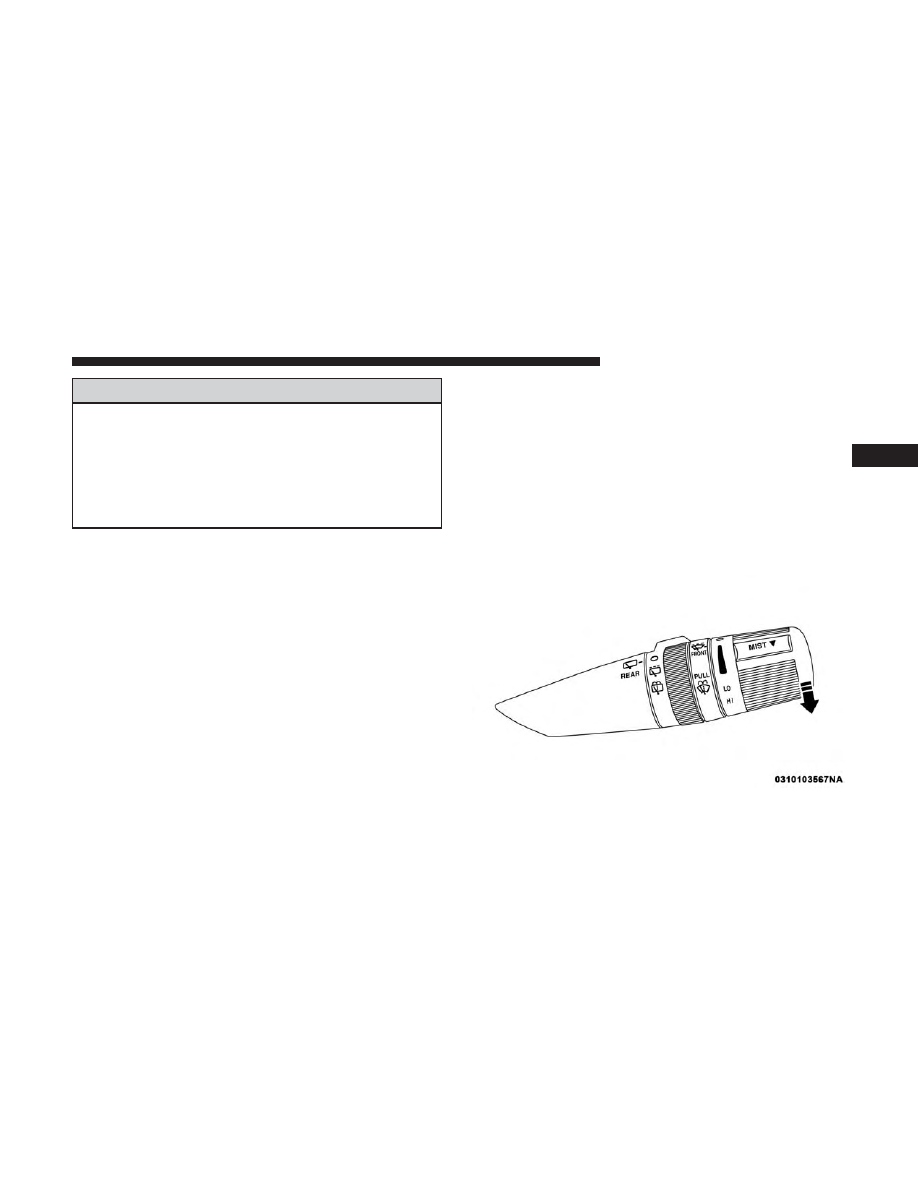

Mist Feature

Push down on the control lever to activate a single wipe to
clear the windshield of road mist or spray from a passing
vehicle. As long as the lever is held down, the wipers will
continue to operate.

NOTE:

The mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.

Mist Operation

GETTING TO KNOW YOUR VEHICLE

Rear Window Wiper/Washer

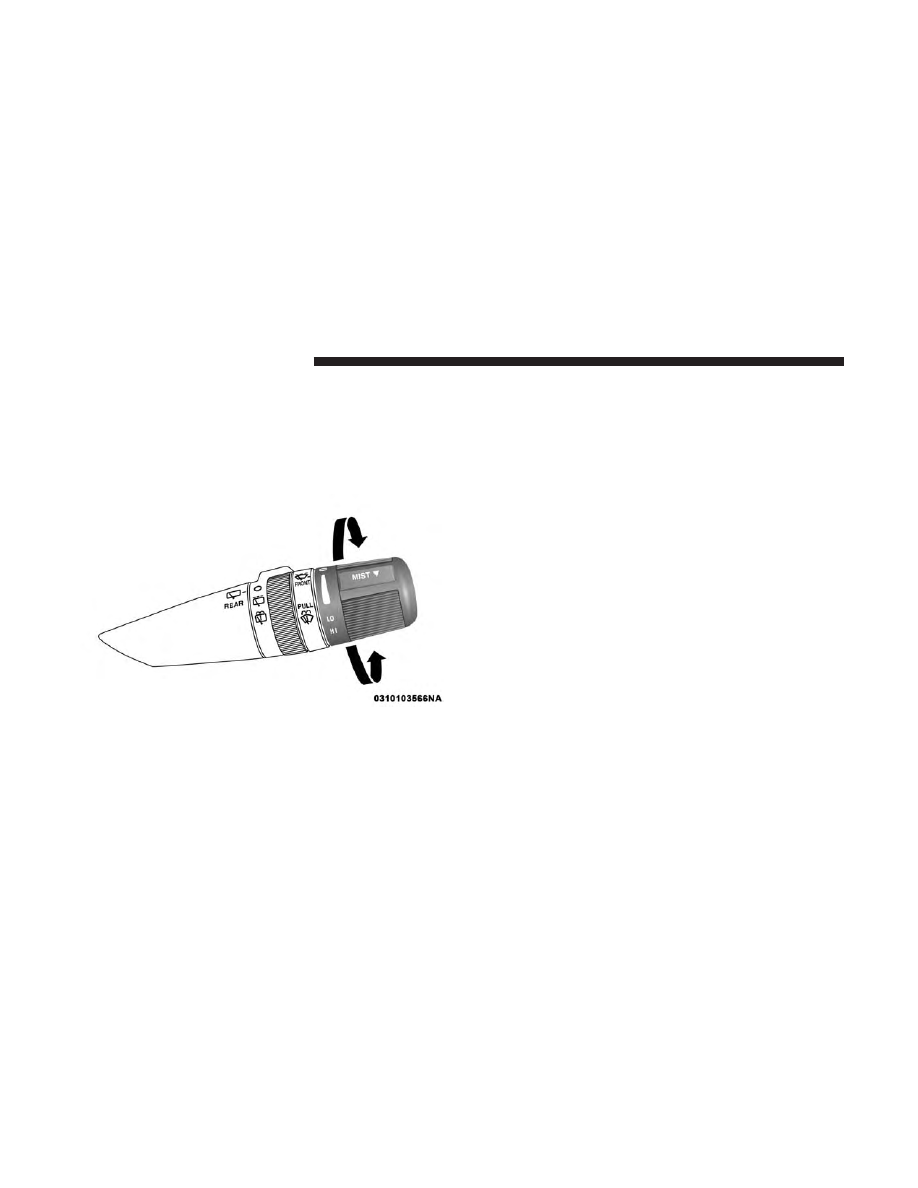

The rear wiper/washer is controlled by a rotary switch
located on the center portion of the control lever. The
control lever is located on the right side of the steering
column.

Rotate the center portion of the lever upward to the
first detent position for rear wiper operation.

NOTE:

The rear wiper operates in an intermittent mode

only.

Rotate the center portion of the lever past the
first detent to activate the rear washer. The
washer pump and the wiper will continue to
operate as long as the switch is held (for a

maximum of 10 seconds). Upon release, the wiper will
continue to cycle two times before returning to the set
position.

If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position if power accessory delay is active. Power acces-
sory delay can be cancelled by opening the door, if this
happens the rear wiper will stop at its current position and
will not go to “park”.

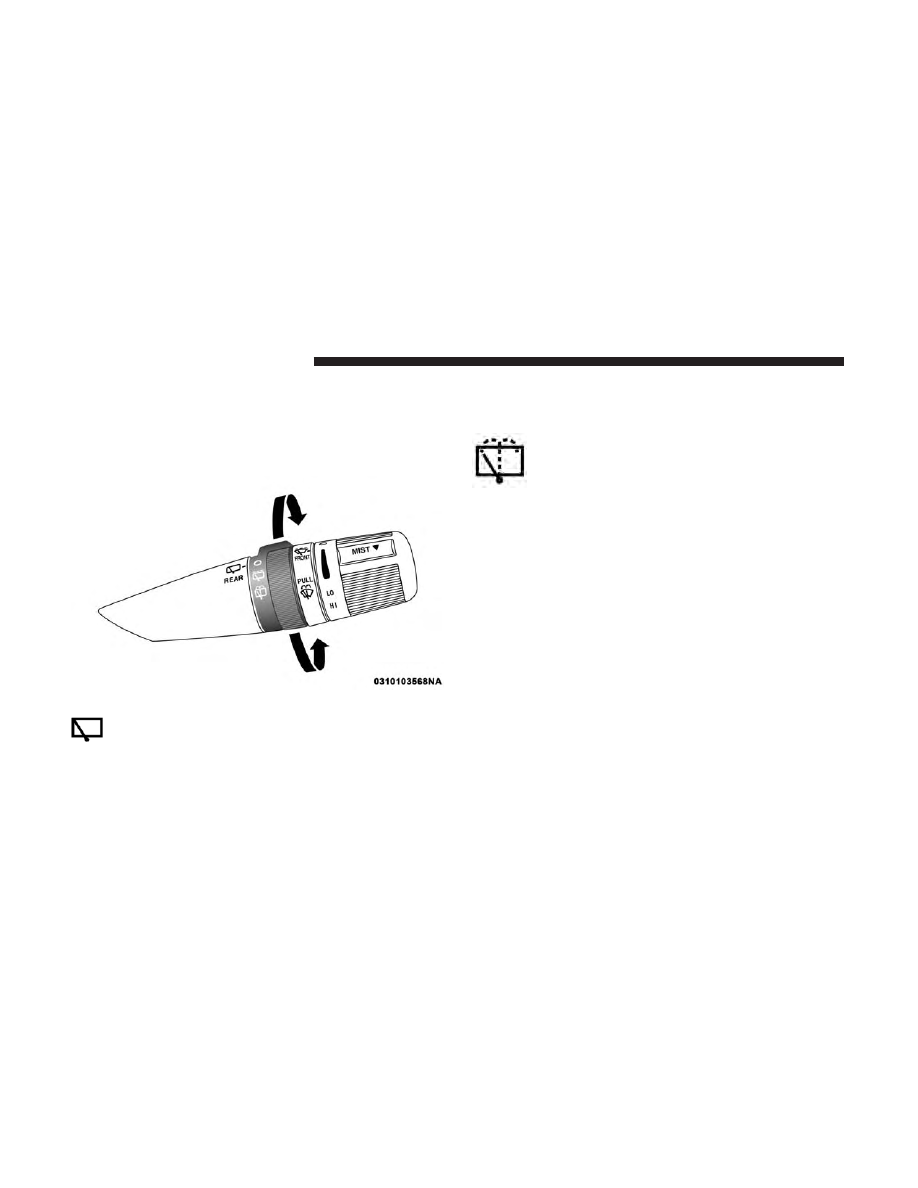

Rear Wiper/Washer Control Lever

GETTING TO KNOW YOUR VEHICLE

CLIMATE CONTROLS

The Climate Control System allows you to regulate the
temperature, airflow, and direction of air circulating
throughout the vehicle. The controls are located on the
instrument panel below the radio.

Manual Climate Controls

The controls for the manual heating and air conditioning
system in this vehicle consist of a series of outer rotary
dials and inner push knobs. These comfort controls can be
set to obtain desired interior conditions.

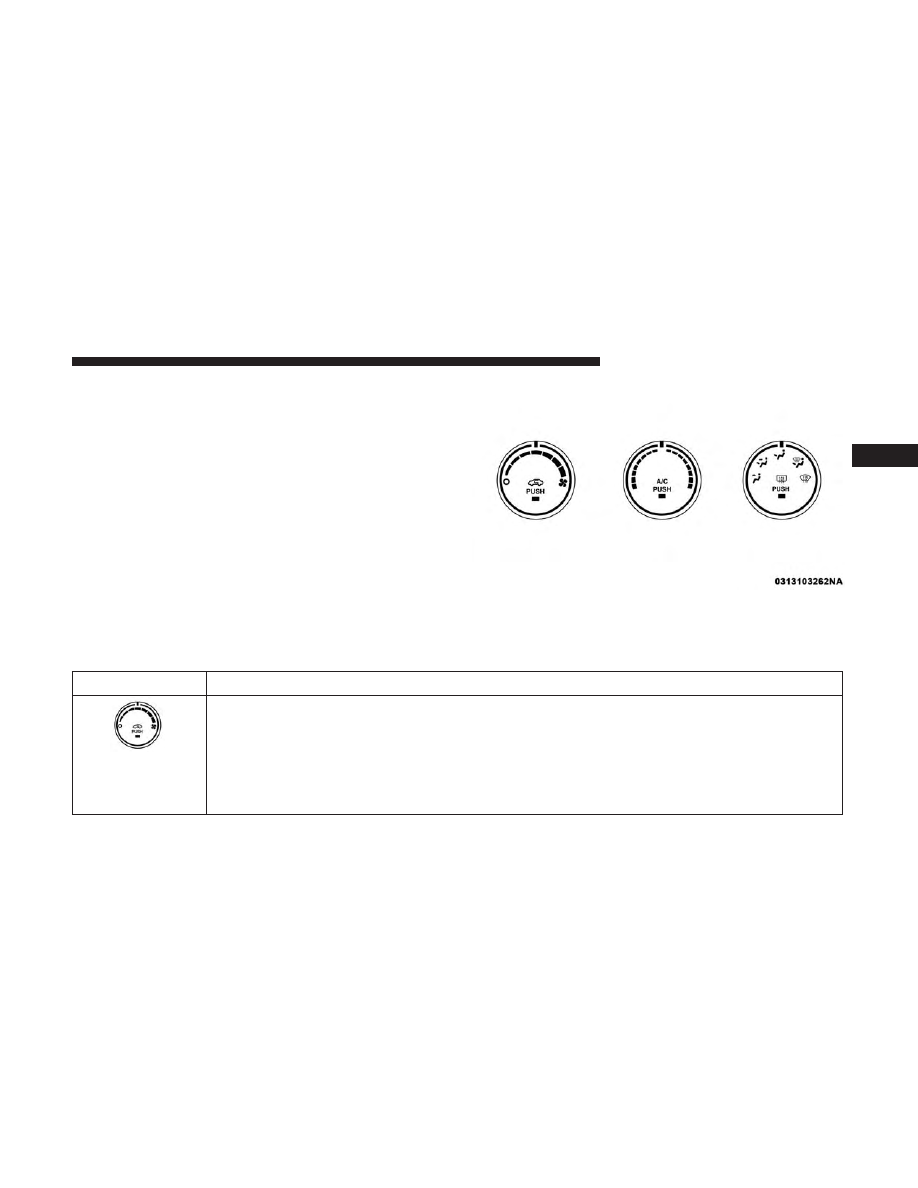

Manual Climate Control Descriptions

Icon

Description

Blower Control
There are seven blower speeds. Use this control to regulate the amount of air forced through the
system in any mode you select. The blower speed increases as you move the control clockwise
from the off position.

NOTE:

Depending on the configuration, your vehicle may be equipped with four blower

speeds.

Manual Climate Controls

GETTING TO KNOW YOUR VEHICLE

Icon

Description

A/C Button
Press and release to change the current setting, the indicator illuminates when A/C is on. Per-
forming this function again will cause the A/C operation to switch into manual mode and the
A/C indicator will turn off.
Temperature Control
Use this control to regulate the temperature of the air inside the passenger compartment. Rotat-
ing the knob counterclockwise, from top center into the blue area of the scale, indicates cooler
temperatures. Rotating the knob clockwise, into the red area, indicates warmer temperatures.

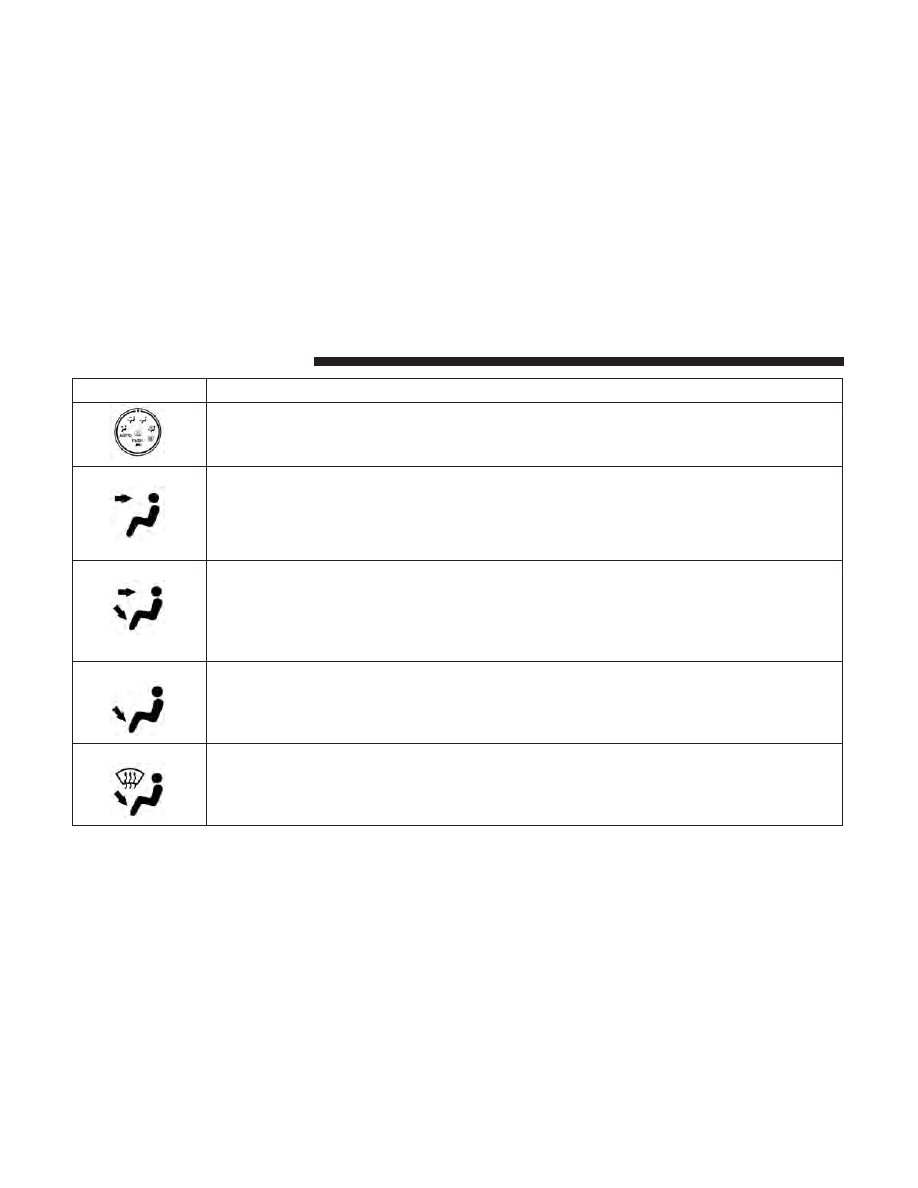

Modes Control
Turn the knob to adjust airflow distribution. The airflow distribution mode can be adjusted so
air comes from the instrument panel outlets, floor outlets, defrost outlets and demist outlets.

Panel Mode

Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be
moved up and down or side to side to regulate airflow direction. There is a shut off wheel lo-
cated below the air vanes to shut off or adjust the amount of airflow from these outlets.

Bi-Level Mode

Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed
through the defrost and side window demister outlets.

NOTE:

BI-LEVEL mode is designed under comfort conditions to provide cooler air out of the

panel outlets and warmer air from the floor outlets.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

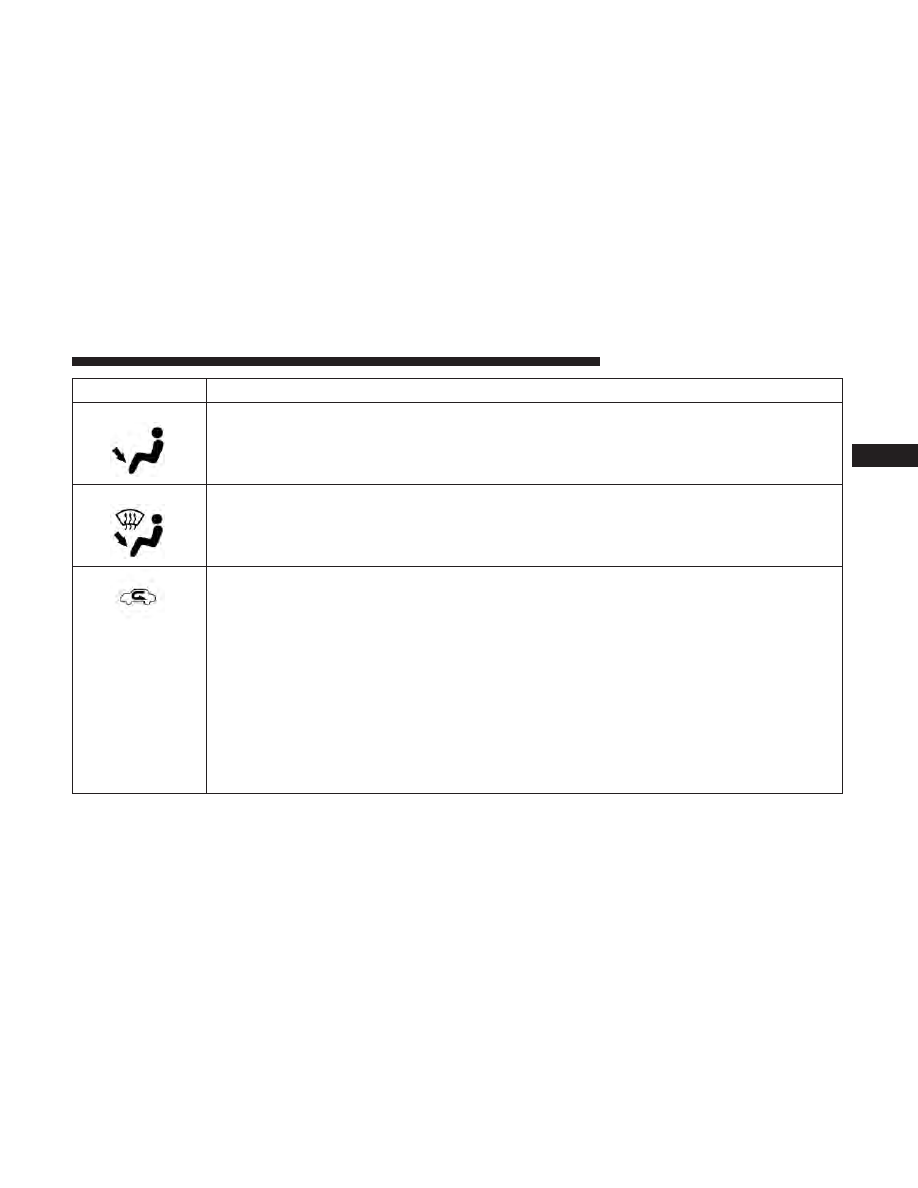

Floor Mode

Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side
window demister outlets.

Mix Mode

Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works
best in cold or snowy conditions that require extra heat to the windshield. This setting is good
for maintaining comfort while reducing moisture on the windshield.

Recirculation Button
Push and release this button to change the system between recirculation mode and outside air
mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or high
humidity are present.

NOTE:

• Continuous use of the Recirculation mode may make the inside air stuffy and window fog-

ging may occur. Extended use of this mode is not recommended.

• The use of the Recirculation mode in cold or damp weather could cause windows to fog on

the inside, because of moisture buildup inside the vehicle. Select the outside air position for
maximum defogging.

• Recirculation can be used in all modes except for Defrost.

• The A/C can be deselected manually without disturbing the mode control selection.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

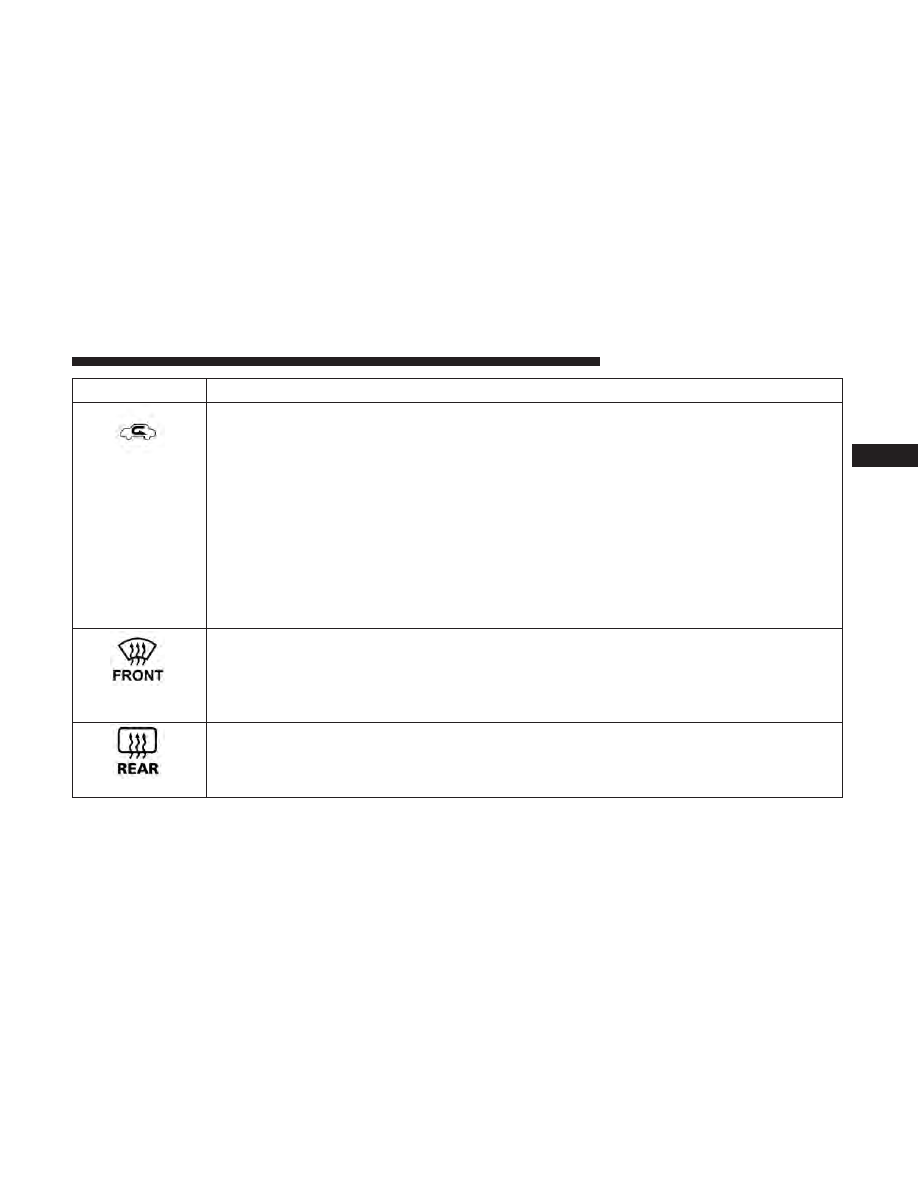

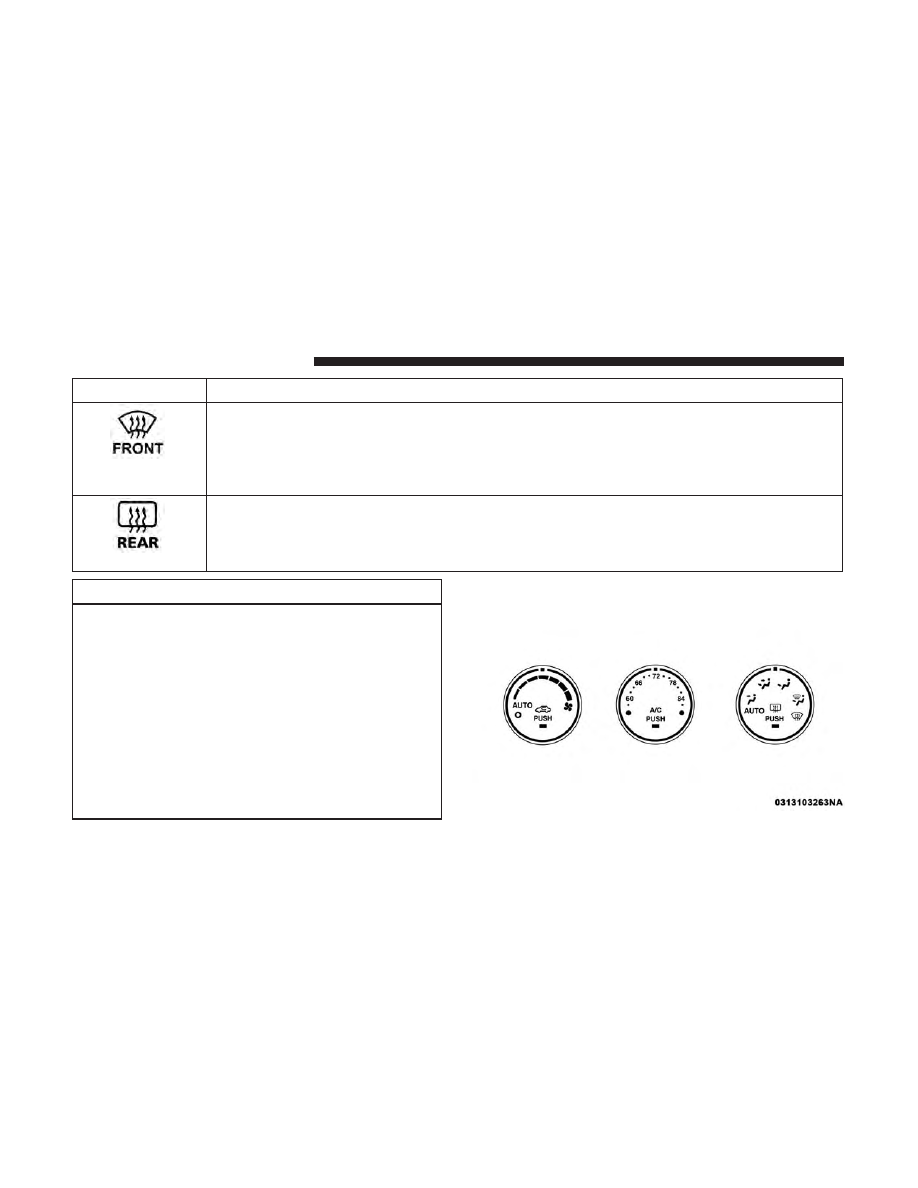

Front Defrost Mode
Turn the knob to the Front Defrost position. The indicator illuminates when this feature is on.
Air comes from the windshield and side window demist outlets. When the defrost button is se-
lected, the blower level will increase. Use Defrost mode with maximum temperature settings for
best windshield and side window defrosting and defogging.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after 10 minutes.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-

dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the window.

• Keep all objects a safe distance from the window.

Automatic Climate Controls

Automatic Temperature Controls

GETTING TO KNOW YOUR VEHICLE

Automatic Climate Control Descriptions

Icon

Description

NOTE:

Depending on the configuration, your vehicle may be equipped with four blower

speeds.
AUTO Setting
Automatically controls the interior cabin temperature by adjusting airflow distribution and
amount. Performing this function will cause the system to switch between manual mode and
automatic modes. Refer to “Automatic Operation” for more information.

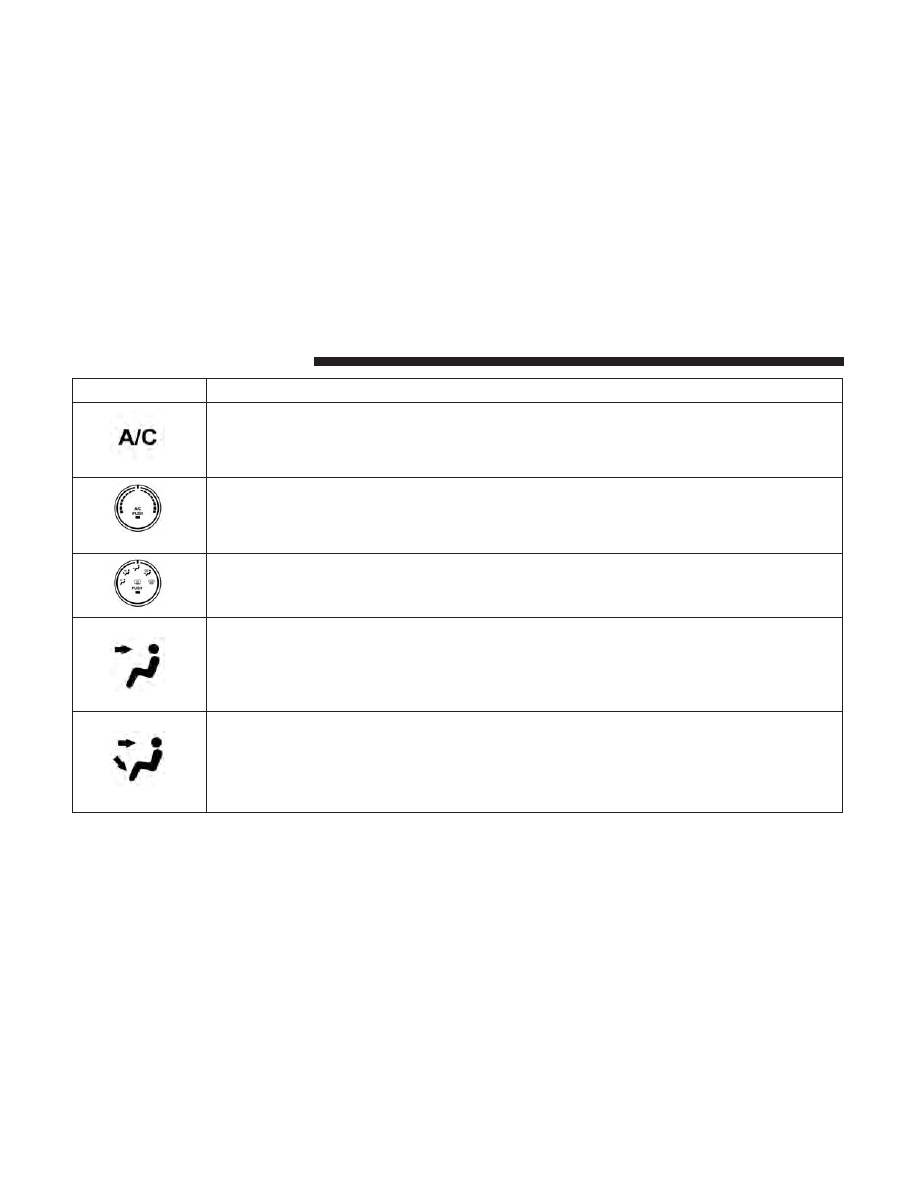

A/C Button
Press and release to change the current setting, the indicator illuminates when A/C is ON. Per-
forming this function again will cause the A/C operation to switch into manual mode and the
A/C indicator will turn off.
Temperature Control
Use this control to regulate the temperature of the air inside the passenger compartment. Rotat-
ing the knob counterclockwise, from top center into the blue area of the scale, indicates cooler
temperatures. Rotating the knob clockwise, into the red area, indicates warmer temperatures.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Modes Control
Turn the knob to adjust airflow distribution. The airflow distribution mode can be adjusted so
air comes from the instrument panel outlets, floor outlets, defrost outlets and demist outlets.

Panel Mode

Bi-Level Mode

Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed
through the defrost and side window demister outlets.

NOTE:

BI-LEVEL mode is designed under comfort conditions to provide cooler air out of the

panel outlets and warmer air from the floor outlets.

Floor Mode

Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side
window demister outlets.

Mix Mode

GETTING TO KNOW YOUR VEHICLE

Icon

Description

NOTE:

• Continuous use of the Recirculation mode may make the inside air stuffy and window fog-

ging may occur. Extended use of this mode is not recommended.

• The use of the Recirculation mode in cold or damp weather could cause windows to fog on

the inside, because of moisture buildup inside the vehicle. Select the outside air position for
maximum defogging.

• Recirculation can be used in all modes except for Defrost.

• The A/C can be deselected manually without disturbing the mode control selection.
Front Defrost Mode
Turn the knob to the Front Defrost position. The indicator illuminates when this feature is on.
Air comes from the windshield and side window demist outlets. When the defrost button is se-
lected, the blower level will increase. Use Defrost mode with maximum temperature settings for
best windshield and side window defrosting and defogging.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after 10 minutes.

GETTING TO KNOW YOUR VEHICLE

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the win-
dow.

• Keep all objects a safe distance from the window.

Climate Control Functions

A/C (Air Conditioning)

The Air Conditioning (A/C) button allows the operator to
manually activate or deactivate the air conditioning sys-
tem. When the air conditioning system is turned on, cool
dehumidified air will flow through the outlets into the
cabin. For improved fuel economy, press the A/C button to
turn off the air conditioning and manually adjust the
blower and airflow mode settings. Also, make sure to select
only Panel, Bi-Level or Floor modes.

NOTE:

• If fog or mist appears on the windshield or side glass,

select Defrost mode and increase blower speed if
needed.

• If your air conditioning performance seems lower than

expected, check the front of the A/C condenser (located
in front of the radiator), for an accumulation of dirt or
insects. Clean with a gentle water spray from the front of
the radiator and through the condenser.

Recirculation

When outside air contains smoke, odors, or high humidity,
or if rapid cooling is desired, you may wish to recirculate
interior air by pressing the Recirculation control button.
The recirculation indicator will illuminate when this button
is selected. Press the button a second time to turn off the
Recirculation mode and allow outside air into the vehicle.

GETTING TO KNOW YOUR VEHICLE

NOTE:

In cold weather, use of recirculation mode may lead

to excessive window fogging. The recirculation feature
may be unavailable (button on the touchscreen greyed out)
if conditions exist that could create fogging on the inside of
the windshield. On systems with Manual Climate Controls,
the Recirculation mode is not allowed in Defrost mode to
improve window clearing operation. Recirculation will be
disabled automatically if this mode is selected. Attempting
to use Recirculation while in this mode will cause the LED
in the control button to blink and then turn off.

Automatic Temperature Control (ATC) — If
Equipped

Automatic Operation

The Automatic Temperature Control system automatically
maintains the climate in the cabin of the vehicle at the
comfort levels desired by the driver and passenger.

Operation of the system is quite simple.

Turn the Mode Control knob (on the right) and the Blower
Control knob (on the left) to AUTO.

NOTE:

The AUTO position performs best for front seat

occupants only.

Manual Operation

This system offers a full complement of manual override
features, which consist of Blower Preferred Automatic,
Mode Preferred Automatic, or Blower and Mode Preferred
Automatic. This means the operator can override the
blower, the mode, or both. There is a manual blower range
for times when the AUTO setting is not desired. The
blower can be set to any fixed blower speed by rotating the
Blower Control knob (on the left).

NOTE:

Please read the Automatic Temperature Control

Operation Chart that follows for details.

GETTING TO KNOW YOUR VEHICLE

Jeep Patriot (2017 year). Instruction - part 4
