Jeep Grand Cherokee SRT8 (2009 year). Instruction

The power window switches remain active for up to
10 minutes after the ignition switch has been turned OFF.
Opening a vehicle front door will cancel this feature.

Auto Down
Both the driver and front passenger window switch has
an “Auto Down” feature. Press the window switch past

the first detent, release, and the window will go down
automatically. To cancel the “Auto Down” movement,
operate the switch in either the up or down direction and
release the switch.

To open the window part way, press to the first detent
and release it when you want the window to stop.

The power window switches remain active for 10 min-
utes after the ignition has been turned OFF. Opening
either front door will cancel this feature.

Auto Up Feature with Anti-Pinch Protection
(Driver’s and Front Passenger Door Only)
Lift the window switch to the second detent, release, and
the window will go up automatically.

To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.

To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.

Power Window Switches

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

If the window runs into any obstacle during

Auto Up it will reverse direction and then stop. Remove
the obstacle and use the window switch again to close the
window. Any impact due to rough road conditions may
trigger the auto reverse function unexpectedly during
Auto Up. If this happens, pull the switch lightly to the
first detent and hold it to close the window manually.

WARNING!

There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.

Resetting the Auto Up Feature
Should the Auto Up feature stop working, the window
probably needs to be reset. To reset Auto Up:

Pull the window switch up and close the window com-
pletely, then pull and hold the switch for one second.

Window Lockout Switch
The window lockout switch on the driver’s door allows
you to disable the window controls on the other doors. To
disable the window controls on the other doors, press the
window lockout button. To enable the window controls,
press the window lockout button again.

Window Lockout Switch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting.

LIFTGATE

To open the liftgate, pull up (squeeze) on the handle and
lift. Manually unlocking the vehicle doors with the
plunger or a key in the lock cylinder will not unlock the
liftgate.

WARNING!

Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.

Liftgate Release

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Liftgate Flipper Glass

The liftgate flipper glass is also unlocked when the
liftgate is unlocked. To open the flipper glass, push up on
the window switch located on the liftgate.

WARNING!

To avoid injury stand back when opening. Glass will
automatically rise.

Once the liftgate flipper glass has been opened, connec-
tion to the rear window wiper is interrupted, preventing
activation of the rear wiper blade while the flipper glass
is open.

NOTE:

If a power malfunction to the power liftgate

latch should occur, an emergency liftgate latch release
can be used to open the liftgate. The emergency liftgate
latch release can be accessed through a snap-in cover
located on the liftgate trim panel.

Liftgate Glass Release

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.

OCCUPANT RESTRAINTS

Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and right front passenger, and
window bags for the driver and passengers seated next to
a window. If you will be carrying children too small for
adult-size belts, your seat belts also can be used to hold
infant and child restraint systems.

NOTE:

The front airbags have a multistage inflator

design. This allows the airbags to have different rates of
inflation that are based on collision severity.

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.

WARNING!

• In a collision, you and your passengers can suffer

injuries, including fatalities, if you are not prop-
erly buckled up. You can strike the interior of your
vehicle or other passengers, or you can be thrown
out of the vehicle. Always be sure you and others
in your vehicle are buckled up properly.

(Continued)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• Buckle up even though you are an excellent driver,

even on short trips. Someone on the road may be a
poor driver and cause a collision which includes
you. This can happen far away from home or on
your own street.

• Research has shown that seat belts save lives, and

they can reduce the seriousness of injuries in a
collision. Some of the worst injuries happen when
people are thrown from the vehicle. Seat belts
reduce the possibility of ejection and the risk of
injury caused by striking the inside of the vehicle.
Everyone in a motor vehicle should be belted at all
times to reduce or prevent injuries.

Lap/Shoulder Belts

All seating positions in your vehicle have combination
lap/shoulder belts. The belt webbing retractor is de-
signed to lock during very sudden stops or collisions.

This feature allows the shoulder part of the belt to move
freely with you under normal conditions. But in a colli-
sion, the belt will lock and reduce the risk of you striking
the inside of the vehicle or being thrown out.

WARNING!

• Wearing a seat belt incorrectly is dangerous. Seat

belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the best.
Wearing your belt in the wrong place could make
your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your pas-
sengers safe, too.

(Continued)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• Two people should never be belted into a single

seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for more
than one person, no matter what their size.

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and
adjust the seat.

2. The seat belt latch plate is above the back of your seat.
Grasp the latch plate and pull out the belt. Slide the latch
plate up the webbing as far as necessary to make the belt
go around your lap.

Latch Plate

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”

WARNING!

• A belt that is buckled into the wrong buckle will

not protect you properly. The lap portion could
ride too high on your body, possibly causing
internal injuries. Always buckle your belt into the
buckle nearest you.

• A belt that is too loose will not protect you as well.

In a sudden stop you could move too far forward,
increasing the possibility of injury. Wear your seat
belt snugly.

(Continued)

Latch Plate to Buckle

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• A belt that is worn under your arm is very danger-

ous. Your body could strike the inside surfaces of
the vehicle in a collision, increasing head and neck
injury. A belt worn under the arm can cause
internal injuries. Ribs aren’t as strong as shoulder
bones. Wear the belt over your shoulder so that
your strongest bones will take the force in a
collision.

• A shoulder belt placed behind you will not protect

you from injury during a collision. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.

4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap portion, pull up a
bit on the shoulder belt. To loosen the lap belt if it is too

tight, tilt the latch plate and pull on the lap belt. A snug
belt reduces the risk of sliding under the belt in a
collision.

WARNING!

• A lap belt worn too high can increase the risk of

injury in a collision. The belt forces won’t be at the
strong hip and pelvic bones, but across your ab-
domen. Always wear the lap part of your seat belt
as low as possible and keep it snug.

• A twisted belt can’t do its job as well. In a collision

it could even cut into you. Be sure the belt is
straight. If you can’t straighten a belt in your
vehicle, take it to your authorized dealer and have
it fixed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.

6. To release the belt, push the red button marked PRESS
on the buckle. The belt will automatically retract to its
stowed position. If necessary, slide the latch plate down
the webbing to allow it to retract fully.

WARNING!

A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after an accident if they
have been damaged (bent retractor, torn webbing,
etc.).

Removing Slack from Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

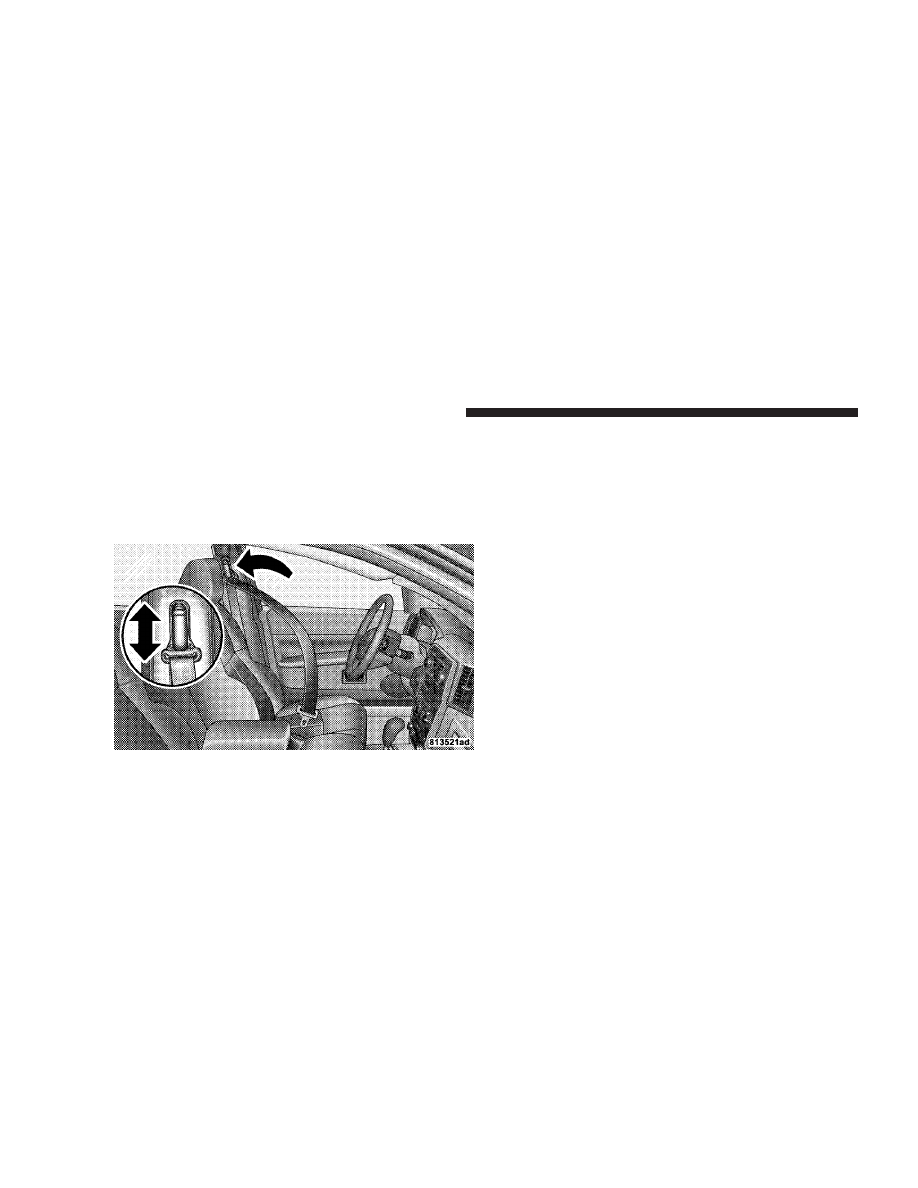

Adjustable Upper Shoulder Belt Anchorage

In the front seating positions, the shoulder belt can be
adjusted upward or downward to position the belt away
from your neck. Press the release button to release the
anchorage, and then move it up or down to the position
that serves you best.

As a guide, if you are shorter than average, you will
prefer a lower position, and if you are taller than average,
you’ll prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.

Automatic Locking Mode — If Equipped

In this mode, the shoulder belt is automatically pre-
locked. The belt will still retract to remove any slack in
the shoulder belt.

When to Use the Automatic Locking Mode
Use Automatic Locking mode anytime a child safety seat
is installed in the rear center seating position. Children
12 years old and younger should be properly restrained
in the rear seat whenever possible.

How to Use the Automatic Locking Mode

1. Buckle the combination lap and shoulder belt.

Adjusting Upper Shoulder Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Grasp the shoulder portion and pull downward until
the entire belt is fully extended.

3. Allow the belt to retract. As the belt retracts, you will
hear a clicking sound. This indicates the safety belt is
now in the Automatic Locking mode.

How to Disengage the Automatic Locking Mode
Disconnect the combination lap/shoulder belt and allow
it to retract completely to disengage the Automatic
Locking mode and activate the Vehicle Sensitive (Emer-
gency) Locking mode.

Energy Management Feature

This vehicle has a safety belt system with an Energy
Management feature in the front seating positions to help
further reduce the risk of injury in the event of a head-on
collision.

This safety belt system has a retractor assembly that is
designed to release webbing in a controlled manner. This
feature is designed to help reduce the belt force acting on
the occupant’s chest.

WARNING!

• The belt and retractor assembly must be replaced

if the seat belt assembly Automatic Locking Re-
tractor (ALR) feature or any other seat belt func-
tion is not working properly when checked ac-
cording to the procedures in the Service Manual.

• Failure to replace the belt and retractor assembly

could increase the risk of injury in collisions.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Seat Belt Pretensioners

The driver and front passenger seat belts are equipped
with a pretensioning device that is designed to remove
any slack from the seat belt systems in the event of a
collision. This device improves the performance of the
seat belt by assuring that the belt is tight around the
occupant early in a collision. Pretensioners work for all
size occupants, including those in child restraints.

NOTE:

These devices are not a substitute for proper seat

belt placement by the occupant. The seat belt must still be
worn snugly and positioned properly.

The pretensioners are triggered by the Occupant Re-
straint Control (ORC). Like the front airbags, the preten-
sioners are a single use item. After a collision that is
severe enough to deploy the airbags and pretensioners,
they must be replaced.

Enhanced Seat Belt Use Reminder System
(BeltAlert

姞

)

If the driver’s seat belt has not been buckled within
60 seconds of starting the vehicle and if the vehicle speed
is greater than 5 mph (8 km/h), the Enhanced Warning
System (BeltAlert

威) will alert the driver to buckle the seat

belt. The driver should also instruct all other occupants to
buckle their seat belts. Once the warning is triggered,
BeltAlert

威 will continue to chime and flash the Seat Belt

Warning Light for 96 seconds or until the driver’s seat
belt is buckled. BeltAlert

威 will be reactivated if the

driver’s seat belt is unbuckled for more than 10 seconds
and the vehicle speed is greater than 5 mph (8 km/h).

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

BeltAlert

威 can be enabled or disabled by your authorized

dealer or by following these steps:

NOTE:

The following steps must occur within the first

60 seconds of the ignition switch being turned to the ON
or START position. Chrysler LLC does not recommend
deactivating BeltAlert

威.

1. Turn the ignition switch to the OFF position, and
buckle the driver’s seat belt.

2. Turn the ignition key to the ACC/ON position (engine
does not need to be running), and wait for the Seat Belt
Warning Light to turn off.

3. Within 60 seconds of starting the vehicle, unbuckle
and then re-buckle the driver’s seat belt at least three
times within 10 seconds, ending with the seat belt
buckled.

4. Turn the ignition key to the OFF position. A single
chime will sound to signify that you have successfully
completed the programming.

BeltAlert

威 can be reactivated by repeating this procedure.

NOTE:

Although BeltAlert

威 has been deactivated, the

Seat Belt Warning Light will continue to illuminate while
the driver’s seat belt remains unfastened.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Seat Belts and Pregnant Women

We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.

Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.

Seat Belt Extender

If a seat belt is too short, even when fully extended and
when the adjustable upper shoulder belt anchorage (if
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex-
tender and store it.

WARNING!

Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use
when the lap belt is not long enough when it is worn
low and snug, and in the recommended seating
positions. Remove and store the extender when not
needed.

Driver and Front Passenger Supplemental
Restraint Systems (SRS)

This vehicle has airbags for both the driver and right
front passenger as a supplement to the seat belt restraint
systems. The driver’s front airbag is mounted in the
steering wheel. The front passenger airbag is mounted in
the instrument panel, above the glove compartment. The
words SRS/AIRBAG are embossed on the airbag covers.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

The front airbags are certified to the Federal

regulations that allow less forceful deployment.
The front airbags have a multistage inflator design. This
may allow the airbags to have different rates of inflation
that are based on collision severity and occupant size.

This vehicle is equipped with window bags to protect the
driver, and front and rear passengers sitting next to a
window. They are located above the side windows. Their
covers are also labeled SRS/AIRBAG.

1 — Driver Airbag
2 — Passenger Airbag
3 — Knee Bolster

Window Airbag Location

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Jeep Grand Cherokee SRT8 (2009 year). Instruction - part 3
