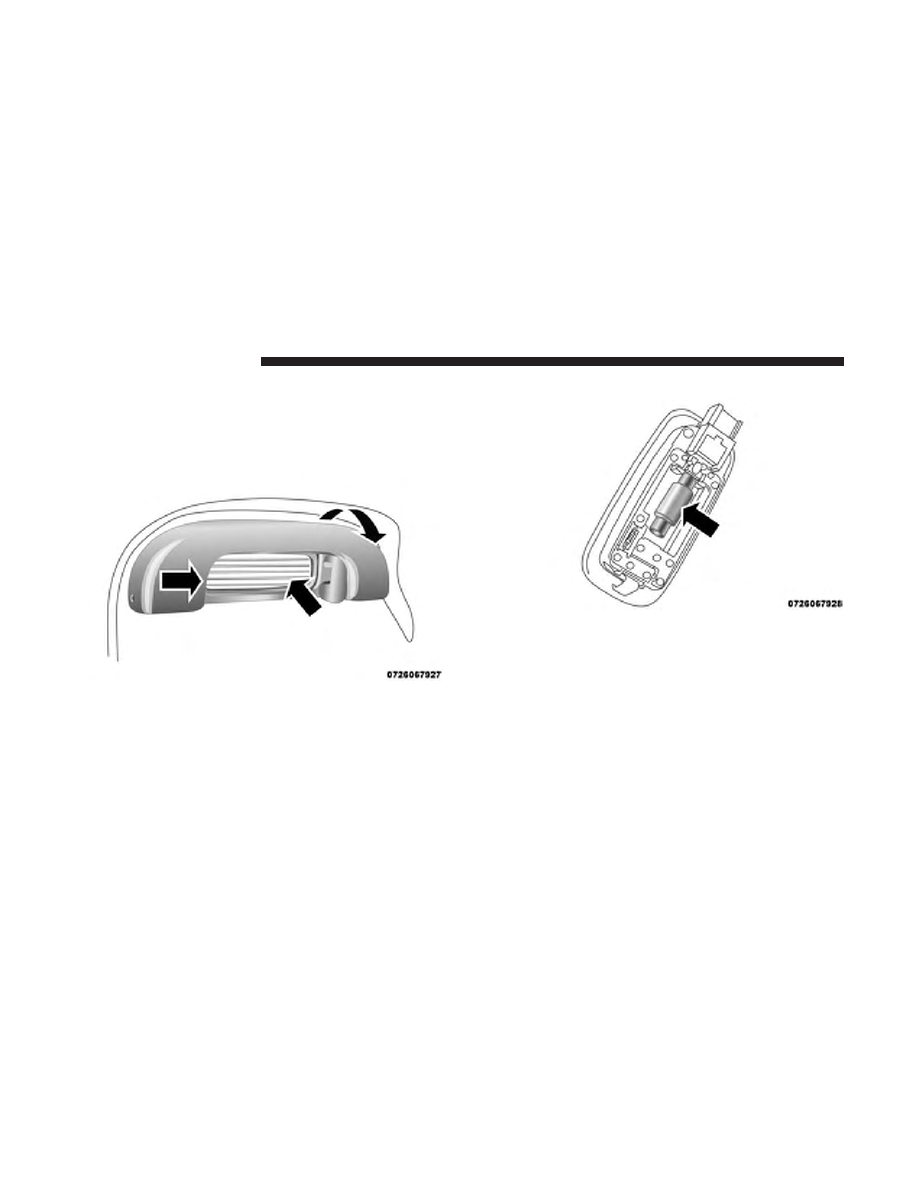

Dome Light

To replace the bulbs proceed as follows:

1. Lower the handle in the direction shown; remove the

dome light.

2. Replace the bulb by removing it from the side contacts.

3. Insert the new bulb, locking it between the contacts.

4. Reinstall the dome light.

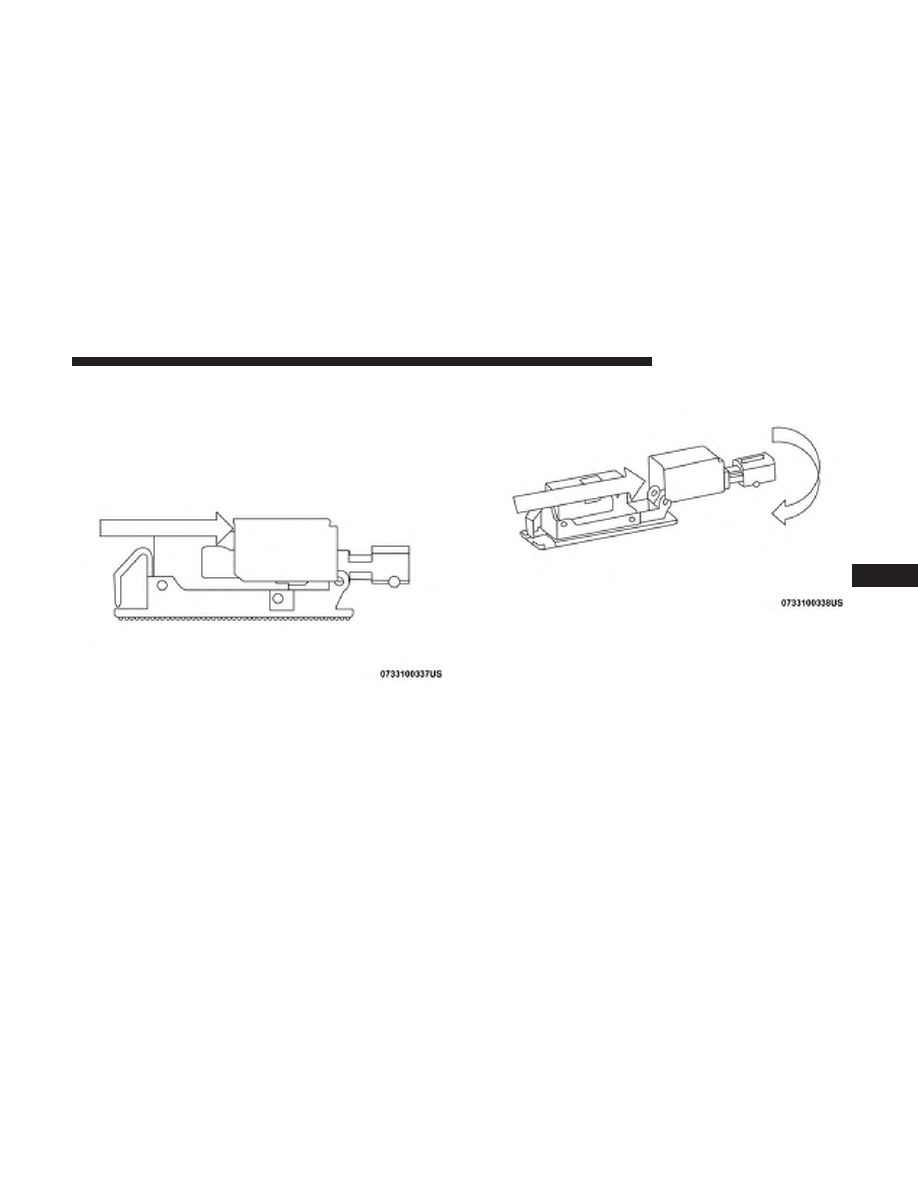

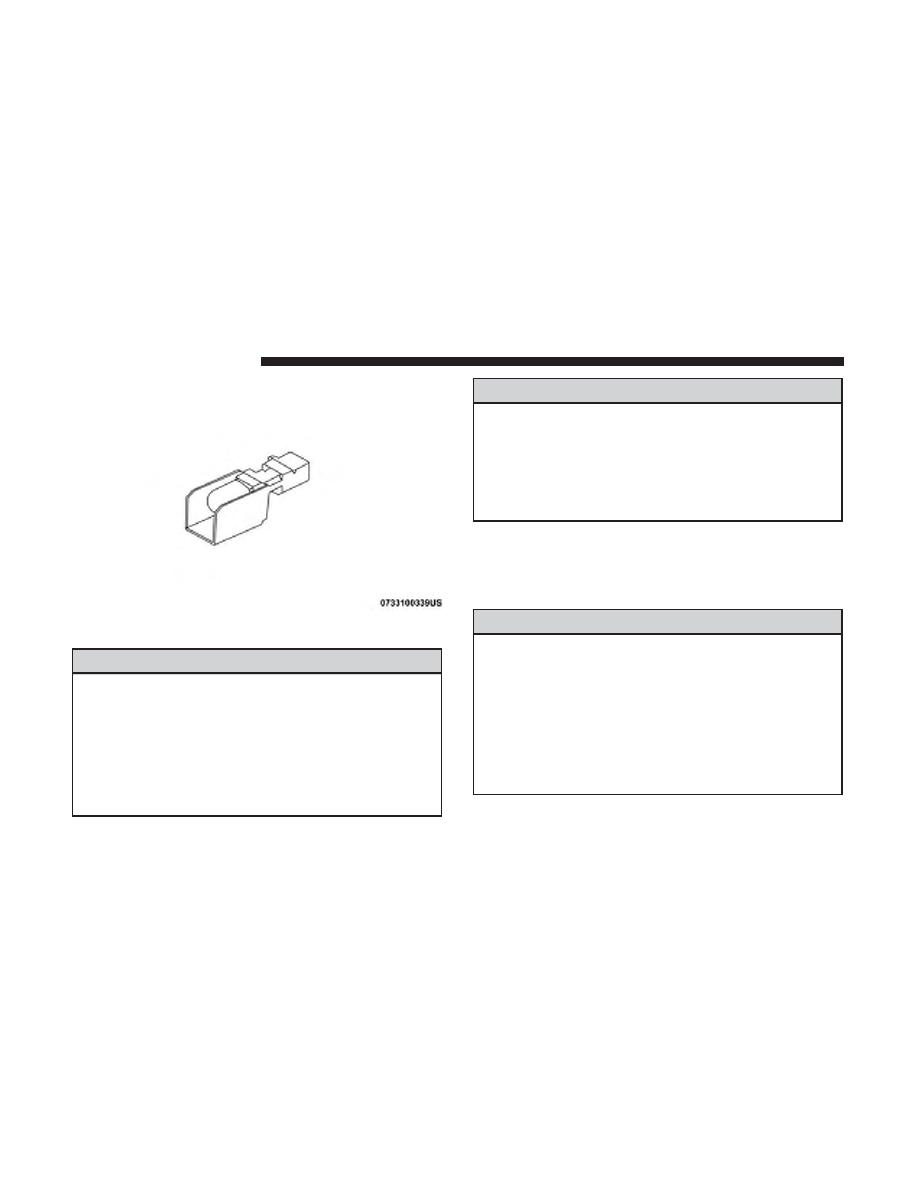

Grab Handle/Dome Light

Bulb

340

IN CASE OF EMERGENCY

3. Rotate bulb holder to replace bulb.

WARNING!

• Modifications or repair of the electrical system per-

formed incorrectly and without taking into account
the technical characteristics can cause malfunctions
with the risk of fire.

• Halogen lamps contain gas under pressure, in the

event of breakage be careful of the projection of
fragments of glass.

(Continued)

WARNING! (Continued)

• Halogen lamps must be handled by touching only

the metallic part. If the transparent bulb is in contact
with the fingers, reduces the intensity of the emitted
light and you can also affect the life of the lamp. In
case of accidental contact, rub the bulb with a cloth
dampened with alcohol and allow to dry.

NOTE:

It is recommended to have your bulbs replaced by

your authorized dealer.

FUSES

WARNING!

• When replacing a blown fuse, always use an appro-

priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Do not
place a fuse inside a circuit breaker cavity or vice
versa. Failure to use proper fuses may result in
serious personal injury, fire and/or property damage.

(Continued)

Bulb

342

IN CASE OF EMERGENCY

WARNING! (Continued)

• Before replacing a fuse, make sure that the ignition is

off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.

General Information

The fuses protect electrical systems against excessive cur-
rent.

When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.

Also, please be aware that when using power outlets for
extended periods of time with the engine off may result in
vehicle battery discharge.

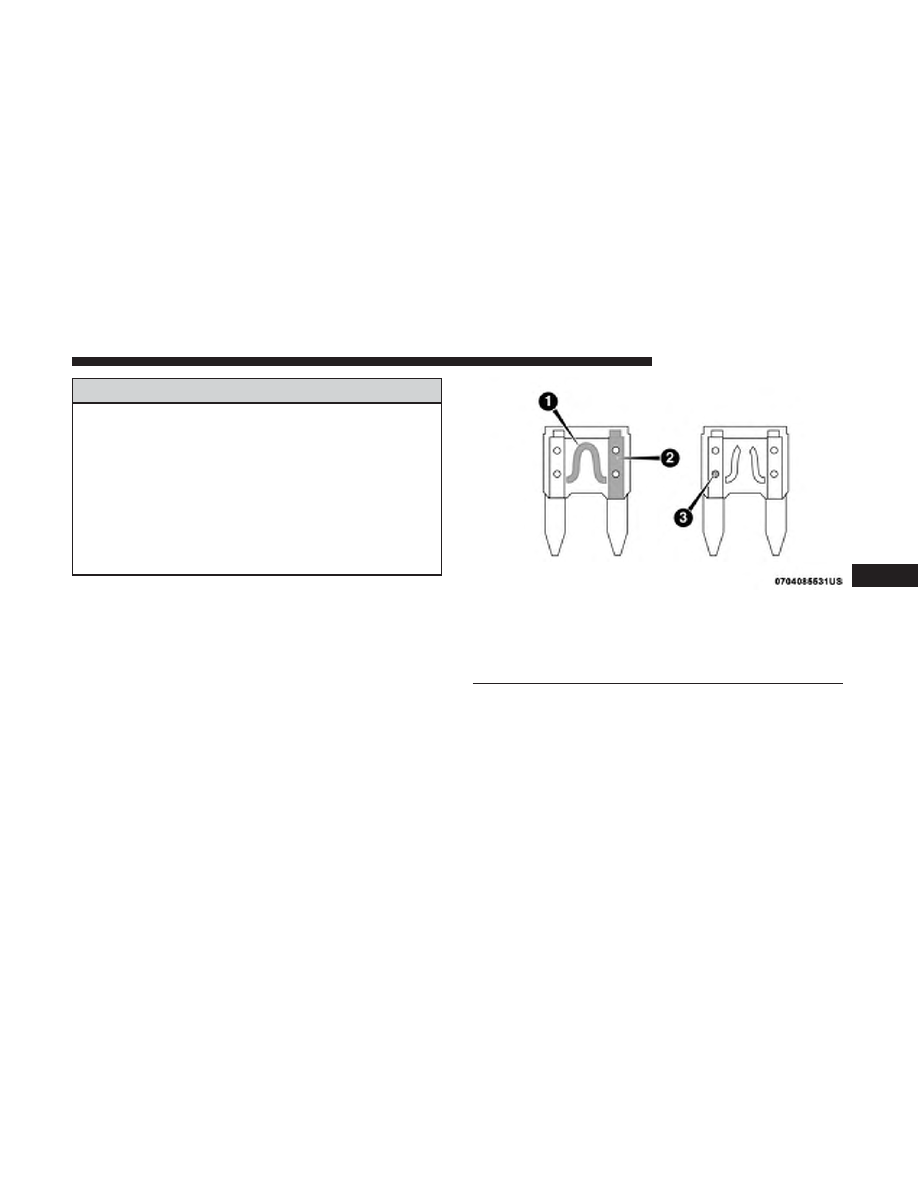

Blade Fuses

1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element.
3 — Blade fuse with a NOT functional / BAD fuse element (blown
fuse).

IN CASE OF EMERGENCY

343

Fuse Location

The fuses are grouped into controllers located in the engine
compartment.

Engine Compartment Fuses/Distribution Unit

The engine compartment fuse panel is located on the left
side of the engine compartment.

Removing Fuse Cover and Locking Screw

Proceed as follows:

1. Slowly turn the screw counterclockwise.

2. Slowly release the screw.

3. Remove the fuse cover by sliding it upward.

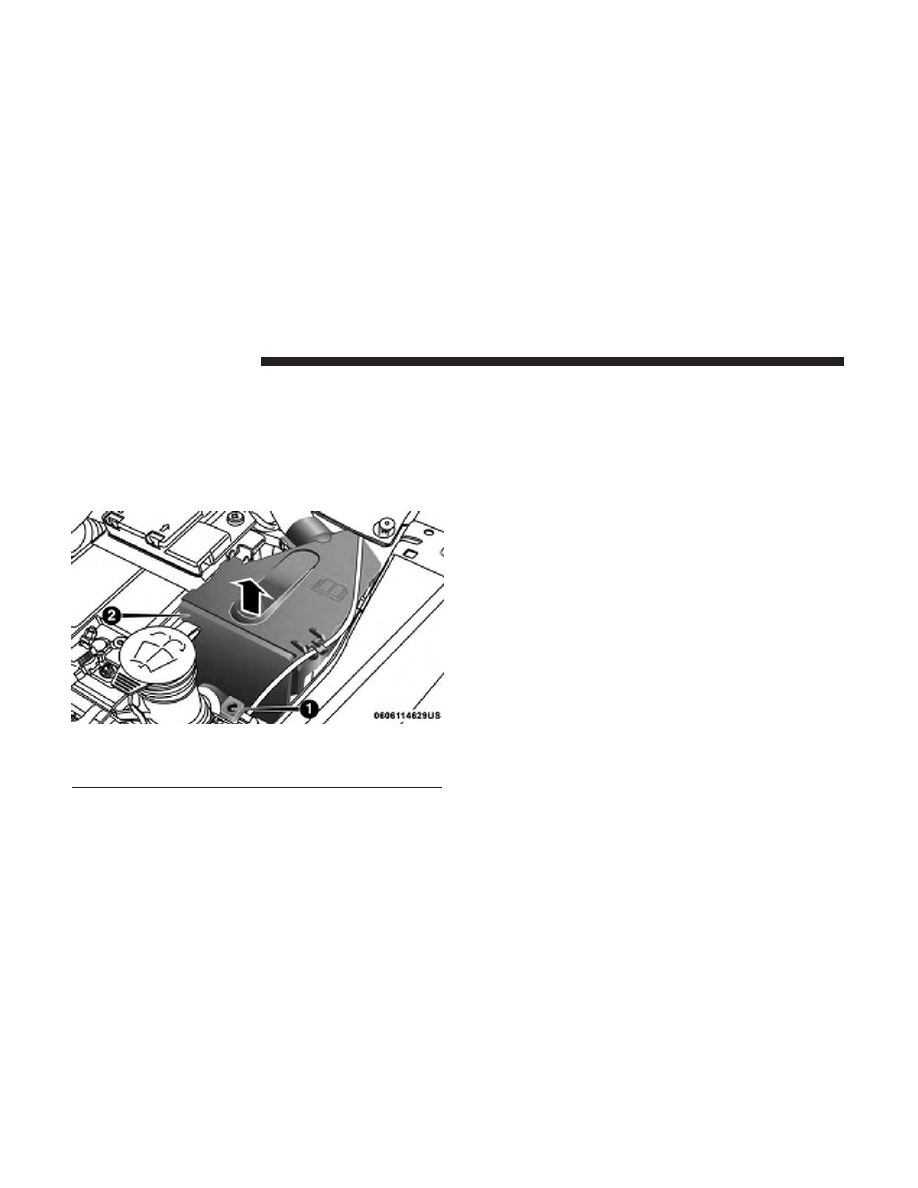

Fuse Panel & Cover Location

1 — Cover Screw
2 — Fuse Cover

344

IN CASE OF EMERGENCY

Mounting Fuse Cover and Locking Screw

Proceed as follows:

1. Properly secure the fuse cover to the box, slide com-

pletely from top to bottom.

2. Fully depress the screw, using the special screwdriver

supplied.

3. Slowly turn the screw clockwise.

4. Release the screw.

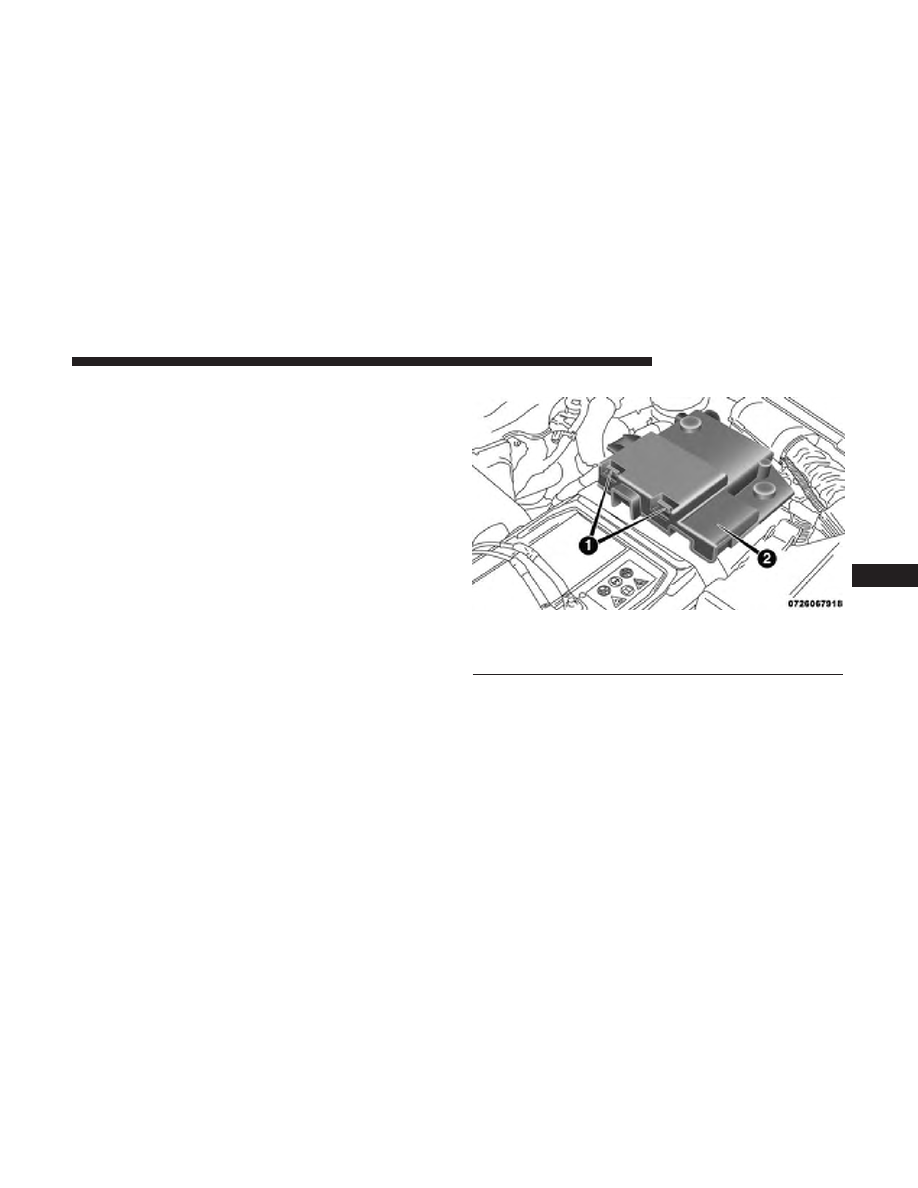

Battery Fuse Cover Location

1 — Fuse Cover Tabs
2 — Fuse Cover

IN CASE OF EMERGENCY

345

Cavity

Maxi Fuse

Cartridge Fuse

Mini Fuse

Description

F01

70 Amp Tan

–

Module Body Com-

puter

F02

70 Amp Tan

–

Module Body Com-

puter, Rear Distribu-

tion Units

F03

–

30 Amp Pink with

HID Lamps

20 Amp Blue with-

out HID Lamps

–

Supply Body Com-

puter, HID Lamps

F04

–

40 Amp Tan

–

Brake Control Elec-

tronics Module

F05

–

40 Amp Tan

–

PTC Heater

F06

40 Amp Orange

–

Starter Relay

F07

40 Amp Orange

–

Rear Distribution

Unit For Trailer Tow

Usage

F08

–

30 Amp Pink

–

Supply For TCM,

AGSM, Steering Con-

trol

F09

–

7.5 Amp Brown

ECM, TCM, Radiator

Fan Control

F10

–

20 Amp Yellow

Horn

346

IN CASE OF EMERGENCY

Cavity

Maxi Fuse

Cartridge Fuse

Mini Fuse

Description

F11

–

20 Amp Yellow –

1.4L Gas & Diesel

Engines

25 Amp Clear – 2.4

L Engines/UREA

ECM/PCM/UREA

Fuel Injectors

F14

–

7.5 Amp Brown

Diesel Crankcase

Heater

F15

40 Amp Orange

–

Brake Control Mod-

ule Pump

F16

–

10 Amp Red

Engine Control Mod-

ule Power, Automatic

Transmission

F17

–

10 Amp Red

Engine Secondary

Loads

F18

–

20 Amp Yellow

12V Rear Cargo Out-

let Ignition Powered

F19

–

7.5 Amp Brown

Air Conditioner

Compressor

F20

–

20 Amp Yellow

Cigar Lighter

F21

–

20 Amp Yellow

Fuel Pump

IN CASE OF EMERGENCY

347

Cavity

Maxi Fuse

Cartridge Fuse

Mini Fuse

Description

F22

–

20 Amp Yellow –

Gas Engine

15 Amp Blue – Die-

sel Engine

Gas - Ign Coil/Fuel

Injector Diesel- Diesel

Components

F23

–

30 Amp Green

Window Heater Grid

F24

–

15 Amp Blue

Electronic Unit Sup-

ply Automatic Trans-

mission

F30

–

20 Amp Yellow

(Customer Select-

able, Move From

F18)

12V Rear Cargo Out-

let Constant Battery

Powered

F81

60 Amp Blue

–

Glow Plug Module,

DDCT SDU Battery

Feed

F82

–

40 Amp Green

–

Diesel Fuel Filter

Heater

F83

–

40 Amp Green

–

HVAC Fan

F84

–

30 Amp Green

Power Supply All

Wheel Drive

F87

–

5 Amp Tan

Gear Selector Auto-

matic Transmission

348

IN CASE OF EMERGENCY

Cavity

Maxi Fuse

Cartridge Fuse

Mini Fuse

Description

F88

–

7.5 Amp Brown

Heated Outside Mir-

rors

F89

–

30 Amp Green

Heated Rear Window

F90

–

5 Amp Tan

IBS Sensor (Battery

State Of Charge)

Fxx

–

10 Amp Red

Dual Battery Control

Relay With NON

DDCT Trans

7.5 Amp Brown

Dual Battery Control

Relay With DDCT

Trans

The Fuse Box has additional ATO fuse holders installed on
the bottom of the box.

Cavity

ATO / UNIVAL Fuse

Description

5 Amp Biege

Drivetrain Control Module (4x4/
AWD)

10 Amp Red

ECM — Start Diagnostic Sense

2 Amp Grey

Mod Steering Control

IN CASE OF EMERGENCY

349

Interior Fuses

The interior fuse panel is located in the passenger compart-
ment on the left side dash panel under the instrument
panel.

Cavity

Blade Fuse

Description

F31

7.5 Amp Brown

Occupant Restraint Controller

F33

20 Amp Yellow

Window Motor Passenger

F34

20 Amp Yellow

Window Motor Driver

F36

20 Amp Yellow

Intrusion Module/Siren, Radio, UCI/USB Port, VSU, Cli-

mate Control, Electronic Steering Lock, Power Folding

Mirrors, Security Gateway/DTV

F37

10 Amp Red

Instrument Panel Cluster, Drivetrain Control Module,

Adaptive Cruise, ECC (HVAC) Blower

F38

20 Amp Yellow

Door Lock/Unlock, Liftgate Release

F42

7.5 Amp Brown

Brake System Module, Electric Power Steering

F43

20 Amp Yellow

Washer Pump Front And Rear

F47

20 Amp Yellow

Rear Left Window Lifter

F48

20 Amp Yellow

Rear Right Window Lifter

F49

7.5 Amp Brown

Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sen-
sor, Electronic Steering Lock, Temp Sense, Mirror, Heated

Seats, Light And Rain Sensor, Start Stop Switch

350

IN CASE OF EMERGENCY

Cavity

Blade Fuse

Description

F50

7.5 Amp Brown

Occupant Restraint Controller

F51

7.5 Amp Brown

Electronic Climate Control, Occupant Classification, Rear

View Camera, Climate Control, Headlamp Leveling, Ter-

rain Select, Heated Rear Window, Trailer Tow, Haptic

Lane Departure

F53

7.5 Amp Brown

Keyless Ignition Node Module, Electric Park Brake, RF

Hub, Cluster

F94

15 Amp Blue

Lumbar Adjust Driver Seat, Power Outlets

IN CASE OF EMERGENCY

351

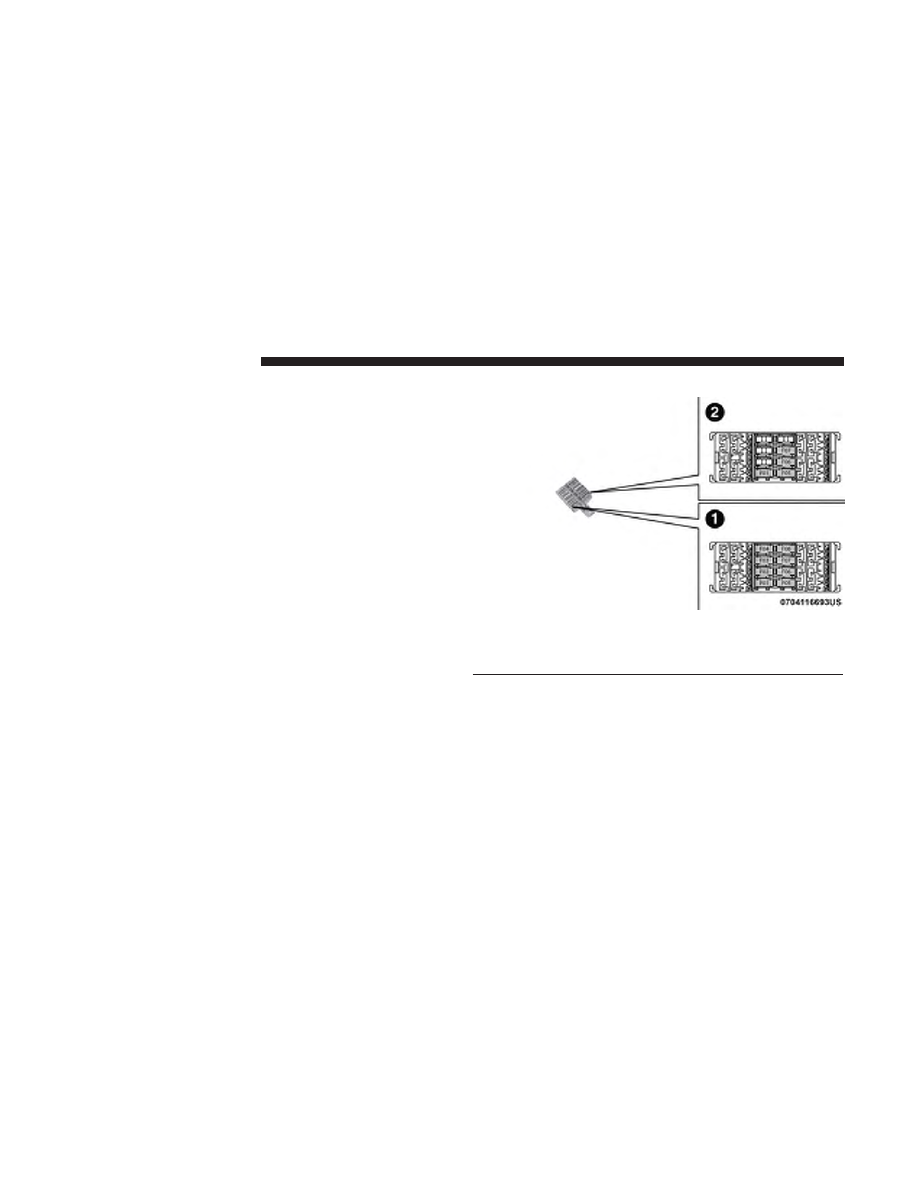

Fuse Holder No. 1

Cavity

Mini Fuse

Description

30 Amp Green

Power Inverter

30 Amp Green

Memory Seat

20 Amp Yellow

Sun Roof – If Equipped

30 Amp Green

Power Seat (Passenger Side)

30 Amp Green

Power Seat (Driver Side)

7.5 Amp Brown

Power Lumbar (Power Seats)

15 Amp Blue

Heated Steering Wheel / Ventilated
Seats

20 Amp Yellow

Heated Seats

Fuse Holder No. 2

Cavity

Mini Fuse

Description

10 Amp Red

TTM IGN Feed

15 Amp Blue

Controller Exterior Lighting Lights
(Drivers Side)

15 Amp Blue

Controller Exterior Lighting Lights
(Passenger Side)

10 Amp Red

TTM Jumper Battery Feed

IN CASE OF EMERGENCY

353

On the Rear Cargo Fuse/Relay Distribution Unit bracket,
there is a Maxi Fuse holder for the Power Liftgate and an
ATO / Uni Val fuse holder for the HIFI Audio System.

Cavity

Maxi Fuse

Description

F01

30 Amp Green

Power Liftgate

Cavity

ATO / Uni-Val Fuse

Description

F02

25 Amp Clear

HIFI Audio System

JACKING AND TIRE CHANGING

WARNING!

• Do not attempt to change a tire on the side of the

vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.

• Being under a jacked-up vehicle is dangerous. The

vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.

(Continued)

WARNING! (Continued)

• Never start or run the engine while the vehicle is on

a jack.

• The jack is designed to be used as a tool for changing

tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.

354

IN CASE OF EMERGENCY

Jack Location/Spare Tire Stowage

If equipped, the jack and tools are located in the rear
storage compartment, below the spare tire.

1. Open the liftgate.

2. Lift the access cover using the load floor handle.

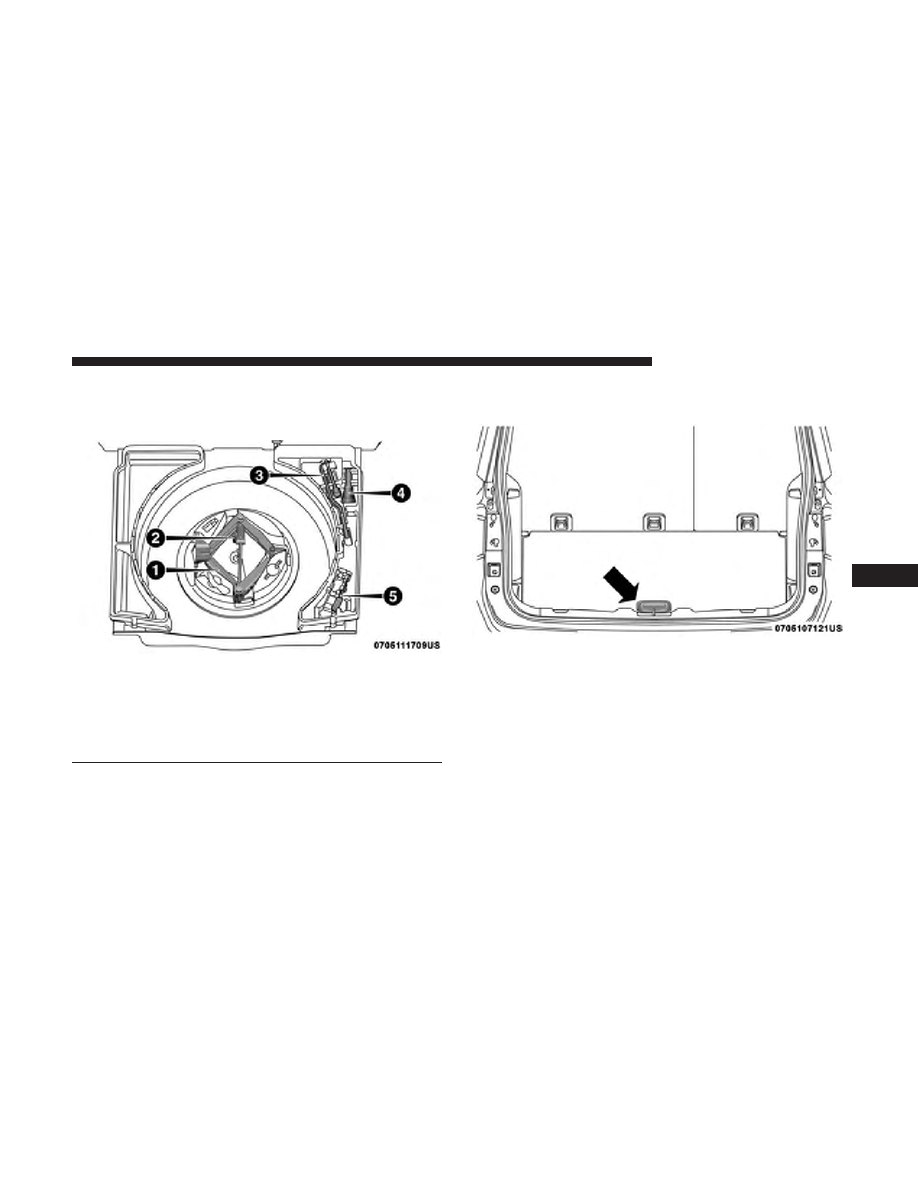

Jack And Tools Location

1 — Jack
2 — Alignment Pin
3 — Wheel Bolt Wrench
4 — Emergency Funnel
5 — Screwdriver

Load Floor Handle

IN CASE OF EMERGENCY

355
