Jeep XJ. Manual - part 793

Fig.

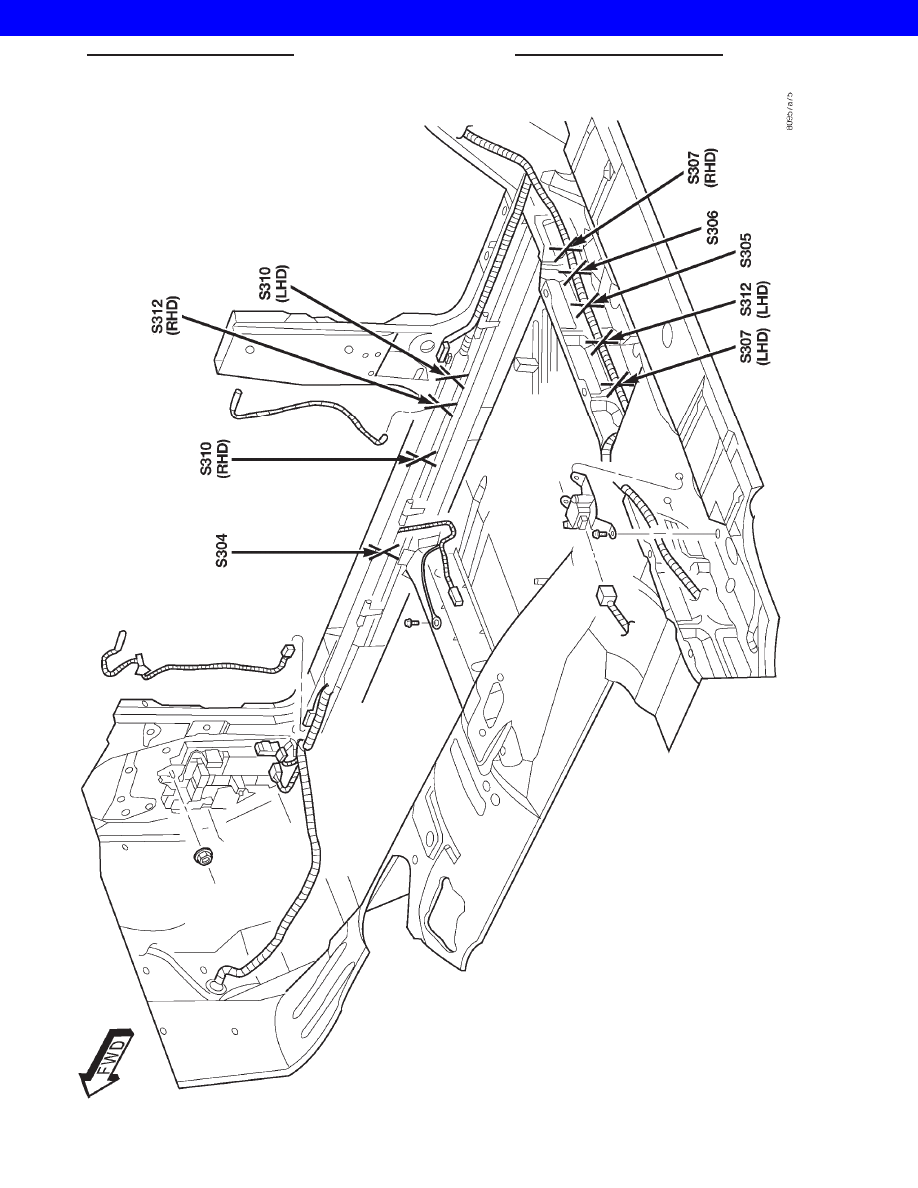

15

LEFT

SIDE

BODY

HARNESS

SPLICES

8Wa - 95 - 20

8Wa-95 SPLICE LOCATIONS

XJ

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

Fig.

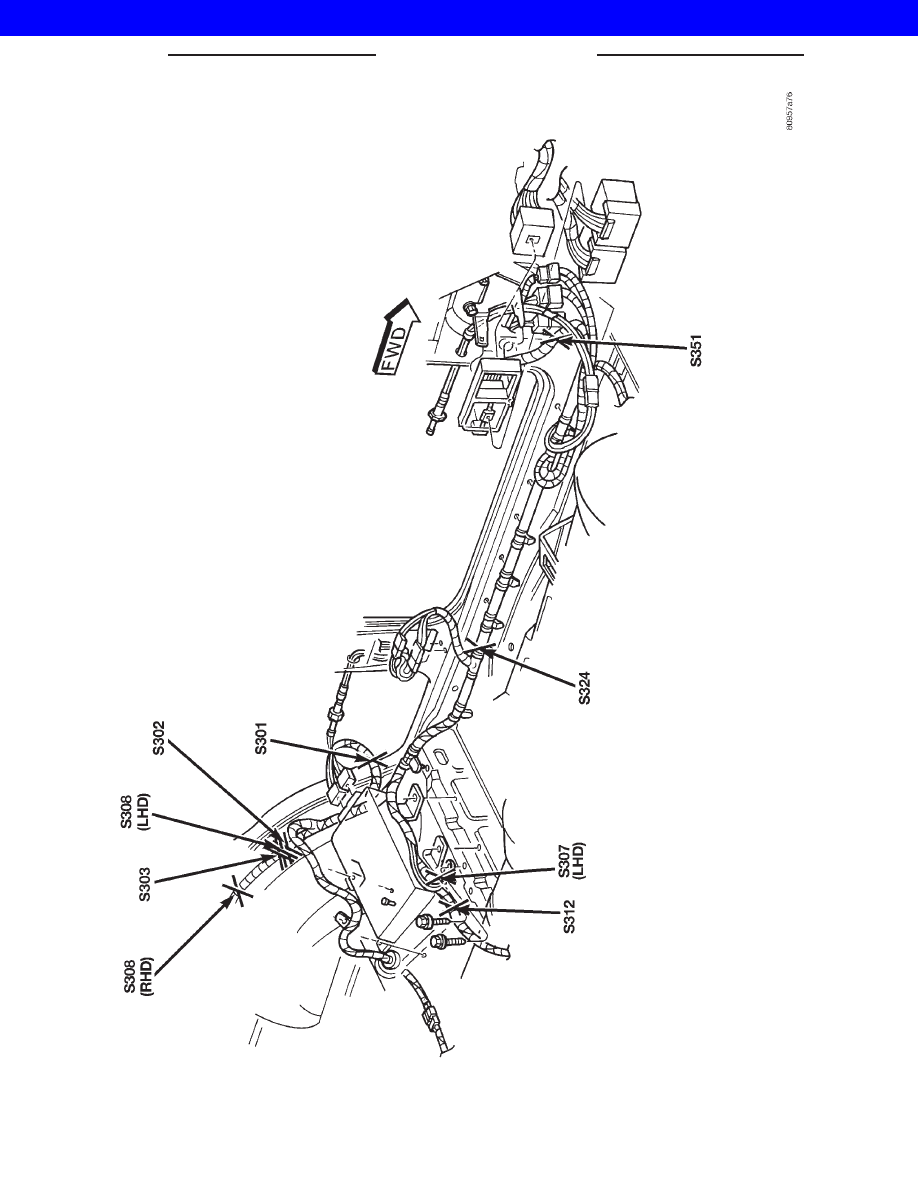

16

RIGHT

SIDE

BODY

HARNESS

SPLICES

XJ

8Wa-95 SPLICE LOCATIONS

8Wa - 95 - 21

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

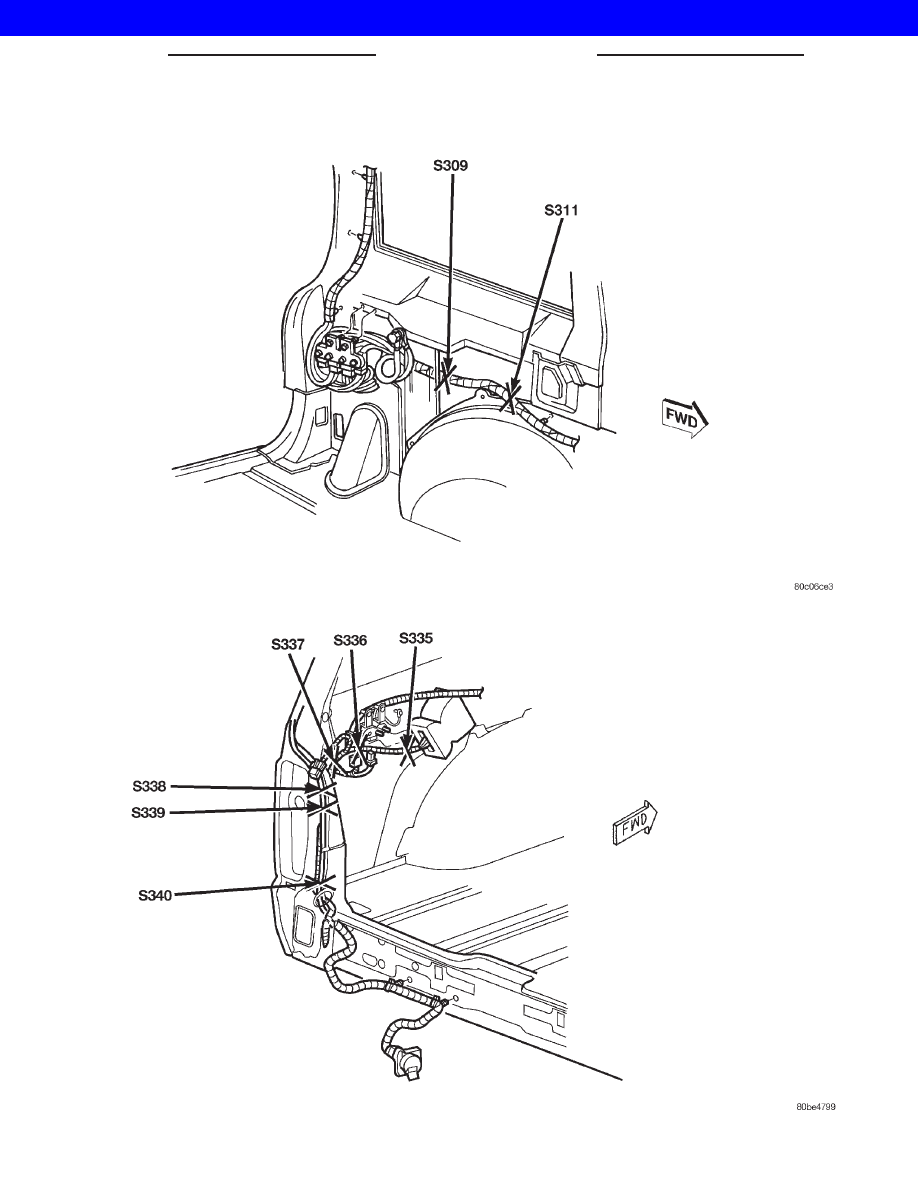

Fig. 17 LEFT REAR BODY HARNESS SPLICES

Fig. 18 TRAILER TOW SPLICES

8Wa - 95 - 22

8Wa-95 SPLICE LOCATIONS

XJ

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

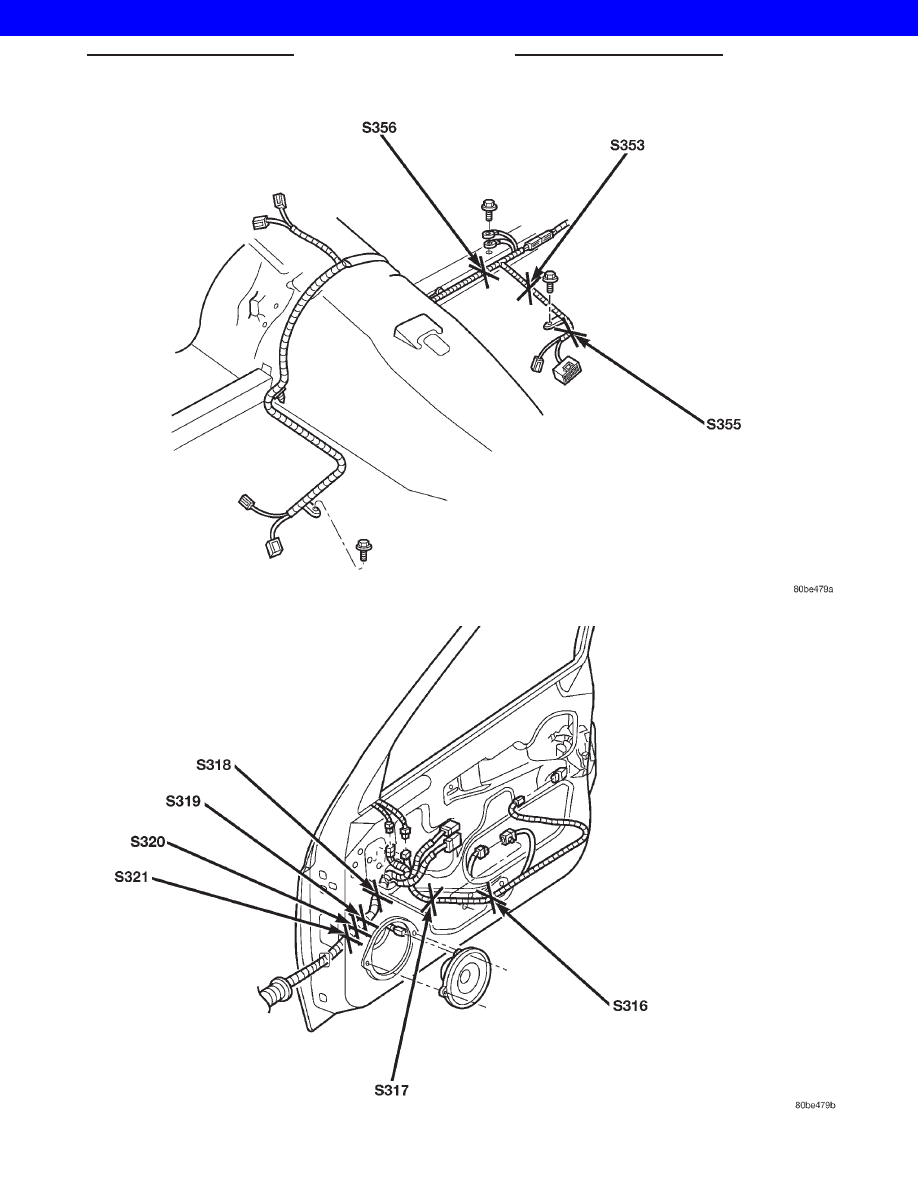

Fig. 19 POWER SEAT SPLICES

Fig. 20 RIGHT FRONT DOOR SPLICES

XJ

8Wa-95 SPLICE LOCATIONS

8Wa - 95 - 23

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE
