Jeep XJ. Manual - part 789





Splice Number

Location

Fig.

S201 (LHD)

Near T/O for C200

12

S201 (RHD)

Near T/O for Data Link Connector

13

S203

In T/O for Brake Lamp Switch

13

S204 (LHD)

In T/O for Brake Lamp Switch

12

S204 (RHD)

Near T/O for Shift Lock Solenoid

13

S205 (LHD)

In T/O for C100

12

S205 (RHD)

Near T/O for C202, C203 and C204

13

S206

In Lower Instrument Panel Trough

12, 13

S207

In Lower Instrument Panel Trough

12, 13

S208 (LHD)

In Lower Instrument Panel Trough

12

S208 (RHD)

Near T/O for C202

13

S209

In Lower Instrument Panel Trough

12, 13

S210

In Lower Instrument Panel Trough

12, 13

S211

In Lower Instrument Panel Trough

12, 13

S212 (RHD)

In Lower Instrument Panel Trough

13

S213 (RHD)

Near T/O to Turn Signal/Hazard Switch

13

S214 (LHD)

Near T/O for Diode Module, Rear Fog Lamp Relay and G107

11

S214 (RHD)

Near T/O for Instrument Cluster - C1

13

S215 (LHD)

Near T/O for Cigar Lighter

12

S215 (RHD)

Near T/O for A/C-Heater Control - C2

13

S216 (LHD)

Near T/O for Instrument Cluster - C2

12

S216 (RHD)

Near T/O for Junction Block -C4 and C5

13

S217

In T/O for A/C Heater Control C2

N/S

S218 (LHD)

In T/O for Headlamp Switch

N/S

S218 (RHD)

In T/O for C100

13

S219 (LHD)

In T/O for C209

14

S219 (RHD)

Near T/O for Junction Block - C4 and C5

13

S220

Near T/O for Cigar Lighter

13

S221

Near T/O for Clockspring - C2

N/S

S222

Near T/O for Clockspring - C2

N/S

S225

In T/O for C301

14

S226 (LHD)

In T/O for Headlamp Switch

N/S

S226 (RHD)

In T/O for Headlamp Switch

13

S227

Near T/O for Headlamp Switch

12, 13

S228

Near T/O for Blower Motor Resistor Block

N/S

S229 (LHD)

Near T/O for Rear Fog Lamp Relay

11

S229 (RHD)

Near T/O for A/C Heater Control C2

13

S230

Near T/O for Cigar Lighter

13

S232

Near T/O for Junction Block - C4 and C5

13

S237

Near T/O for Rear Fog Lamp Relay

11

S238

In T/O for Combination Flasher

12, 13

S239

In T/O for Combination Flasher

12, 13

8Wa - 95 - 4

8Wa-95 SPLICE LOCATIONS

XJ

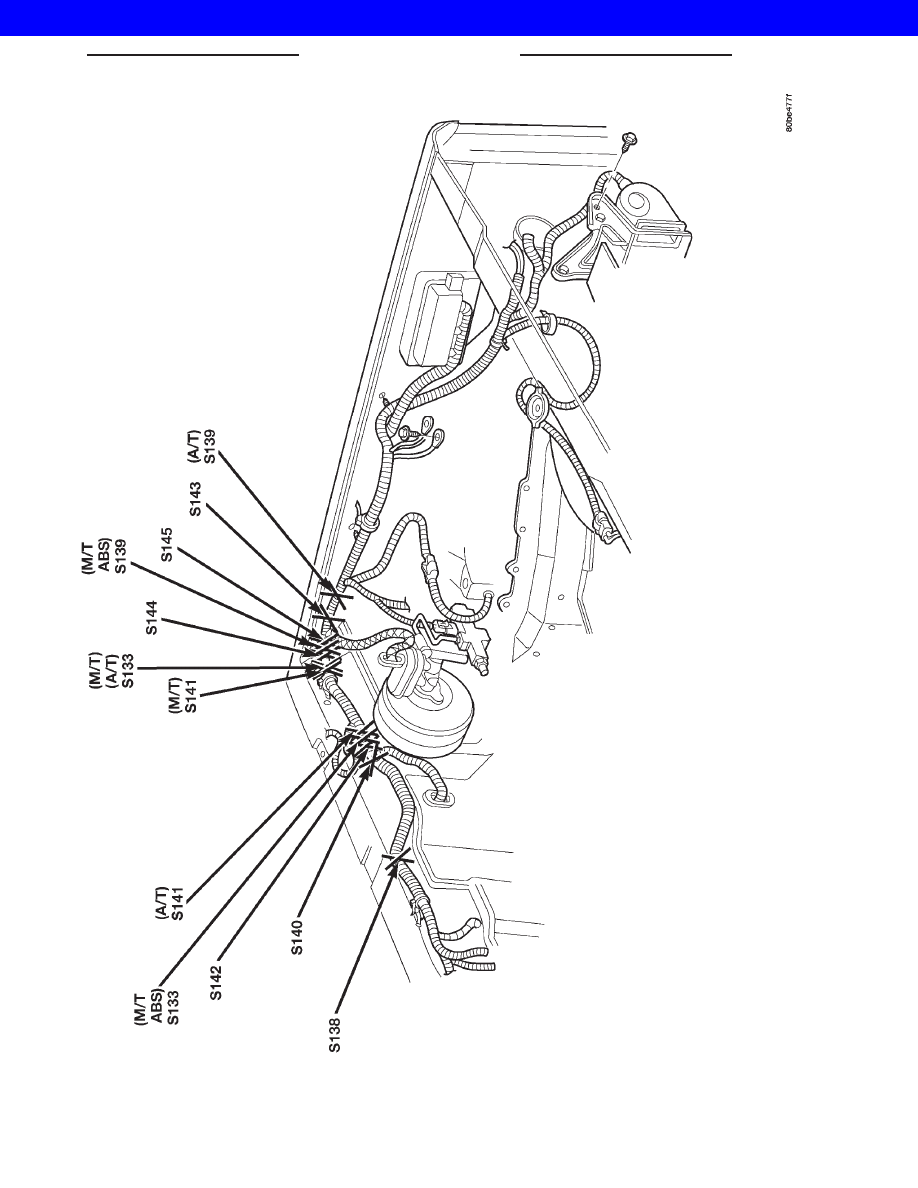

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

Splice Number

Location

Fig.

S301

In T/O for Power Amplifier

15

S302

Near T/O for Fuel Pump Module

15

S303

Near T/O for C326 and C327

15

S304

Near T/O for G303

16

S305

Under Right Rear Seat

16

S306

Under Right Rear Seat

16

S307 (LHD)

Under Rear Seat

15, 16

S307 (RHD)

Under Rear Seat

16

S308

Near T/O for C327

15

S309

Near T/O for C326 and C327

17

S310 (LHD)

Near T/O for C304 and C319

16

S310 (RHD)

Near T/O for C314 and C321

16

S311

Near T/O for C326 and C327

17

S312 (LHD)

Under Left Rear Seat

15, 16

S312 (RHD)

Near T/O for C304 and C319

16

S313

Near T/O for C206 at Center Console

N/S

S314

Near T/O for C209

14

S315

Near T/O for C205

14

S316

Near T/O for Power Window Motor

20

S317

Near T/O for Power Window Motor

20

S318

Near T/O for Front Door Speaker

20

S319

Near T/O for Front Door Speaker

20

S320

Near T/O for Front Door Speaker

20

S321

Near T/O for Front Door Speaker

20

S322

Near T/O for Power Window Motor

21

S323

Near T/O for Power Window Motor

21

S324

Near T/O for C320

15

S326

Near T/O for Front Door Speaker

21

S327

Near T/O for Front Door Speaker

21

S328

Near T/O for Front Door Speaker

21

S329

Near T/O for Front Door Speaker

21

S332

Near T/O for Left License Lamp

N/S

S333

Near T/O for Right License Lamp

N/S

S334

Near T/O for Liftgate Switch

22

S335

Near T/O for Trailer Tow Right Turn Relay

18

S336

Near T/O for C322

18

S337

Near T/O for C322

18

S338

Near T/O for C323

18

S339

Near T/O for C323

18

S340

Near Grommet for Trailer Tow Connector

18

S341

In Left Tail Lamp Harness near C321

N/S

S342

In T/O for Remote Keyless Entry

23

XJ

8Wa-95 SPLICE LOCATIONS

8Wa - 95 - 5

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

Splice Number

Location

Fig.

S344

In T/O for Remote Keyless Entry

23

S345

In T/O for Remote Keyless Entry

23

S346

In T/O for Remote Keyless Entry

23

S347

In T/O for Remote Keyless Entry

23

S348

In Right Tail Lamp Harness near C322

N/S

S349 (RHD)

In T/O for C209

N/S

S351

Near T/O for C305 and C306

15

S352

In T/O for C300

N/S

S353

Near T/O for C316

19

S354

In T/O for C329

N/S

S355

Near T/O for C329 and C363

19

S356

Near T/O for C316

19

S357

Near T/O for Heated Seat Relay

N/S

S359 (RHD)

Near T/O for C209

N/S

S361

Near T/O for Right Visor/Vanity Lamp

23

8Wa - 95 - 6

8Wa-95 SPLICE LOCATIONS

XJ

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE

Fig.

1

LEFT

ENGINE

COMP

AR

TMENT

SPLICES,

4.0L

LHD

XJ

8Wa-95 SPLICE LOCATIONS

8Wa - 95 - 7

SPLICE LOCATIONS (Continued)

2001 JEEP CHEROKEE
