POWERTRAIN VERIFICATION TEST VER - 1

APPLICABILITY

1. Inspect the vehicle to ensure that all engine components are properly installed and
connected. Reassemble and reconnect components as necessary.
2. Inspect the engine oil for contamination. If it is contaminated, change the oil and filter.
3. Perform the steps 4 through 6 if the PCM has been replaced. Then proceed with the
verification. If the PCM has not been replaced skip those steps and continue verification.
4. If PCM has been changed and correct VIN and mileage have not been programmed a DTC
will be set in ABS and Air Bag modules. In addition, if vehicle is equipped with a Sentry Key
Immobilizer Module (SKIM), Secret Key data must be updated to enable start.
5. For ABS and Air Bag systems: Enter correct VIN and Mileage in PCM. Erase codes in ABS
and Air Bag modules.
6. For SKIM theft alarm: Connect DRBIII

t to data link conn. Go to Theft Alarm, SKIM, Misc.

and place SKIM in secured access mode, by using the appropriate PIN code for this vehicle.
Select Update the Secret Key data. Data will be transferred from SKIM to PCM
7. Attempt to start the engine.
8. If the engine is unable to start, look for any Technical Service Bulletins that may relate to
this condition. Return to Symptom List if necessary.
9. If the engine starts and stays running, the repair is now complete.

All

ROAD TEST VERIFICATION - VER-2

APPLICABILITY

1. Inspect the vehicle to ensure that all engine components are properly installed and
connected. Reassemble and reconnect components as necessary.
2. If this verification procedure is being performed after a non-DTC test, perform steps 3 and
4.
3. Check to see if the initial symptom still exists. If there are no trouble codes and the symptom
no longer exists, the repair was successful and testing is now complete.
4. If the initial or another symptom exists, the repair is not complete. Check all pertinent
Technical Service Bulletins (TSBs) and return to the Symptom List if necessary.
5. For previously read DTCs that have not been dealt with, return to the Symptom List and
follow the diagnostic path for that DTC; otherwise, continue.
6. If the engine control module (ECM) has not been changed, perform steps 7 and 8, otherwise,
continue with step 9.
7. With the DRB, erase all diagnostic trouble codes (DTCs), then disconnect the DRB.
8. Turn the ignition off for at least 10 seconds.
9. Ensure no DTCs remain by performing steps 10 through 13.
10. Road test the vehicle. For some of the road test, go at least 64 km/h (40 MPH). If this test
is for an A/C Relay Control Circuit, drive the vehicle for at least 5 minutes with the A/C on.
11. At some point, stop the vehicle and turn the engine off for at least 10 seconds, then restart
the engine and continue.
12. Upon completion of the road test, turn the engine off and check for DTCs with the DRB.
13. If the repaired DTC has reset, the repair is not complete. Check for any pertinent Technical
Service Bulletins (TSBs) and return to the Symptom List. If there are no DTCs, the repair was
successful and is now complete.
Are any DTCs or symptoms remaining?

All

Yes

Repair is not complete, refer to appropriate symptom.

No

Repair is complete.

244

VERIFICATION TESTS

Verification Tests —

Continued

SKIS VERIFICATION

APPLICABILITY

1. Reconnect all previously disconnected components and connectors.
2. Obtain the vehicle’s unique Personal Identification Number (PIN) assigned to it’s original
SKIM. This number can be obtained from the vehicle’s invoice or Chrysler’s Customer Center
(1-800-992-1997).
3. NOTE: When entering the PIN, care should be taken because the SKIM will only
allow 3 consecutive attempts to enter the correct PIN. If 3 consecutive incorrect
PIN’s are entered the SKIM will Lock Out the DRB III for 1 hour.
4. To exit Lock Out mode, the ignition key must remain in the Run position continually for 1
hour. Turn off all accessories and connect a battery charger if necessary.
5. With the DRB III, select Theft Alarm, SKIM and Miscellaneous. Then select desired
procedure and follow the steps that will be displayed.
6. If the SKIM has been replaced, ensure all of the vehicle ignition keys are programmed to the
new SKIM.
7. NOTE: Prior to returning vehicle to the costumer, perform a module scan to be
sure that all DTC’s are erased. Erase any DTC’s that are found.
8. With the DRB III erase all DTC’s. Perform 5 ignition key cycles leaving the key on for at least
90 seconds per cycle.
9. With the DRB III, read the SKIM DTC’s.
Are there any SKIM DTC’s?

All

Yes

Repair is not complete, refer to appropriate symptom.

No

Repair is complete.

245

VERIFICATION TESTS

Verification Tests —

Continued

SPEED CONTROL VERIFICATION - VER-4

APPLICABILITY

1. Inspect the vehicle to ensure that all engine components are properly installed and
connected. Reassemble and reconnect components as necessary.
2. If the PCM has been replaced, perform step 3. Otherwise, continue with step 4.
3. If the vehicle is equipped with a factory theft alarm, start the engine at least 20 times in
order to be able to activate the alarm system when desired.
4. With the DRB, erase all diagnostic trouble codes (DTCs).
5. Road test the vehicle at a speed above 58 km/h (35 MPH).
6. Turn the speed control ON/OFF switch on.
7. Depress and release the SET switch. If the speed control does not engage, the repair is not
complete, continue with step 15.
8. Quickly depress and release the RESUME/ACCEL switch. If the vehicle speed does not
increase by 3 km/h (2 MPH), the repair is not complete, continue with step 15.
9. Using caution, depress and release the brake pedal. If the speed control does not disengage,
the repair is not complete, continue with step 15.
10. With the vehicle speed at least 56 km/h (35 MPH), depress the RESUME/ACCEL switch.
If the speed control does not resume at the previously set speed, the repair is not complete,
continue with step 15.
11. Hold down the COAST switch. If the vehicle does not decelerate, the repair is not complete,
continue with step 15.
12. While still holding down the COAST switch, ensure the vehicle speed is at least 56 km/h (35
MPH) and release the COAST switch. If the vehicle does not adjust and set a new vehicle speed,
the repair is not complete, continue with step 15.
13. With the speed control engaged, depress the ON/OFF switch. If the speed control does not
disengage, the repair is not complete, continue with step 15.
14. If the vehicle did not successfully perform all of the previous steps, check for Technical
Service Bulletins (TSBs) that pertain to this speed control problem and then, if necessary,
return to the Symptom List.
15. If the vehicle successfully performed all of the previous steps, the speed control system is
now functioning as designed. The repair is now complete.
Are any DTCs or symptoms remaining?

All

Yes

Repair is not complete, refer to appropriate symptom.

No

Repair is complete.

246

VERIFICATION TESTS

Verification Tests —

Continued

8.0

COMPONENT LOCATIONS

8.1

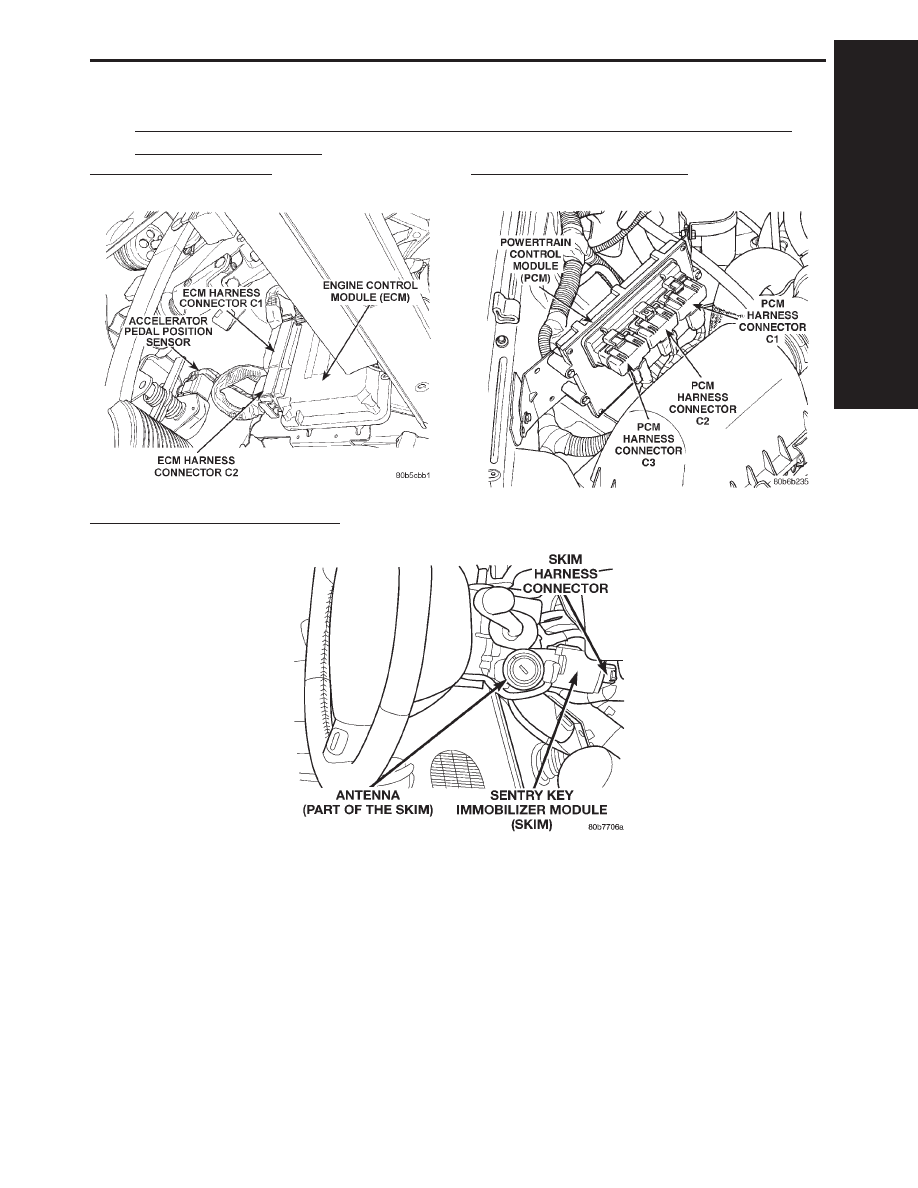

ENGINE CONTROL MODULE, POWERTRAIN CONTROL MODULE AND SENTRY KEY
IMMOBILIZER MODULE

Engine Control Module

Powertrain Control Module

Sentry Key Immobilizer Module

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

247
