(40) Remove front planetary bearing race and

remove front planetary ring gear (Fig. 120).

(41) Remove thrust bearing and rear race from

ring gear (Fig. 121).

(42) Remove planetary thrust race.
(43) Push forward on output shaft to relieve the

load on the planetary snap ring.

(44) Remove planetary snap ring and remove plan-

etary gear (Fig. 122).

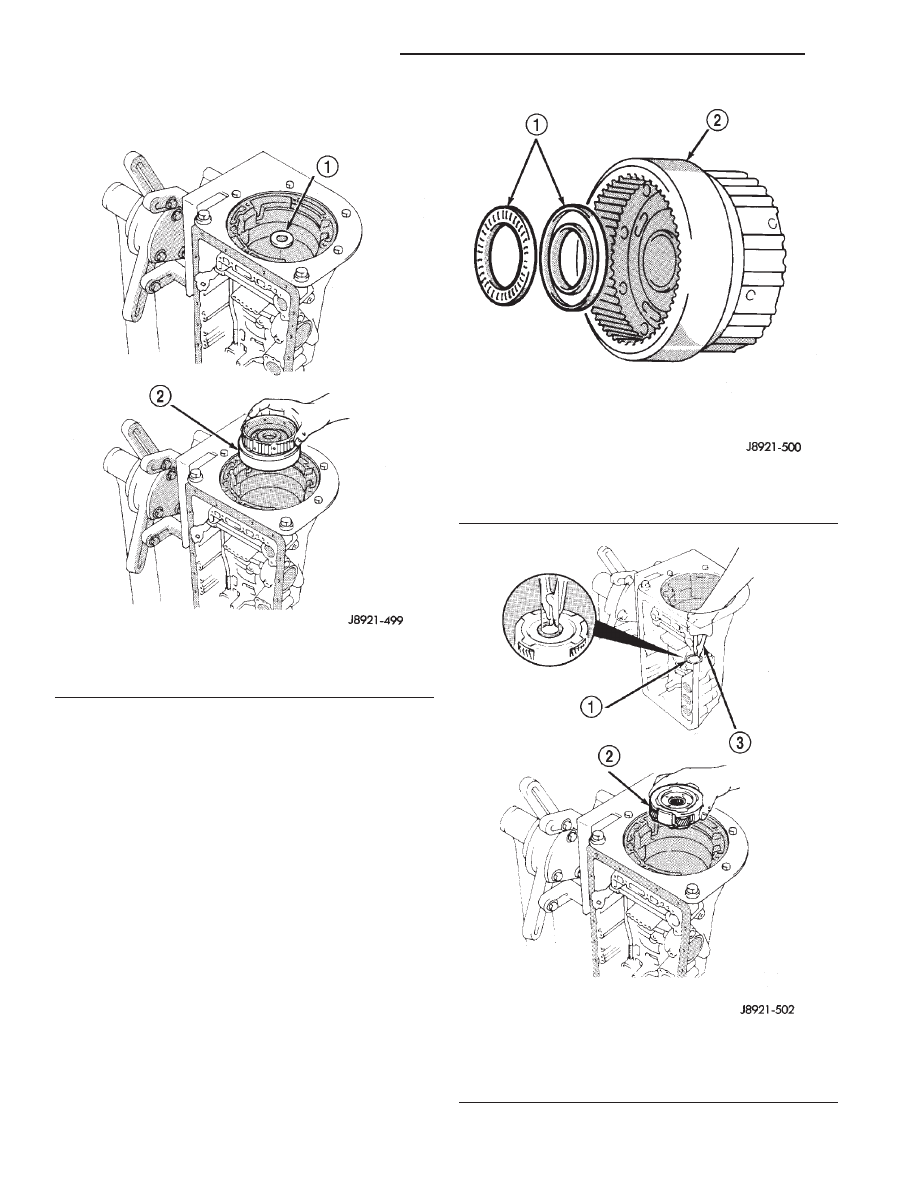

Fig. 120 Front Planetary Ring Gear Removal

1 – RING GEAR BEARING RACE (FRONT)
2 – FRONT PLANETARY RING GEAR

Fig. 121 Removing Ring Gear Bearing And Rear Race

1 – BEARING AND REAR RACE
2 – FRONT PLANETARY RING GEAR

Fig. 122 Removing Planetary Snap Ring And Gear

1 – PLANETARY SNAP RING
2 – PLANETARY GEAR
3 – SNAP RING PLIERS

21 - 276

AW–4 AUTOMATIC TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

(45) Remove

sun

gear,

input

drum,

one–way

clutch, and thrust washer as assembly (Fig. 123).

(46) Measure second brake clutch pack clearance

(Fig. 124). Clearance should be 0.62 – 1.98 mm
(0.0244 – 0.0780 in.). Record measurement for use
during re-assembly.

(47) Remove second brake clutch pack snap ring

(Fig. 125).

(48) Remove second brake clutch pack (Fig. 126).

Inspect and replace as necessary.

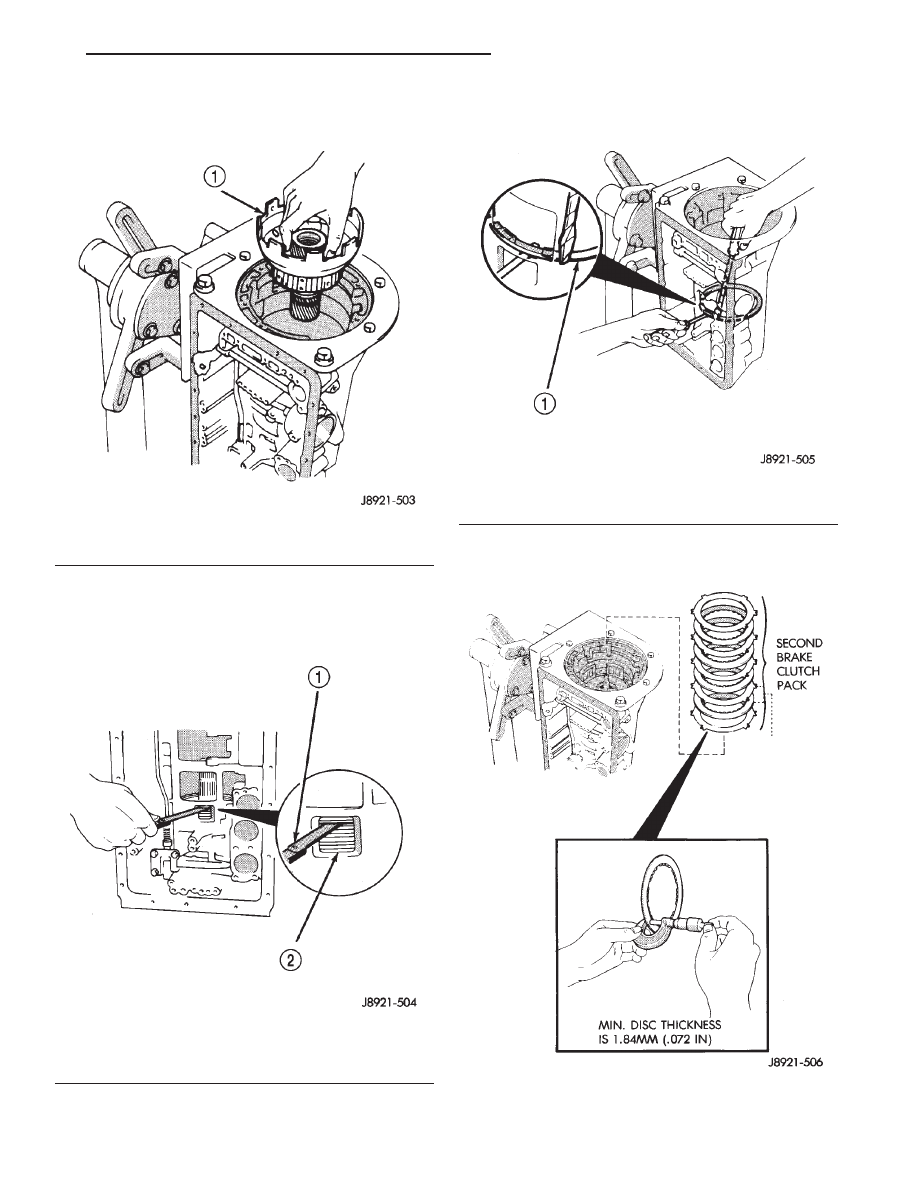

Fig. 123 Removing Sun Gear, Input Drum And

One–Way Clutch

1 – SUN GEAR INPUT DRUM, ONE-WAY CLUTCH ASSEMBLY

Fig. 124 Checking Second Brake Clutch Pack

Clearance

1 – FEELER GAUGE
2 – SECOND BRAKE CLUTCH PACK

Fig. 125 Removing Second Brake Clutch Pack Snap

Ring

1 – CLUTCH PACK SNAP RING

Fig. 126 Removing/Measuring Second Brake Clutch

Disc Thickness

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 277

DISASSEMBLY AND ASSEMBLY (Continued)

(49) Remove bolts attaching park rod bracket to

case. Then disconnect park rod from manual shaft
lever and remove rod and bracket (Fig. 127).

(50) Remove park pawl spring, pin and pawl (Fig.

128).

(51) Measure

clearance

of

first–reverse

brake

clutch pack (Fig. 129). Clearance should be: 0.70 –
1.2 mm (0.028 – 0.047 in.). record measurement for
use during re-assembly.

(52) Remove second brake piston sleeve (Fig. 130).
(53) Remove second brake snap-ring.
(54) Remove rear planetary gear, second brake

drum and output shaft as an assembly (Fig. 131).

(55) Remove planetary and brake drum thrust

bearing and race assembly (Fig. 132).

(56) Remove second brake drum gasket from case

with screwdriver.

(57) Measure inside diameter of transmission case

rear bushing with bore gauge or inside micrometer
(Fig. 133). Maximum allowable diameter is 38.18 mm
(1.5031 in.). Replace transmission case if bush-
ing I. D. is greater than specified. Bushing is
not serviceable.

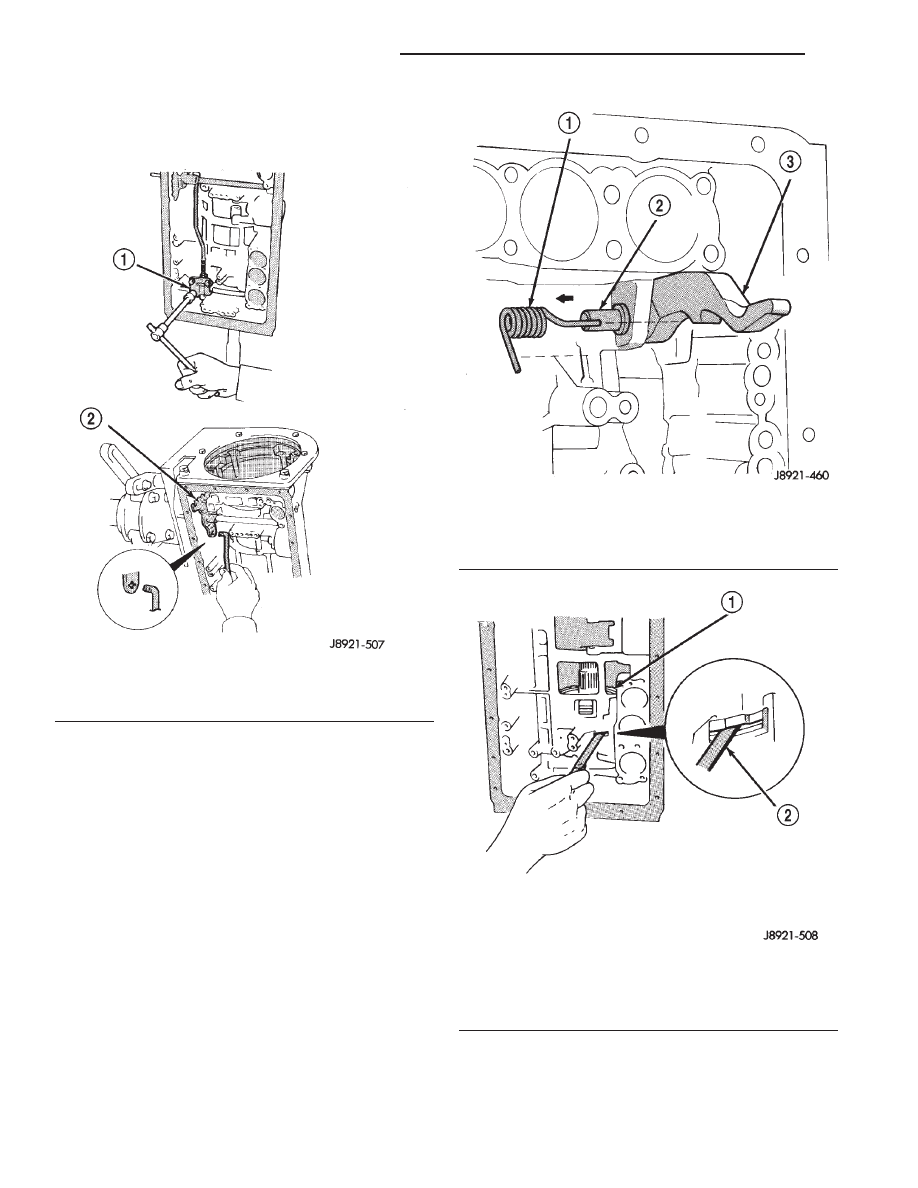

Fig. 127 Removing Park Rod And Bracket

1 – PARK ROD BRACKET
2 – SHIFT SETOR

Fig. 128 Removing Park Pawl, Pin And Spring

1 – SPRING
2 – PIN
3 – PARK PAWL

Fig. 129 Checking First–Reverse Brake Clutch Pack

Clearance

1 – FIRST-REVERSE CLUTCH PACK
2 – FEELER GAUGE

21 - 278

AW–4 AUTOMATIC TRANSMISSION

XJ

DISASSEMBLY AND ASSEMBLY (Continued)

(58) Check first/reverse brake piston operation

with compressed air (Fig. 134). Piston should move
smoothly and not bind or stick. If piston operation is
incorrect, case or piston may require replacement.

(59) Compress piston return springs with Tool

7539 and remove piston snap ring (Fig. 135).

(60) Remove Tool 7539 and remove piston return

springs.

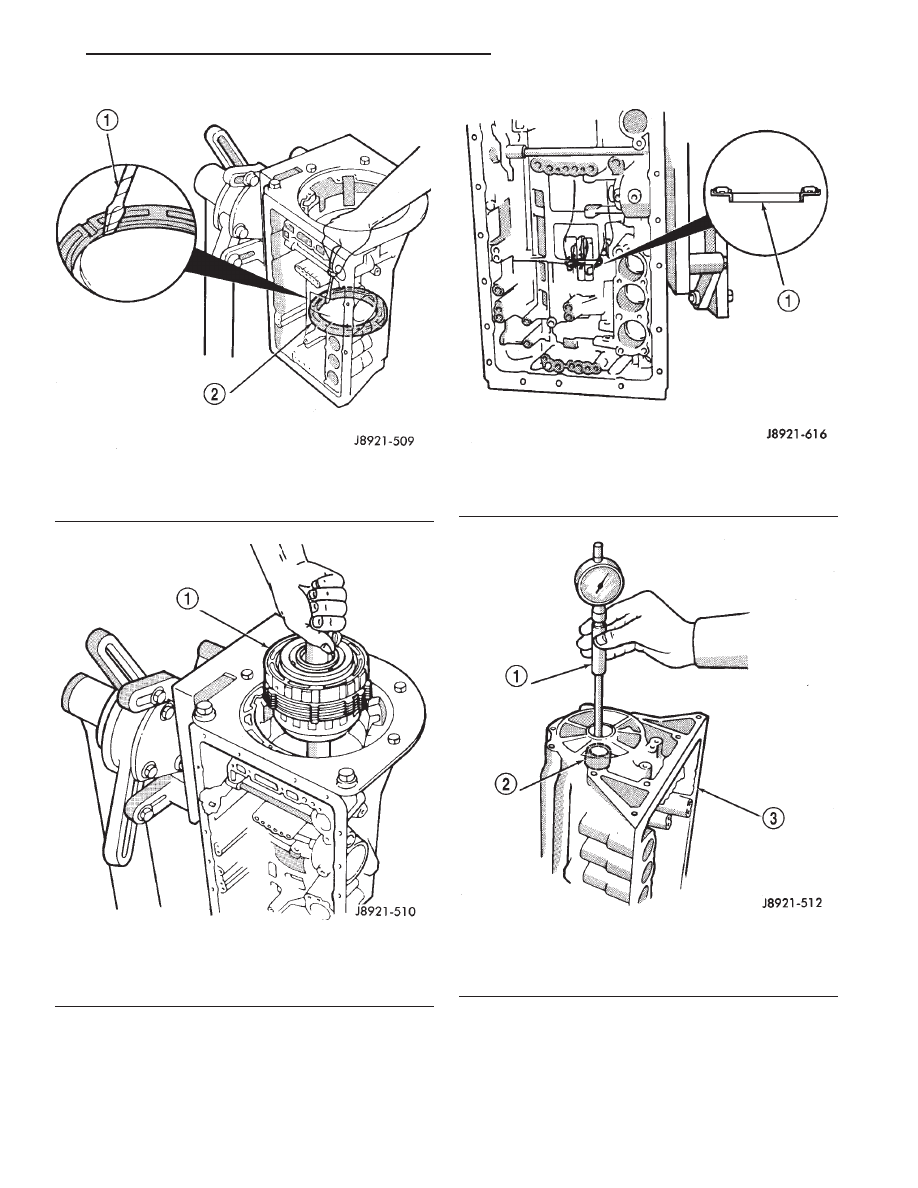

Fig. 130 Removing Second Brake Piston Sleeve

1 – REMOVER TOOL
2 – PISTON SLEEVE

Fig. 131 Removing Rear Planetary, Second Brake

Drum And Output Shaft

1 – PLANETARY, BRAKE DRUM AND OUTPUT SHAFT

ASSEMBLY

Fig. 132 Removing/Installing Bearing And Race

Assembly

1 – BEARING AND RACE ASSEMBLY

Fig. 133 Checking Rear Bushing Inside Diameter

1 – BORE GAUGE
2 – REAR BUSHING
3 – TRANSMISSION CASE

XJ

AW–4 AUTOMATIC TRANSMISSION

21 - 279

DISASSEMBLY AND ASSEMBLY (Continued)
