Jeep XJ. Manual - part 129

Removal and Installation section of this group for the
procedures.

Use a vacuum cleaner to remove any residual pow-

der from the vehicle interior. Clean from outside the
vehicle and work your way inside, so that you avoid
kneeling or sitting on a non-cleaned area.

Be sure to vacuum the heater and air conditioning

outlets as well (Fig. 3). Run the heater and air con-
ditioner blower on the lowest speed setting and vac-
uum any powder expelled from the outlets. You may
need to vacuum the interior of the vehicle a second
time to recover all of the powder.

Place the deployed airbag modules in your vehicu-

lar scrap pile.

REMOVAL AND INSTALLATION

DRIVER SIDE AIRBAG MODULE

The following procedure is for replacement of a

faulty or damaged driver side airbag module. If the

driver side airbag has been deployed, the clockspring
must also be replaced. Refer to Clockspring in the
Removal and Installation section of this group for the
additional service procedures for the clockspring.

WARNING:

•

THE AIRBAG SYSTEM IS A SENSITIVE, COM-

PLEX

ELECTROMECHANICAL

UNIT.

BEFORE

ATTEMPTING TO DIAGNOSE OR SERVICE ANY AIR-
BAG SYSTEM OR RELATED STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENTS YOU MUST FIRST DISCONNECT
AND ISOLATE THE BATTERY NEGATIVE (GROUND)
CABLE. THEN WAIT TWO MINUTES FOR THE SYS-
TEM CAPACITOR TO DISCHARGE BEFORE FUR-
THER SYSTEM SERVICE. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE
TO DO THIS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

•

WHEN REMOVING A DEPLOYED AIRBAG MOD-

ULE, RUBBER GLOVES, EYE PROTECTION, AND A
LONG-SLEEVED SHIRT SHOULD BE WORN. THERE
MAY BE DEPOSITS ON THE AIRBAG MODULE AND
OTHER INTERIOR SURFACES. IN LARGE DOSES,
THESE DEPOSITS MAY CAUSE IRRITATION TO THE
SKIN AND EYES.

REMOVAL

(1) Disconnect and isolate the battery negative

cable. If either of the airbags has not been deployed,
wait two minutes for the system capacitor to dis-
charge before further service.

(2) From the underside of the steering wheel,

remove the two screws that secure the driver side
airbag module to the steering wheel (Fig. 4).

(3) Pull the airbag module away from the steering

wheel far enough to access the two wire harness con-
nectors on the back of the airbag module.

(4) Disconnect the clockspring horn switch wire

harness connector from the horn switch feed wire
connector, which is located on the back of the airbag
module.

(5) The clockspring airbag wire harness connector

is a tight snap-fit into the airbag module connector
receptacle, which is located on the airbag inflator on
the back of the airbag module. Firmly grasp and pull
or gently pry on the clockspring airbag wire harness
connector to disconnect it from the airbag module.
Do not pull on the clockspring wire harness to
disengage the connector from the airbag mod-
ule connector receptacle.

(6) Remove the driver side airbag module from the

steering wheel.

(7) If the driver side airbag has been deployed, the

clockspring must be replaced. Refer to Clockspring

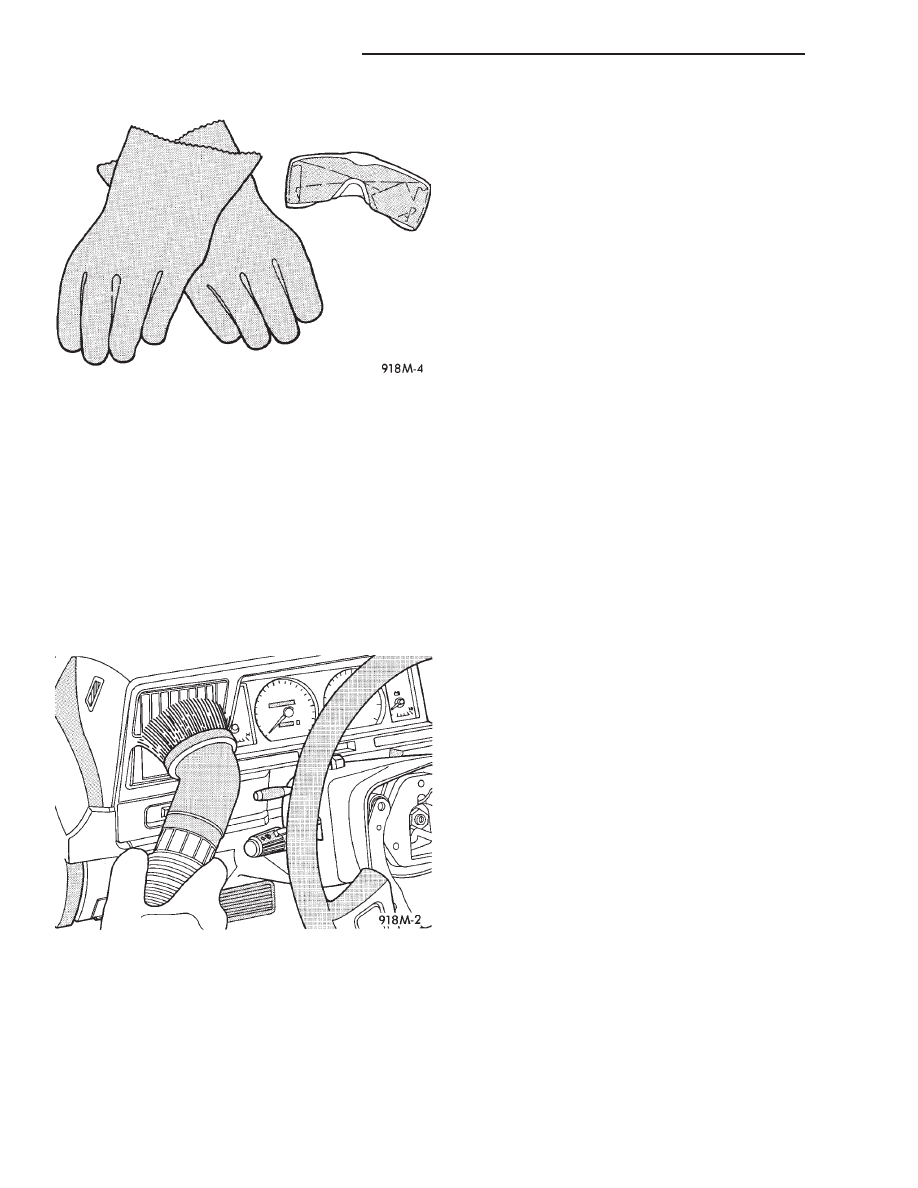

Fig. 2 Wear Safety Glasses and Rubber Gloves -

Typical

Fig. 3 Vacuum Heater and A/C Outlets - Typical

8M - 6

PASSIVE RESTRAINT SYSTEMS

SERVICE PROCEDURES (Continued)

in the Removal and Installation section of this group
for the clockspring service procedures.

INSTALLATION

WARNING:

•

USE EXTREME CARE TO PREVENT ANY FOR-

EIGN MATERIAL FROM ENTERING THE DRIVER
SIDE

AIRBAG

MODULE,

BECOMING

ENTRAPPED BETWEEN THE AIRBAG CUSHION
AND THE DRIVER SIDE AIRBAG TRIM COVER.
FAILURE TO OBSERVE THIS WARNING COULD
RESULT IN OCCUPANT INJURIES UPON AIRBAG
DEPLOYMENT.

•

THE DRIVER SIDE AIRBAG MODULE TRIM

COVER MUST NEVER BE PAINTED. REPLACEMENT
TRIM COVERS ARE SERVICED IN THE ORIGINAL
COLORS. PAINT MAY CHANGE THE WAY IN WHICH
THE MATERIAL OF THE TRIM COVER RESPONDS
TO

AIRBAG

DEPLOYMENT.

FAILURE

OBSERVE

THIS

WARNING

COULD

RESULT

OCCUPANT

INJURIES

UPON AIRBAG

DEPLOY-

MENT.

(1) When installing the driver side airbag module,

reconnect the clockspring airbag wire harness con-
nector to the airbag module connector receptacle by
pressing straight in on the connector. You can be cer-
tain that the connector is fully engaged by listening
carefully for a distinct audible click as the connector
snaps into place.

(2) Reconnect the clockspring horn switch wire

harness connector to the horn switch feed wire con-
nector, which is located on the back of the airbag
module.

(3) Carefully position the driver side airbag mod-

ule in the steering wheel. Be certain that the clock-
spring wire harnesses in the steering wheel hub area
are not pinched between the airbag module and the
steering wheel.

(4) From the underside of the steering wheel,

install and tighten the two driver side airbag module
mounting screws. Tighten the screws to 10.2 N·m (90
in. lbs.).

(5) Do not reconnect the battery negative cable at

this time. Refer to Airbag System in the Diagnosis
and Testing section of this group for the proper pro-
cedures.

DRIVER SIDE AIRBAG MODULE TRIM COVER

The horn switch is integral to the driver side air-

bag module trim cover. If either component is faulty
or damaged, the entire driver side airbag module
trim cover and horn switch unit must be replaced.

WARNING:

•

THE AIRBAG SYSTEM IS A SENSITIVE, COM-

PLEX

ELECTROMECHANICAL

UNIT.

BEFORE

ATTEMPTING TO DIAGNOSE OR SERVICE ANY AIR-
BAG SYSTEM OR RELATED STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

•

THE HORN SWITCH IS INTEGRAL TO THE AIR-

BAG MODULE TRIM COVER. SERVICE OF THIS
COMPONENT SHOULD BE PERFORMED ONLY BY
CHRYSLER-TRAINED AND AUTHORIZED DEALER
SERVICE TECHNICIANS. FAILURE TO TAKE THE
PROPER PRECAUTIONS OR TO FOLLOW THE
PROPER PROCEDURES COULD RESULT IN ACCI-
DENTAL, INCOMPLETE, OR IMPROPER AIRBAG
DEPLOYMENT AND POSSIBLE OCCUPANT INJU-
RIES.

REMOVAL

(1) Disconnect and isolate the battery negative

cable. If either of the airbags has not been deployed,
wait two minutes for the system capacitor to dis-
charge before further service.

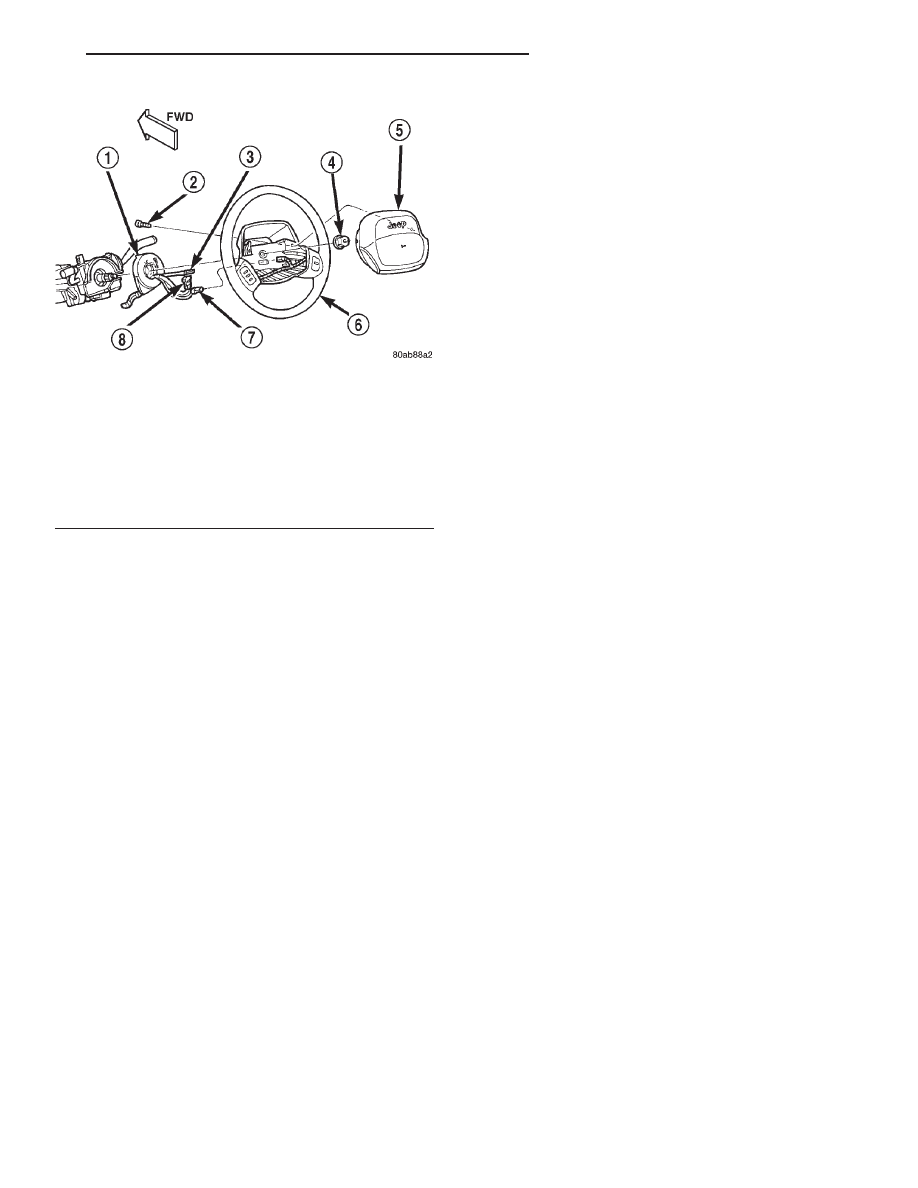

Fig. 4 Driver Side Airbag Module Remove/Install

1 – CLOCKSPRING
2 – SCREW
3 – HORN SWITCH WIRE
4 – NUT
5 – DRIVER AIRBAG MODULE
6 – STEERING WHEEL
7 – SPEED CONTROL WIRE
8 – AIRBAG WIRE

PASSIVE RESTRAINT SYSTEMS

8M - 7

REMOVAL AND INSTALLATION (Continued)

(2) Remove the driver side airbag module from the

steering wheel. Refer to Driver Side Airbag Mod-
ule in the Removal and Installation section of this
group for the procedures.

(3) Remove the plastic horn switch feed wire

retainer from the stud on the back of the driver side
airbag housing (Fig. 5).

(4) Remove the four nuts that secure the upper

and lower trim cover retainers to the studs on the
back of the driver side airbag housing (Fig. 6).

(5) Remove the upper and lower trim cover retain-

ers from the airbag housing studs.

(6) Remove the horn switch ground wire eyelet

from the upper airbag housing stud.

(7) Disengage the four trim cover locking blocks

from the lip around the outside edge of the driver
side airbag housing and remove the housing from the
cover (Fig. 7).

INSTALLATION

WARNING:

•

USE EXTREME CARE TO PREVENT ANY FOR-

EIGN MATERIAL FROM ENTERING THE DRIVER
SIDE

AIRBAG

MODULE,

BECOMING

ENTRAPPED BETWEEN THE AIRBAG CUSHION
AND THE DRIVER SIDE AIRBAG TRIM COVER.
FAILURE TO OBSERVE THIS WARNING COULD
RESULT IN OCCUPANT INJURIES UPON AIRBAG
DEPLOYMENT.

•

THE DRIVER SIDE AIRBAG MODULE TRIM

COVER MUST NEVER BE PAINTED. REPLACEMENT
TRIM COVERS ARE SERVICED IN THE ORIGINAL
COLORS. PAINT MAY CHANGE THE WAY IN WHICH
THE MATERIAL OF THE TRIM COVER RESPONDS
TO

AIRBAG

DEPLOYMENT.

FAILURE

OBSERVE

THIS

WARNING

COULD

RESULT

OCCUPANT

INJURIES

UPON AIRBAG

DEPLOY-

MENT.

(1) Carefully position the driver side airbag mod-

ule in the trim cover. Be certain that the horn switch

Fig. 5 Horn Switch Feed Wire Remove/Install

1 – HORN SWITCH FEED WIRE
2 – HORN SWITCH GROUND WIRE
3 – WIRE RETAINER

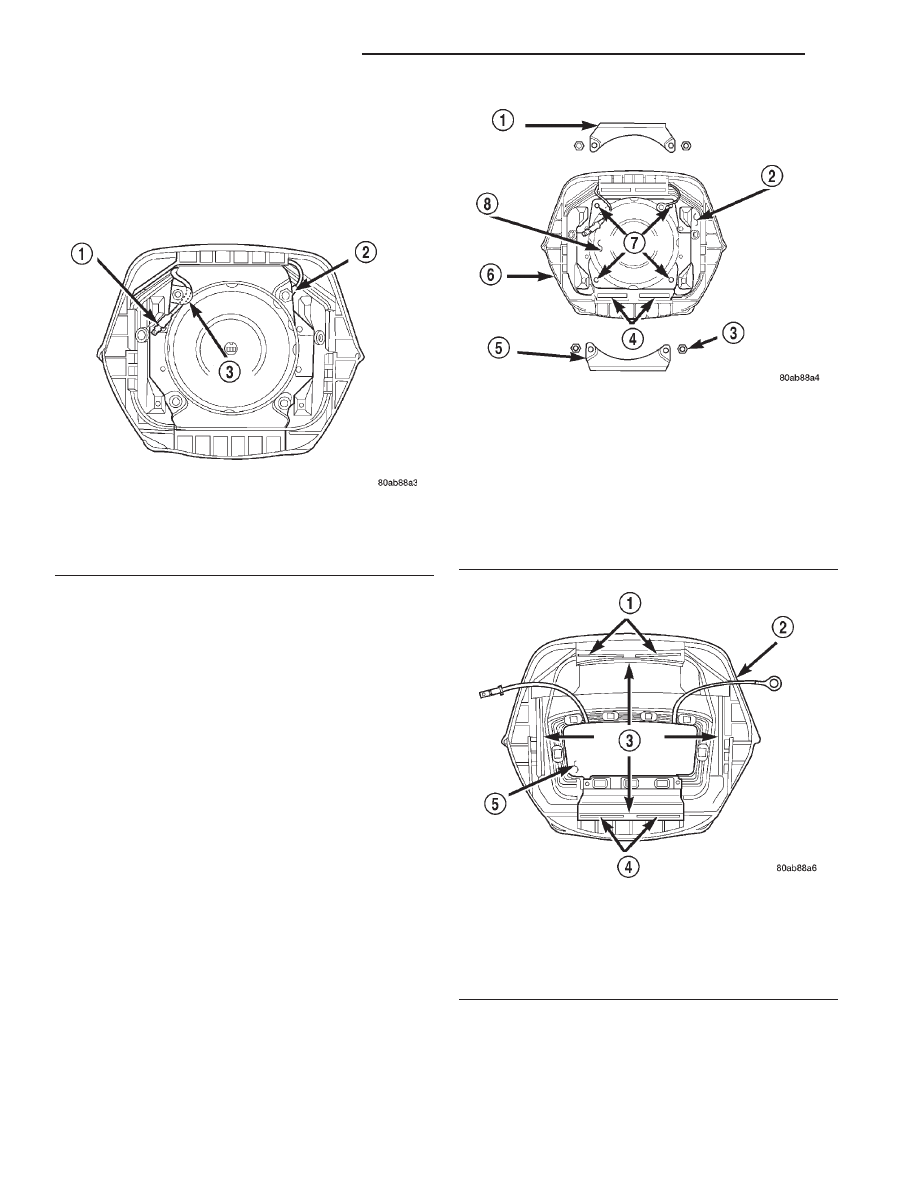

Fig. 6 Driver Side Airbag Trim Cover Retainers

Remove/Install

1 – UPPER RETAINER
2 – AIRBAG HOUSING
3 – NUT (4)
4 – RETAINER SLOTS
5 – LOWER RETAINER
6 – TRIM COVER
7 – STUDS
8 – INFLATOR

Fig. 7 Driver Side Airbag Trim Cover Remove/Install

1 – RETAINER SLOTS
2 – TRIM COVER
3 – LOCKING BLOCKS
4 – RETAINER SLOTS
5 – HORN SWITCH

8M - 8

PASSIVE RESTRAINT SYSTEMS

REMOVAL AND INSTALLATION (Continued)

feed and ground wires are not pinched between the
airbag housing and the trim cover locking blocks.

(2) Engage the upper and lower trim cover locking

blocks with the lip of the driver side airbag housing,
then engage the locking blocks on each side of the
trim cover with the lip of the housing. Be certain
that each of the locking blocks is fully engaged on
the lip of the airbag housing (Fig. 8).

(3) Install the horn switch ground wire eyelet over

the upper airbag housing stud.

(4) Install the upper and lower airbag trim cover

retainers over the airbag housing studs. Be certain
that the tabs on each retainer are engaged in the
retainer slots of the upper and lower trim cover lock-
ing blocks (Fig. 7).

(5) Install and tighten the trim cover retainer

mounting nuts on the airbag housing studs. Tighten
the nuts to 10 N·m (90 in. lbs.).

(6) Install the driver side airbag module onto the

steering wheel. Refer to Driver Side Airbag Mod-
ule in the Removal and Installation section of this
group for the procedures.

PASSENGER SIDE AIRBAG MODULE

The following procedure is for replacement of a

faulty or damaged passenger side airbag module. If

the passenger side airbag module has been deployed,
the passenger side airbag door must also be replaced.
Refer to Passenger Side Airbag Door in the
Removal and Installation section of this group for the
additional service procedures for the passenger side
airbag door.

WARNING:

•

THE AIRBAG SYSTEM IS A SENSITIVE, COM-

PLEX

ELECTROMECHANICAL

UNIT.

BEFORE

ATTEMPTING TO DIAGNOSE OR SERVICE ANY AIR-
BAG SYSTEM OR RELATED STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

•

WHEN REMOVING A DEPLOYED AIRBAG MOD-

REMOVAL

(1) Disconnect and isolate the battery negative

cable. If either of the airbags has not been deployed,
wait two minutes for the system capacitor to dis-
charge before further service.

(2) Remove the top cover from the instrument

panel. Refer to Instrument Panel Top Cover in the
Removal and Installation section of Group 8E -
Instrument Panel Systems for the procedures.

(3) Disconnect the passenger side airbag module

wire harness connector from the instrument panel
wire harness. This connector is located on the top of
the instrument panel structural support between the
airbag module and the windshield (Fig. 9).

(4) Disengage the passenger side airbag module

wire harness connector retainer from the mounting
hole on the top of the instrument panel structural
support.

(5) Remove the four screws that secure the upper

flange of the passenger side airbag door to the
instrument panel structural support (Fig. 10).

(6) Remove the two screws that secure the passen-

ger side airbag module upper mounting brackets to
the top of the instrument panel structural support.

(7) Roll down the glove box from the instrument

panel. Refer to Glove Box - Roll Down in the

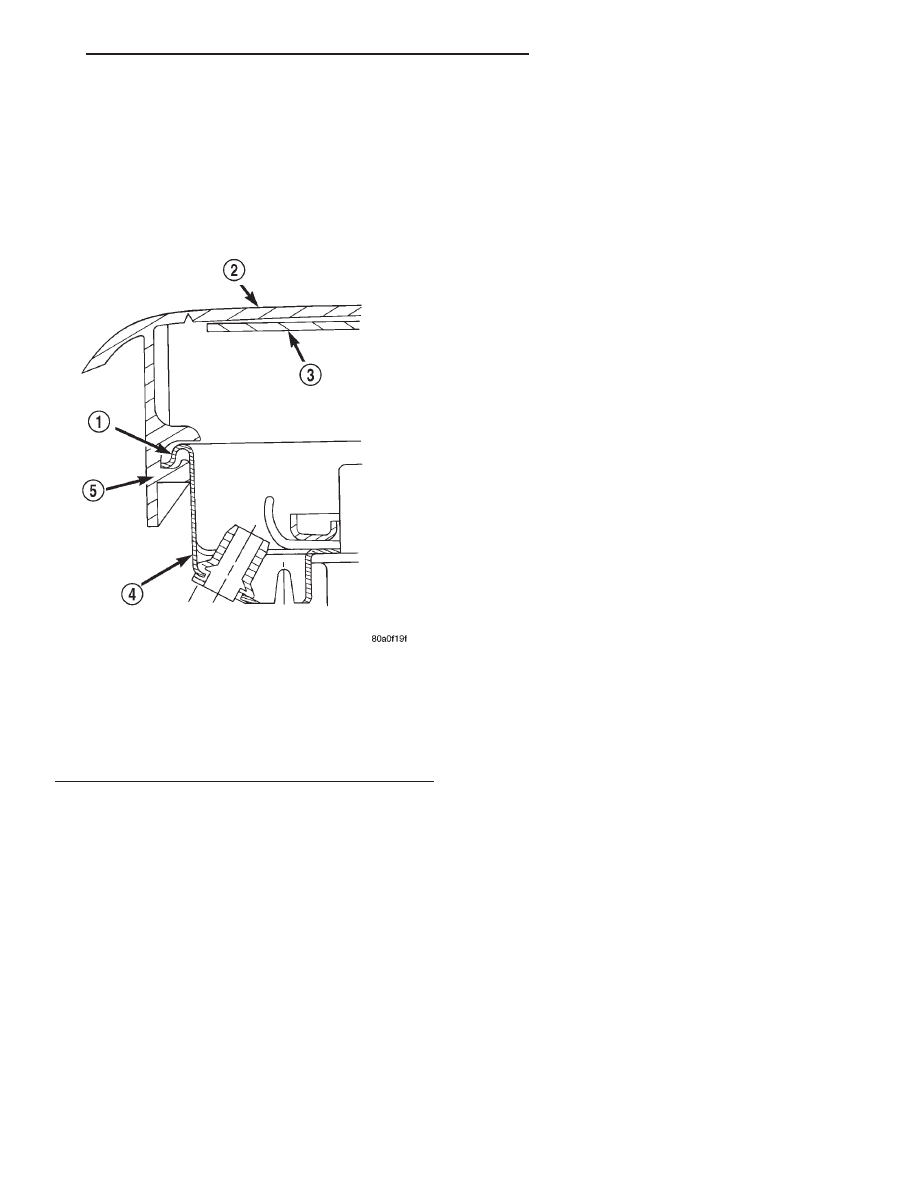

Fig. 8 Driver Side Airbag Trim Cover Locking

Blocks Engaged

1 – LIP
2 – TRIM COVER
3 – HORN SWITCH
4 – AIRBAG HOUSING
5 – LOCKING BLOCK

PASSIVE RESTRAINT SYSTEMS

8M - 9

REMOVAL AND INSTALLATION (Continued)

Content .. 127 128 129 130 ..
