Jeep Wrangler TJ. Manual - part 583

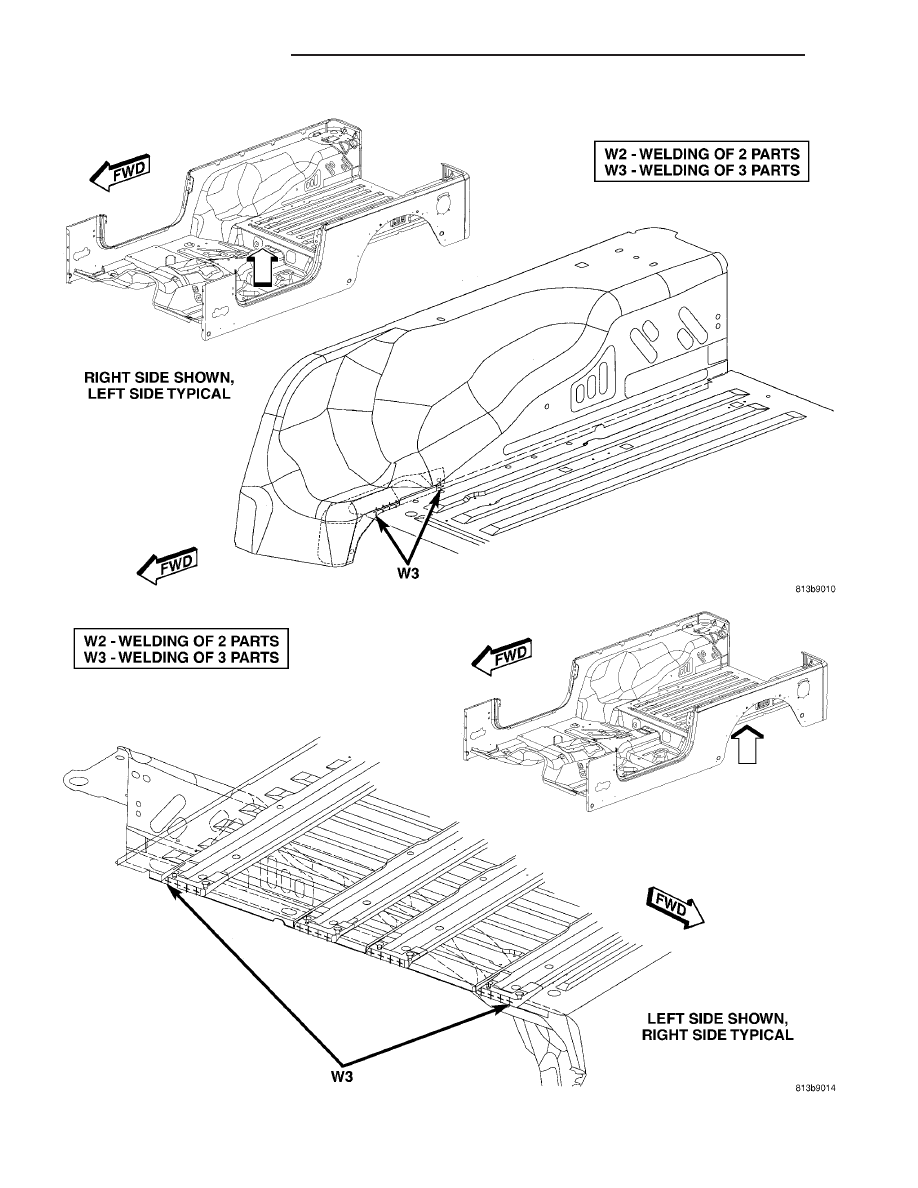

Fig. 87 BODY COMPLETE LWB (2 OF 4)

Fig. 88 BODY COMPLETE LWB (3 OF 4)

23 - 174

BODY STRUCTURE

TJ

WELD LOCATIONS (Continued)

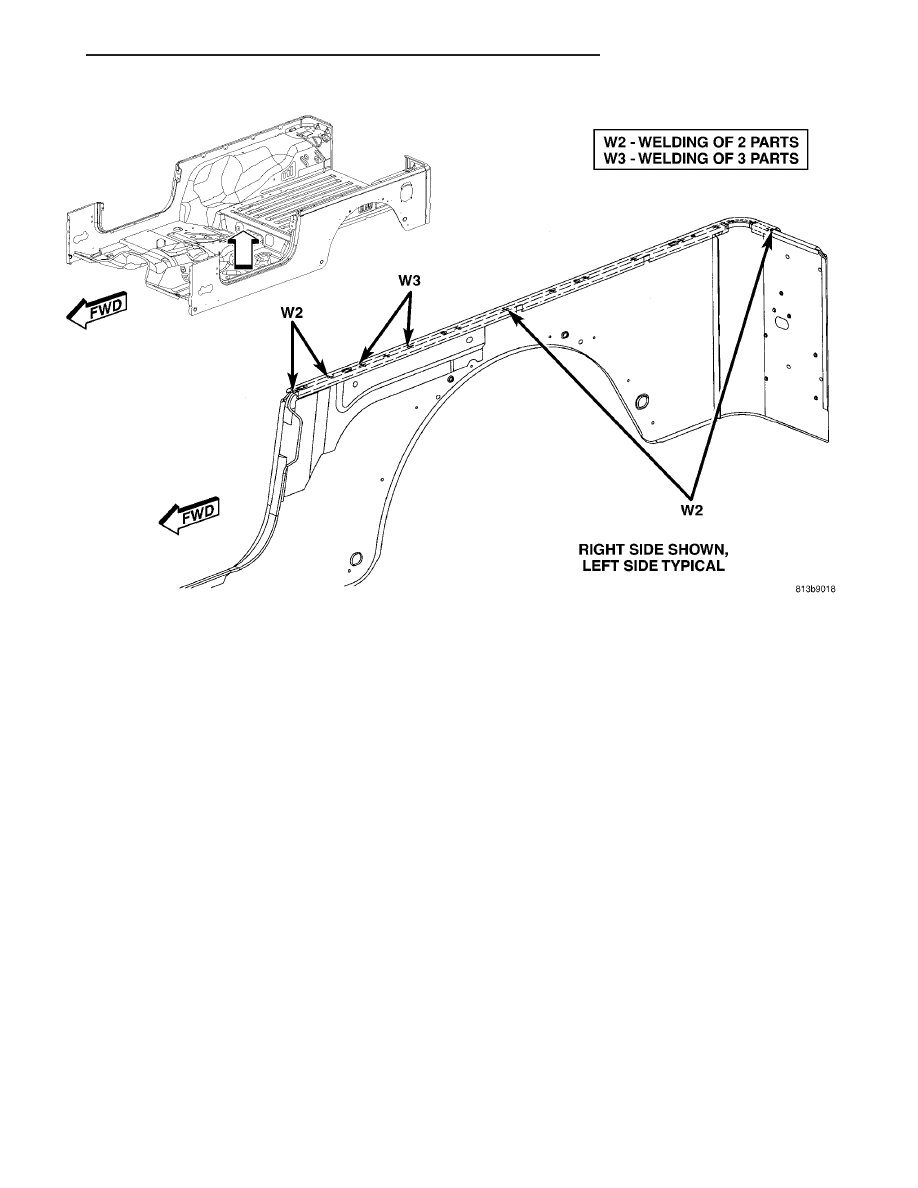

Fig. 89 BODY COMPLETE LWB (4 OF 4)

TJ

BODY STRUCTURE

23 - 175

WELD LOCATIONS (Continued)

HEATING & AIR CONDITIONING

TABLE OF CONTENTS

page

page

HEATING & AIR CONDITIONING

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DIAGNOSIS AND TESTING

A/C PERFORMANCE

. . . . . . . . . . . . . . . . . . . . 3

HEATER PERFORMANCE

. . . . . . . . . . . . . . . . 7

SPECIFICATIONS

HEATING-A/C SYSTEM

. . . . . . . . . . . . . . . . . . 8

CONTROLS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

DISTRIBUTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 37

PLUMBING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

HEATING & AIR
CONDITIONING

DESCRIPTION

A manually controlled single zone type heating-air

conditioning system or a manually controlled heater-
only system is available on this model (depending on
market).

To maintain the performance level of the heating,

ventilation and air conditioning (HVAC) system, the
engine cooling system must be properly maintained.
The use of a bug screen is not recommended. Any
obstructions in front of the radiator or A/C condenser
will reduce the performance of the A/C and engine
cooling systems.

The engine cooling system includes the radiator,

thermostat, radiator hoses and the engine coolant
pump. Refer to 7 - Cooling for more information
before opening or attempting any service to the
engine cooling system.

All vehicles are equipped with a common heater,

ventilation and air conditioning (HVAC) housing (Fig.
1). The system combines air conditioning, heating
and ventilation capabilities in a single unit mounted
within the passenger compartment under the instru-
ment panel. The HVAC housing includes:

• Blower motor

• Blower motor relay

• Blower motor resistor

• Recirculation-air door and actuator (A/C system

only)

• Heater core

• A/C evaporator (A/C system only)

• Blend-air door and actuator

• Floor/defrost and panel-air doors and actuators
On heater-only systems, the A/C evaporator and

recirculation-air door are omitted from the housing.

Based upon the system and mode selected, condi-

tioned air can exit the heater-only or heater-A/C
HVAC housing through one or a combination of the
three main housing outlets: defrost, panel or floor.

The defrost outlet is located on the top of the hous-
ing, the panel outlet is located on the face of the
housing and the floor outlet is located on the bottom
of the housing. Once the conditioned air exits the
HVAC housing, it is further directed through molded
plastic ducts to the various outlets within the vehicle
interior. These outlets and their locations are as fol-
lows:

• Defroster Outlet - A single large defroster out-

let is located in the center of the instrument panel
top cover, near the base of the windshield.

• Side Window Demister Outlets - There are

two side window demister outlets, one is located at

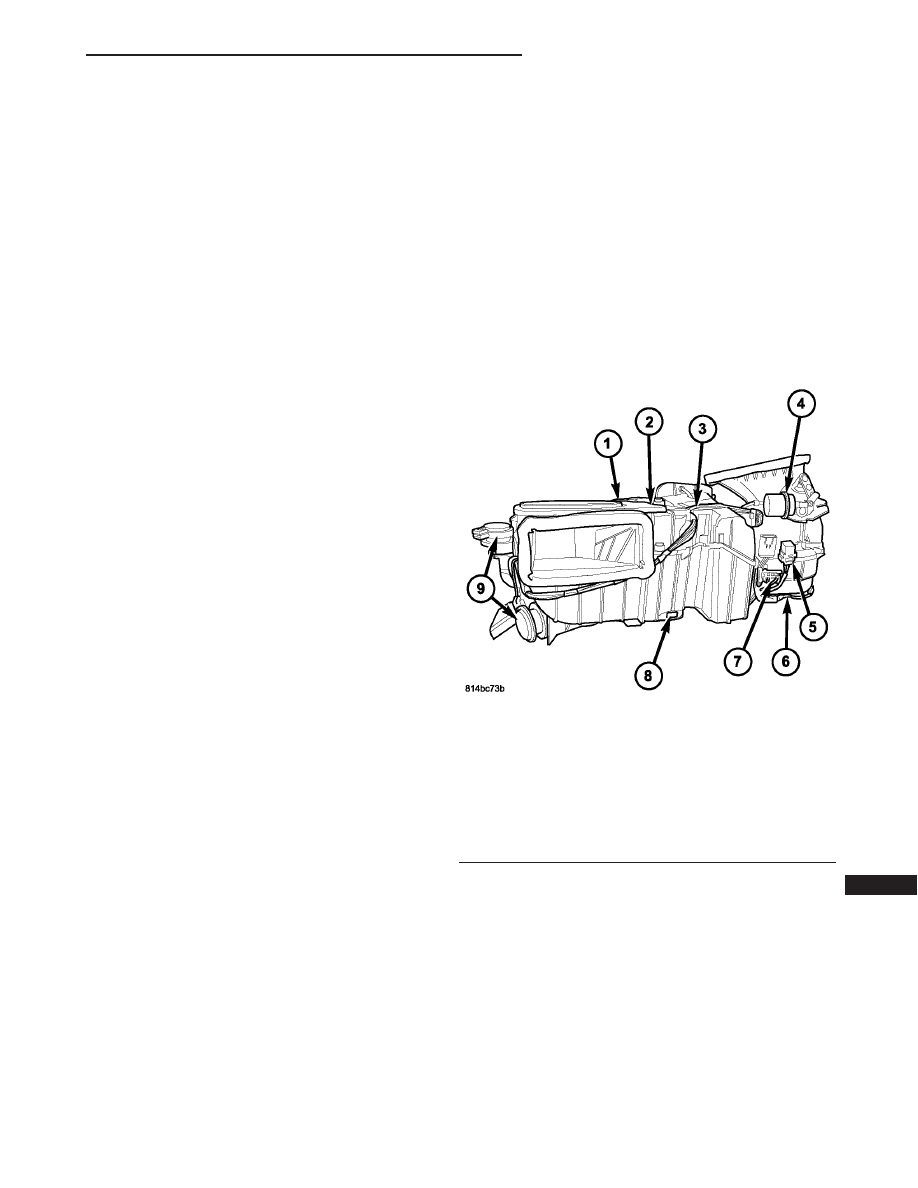

Fig. 1 HVAC Housing - LHD shown, RHD similar

1 - HVAC HOUSING
2 - HEATER CORE
3 - A/C EVAPORATOR
4 - RECIRCULATION DOOR ACTUATOR
5 - BLOWER MOTOR RELAY
6 - BLOWER MOTOR
7 - BLOWER MOTOR RESISTOR
8 - BLEND DOOR ACTUATOR
9 - MODE DOOR ACTUATORS

TJ

HEATING & AIR CONDITIONING

24 - 1
