STEERING COLUMN OPENING
COVER

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) If the vehicle is so equipped, move the tilt

steering column to the fully raised position.

(3) Remove the two screws that secure the steering

column opening cover to the instrument panel struc-
tural support (Fig. 15).

(4) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the top of the steering col-
umn opening cover away from the instrument panel

on each side of the steering column far enough to dis-
engage the two snap clip retainers from their recep-
tacles in the instrument panel base trim.

(5) If the vehicle is so equipped, roll the top of the

steering column opening cover downward far enough
to access and disconnect the wire harness connector
for the headlamp leveling switch from the switch con-
nector receptacle.

(6) Pull the top of the steering column opening

cover rearward far enough to disengage the hinge
hook formations on the lower edge of the cover from
the hinge pins on the lower edge of the instrument
panel.

(7) Remove the steering column opening cover

from the instrument panel.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Position the steering column opening cover to

the instrument panel.

(2) Engage the hinge hook formations on the lower

edge of the steering column opening cover with the
hinge pins on the lower edge of the instrument panel
(Fig. 15).

(3) If the vehicle is so equipped, roll the top of the

steering column opening cover upward far enough to
reconnect the wire harness connector for the head-
lamp leveling switch to the switch connector recepta-
cle.

(4) Tilt the upper edge of the steering column

opening cover up and align the two snap clip retain-
ers on the cover with their receptacles in the instru-
ment panel base trim.

(5) Using hand pressure, press firmly on the steer-

ing column opening cover over each of the snap clip
locations until each of the snap clips is fully engaged
in its receptacle in the instrument panel base trim.

(6) Install and tighten the two screws that secure

the steering column opening cover to the instrument
panel structural support. Tighten the screws to 2
N·m (20 in. lbs.).

(7) Reconnect the battery negative cable.

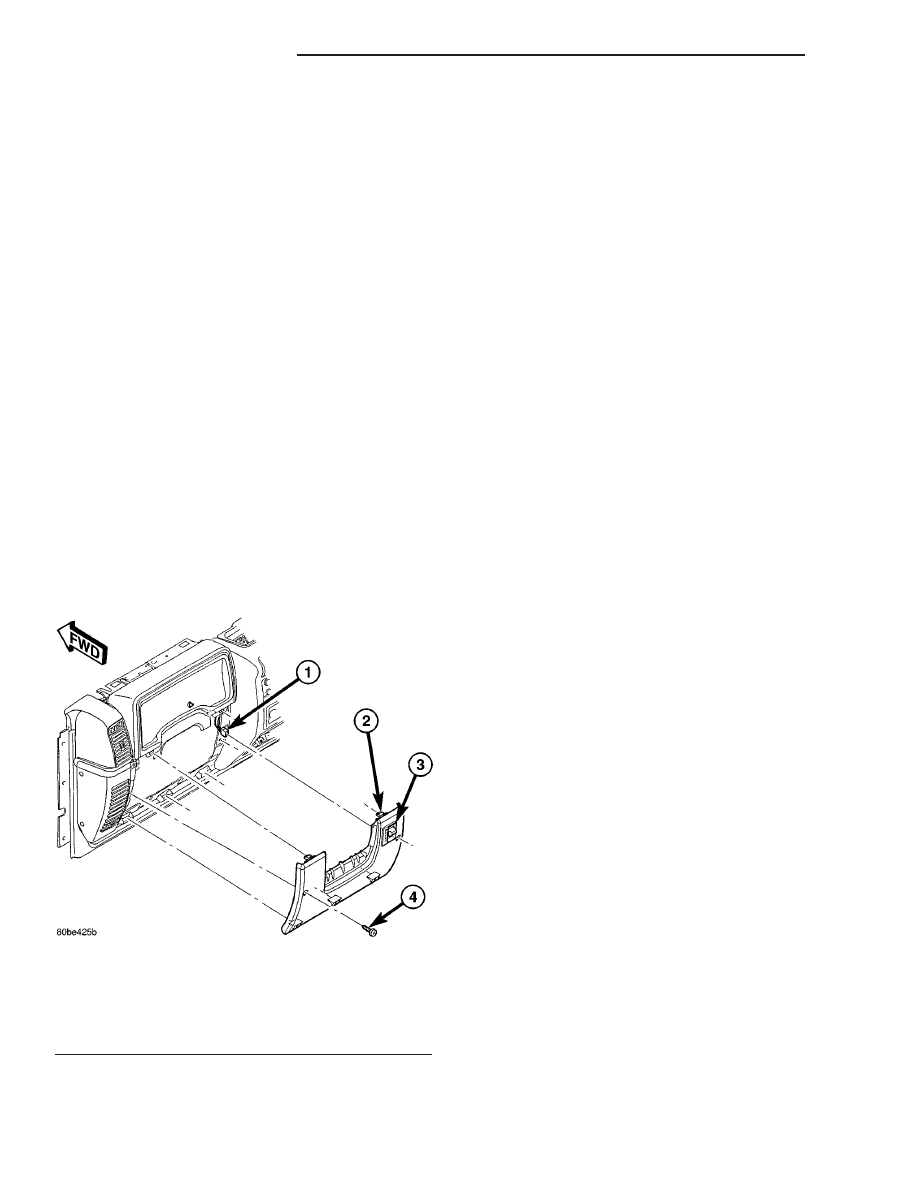

Fig. 15 STEERING COLUMN OPENING COVER

REMOVE/INSTALL

1 - WIRE HARNESS CONNECTOR
2 - STEERING COLUMN OPENING COVER
3 - HEADLAMP LEVELING SWITCH
4 - SCREW (2)

23 - 50

INSTRUMENT PANEL

TJ

TOP COVER

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the instrument panel top
cover up and away from the instrument panel far
enough to disengage the five snap clip retainers from
their receptacles in the instrument panel structural
support (Fig. 16).

(3) Remove the top cover from the instrument

panel.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

(1) Position the top cover onto the instrument

panel (Fig. 16).

(2) Align the snap clips on the top cover with the

snap clip receptacles in the instrument panel struc-
tural support.

(3) Using hand pressure, press firmly downward

on the top cover over each of the snap clip locations
until each of the snap clips is fully seated in its
receptacle in the instrument panel structural sup-
port.

(4) Reconnect the battery negative cable.

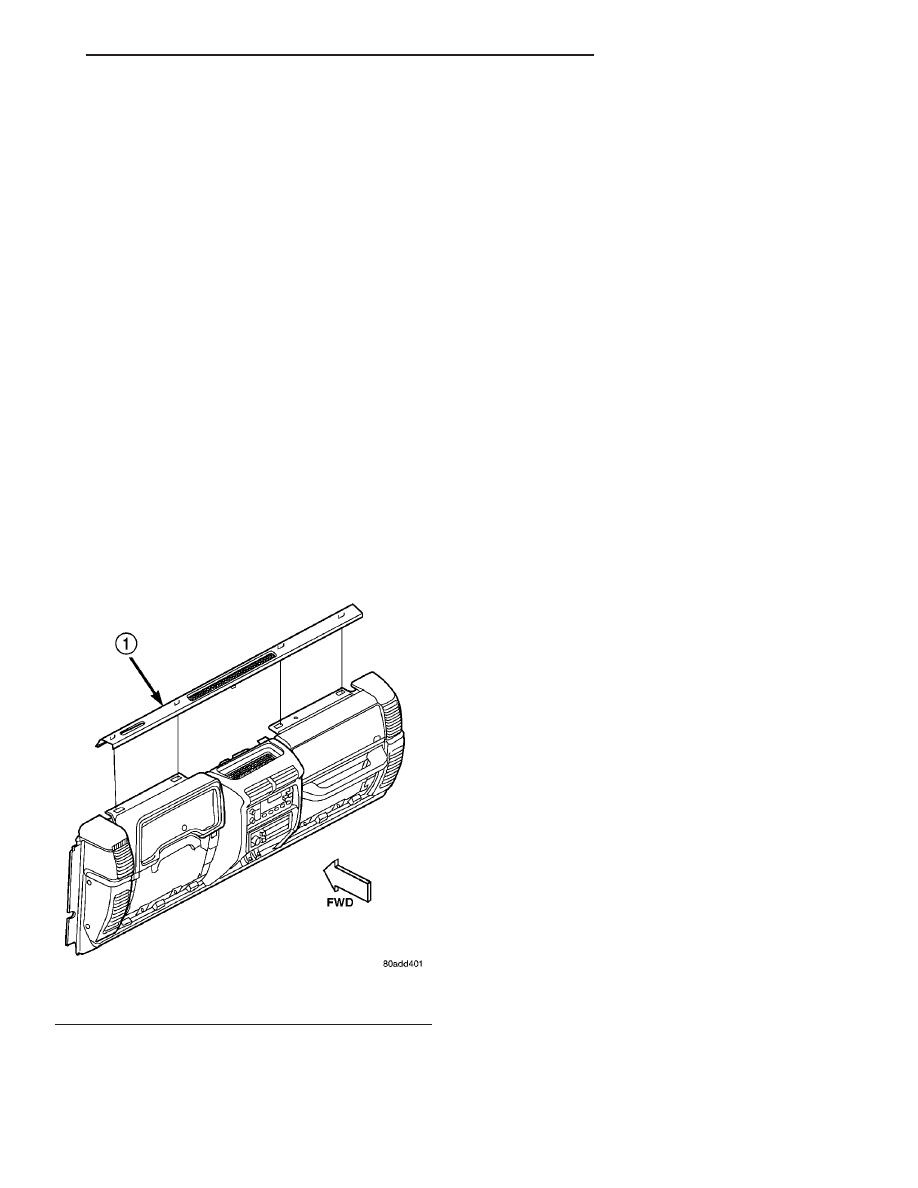

Fig. 16 TOP COVER REMOVE/INSTALL

1 - TOP COVER

TJ

INSTRUMENT PANEL

23 - 51

INTERIOR

TABLE OF CONTENTS

page

page

ADD-A-TRUNK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 52

FRONT CARPET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 53

CENTER CARPET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 54

CARGO AREA CARPET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 54

WHEELHOUSE CARPET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 55

REAR VIEW MIRROR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 55

REAR VIEW MIRROR SUPPORT BRACKET

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 55

SUNVISOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 56

SHIFT BEZEL - AUTOMATIC TRANSMISSION

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 56

SHIFT BOOT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 57

CENTER CONSOLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 58

CENTER CONSOLE CUP HOLDER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 58

CONSOLE LOCK CYLINDER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 59

SPORT BAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 59

A-PILLAR TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

REAR HEADER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 61

WINDSHIELD HEADER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 62

SPORT BAR - SPEAKER POD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 62

ADD-A-TRUNK

REMOVAL

(1) Release latches under trunk panel and lift

panel up.

(2) Remove bolts attaching trunk to inner body

panel (Fig. 1).

(3) Separate trunk from vehicle.

INSTALLATION

(1) Position the trunk in the cargo space.
(2) Install the bolts.

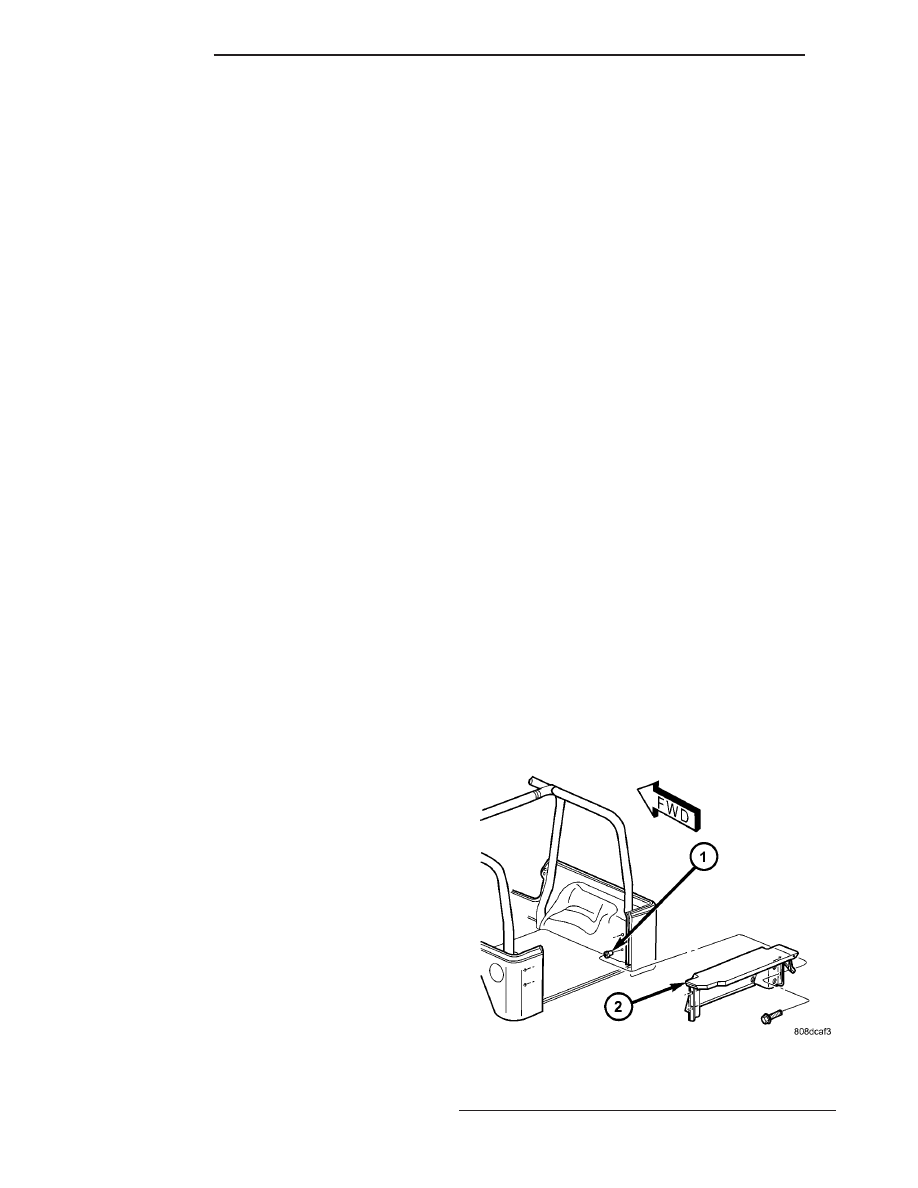

Fig. 1 ADD-A-TRUNK

1 - SCREW
2 - ADD-A-TRUNK PANEL

23 - 52

INTERIOR

TJ

FRONT CARPET

REMOVAL

(1) If necessary, remove the center console. (Refer

to 23 - BODY/INTERIOR/CENTER CONSOLE -
REMOVAL)

(2) Remove the retainers attaching the carpet to

the dash panel (Fig. 2).

(3) Disengage the snaps under front seats.
(4) Remove carpet from the vehicle

INSTALLATION

(1) Position the carpet in the vehicle
(2) Engage the snaps around under front seats.
(3) Install the retainers attaching the carpet to the

dash panel.

(4) If previously removed, install the center con-

sole. (Refer to 23 - BODY/INTERIOR/CENTER CON-
SOLE - INSTALLATION)

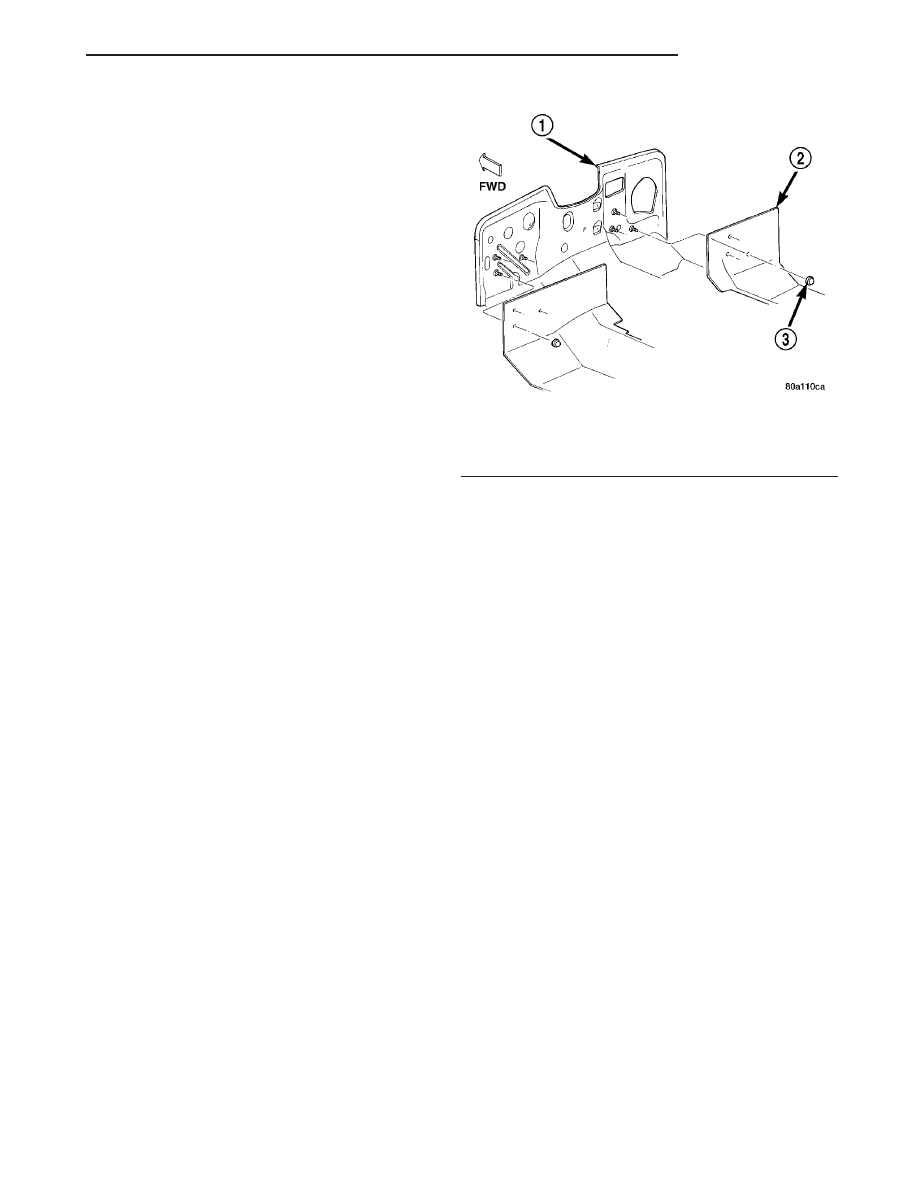

Fig. 2 FRONT CARPET

1 - DASH PANEL
2 - CARPET
3 - PUSH ON RETAINER

TJ

INTERIOR

23 - 53
