EXHAUST MANIFOLD
DESCRIPTION
The two exhaust manifolds (Fig. 93) are log style
and are made of high silicon molybdenum cast iron.
The exhaust manifolds share a common gasket with
the intake manifold. The exhaust manifolds also
incorporate ball flange outlets for improved sealing
and strain free connections.
REMOVAL
The intake and engine exhaust manifolds on the
4.0L engine must be removed together. The manifolds
use a common gasket at the cylinder head.
(Refer
to
9
-
ENGINE/MANIFOLDS/INTAKE
MANIFOLD - REMOVAL).

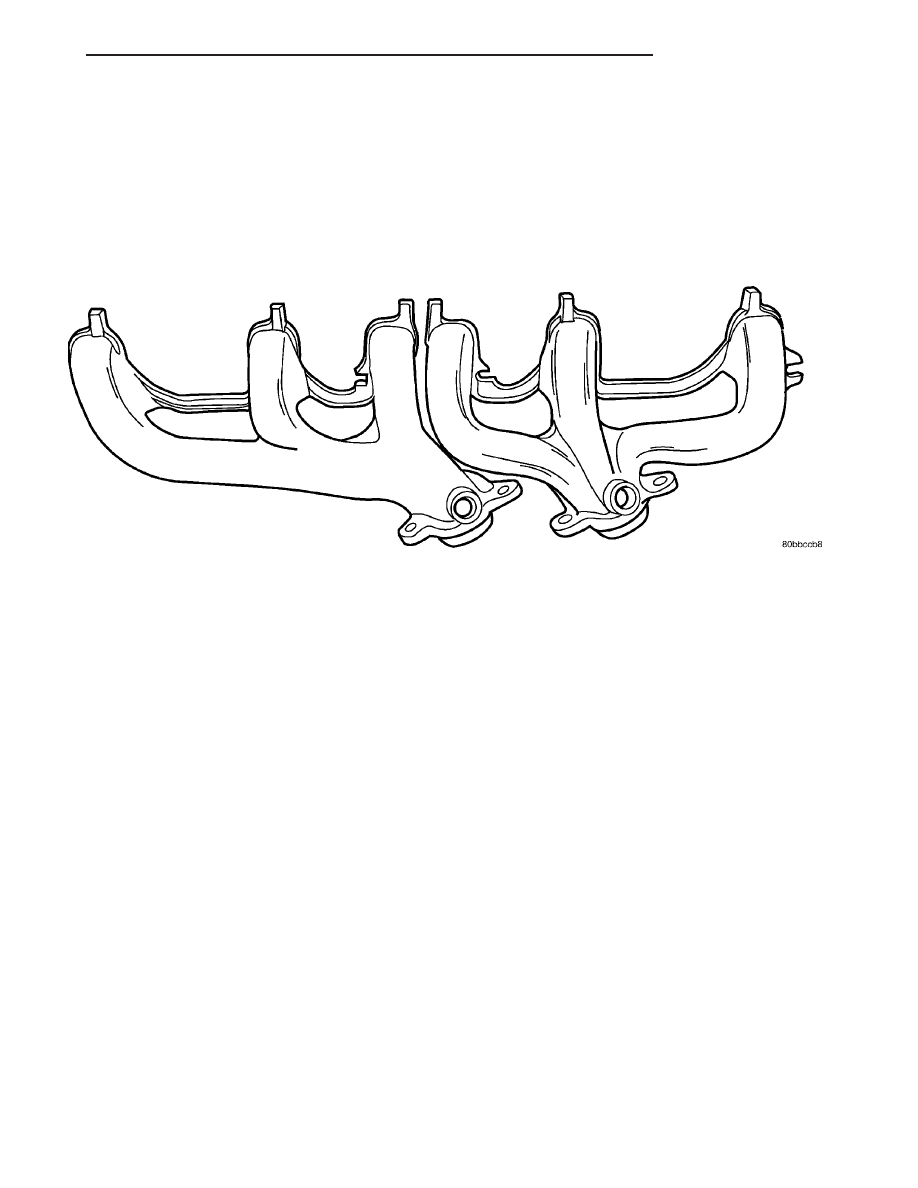

Fig. 93 EXHAUST MANIFOLDS 4.0L ENGINE
TJ
ENGINE 4.0L
9 - 131
