Jeep Wrangler TJ. Manual - part 361





8W-30 FUEL/IGNITION SYSTEM

Component

Page

A/C Compressor Clutch Relay . . . . . . . . 8W-30-3, 19
A/C Low Pressure Switch . . . . . . . . . . 8W-30-11, 17
A/C Pressure Transducer . . . . . . . . . . . . . . 8W-30-4
A/C-Heater Control . . . . . . . . . . . . . . . . . . 8W-30-11
Ambient Temperature Sensor . . . . . . . . . . 8W-30-17

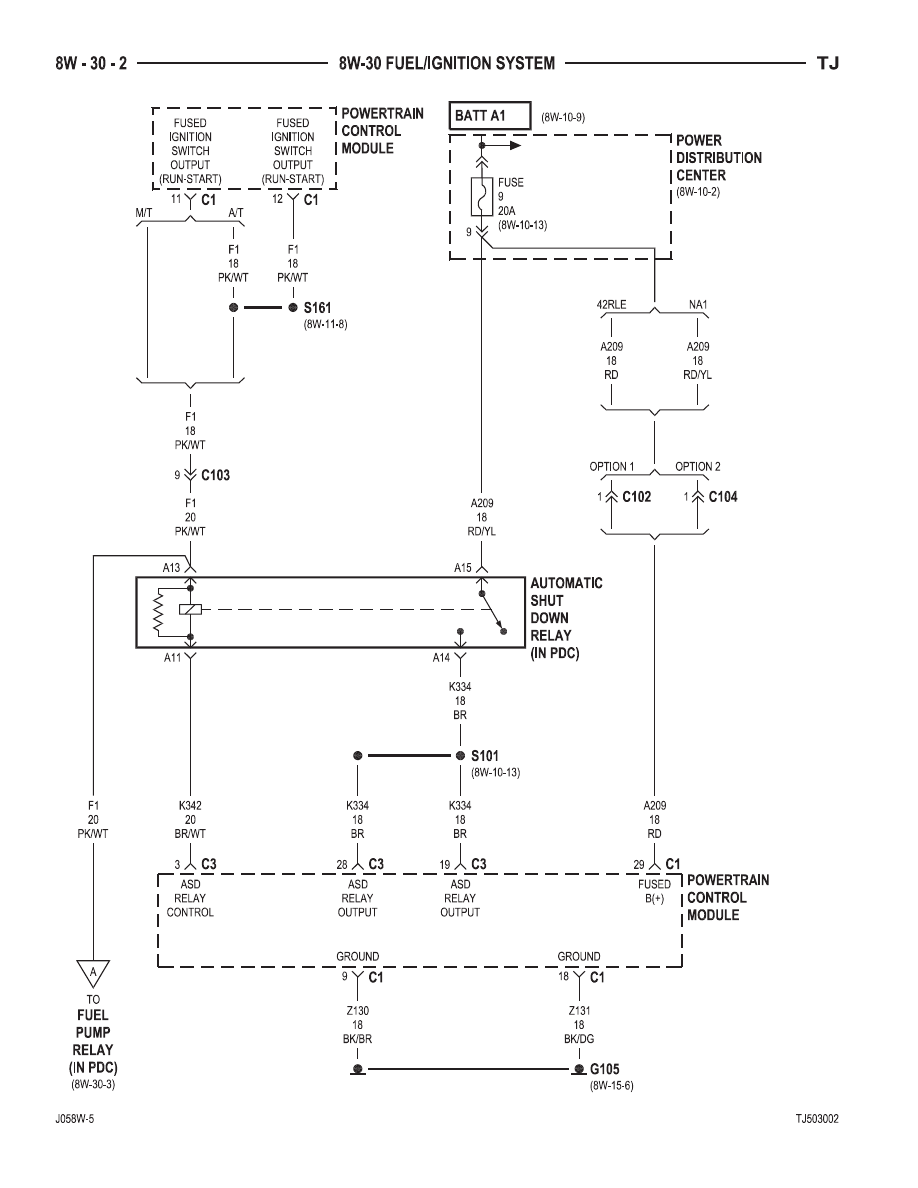

Automatic Shut Down

Relay . . . . . . . . . . . . . . . . 8W-30-2, 3, 7, 8, 12, 13

Battery Temperature Sensor . . . 8W-30-4, 10, 15, 17
Brake Lamp Switch . . . . . . . . . . . . . . . 8W-30-6, 17
Brake Transmission Shift Interlock

Solenoid . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-17

Camshaft Position Sensor . . . . . . . . . 8W-30-7, 9, 12
Clockspring . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-6
Coil Capacitor . . . . . . . . . . . . . . . . . . . . 8W-30-7, 12
Crankshaft Position Sensor . . . . . . . . . 8W-30-7, 12
Data Link Connector . . . . . . . . . . . . . . . . . 8W-30-5
Daytime Running Lamp Module . . . . . 8W-30-10, 15
Engine Coolant Temperature Sensor . . 8W-30-9, 14
Engine Oil Pressure Sensor . . . . . . . . . . . 8W-30-14
Engine Oil Pressure Switch . . . . . . . . . . . . 8W-30-9
Engine Starter Motor Relay . . . . . . . . . . . . 8W-30-4
EVAP/Purge Solenoid . . . . . . . . . . . . . . . . 8W-30-16
Fuel Injector No. 1 . . . . . . . . . . . . . . . . 8W-30-8, 13
Fuel Injector No. 2 . . . . . . . . . . . . . . . . 8W-30-8, 13
Fuel Injector No. 3 . . . . . . . . . . . . . . . . 8W-30-8, 13
Fuel Injector No. 4 . . . . . . . . . . . . . . . . 8W-30-8, 13
Fuel Injector No. 5 . . . . . . . . . . . . . . . . . . 8W-30-13
Fuel Injector No. 6 . . . . . . . . . . . . . . . . . . 8W-30-13

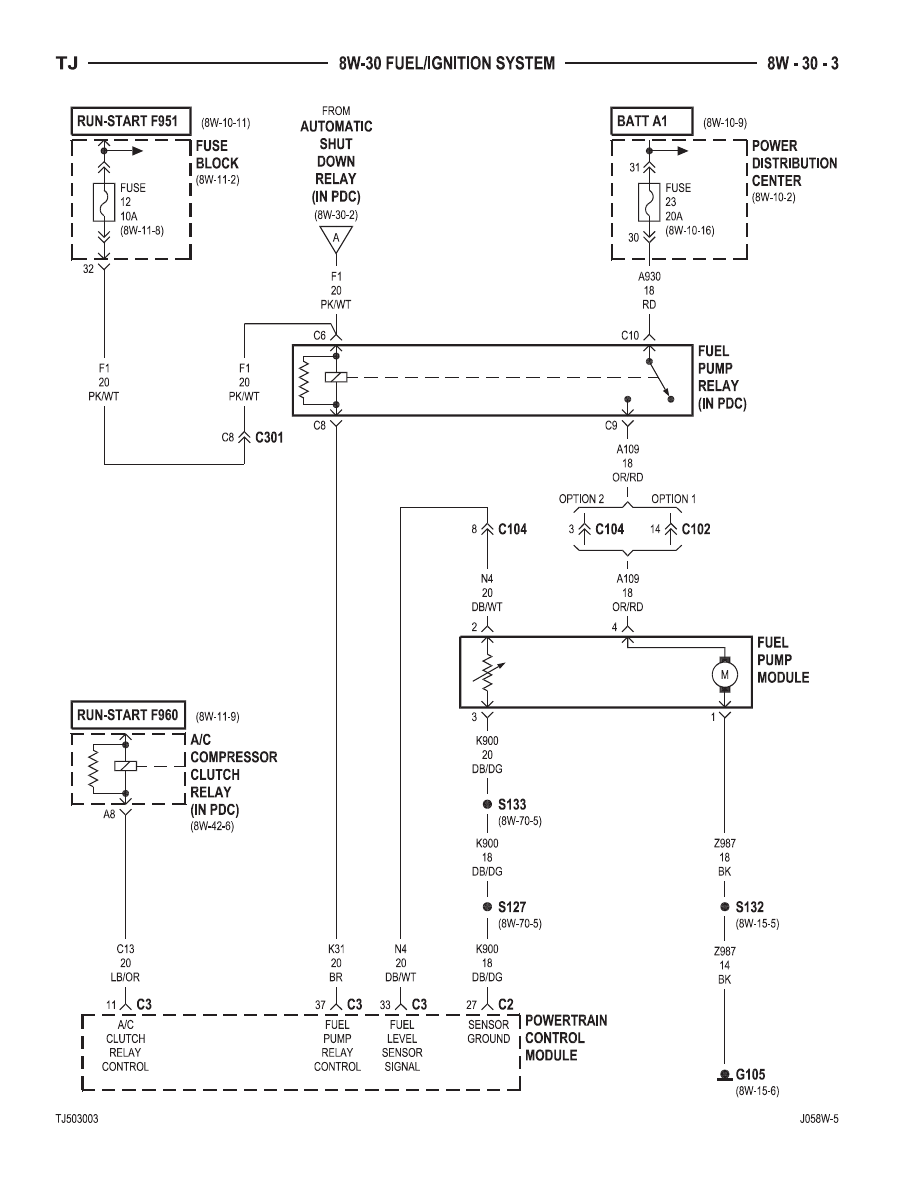

Fuel Pump Module . . . . . . . . . . . . . . . . . . . 8W-30-3
Fuel Pump Relay . . . . . . . . . . . . . . . . . . 8W-30-2, 3
Fuse 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-2
Fuse 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-19

Component

Page

Fuse 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-3
Fuse 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-3

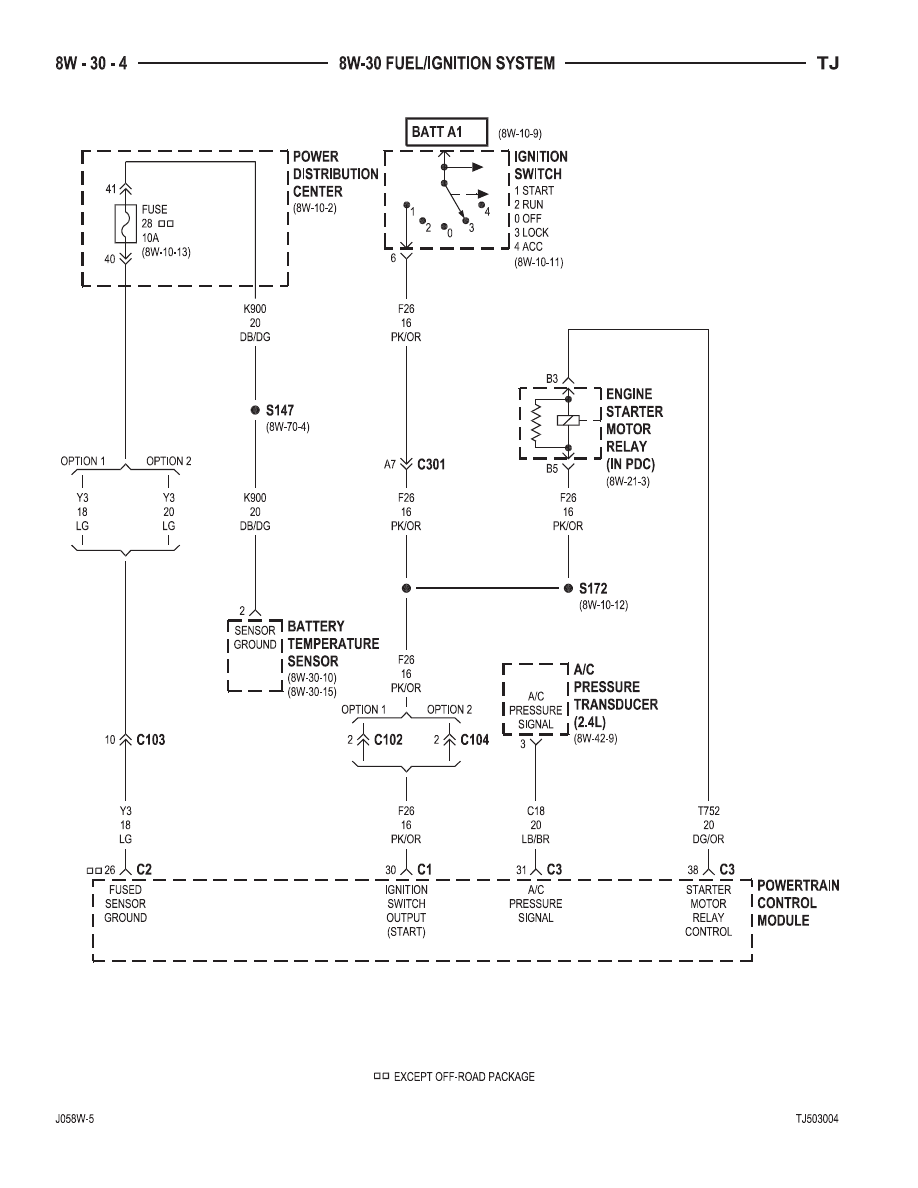

Fuse 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-4
Fuse Block . . . . . . . . . . . . . . . . . . . . . . 8W-30-3, 19
G105 . . . . . . . . . . . . . . . . 8W-30-2, 3, 11, 18, 20, 21
G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-17
G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-16
Generator . . . . . . . . . . . . . . . . . . . . . . . . . 8W-30-17
High Speed Radiator Fan Relay . . . . . . . . 8W-30-19
Idle Air Control Motor . . . . . . . . . . . . . . . 8W-30-16
Ignition Coil Pack . . . . . . . . . . . . . . . . . 8W-30-7, 12
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . 8W-30-4
Intake Air Temperature Sensor . . . . . . 8W-30-9, 14
Left Speed Control Switch . . . . . . . . . . . . . 8W-30-6
Low Speed Radiator Fan Relay . . . . . . . . 8W-30-19
Manifold Absolute Pressure Sensor . . . 8W-30-9, 14
Natural Vacuum Leak Detection

Assembly . . . . . . . . . . . . . . . . . . . . . . . 8W-30-16

Oxygen Sensor 1/1 Upstream . . . . . . . 8W-30-18, 20
Oxygen Sensor 1/2 Downstream . . . . . 8W-30-18, 21
Oxygen Sensor 2/1 Upstream . . . . . . . . . . 8W-30-20
Oxygen Sensor 2/2 Downstream . . . . . . . . 8W-30-21
Power Distribution

Center . . . . . . . . . . . . . 8W-30-2, 3, 4, 7, 8, 12, 13

Power Steering Pressure Switch . . . . . . . . 8W-30-11
Powertrain Control Module . . 8W-30-2, 3, 4, 5, 6, 7,

8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21

Speed Control Servo . . . . . . . . . . . . . . . . . . 8W-30-6
Throttle Position Sensor . . . . . . . . . . . 8W-30-10, 15
Transfer Case Switch . . . . . . . . . . . . . . . . 8W-30-14
Vehicle Speed Sensor . . . . . . . . . . 8W-30-10, 12, 15

TJ

8W-30 FUEL/IGNITION SYSTEM

8W - 30 - 1
