SPECIAL TOOLS

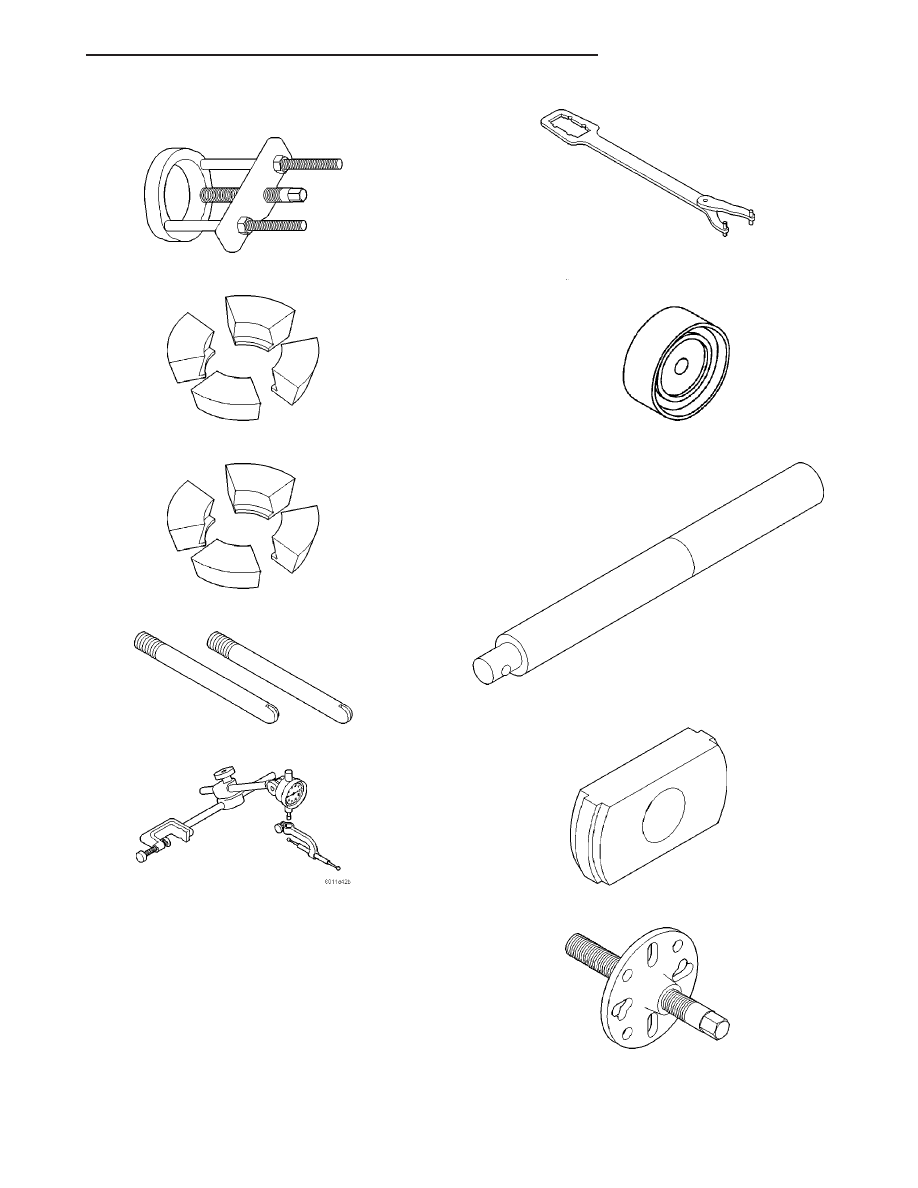

PULLER C-293-PA

ADAPTER C-293-39

ADAPTER C-293-40

PILOT STUDS C-3288-B

DIAL INDICATOR C-3339

WRENCH C-3281

INSTALLER C-3716-A

HANDLE C-4171

REMOVER C-4345

PULLER C-452

TJ

REAR AXLE - 194RBI

3 - 97

REAR AXLE - 194RBI (Continued)

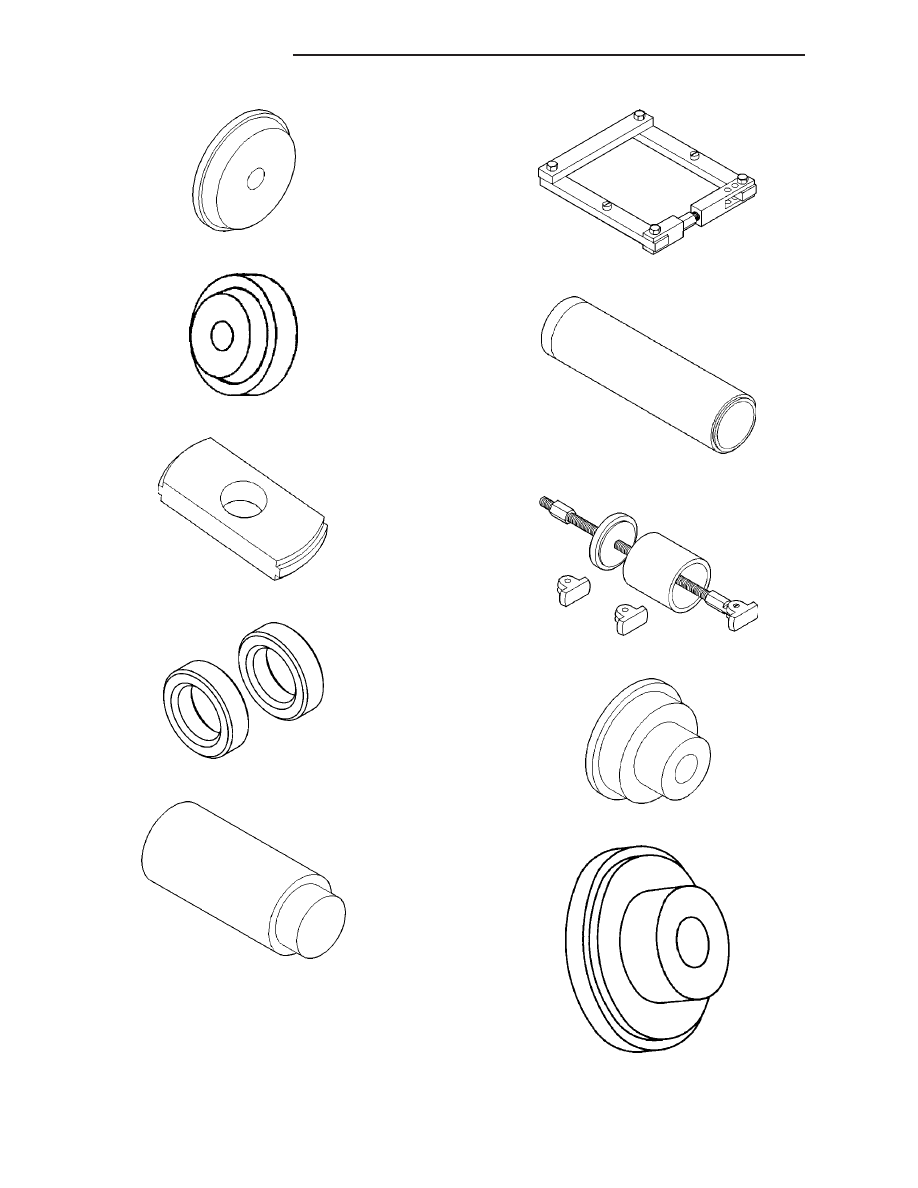

INSTALLER D-130

INSTALLER D-146

REMOVER D-149

DUMMY BEARINGS D-348

ADAPTER PLUG SP-3289

SPREADER W-129-B

INSTALLER W-262

BEARING REMOVER 6310

INSTALLER 6436

INSTALLER 6437

3 - 98

REAR AXLE - 194RBI

TJ

REAR AXLE - 194RBI (Continued)

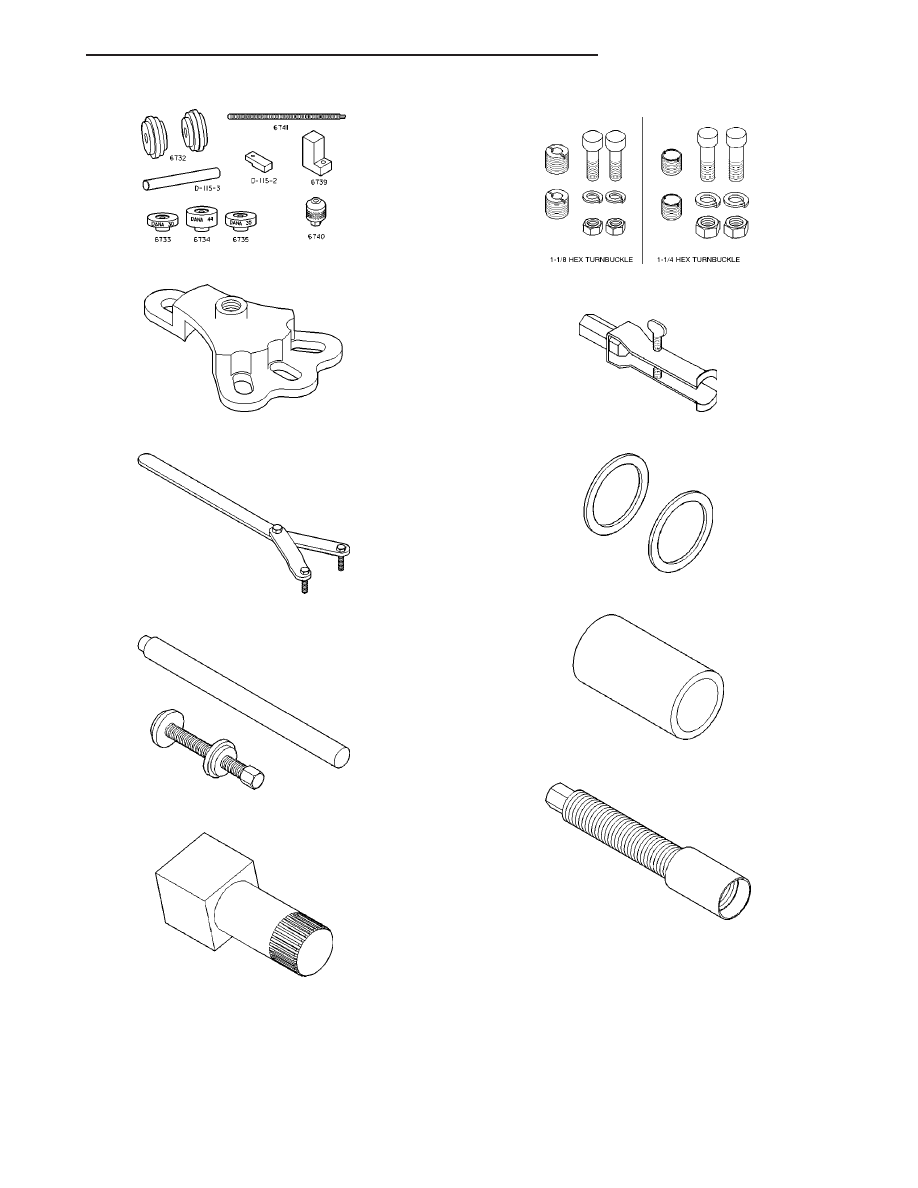

PINION DEPTH 6774

HUB PULLER 6790

WRENCH SPANNER 6958

TRAC-LOK TOOLS 6960

HOLDER FIXTURE 6965

ADAPTER KIT 6987

PULLER 7794-A

SHIM DUMMY 8107

CUP 8109

INSTALLER SCREW 8112

TJ

REAR AXLE - 194RBI

3 - 99

REAR AXLE - 194RBI (Continued)

AXLE SHAFTS

REMOVAL

(1) With vehicle in neutral, position vehicle on

hoist.

(2) Remove brake drum.
(3) Remove differential cover and drain fluid.
(4) Rotate differential case to access pinion mate

gear shaft lock screw. Remove lock screw and shaft
from differential case (Fig. 24).

(5) Push axle shaft inward and remove axle C-clip

lock (Fig. 25).

(6) Remove axle shaft.

INSTALLATION

(1) Lubricate bearing bore and seal lip with gear

lubricant. Insert axle shaft through seal, bearing,
and engage it into side gear splines.

(2) Install C-clip lock on the axle shaft, then push

axle outward to seat C-clip lock in side gear.

(3) Insert pinion mate shaft into differential case

and through thrust washers and pinion gears.

(4) Align hole in shaft with hole in the differential

case and install lock screw with Loctite

t on the

threads. Tighten lock screw to 19 N·m (14 ft. lbs.).

(5) Install differential cover.

AXLE SHAFT SEALS

REMOVAL

(1) Remove the axle shaft.
(2) Remove axle shaft seal from the end of the axle

shaft tube with a small pry bar.

(3) Inspect the axle shaft tube bore for roughness

and burrs and remove as necessary.

INSTALLATION

(1) Wipe the axle shaft tube bore clean.
(2) Install new axle shaft seal with Installer 6437

and Handle C-4171 (Fig. 26).

(3) Install the axle shaft.

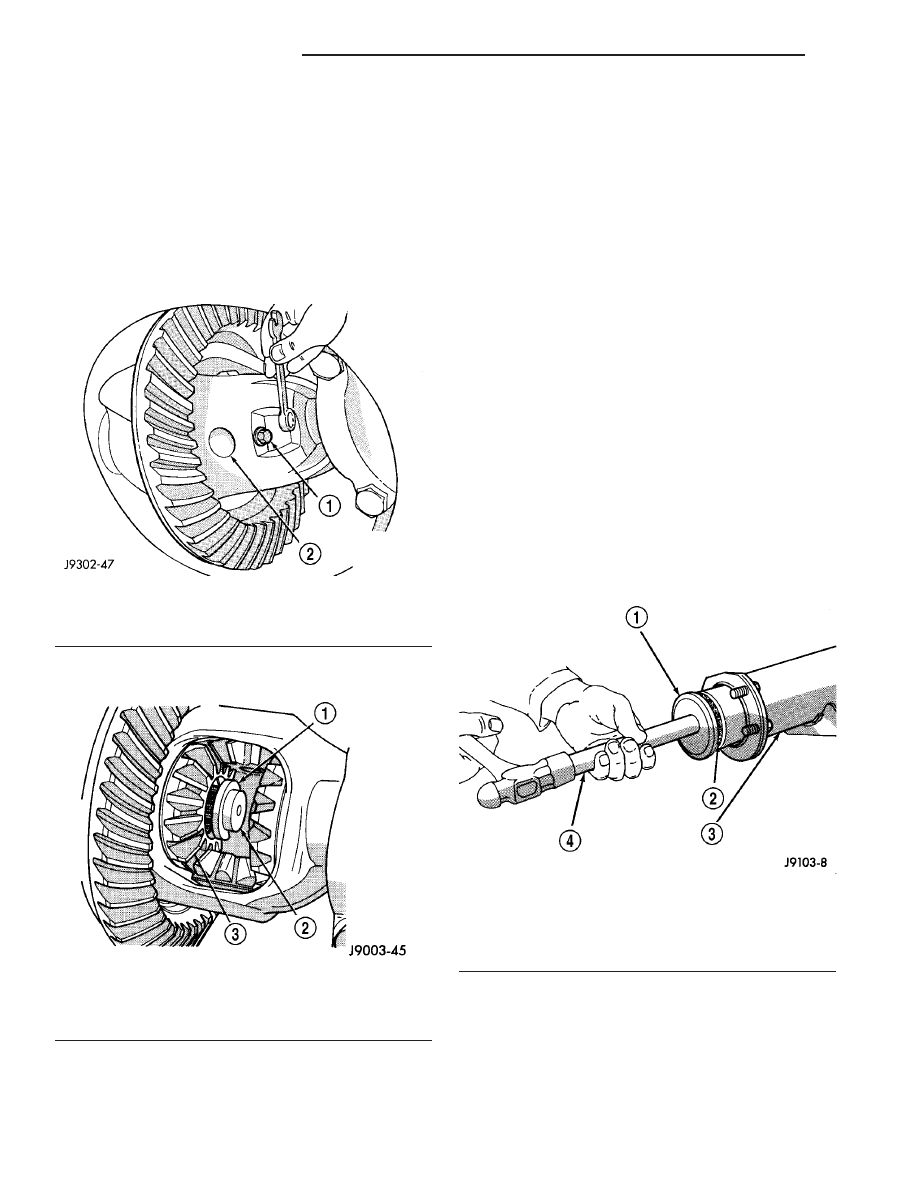

Fig. 24 MATE SHAFT LOCK SCREW

1 - LOCK SCREW
2 - PINION GEAR MATE SHAFT

Fig. 25 AXLE SHAFT C-CLIP

1 - C-CLIP LOCK
2 - AXLE SHAFT
3 - SIDE GEAR

Fig. 26 AXLE SHAFT SEAL

1 - INSTALLER
2 - SEAL
3 - AXLE SHAFT TUBE
4 - HANDLE

3 - 100

REAR AXLE - 194RBI
