Jeep Wrangler TJ. Manual - part 199





Kilometers

53 000

58 000

62 000

67 000

72 000

(Miles)

(33,000)

(36,000)

(39,000)

(42,000)

(45,000)

Change the engine oil and engine oil filter, if not
replaced at 3 months.

X

X

X

X

X

Rotate the tires.

X

X

Inspect the engine air filter element, replace if
necessary.

X

Lubricate the steering linkage tie rod ends.

X

X

X

X

X

Lubricate the steering and suspension ball joints.

X

X

Inspect the brake linings.

X

Drain and refill the front and rear axle fluid‡

X

Inspect the drive belt and replace as needed.

X

Kilometers

77 000

82 000

86 000

91 000

96 000

(Miles)

(48,000)

(51,000)

(54,000)

(57,000)

(60,000)

Change the engine oil and engine oil filter, if not
replaced at 3 months.

X

X

X

X

X

Rotate the tires.

X

X

X

Inspect the engine air filter element, replace if
necessary.

X

Inspect the PCV Valve, and replace if necessary.

L

X

Inspect the ignition cables, and replace if
necessary (2.4L Only).

X

Replace the spark plugs.

X

Lubricate the steering linkage tie rod ends.

X

X

X

X

X

Lubricate the steering and suspension ball joints.

X

X

X

Inspect the brake linings.

X

X

Drain and refill the front and rear axle fluid‡

X

X

Drain and refill the automatic transmission fluid, and
change filter.

X

Inspect the drive belt and replace as needed. Not
required if belt was previously.

X

Drain and refill the transfer case fluid.

X

Flush and replace the engine coolant/anti-freeze at 60
months, if not done at 163 000 km (102,000 miles).

X

TJ

LUBRICATION & MAINTENANCE

0 - 19

MAINTENANCE SCHEDULES (Continued)

Kilometers

101 000

106 000

110 000

115 000

120 000

(Miles)

(63,000)

(66,000)

(69,000)

(72,000)

(75,000)

Change the engine oil and engine oil filter, if not
replaced at 3 months.

X

X

X

X

X

Rotate the tires.

X

X

Inspect the engine air filter element, replace if
necessary.

X

Lubricate the steering linkage tie rod ends.

X

X

X

X

X

Lubricate the steering and suspension ball joints.

X

X

Inspect the brake linings.

X

Drain and refill the front and rear axle fluid‡

X

Inspect the drive belt and replace as needed. Not
required if belt was previously replaced.

X

Kilometers

125 000

130 000

134 000

139 000

144 000

(Miles)

(78,000)

(81,000)

(84,000)

(87,000)

(90,000)

Change the engine oil and engine oil filter, if not
replaced at 3 months.

X

X

X

X

X

Rotate the tires.

X

X

X

Inspect the engine air filter element, replace if
necessary.

X

Inspect the PCV Valve, and replace if necessary.

L

X

Replace the spark plugs.

X

Lubricate the steering linkage tie rod ends.

X

X

X

X

X

Lubricate the steering and suspension ball joints.

X

X

X

Replace the timing belt (2.4L Only)

L

.

X

Inspect the brake linings.

X

Drain and refill the front and rear axle fluid‡

X

Inspect the drive belt and replace as needed. Not
required if belt was previously replaced.

X

Inspect the transfer case fluid, add if necessary.

X

0 - 20

LUBRICATION & MAINTENANCE

TJ

MAINTENANCE SCHEDULES (Continued)

Kilometers

149 000

154 000

158 000

163 000

168 000

(Miles)

(93,000)

(96,000)

(99,000)

(102,000)

(105,000)

Change the engine oil and engine oil filter, if not
replaced at 3 months.

X

X

X

X

X

Rotate the tires.

X

X

Inspect the engine air filter element, replace if
necessary.

X

Lubricate the steering linkage tie rod ends.

X

X

X

X

X

Lubricate the steering and suspension ball joints.

X

X

Inspect the brake linings.

X

Drain and refill the front and rear axle fluid‡

X

Inspect the drive belt and replace as needed. Not
required if belt was previously replaced.

X

Flush and replace the engine coolant/anti-freeze, if
not done at 60 months.

X

Kilometers

173 000

178 000

182 000

187 000

192 000

(Miles)

(108,000)

(111,000)

(114,000)

(117,000)

(120,000)

Change the engine oil and engine oil filter, if not
replaced at 3 months.

X

X

X

X

X

Rotate the tires.

X

X

X

Inspect the engine air filter element, replace if
necessary.

X

Inspect the PCV Valve, and replace if necessary.

L

X

Replace the spark plugs.

X

Inspect the ignition cables, and replace if
necessary (2.4L Only).

X

Lubricate the steering linkage tie rod ends.

X

X

X

X

X

Lubricate the steering and suspension ball joints.

X

X

X

Inspect the brake linings.

X

X

Drain and refill the front and rear axle fluid‡

X

X

Drain and refill the automatic transmission fluid, and
replace main sump filter.

X

Inspect the drive belt and replace as needed. Not
required if belt was previously replaced.

X

Drain and refill the transfer case fluid.

X

Flush and replace the engine coolant/anti-freeze at
120 months, if not replaced at 163 000 km (102,000
miles).

X

Inspection and service should also be performed

anytime a malfunction is observed or suspected.
Retain all receipts.

L This maintenance is recommended by the man-

ufacturer to the owner, but is not required to main-
tain emissions warranty.

‡Off-highway operation, trailer towing, taxi, limou-

sine, bus, snow plowing, or other types of commercial
service or prolonged operation with heavy loading,
especially in hot weather, require front and rear axle
service indicated with a ‡ in Schedule “B”. Perform
these services if the vehicle is usually operated under
these conditions.

TJ

LUBRICATION & MAINTENANCE

0 - 21

MAINTENANCE SCHEDULES (Continued)

HOISTING

STANDARD PROCEDURE - HOISTING
RECOMMENDATIONS

Refer to the Owner’s Manual for emergency vehicle

lifting procedures.

When properly positioned, a floor jack can be used

to lift a Jeep vehicle (Fig. 5). Support the vehicle in
the raised position with jack stands at the front and
rear ends of the frame rails.

CAUTION: Do not attempt to lift a Jeep vehicle with
a floor jack positioned under:

• An axle tube.

• A body side sill.

• A steering linkage component.

• A drive shaft.

• The engine or transmission oil pan.

• The fuel tank.

• A front suspension arm.

• Transfer case.

NOTE: Use the correct sub-frame rail or frame rail
lifting locations only.

HOIST

Refer to the Owner’s Manual for emergency vehicle

lifting procedures.

A vehicle can be lifted with:

• A single-post, frame-contact hoist.

• A twin-post, chassis hoist.

• A ramp-type, drive-on hoist.

NOTE: When a frame-contact type hoist is used,
verify that the lifting pads are positioned properly.

WARNING: THE HOISTING AND JACK LIFTING
POINTS PROVIDED ARE FOR A COMPLETE VEHI-
CLE. WHEN A CHASSIS OR DRIVETRAIN COMPO-
NENT

IS

REMOVED

FROM

A

VEHICLE,

THE

CENTER OF GRAVITY IS ALTERED MAKING SOME
HOISTING

CONDITIONS

UNSTABLE.

PROPERLY

SUPPORT OR SECURE VEHICLE TO HOISTING
DEVICE WHEN THESE CONDITIONS EXIST.

TOWING

STANDARD PROCEDURE - TOWING
RECOMMENDATIONS

DaimlerChrysler Corporation recommends that a

4WD vehicle be transported on a flat-bed device. A
Wheel-lift or front end attached Sling-type device can
be used provided all the wheels are lifted off the
ground using tow dollies (Fig. 6) and (Fig. 7).

SAFETY PRECAUTIONS

• Secure loose and protruding parts.

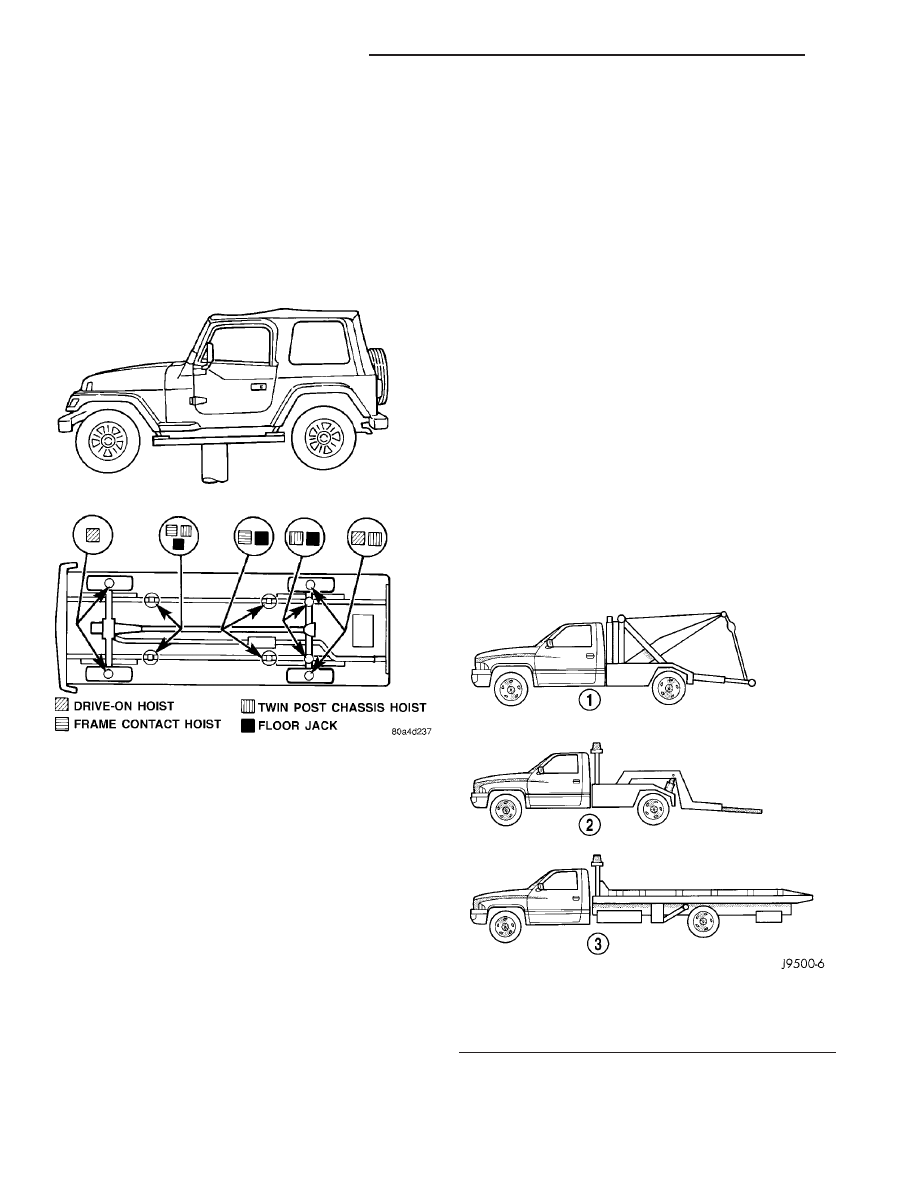

Fig. 5 Vehicle Lifting Locations

Fig. 6 Tow Vehicles With Approved Equipment

1 - SLING TYPE
2 - WHEEL LIFT
3 - FLAT BED

0 - 22

LUBRICATION & MAINTENANCE

TJ
