FASTENER IDENTIFICATION

DESCRIPTION

The SAE bolt strength grades range from grade 2

to grade 8. The higher the grade number, the greater
the bolt strength. Identification is determined by the
line marks on the top of each bolt head. The actual
bolt strength grade corresponds to the number of line

marks plus 2. The most commonly used metric bolt
strength classes are 9.8 and 10.9. The metric
strength class identification number is imprinted on
the head of the bolt. The higher the class number,
the greater the bolt strength. Some metric nuts are
imprinted with a single-digit strength class on the
nut face. Refer to the Fastener Identification and
Fastener Strength Charts (Fig. 6).

BOLT MARKINGS AND TORQUES - METRIC

Bolt Markings

8.8/8.9

10.9

12.9

Bolt Dia.

N·m

Ft. Lbs.

N·m

Ft. Lbs.

N·m

Ft. Lbs.

6

12

105*

14

120*

16

12

8

25

250*

32

23

38

28

10

54

40

60

45

74

55

12

95

70

108

80

135

100

14

155

115

175

130

216

160

16

243

180

324

210

324

240

* Inch Lbs.

BOLT MARKINGS AND TORQUES - U. S. CUSTOMARY

Bolt Markings

Grade 5

Grade 8

Bolt Dia.

N·m

Ft. Lbs

N·m

Ft. Lbs

1/4 - 20

10

95*

14

125*

1/4 - 28

10

95*

17

150*

5/16 - 18

22

200*

30

270*

5/16 - 24

26

240*

33

300*

3/8 - 16

40

30

55

40

3/8 - 24

47

35

60

45

7/16 - 14

68

50

88

65

7/16 - 20

74

55

95

70

1/2 - 13

101

75

135

100

1/2 -20

115

85

150

110

9/16 - 12

135

105

182

135

9/16 - 18

155

115

202

150

5/8 - 11

202

150

263

195

5/8 - 18

215

160

284

210

3/4 - 10

230

170

297

220

3/4 - 16

236

175

304

225

7/8 - 14

405

300

540

400

* Inch Lbs.

TJ

INTRODUCTION

5

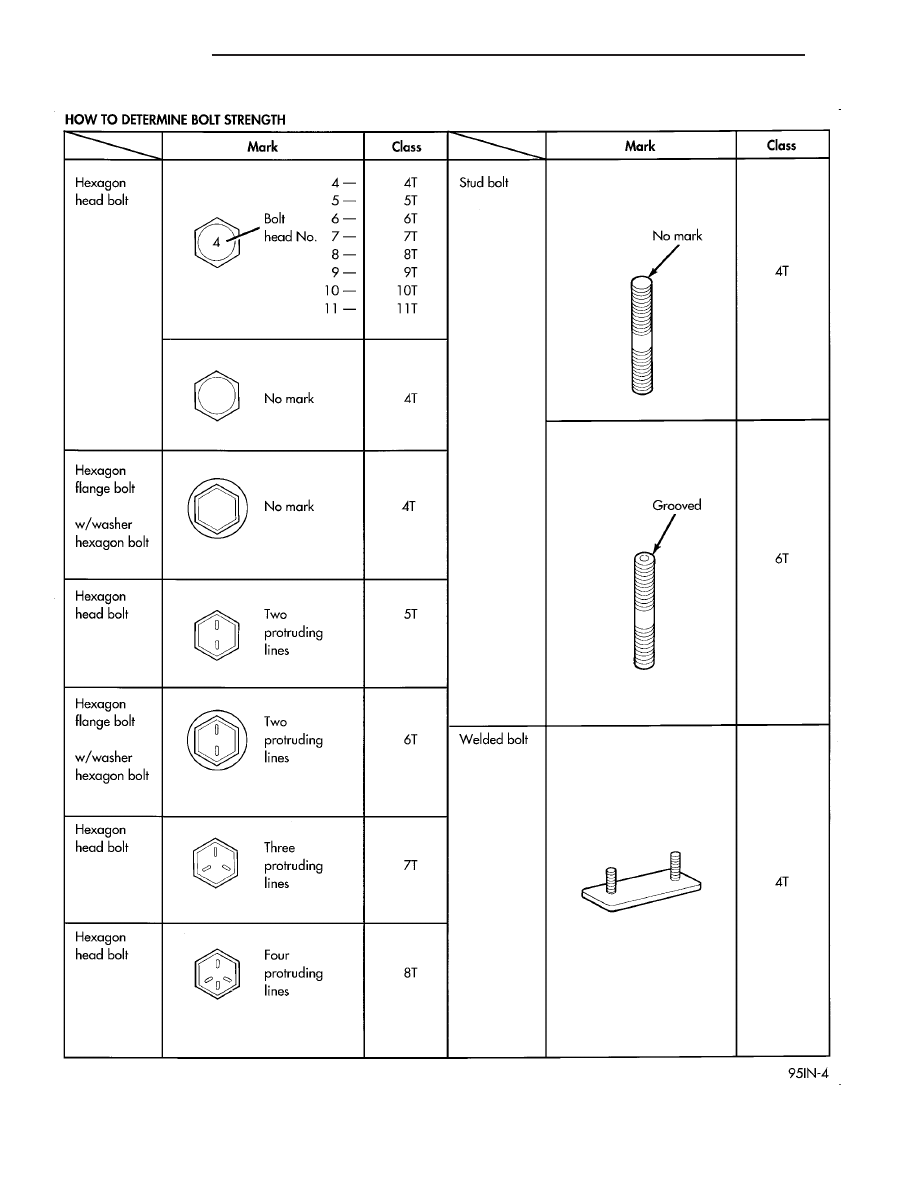

Fig. 6 FASTENER STRENGTH

6

INTRODUCTION

TJ

FASTENER IDENTIFICATION (Continued)

FASTENER USAGE

DESCRIPTION

DESCRIPTION - FASTENER USAGE

WARNING: USE OF AN INCORRECT FASTENER
MAY RESULT IN COMPONENT DAMAGE OR PER-
SONAL INJURY.

Fasteners and torque specifications references in

this Service Manual are identified in metric and SAE
format.

During any maintenance or repair procedures, it is

important to salvage all fasteners (nuts, bolts, etc.)
for reassembly. If the fastener is not salvageable, a
fastener of equivalent specification must be used.

DESCRIPTION - THREADED HOLE REPAIR

Most stripped threaded holes can be repaired using

a Helicoil

t. Follow the vehicle or Helicoilt recommen-

dations for application and repair procedures.

METRIC SYSTEM

DESCRIPTION

The metric system is based on quantities of one,

ten, one hundred, one thousand and one million.

The following chart will assist in converting metric

units to equivalent English and SAE units, or vise
versa.

CONVERSION FORMULAS AND EQUIVALENT VALUES

MULTIPLY

BY

TO GET

MULTIPLY

BY

TO GET

in-lbs

x 0.11298

= Newton Meters
(N·m)

N·m

x 8.851

= in-lbs

ft-lbs

x 1.3558

= Newton Meters
(N·m)

N·m

x 0.7376

= ft-lbs

Inches Hg (60° F)

x 3.377

= Kilopascals (kPa)

kPa

x 0.2961

= Inches Hg

psi

x 6.895

= Kilopascals (kPa)

kPa

x 0.145

= psi

Inches

x 25.4

= Millimeters (mm)

mm

x 0.03937

= Inches

Feet

x 0.3048

= Meters (M)

M

x 3.281

= Feet

Yards

x 0.9144

= Meters

M

x 1.0936

= Yards

mph

x 1.6093

= Kilometers/Hr.
(Km/h)

Km/h

x 0.6214

= mph

Feet/Sec

x 0.3048

= Meters/Sec (M/S)

M/S

x 3.281

= Feet/Sec

mph

x 0.4470

= Meters/Sec (M/S)

M/S

x 2.237

= mph

Kilometers/Hr. (Km/h)

x 0.27778

= Meters/Sec (M/S)

M/S

x 3.600

Kilometers/Hr. (Km/h)

COMMON METRIC EQUIVALENTS

1 inch = 25 Millimeters

1 Cubic Inch = 16 Cubic Centimeters

1 Foot = 0.3 Meter

1 Cubic Foot = 0.03 Cubic Meter

1 Yard = 0.9 Meter

1 Cubic Yard = 0.8 Cubic Meter

1 Mile = 1.6 Kilometers

Refer to the Metric Conversion Chart to convert

torque values listed in metric Newton- meters (N·m).
Also, use the chart to convert between millimeters
(mm) and inches (in.) (Fig. 7).

TJ

INTRODUCTION

7

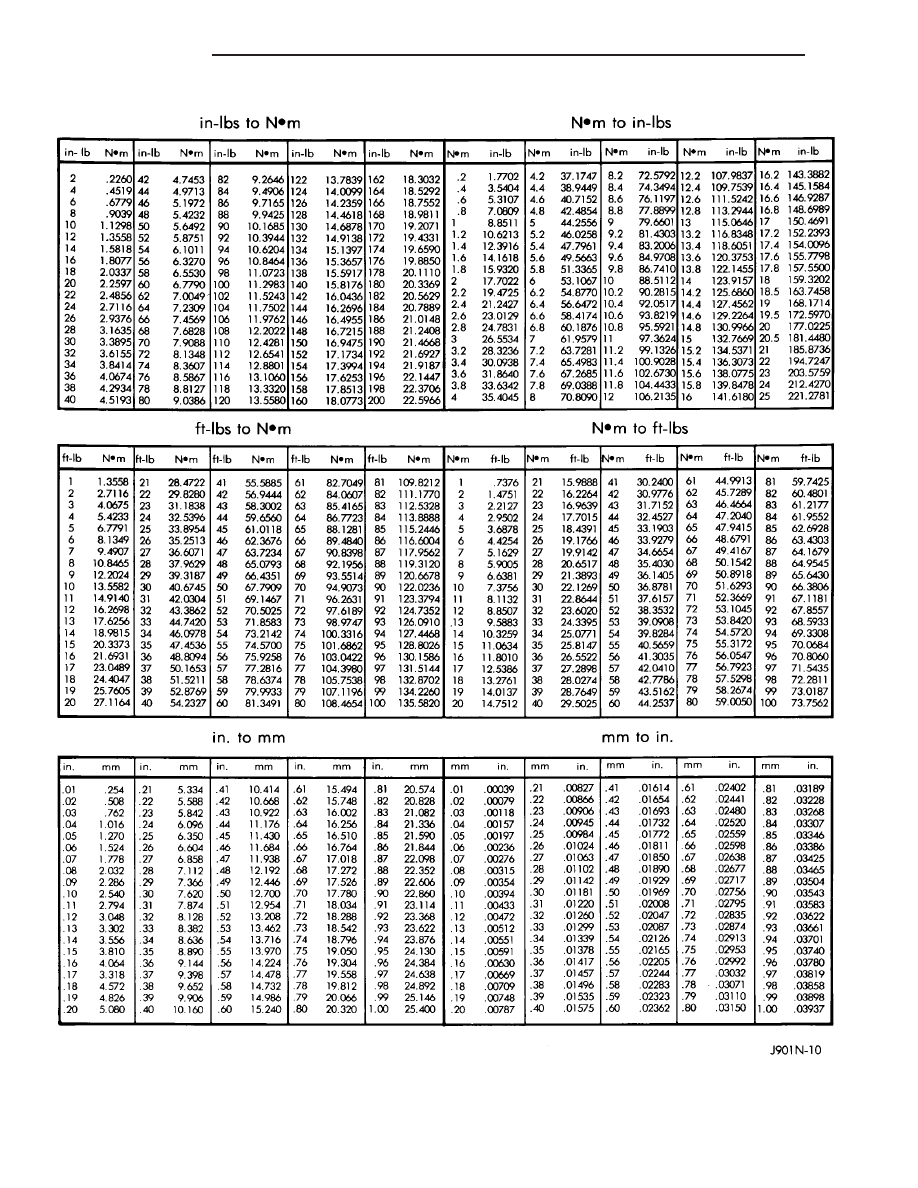

Fig. 7 METRIC CONVERSION CHART

8

INTRODUCTION

TJ

METRIC SYSTEM (Continued)
