3. Remove 5-6 synchronizer sleeve (1) from synchro-

nizer hub (2).

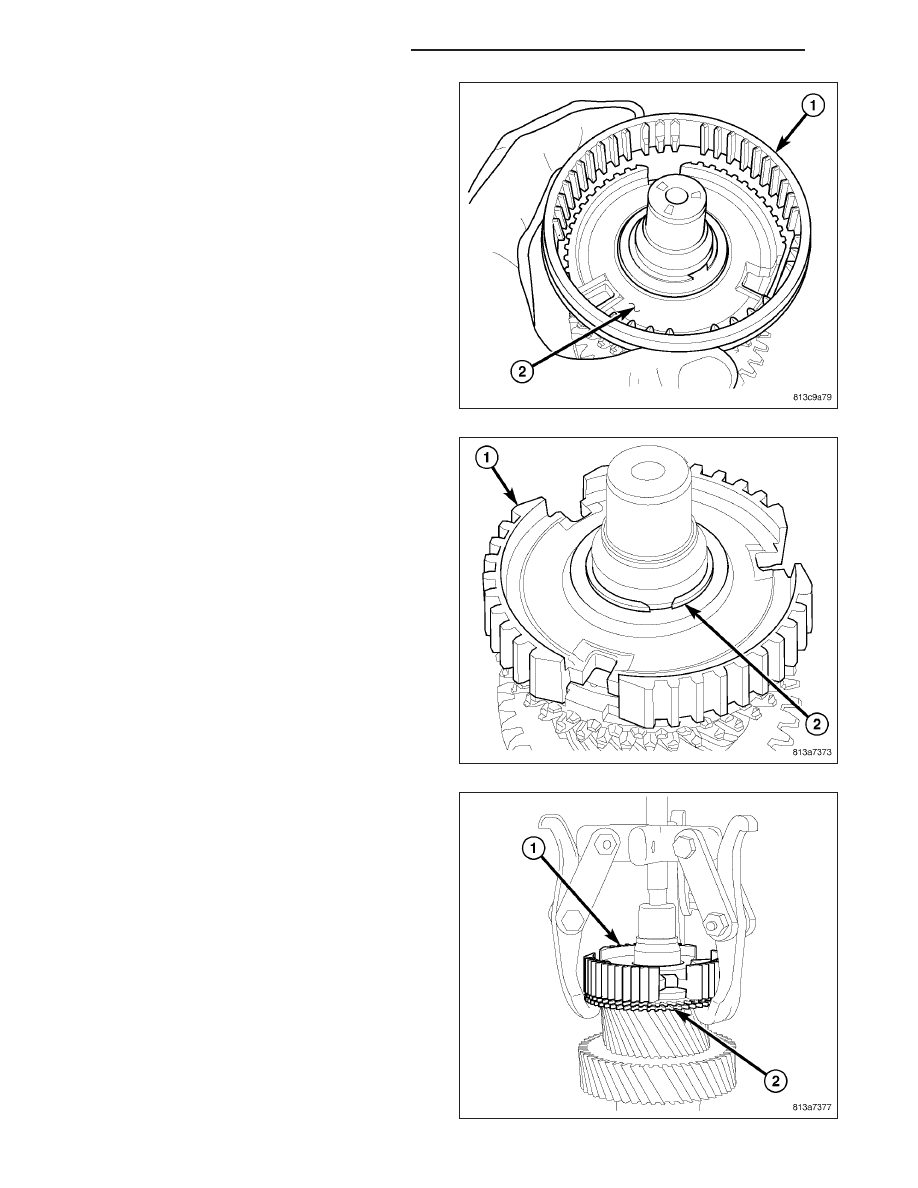

4. Remove 5-6 synchronizer hub (1) snap ring (2) and

record location.

NOTE: All snap rings are select fit from the fac-
tory, and must be installed in their original
location.

5. Remove 5-6 synchronizer hub (1) and sixth gear

synchronizer rings (2) with a three jaw puller. Place
puller jaws under sixth gear synchronizer rings (2).

21 - 12

MANUAL TRANSMISSION - NSG370

KJ

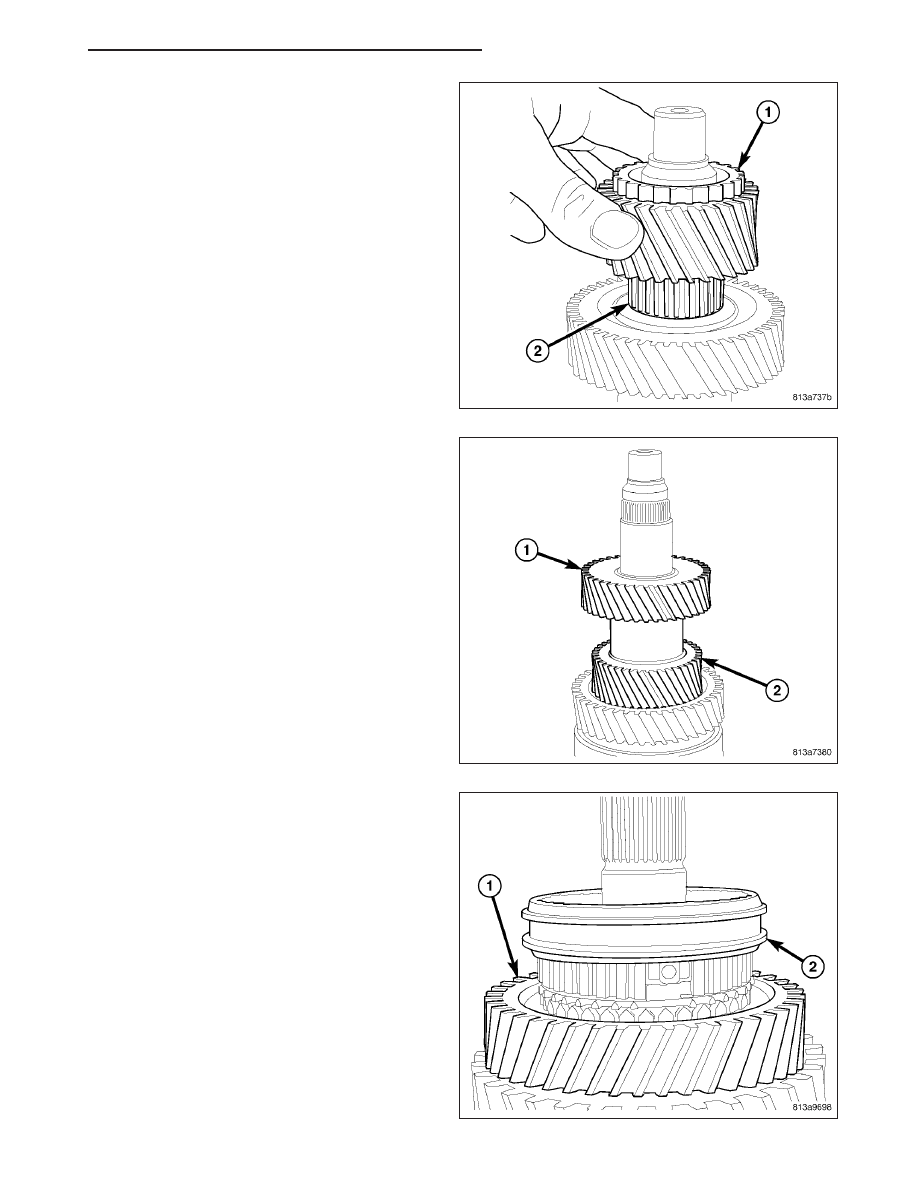

6. Remove sixth gear (1) and bearing (2).

7. Third gear (1) and fourth gear (2) are serviced with

the mainshaft only.

8. Remove mainshaft from Fixture 9648. Turn fixture

over in vise and set opposite end of mainshaft into
the fixture.

9. Remove reverse gear (1) synchronizer sleeve (2)

off synchronizer hub.

KJ

MANUAL TRANSMISSION - NSG370

21 - 13

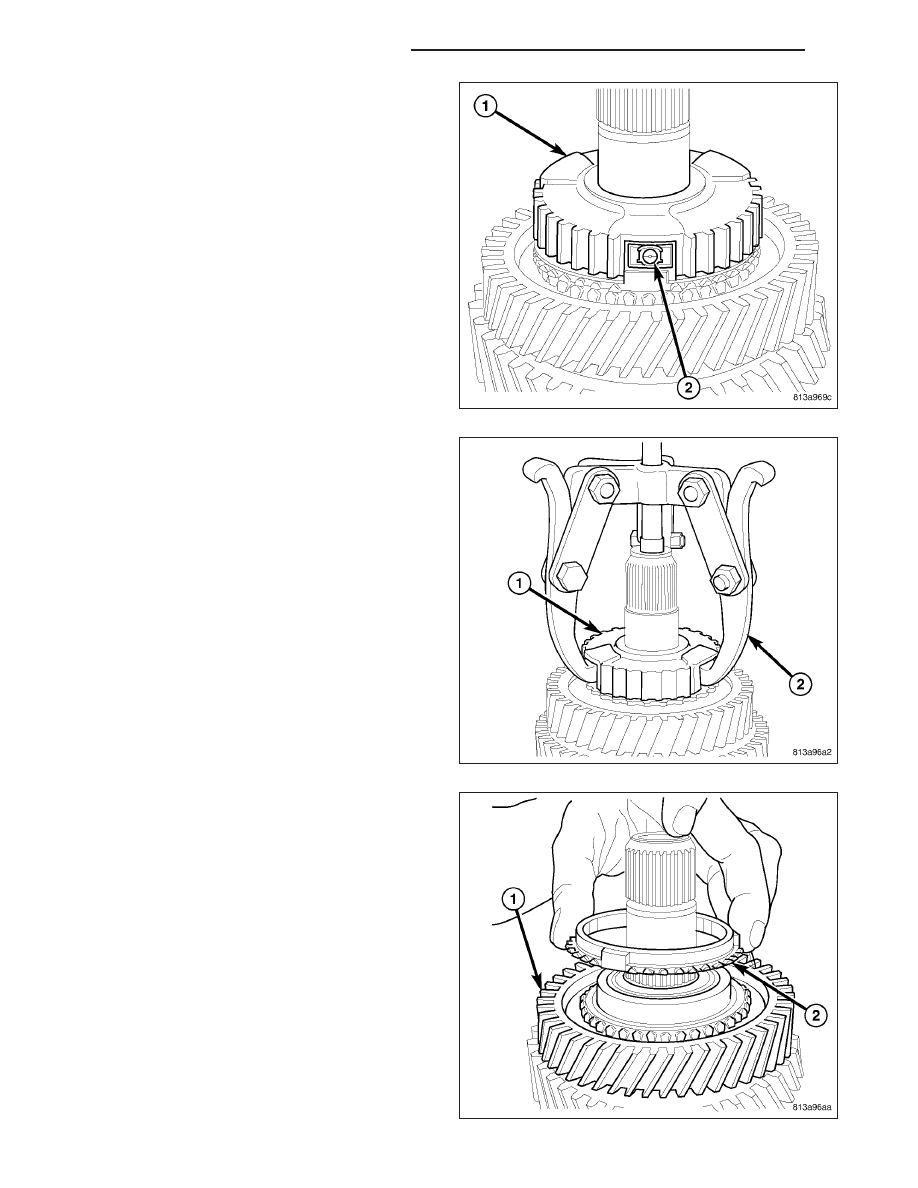

10. Remove reverse synchronizer hub (1) detents (2).

11. Remove reverse synchronizer hub (1) with three

jaw puller (2). Place puller jaws in hub detent
openings.

12. Remove reverse gear (1) synchronizer ring (2).

21 - 14

MANUAL TRANSMISSION - NSG370

KJ

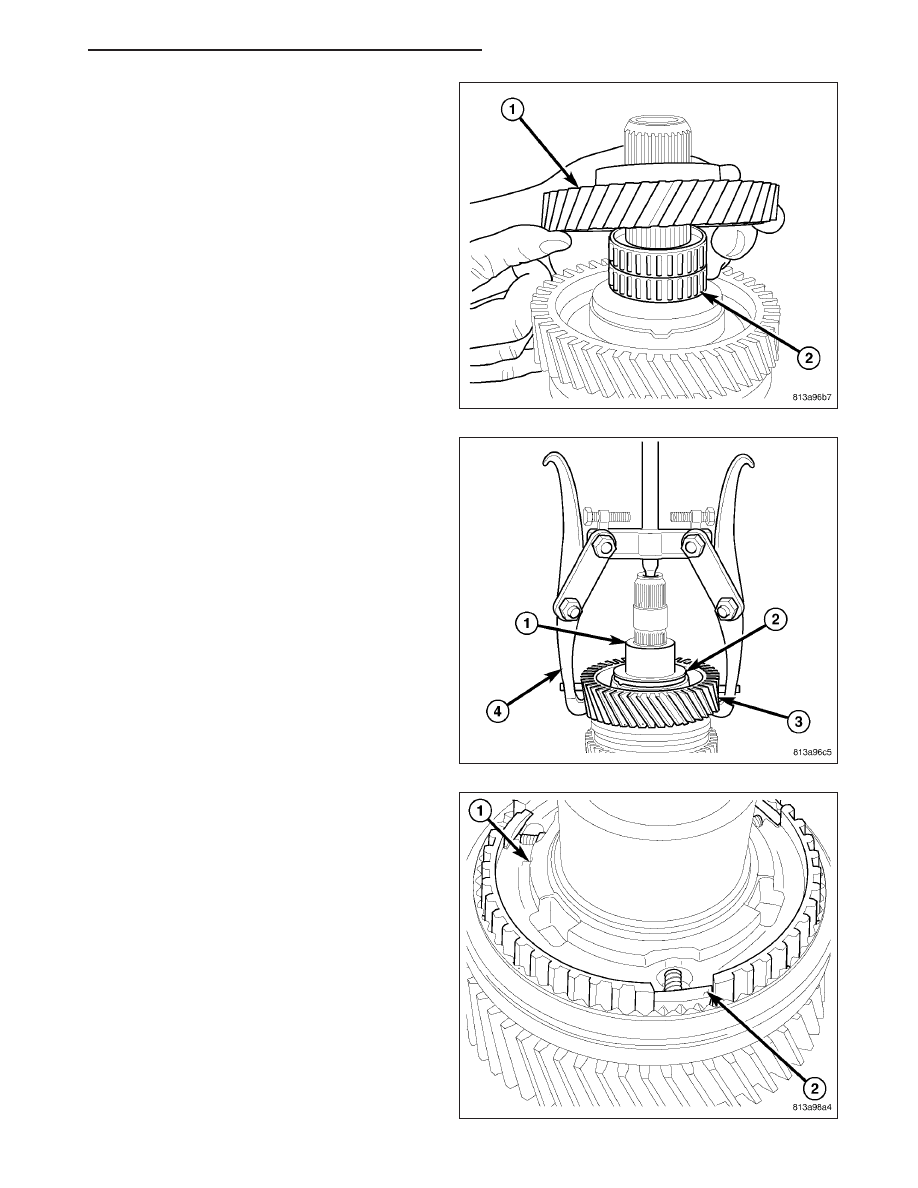

13. Remove reverse gear (1) and bearing (2).

14. Remove reverse gear bearing race (1), thrust

washer (2) and first gear (3) with puller (4). Place
puller jaws under first gear (3).

15. Remove first gear bearing.

16. Remove first gear synchronizer rings.

17. Push 1-2 synchronizer sleeve down on synchro-

nizer hub (1) detents (2), balls and springs.

KJ

MANUAL TRANSMISSION - NSG370

21 - 15
