Jeep Liberty KJ. Manual - part 987





13. Remove the pressure / return line mounting

bracket bolts (2) at the frame.

14. Raise and support the vehicle.

15. Remove the skid plate. (Refer to 13 - FRAME & BUMPERS/FRAME/FRONT SKID PLATE - REMOVAL).

16. Remove the push pins and then the lower engine belly pan.

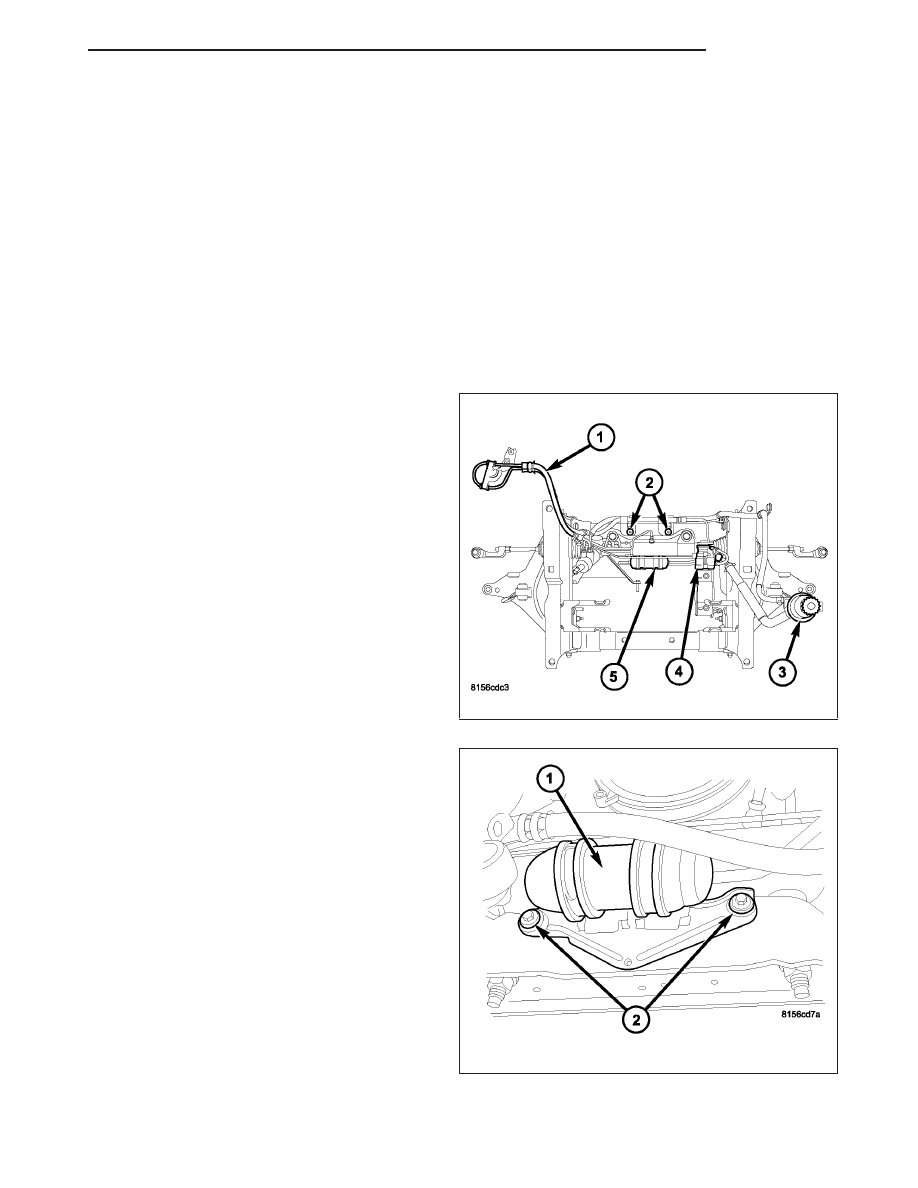

17. Disconnect the suppressor (1) from the power

steering hose bundle at the frame.

19 - 48

PUMP

KJ

18. Remove the pressure/return hose (1) from the

vehicle.

INSTALLATION

PRESSURE HOSE

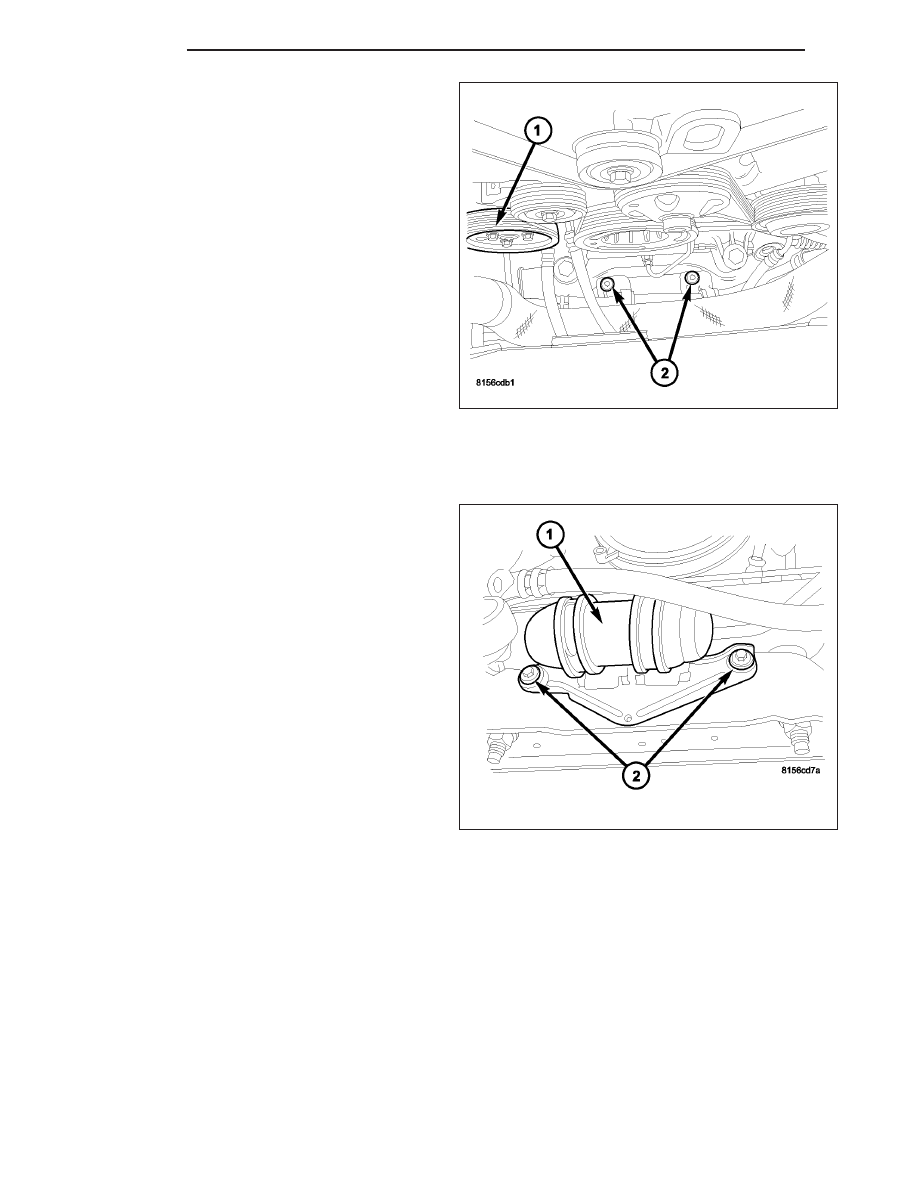

1. Install the pressure hose (1) to the vehicle..

2. Install the pressure hose mounting bracket bolts (2)

behind the headlamp assembly. Tighten to to 12
N·m (9 ft.lbs.).

3. Install the pressure hose to the gear. Tighten the

hose to28 N·m (21 ft.lbs.).

KJ

PUMP

19 - 49

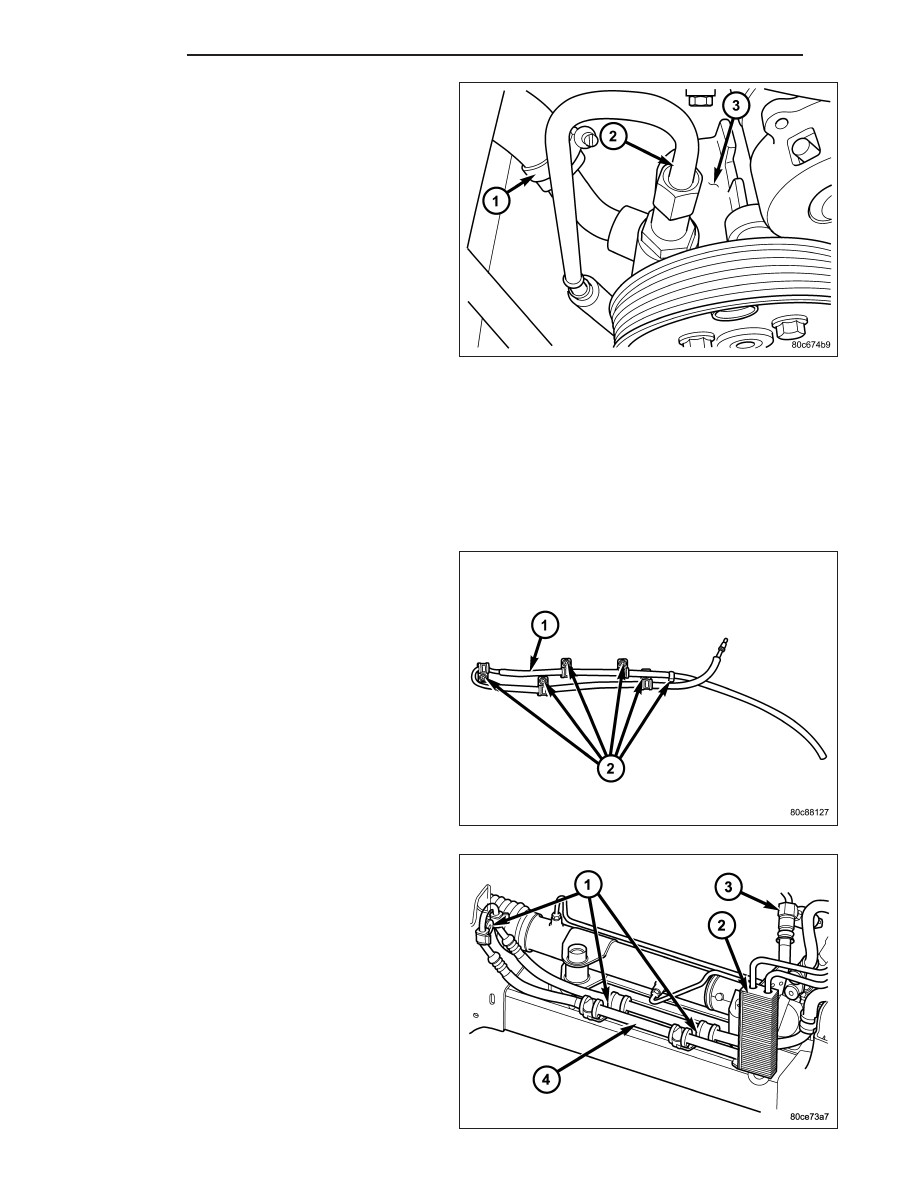

4. Install the pressure hose (2) at the pump (3).

Tighten the hose to28 N·m (21 ft.lbs.).

5. Install the serpentine belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).

6. Install the fan shroud.

7. Install the fan (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - INSTALLATION).

8. Install the radiator crossmember (Refer to 23 - BODY/EXTERIOR/RADIATOR CROSSMEMBER - INSTALLA-

TION).

9. Refill the power steering fluid (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).

RETURN HOSE (GEAR TO THE COOLER)

1. Install the return hose (1) / cooler assembly to the

vehicle.

2. Install the return hose and cooler mounting bracket

bolts (2) to the front cradle.

3. Install the return hose (4) at the gear 28 N·m (21

ft.lbs.).

19 - 50

PUMP

KJ

4. Install the serpentine belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).

5. Install the fan shroud.

6. Install the fan (Refer to 7 - COOLING/ENGINE/RADIATOR FAN - INSTALLATION).

7. Install the radiator crossmember (Refer to 23 - BODY/EXTERIOR/RADIATOR CROSSMEMBER - INSTALLA-

TION).

8. Refill the power steering fluid (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).

RETURN HOSE (RESERVOIR TO THE COOLER)

1. Install the return hose to the vehicle.

2. Install the return hose to the pump reservoir.

3. Install the return hose at the cooler.

4. Refill the power steering fluid (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).

PRESSURE / RETURN HOSE ASSEMBLY - DIESEL

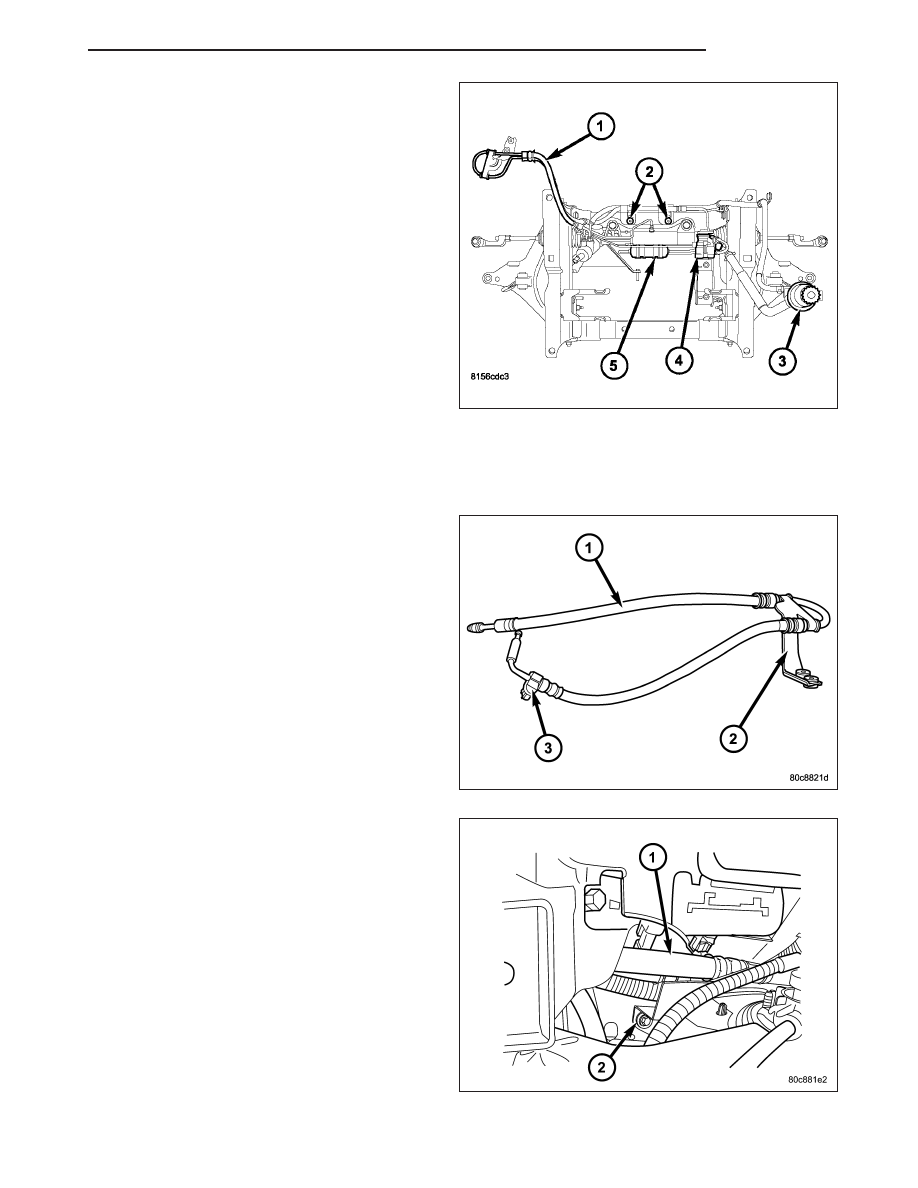

1. Install the pressure/return hose (1) to the vehicle.

2. Install the power steering hose bundle to the sup-

pressor (1).

KJ

PUMP

19 - 51
