Jeep Liberty KJ. Manual - part 926





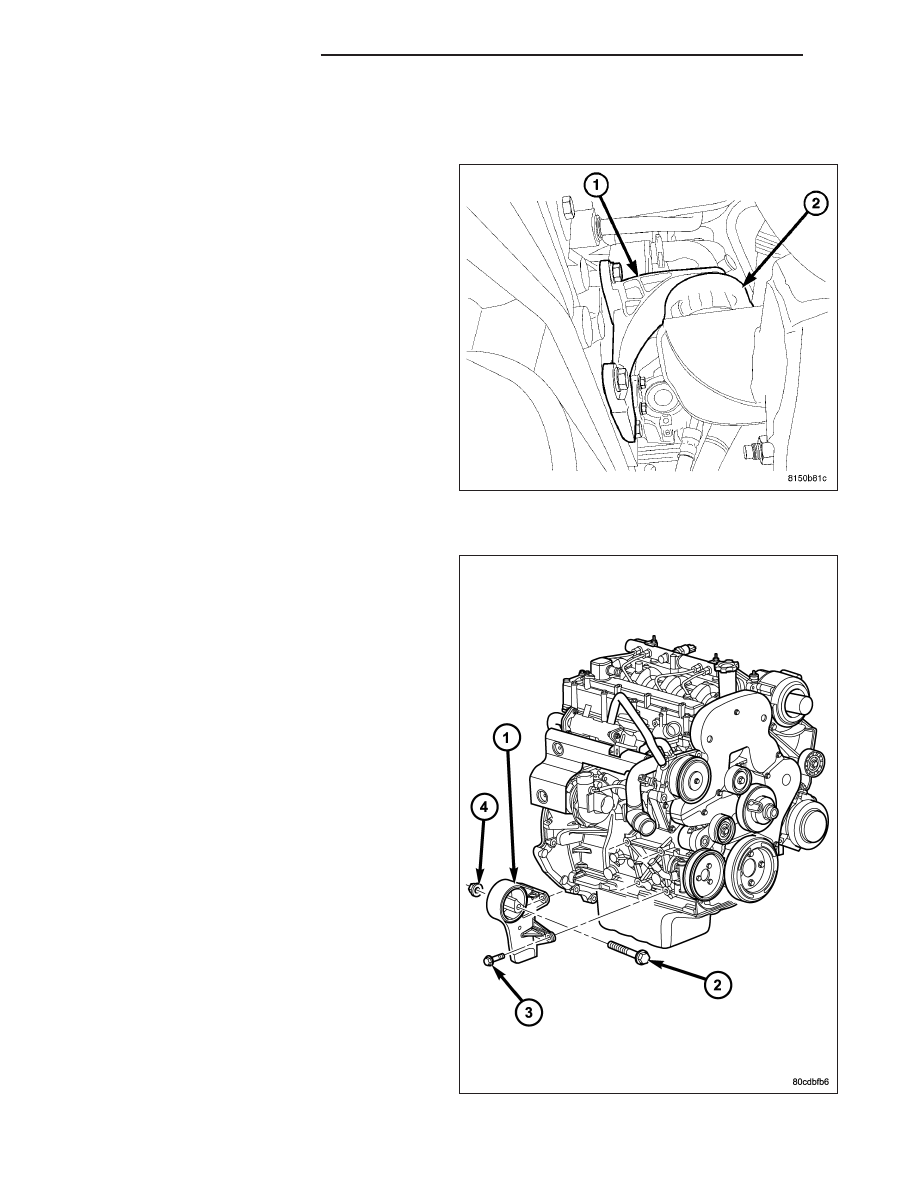

RIGHT ENGINE MOUNT

REMOVAL

1. Disconnect the negative battery cable.

2. Remove the cooling fan and shroud.

3. Loosen the upper engine mount fastener at the

engine mount bracket.

4. Raise and support the vehicle.

5. Loosen the lower engine mount fastener.

NOTE: Care must be taken not to damage the wir-
ing harnesses above the transmission when lifting
the engine.

6. Using a suitable jack, raise and support the engine

7. Remove the engine mount bolts and engine mount

INSTALLATION

1. Position the engine mount and install the engine

mount bolts. Tighten bolts to 54 N·m (40 lbs. ft.).

2. Lower the engine.

3. Tighten the engine mount through bolts to 54 N·m

(40 lbs. ft.).

4. Lower the vehicle.

5. Install the cooling fan and shroud (Refer to 7 -

COOLING/ENGINE/RADIATOR FAN - INSTALLA-
TION).

6. Connect the negative battery cable.

9 - 1662

ENGINE - 2.8L DIESEL

KJ

OIL

DESCRIPTION

Refer to the Lube and Maintenance section for oil specifications (Refer to LUBRICATION & MAINTENANCE/FLUID
TYPES - SPECIFICATIONS).

KJ

ENGINE - 2.8L DIESEL

9 - 1663

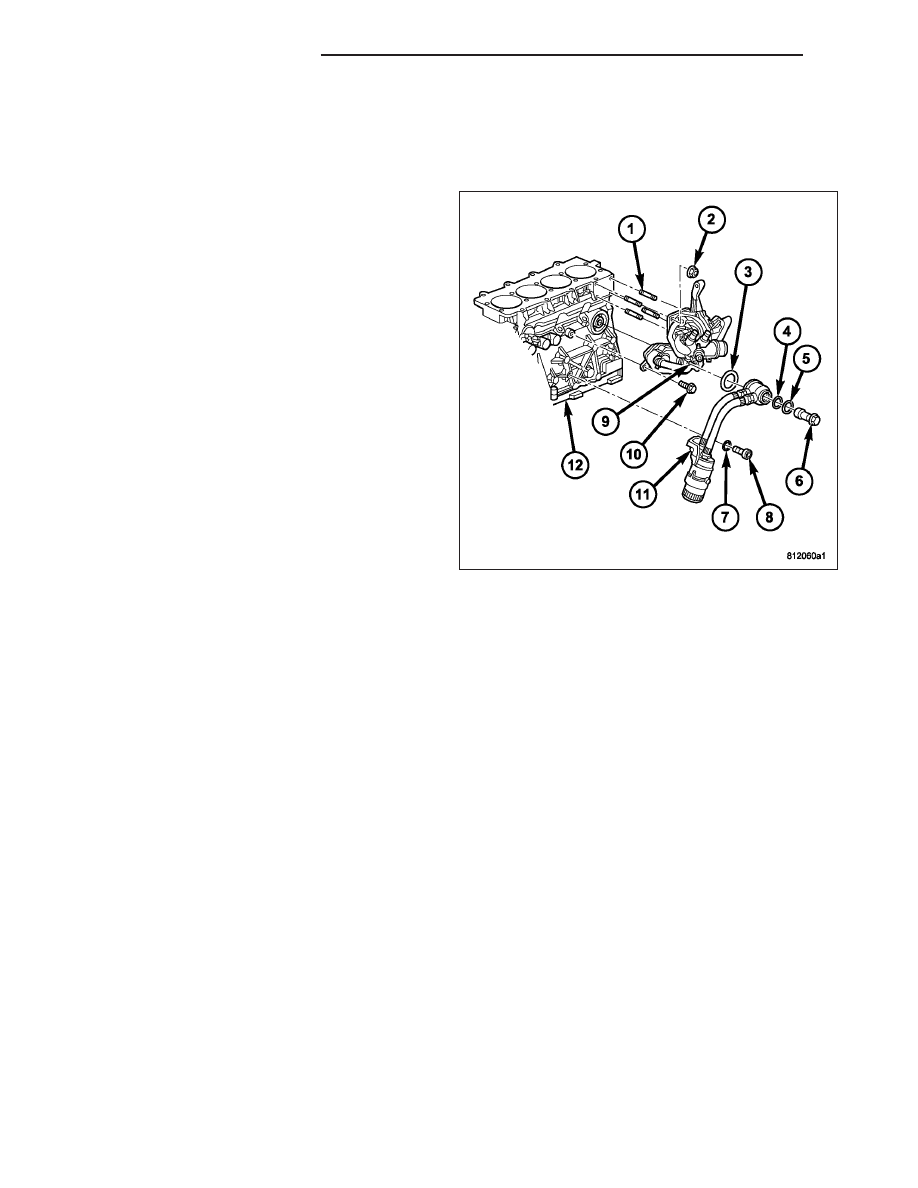

ADAPTER-OIL FILTER

DESCRIPTION

An oil filter adapter is used on this vehicle to relocate the oil filter for easier access when servicing .

9 - 1664

ENGINE - 2.8L DIESEL

KJ

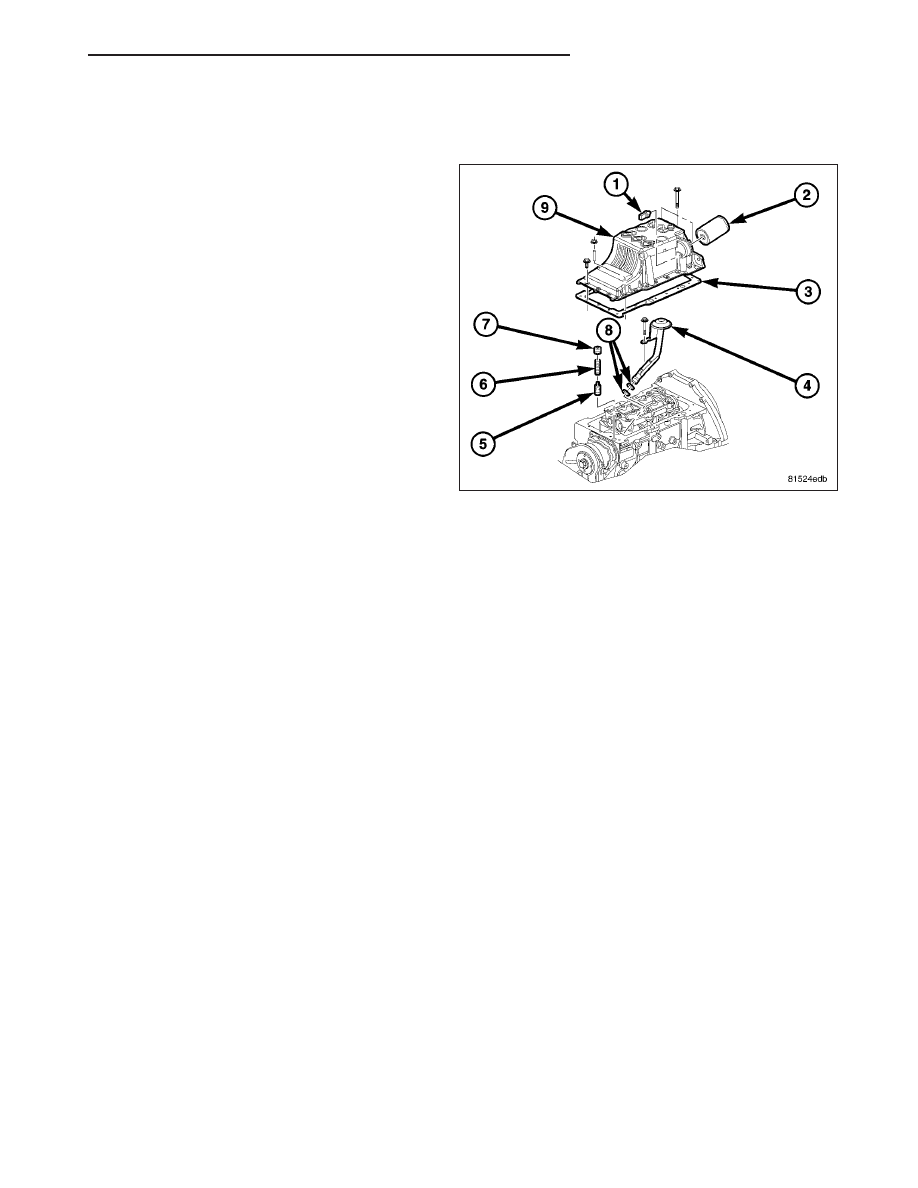

PAN-OIL

REMOVAL

1. Disconnect negative battery cable.

2. Remove engine cover (Refer to 9 - ENGINE -

REMOVAL).

NOTE: When installing engine support fixture, care
must be taken not to damage the hood ajar switch
mounted to the right inner fender.

3. Install engine support fixture, special tool #8534.

4. Raise vehicle on hoist.

5. Remove both front wheel and tire assemblies.

6. Remove front skid plate (if equipped).

7. Drain engine oil.

8. Disconnect the front drive shaft from the front drive

axle,

9. Loosen both engine mount through bolts.

10. Lower vehicle.

11. Raise engine using support fixture, special tool

#8534, until the viscous fan almost touches the fan shroud.

12. Raise vehicle on hoist.

13. Support the front cradle assembly with a suitable lifting devise.

14. Mark the front cradle to under body position to assure proper alignment during assembly.

15. Remove both inner rail cradle alignment bolts in the front wheel housing.

16. Loosen both power steering gear retaining bolts, leave the retaining nuts on the bolts.

17. Loosen power steering lines from cradle.

18. Remove both lower front strut bolts.

19. Loosen both front cradle mounting bolts.

20. Loosen both rear cradle mounting bolts.

21. Disconnect the oil sending unit harness connector.

22. Remove all oil pan retaining bolts, separate the oil level indicator tube from the pan and lower oil pan.

23. Lower front cradle using the suitable lifting devise until enough clearance is obtained to remove the oil pan.

INSTALLATION

1. Clean oil pan and sealing surfaces. Inspect oil pan and engine block.

2. Install oil pan, gasket, oil pan retaining bolts, hand tight..

3. Push the oil pan against adaptor plate and tighten transmission to oil pan bolts first.

4. Tighten oil pan bolts to 11.8N·m (104 lbs.in.), beginning with the center bolts and then tighten the remaining bolts

in a clockwise rotation. Retighten the center two bolts again after all bolts are tighten to specification.

5. Raise the front cradle using a suitable lifting devise and align the cradle with the underbody marks made during

the removal procedure.

6. Torque the cradle mounting bolts to 122 N·m (90 lbs. ft.).

7. Torque the inner rail mounting bolts to 47 N·m (35 lbs. ft.).

8. Torque the steering gear mounting bolts to 162N·m (120 lbs. ft.).

9. Remove the cradle support devise and lower the vehicle.

10. Lower the engine using support fixture, special tool #8534, until the engine mount through bolts are seated in

the cradle.

11. Raise the vehicle.

KJ

ENGINE - 2.8L DIESEL

9 - 1665
