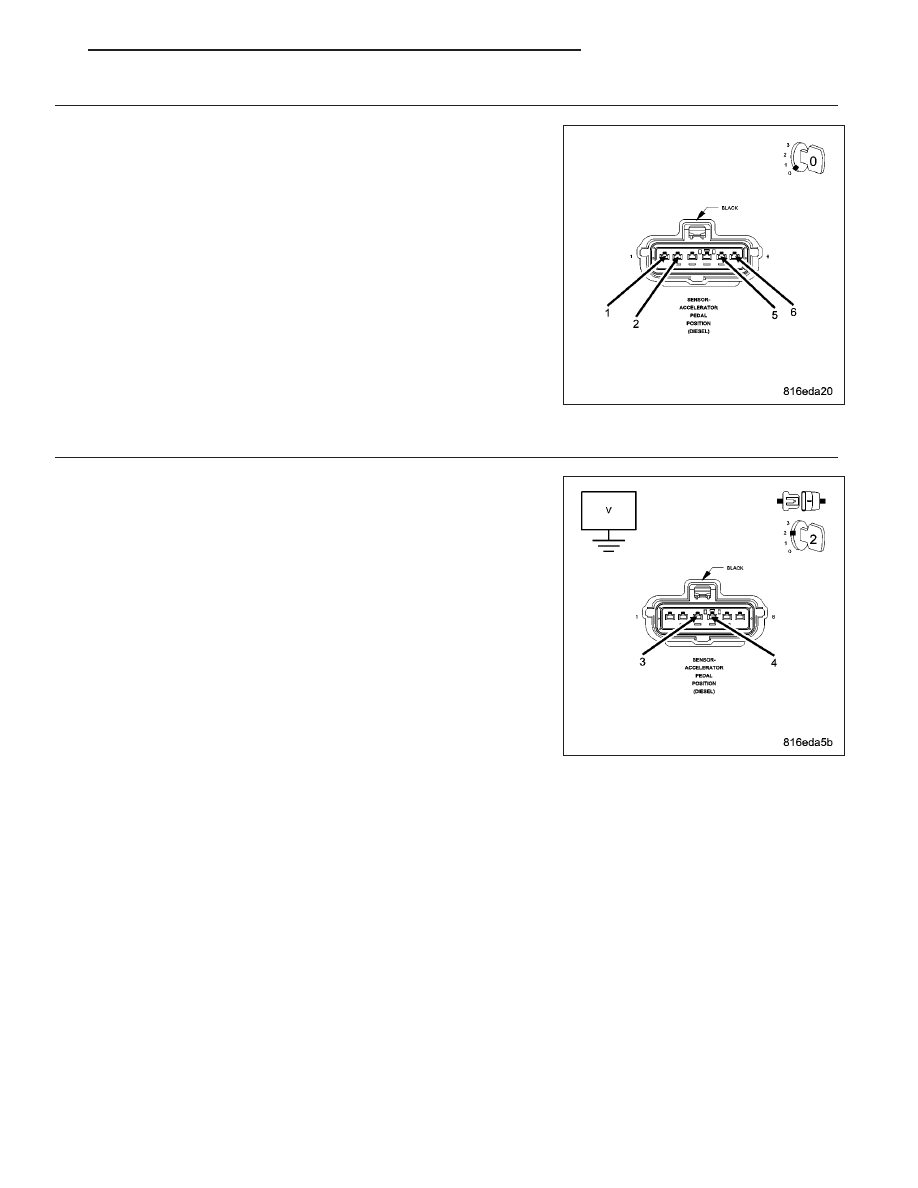

2.

APP SENSOR WIDE OPEN THROTTLE VOLTAGE

Turn the ignition on.

Fully depress the accelerator pedal.

Using a voltmeter backprobe the APP Sensor harness connector and
read the voltage for APP Sensor 1 and APP Sensor 2 Signal circuits.

Is the voltage between 4.45 and 4.75 volts for #1 and 2.15 and
2.45 volts for #2?

Yes

>> Go To 3

No

>> Go To 4

3.

VERIFY APP SENSOR OPERATION

Turn the ignition on.

With the scan tool, read the APP Sensor 1 and APP Sensor 2 percentages (%).

With the accelerator pedal in the idle position, slowly depress the accelerator pedal until the pedal is fully
depressed.

NOTE: The percentage readings for APP Sensors 1 and 2 should increase smoothly as the pedal is
depressed.

NOTE: This test can also performed using a voltmeter by back probing each APP Sensor Signal circuit at
the APP Sensor harness connector and observing the voltmeter for a smooth voltage change through the
entire pedal travel.

Does the percentage (voltage) increase smoothly for both readings with the accelerator pedal travel?

Yes

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

No

>> Replace the Accelerator Pedal Position Sensor in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

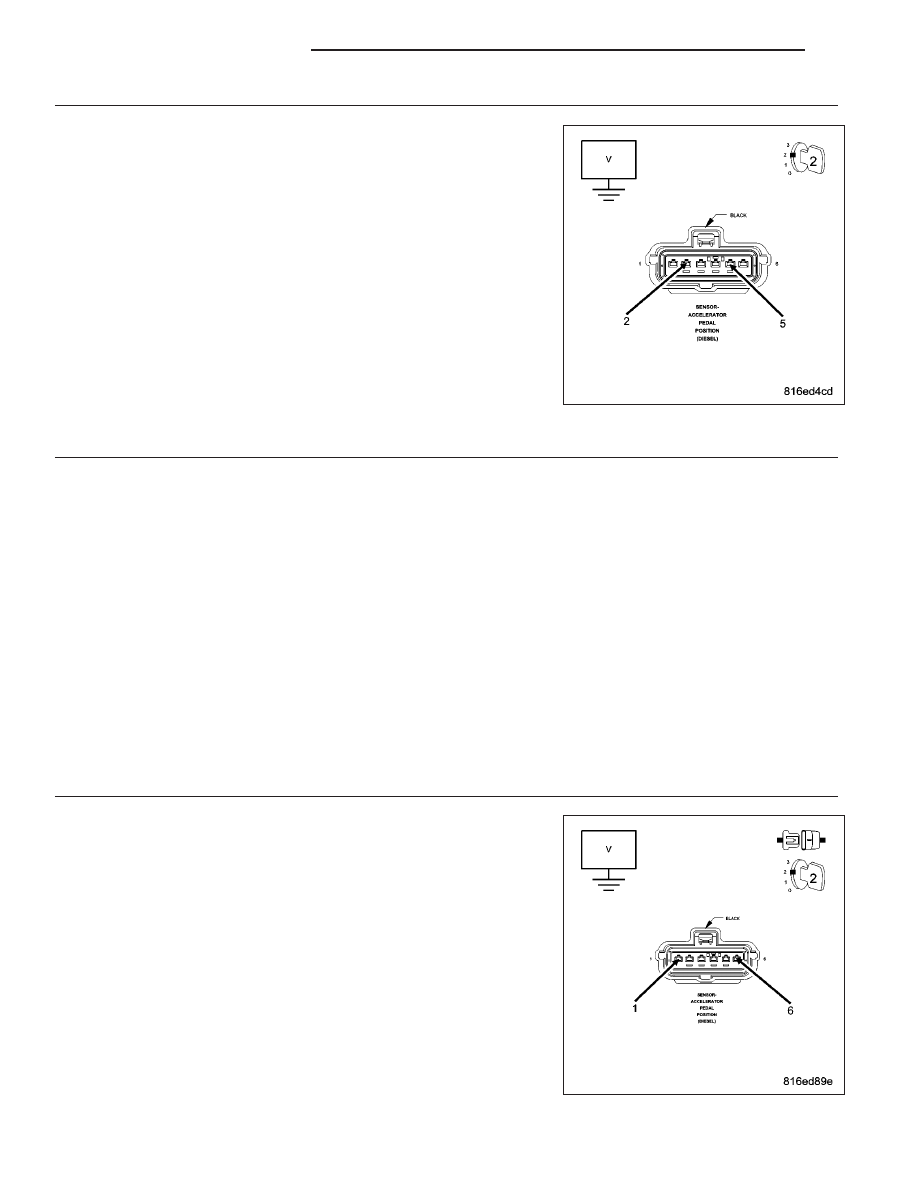

4.

VERIFY 5-VOLT SUPPLY AND SENSOR REFERENCE VOLTAGE A CIRCUITS

NOTE: Perform the rest of this diagnostic procedure on the indi-
vidual APP Sensor Potentiometer (1 or 2) that did not display the
correct voltages in the previous test.
Turn the ignition off.

Disconnect the APP Sensor harness connector.

Turn the ignition on.

Measure the voltage of the 5-Volt Supply circuit in the APP Sensor har-
ness connector.

Is the voltage between 4.7 and 5.3 volts?

Yes

>> Go To 5

No

>> Go To 13

9 - 1346

ENGINE DIESEL DIAG

KJ

5.

VERIFY APP SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the APP Sensor harness connector.

Connect a jumper wire between APP Sensor Signal circuit and the
5-volt supply circuit at the APP Sensor harness connector.

With the scan tool, read the PEDAL OUTPUT VOLTS.

Does the scan tool display between 4.0 and 5.5 volts?

Yes

>> Go To 6

No

>> Go To 9

6.

APP SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the APP Sensor harness connector.

Disconnect the ECM harness connectors.

Remove the ASD Relay.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay connector.

Turn the ignition on.

Measure the voltage of the APP Sensor Ground circuit.

Is the voltage above 1.0 volt?

Yes

>> Repair the App Sensor Ground circuit for a short to voltage.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 7

KJ

ENGINE DIESEL DIAG

9 - 1347

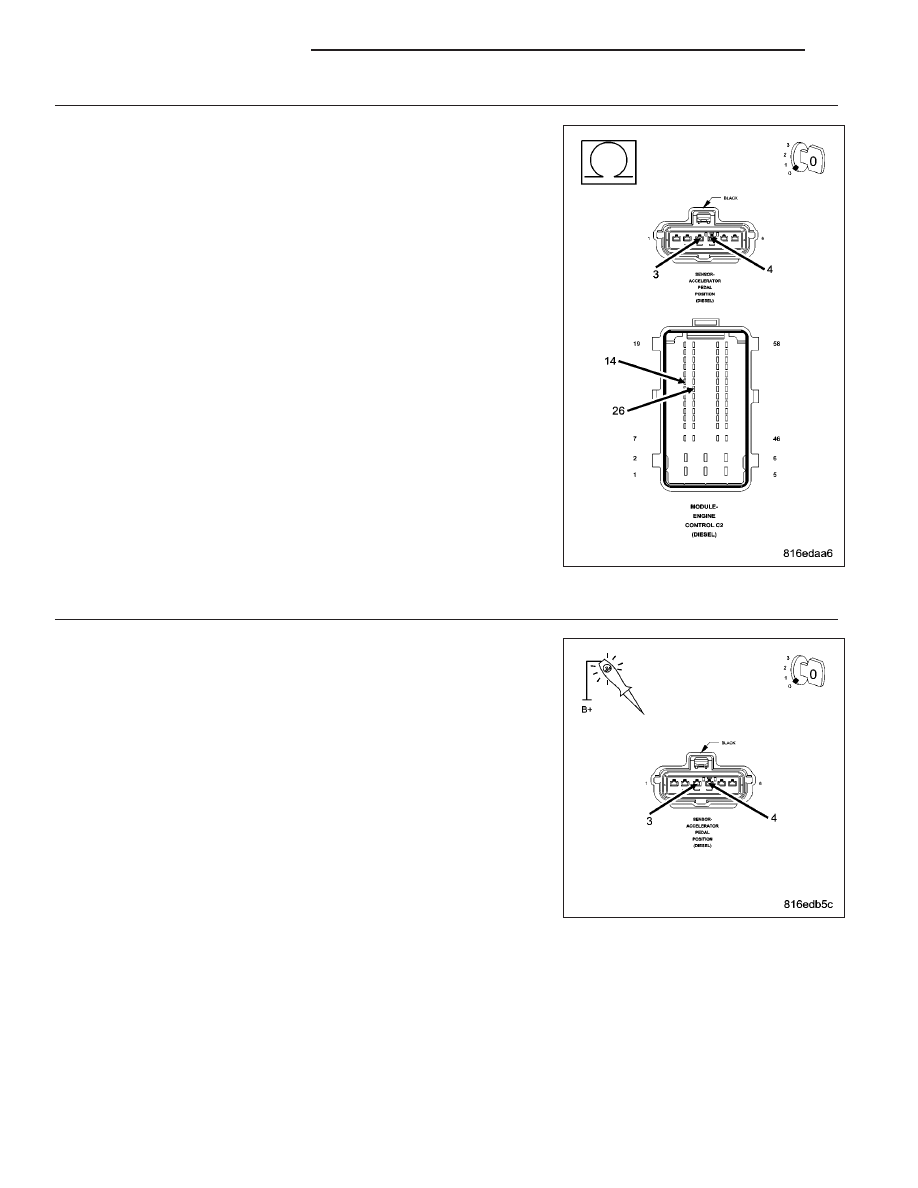

7.

SENSOR GROUND OPEN

Turn the ignition off.

Disconnect the APP Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the Sensor Ground circuit between the APP
Sensor and the ECM.

Is the resistance below 10.0 ohms?

Yes

>> Go To 8

No

>> Repair the APP Sensor Ground circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

8.

ECM - SENSOR GROUND OPEN

Turn the ignition off.

Disconnect the APP Sensor harness connector.

Using a 12-volt test light connected to 12-volts, check the Sensor
Ground circuit of the appropriate potentiometer.

Does the test light illuminate brightly?

Yes

>> Replace the Accelerator Pedal Position Sensor.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 1348

ENGINE DIESEL DIAG

KJ

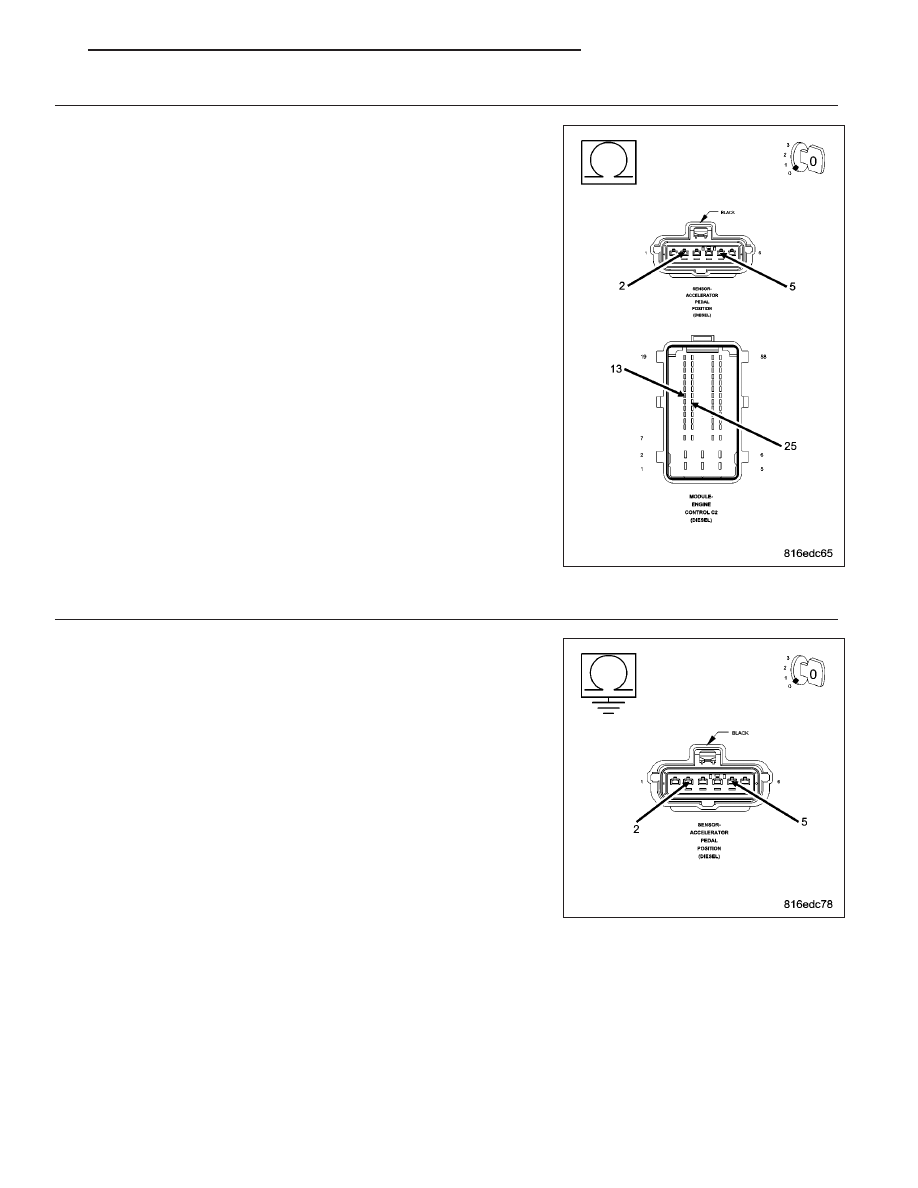

9.

APP SENSOR SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the APP Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the APP Sensor Signal circuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 10

No

>> Repair the APP Sensor Signal circuit for an open

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

10.

APP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the APP Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the APP Sensor Signal cir-
cuit.

Is the resistance below 1000 ohms?

Yes

>> Repair the APP Sensor Signal circuit for a short to ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 11

KJ

ENGINE DIESEL DIAG

9 - 1349
