Jeep Liberty KJ. Manual - part 797





When Monitored:
With the ignition on and the Glow Plug Module command off.

Set Condition:
The ECM detects a short to ground on the Glow Plug Module Control circuit.

Possible Causes

ENGINE CONTROL MODULE

GLOW PLUG MODULE

GLOW PLUG MODULE CONTROL CIRCUIT OPEN

GLOW PLUG MODULE CONTROL CIRCUIT SHORTED TO GROUND

GLOW PLUG MODULE CONTROL CIRCUIT SHORTED TO VOLTAGE

INTERMITTENT CONDITION

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.

Turn the ignition on and wait at least 90 seconds.

With the DRB, read ECM DTCs.

Did this DTC set again?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

9 - 1246

ENGINE DIESEL DIAG

KJ

2.

GLOW PLUG MODULE CONTROL CIRCUIT OPEN

Turn the ignition off.

Disconnect the Glow Plug Module harness connectors.

Disconnect the ECM harness connectors.

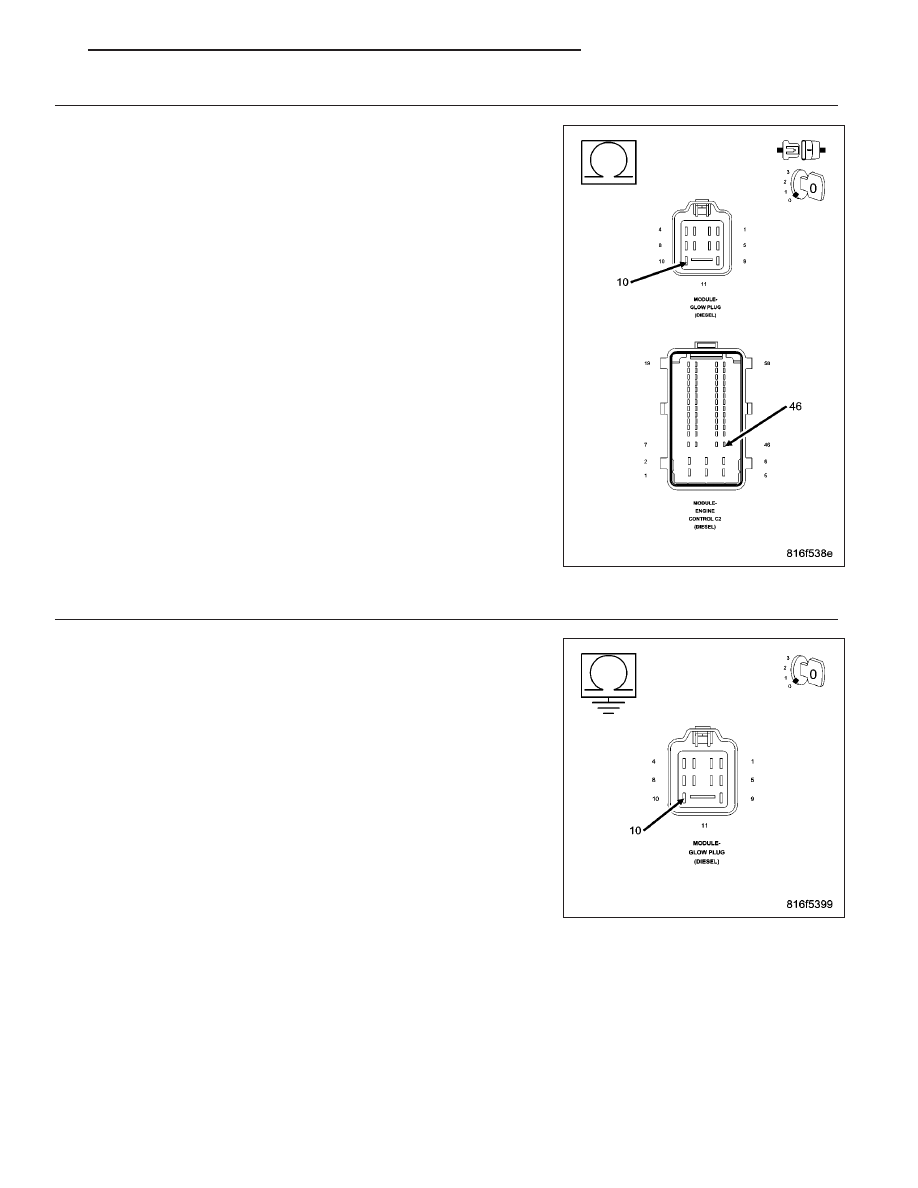

Measure the resistance of the Glow Plug Module Control circuit.

Is the resistance below 10.0 ohms?

Yes

>> Go To 3

No

>> Repair the Glow Plug Module Control circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

3.

GLOW PLUG MODULE CONTROL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the Glow Plug Module harness connectors.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the Glow Plug Module
Control circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 4

No

>> Repair the Glow Plug Module Control circuit for a short to

ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

KJ

ENGINE DIESEL DIAG

9 - 1247

4.

GLOW PLUG MODULE CONTROL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Glow Plug Module harness connectors.

Disconnect the ECM harness connectors.

Remove the ASD Relay.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay connector.

Measure the voltage of the Glow Plug Module Control circuit.

Is the voltage below 1.0 volt?

Yes

>> Go To 5

No

>> Repair the Glow Plug Module Control circuit for a short to

voltage.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

5.

GLOW PLUG CONTROL MODULE

Turn the ignition off.

Replace the Glow Plug Module in accordance with the Service Information.

Turn the ignition on.

With the scan tool, erase ECM DTCs.

Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.

With the scan tool, read the ECM DTCs.

Did this DTC set again?

Yes

>> Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Test Complete.

9 - 1248

ENGINE DIESEL DIAG

KJ

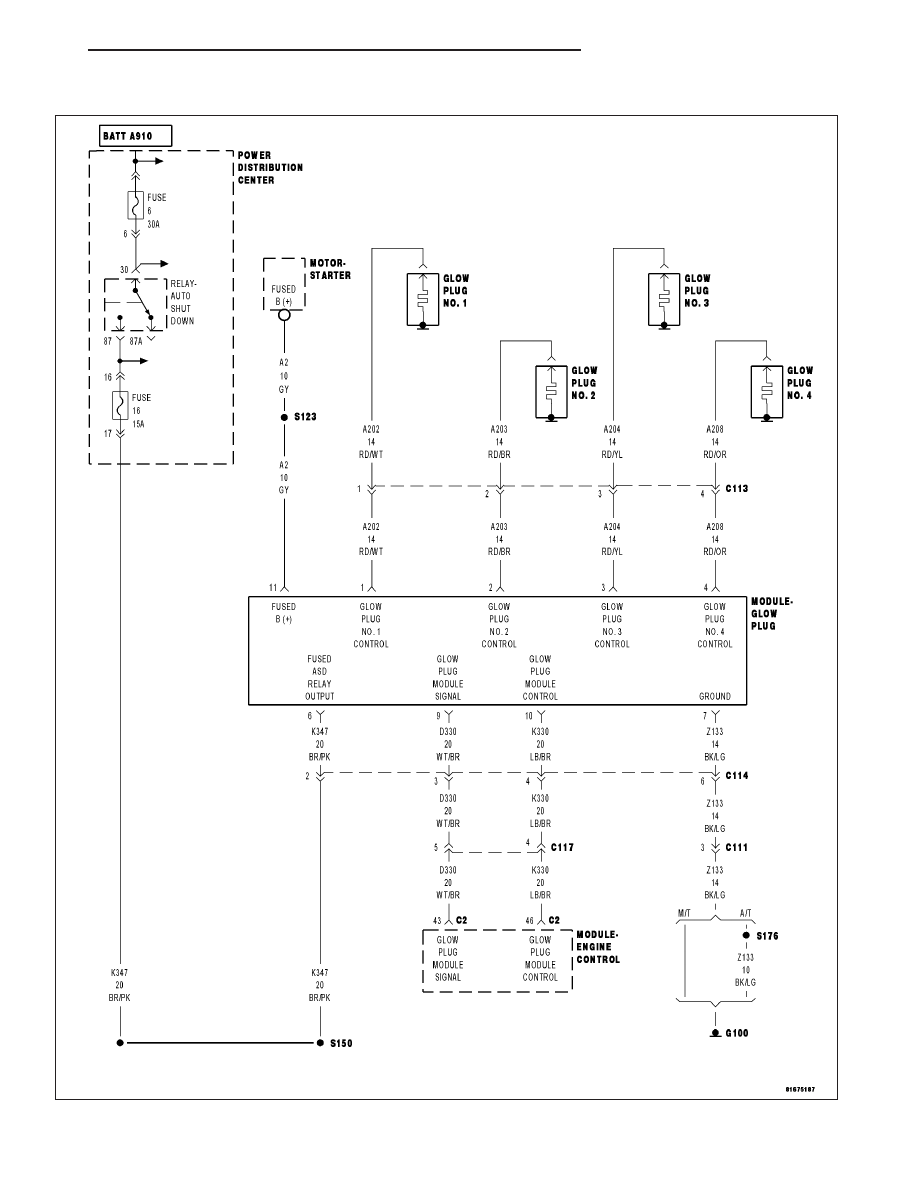

P1135-GLOW PLUG MODULE CONTROL CIRCUIT SHORTED TO VOLTAGE

For a complete wiring diagram Refer to Section 8W

KJ

ENGINE DIESEL DIAG

9 - 1249
