Jeep Liberty KJ. Manual - part 663





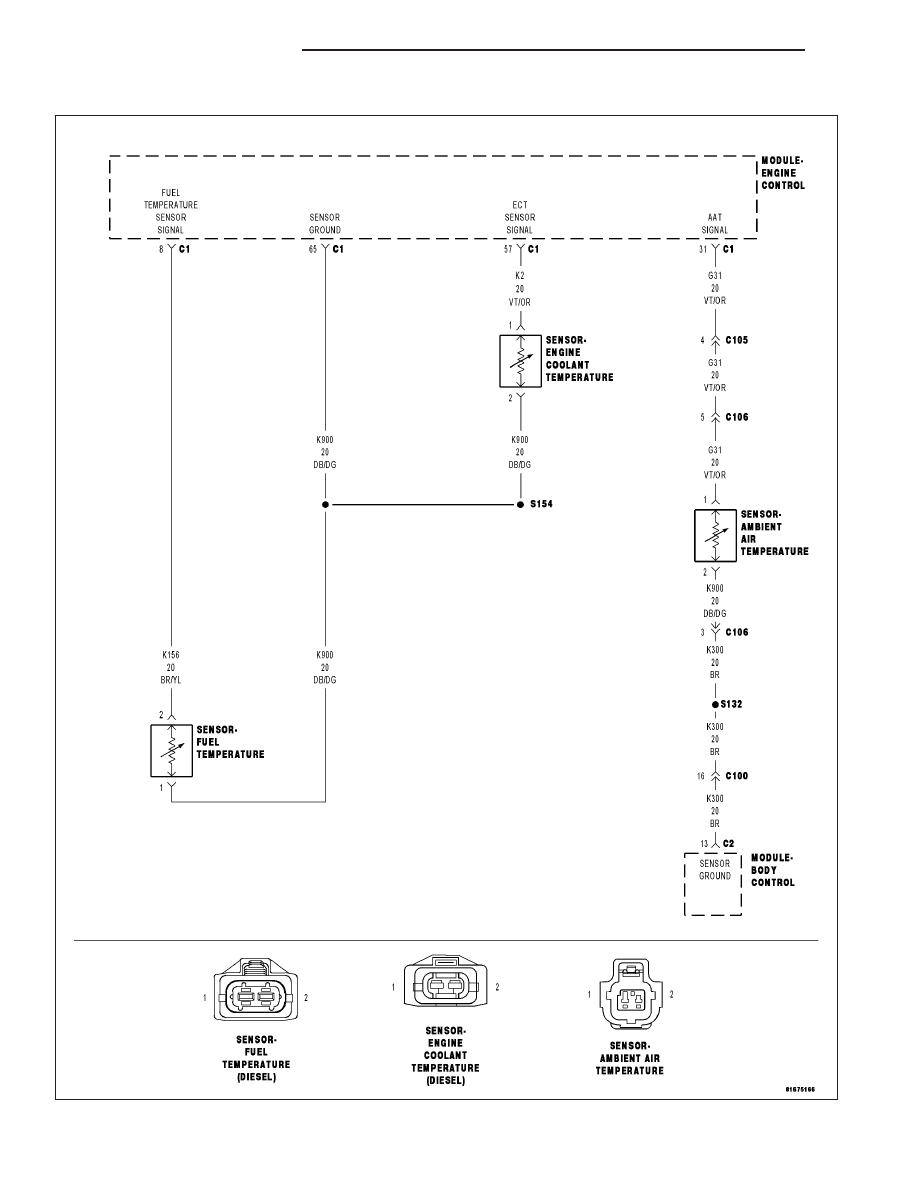

P0070-AMBIENT AIR TEMPERATURE SIGNAL VOLTAGE TOO LOW

For a complete wiring diagram Refer to Section 8W

9 - 710

ENGINE DIESEL DIAG

KJ

When Monitored:
With the ignition on.

Set Condition:
The Ambient Air Temperature Sensor signal is below 0.068 volt.

Possible Causes

AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO SENSOR GROUND

AMBINET TEMPERATURE SENSOR

ENGINE CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.

With the scan tool, erase ECM DTCs.

Monitor the scan tool for ECM DTCs for at least 2 minutes.

Did this DTC set again?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

AMBIENT TEMPERATURE SENSOR

Turn the ignition off.

Disconnect the Ambient Temperature Sensor harness connector.

Turn the ignition on.

Monitor the scan tool for ECM DTCs for at least 2 minutes.

Does the scan tool display P0070 AMB TEMP SENSOR SIGNAL VOLTAGE TOO HIGH?

Yes

>> Replace the Ambient Temperature Sensor.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 3

KJ

ENGINE DIESEL DIAG

9 - 711

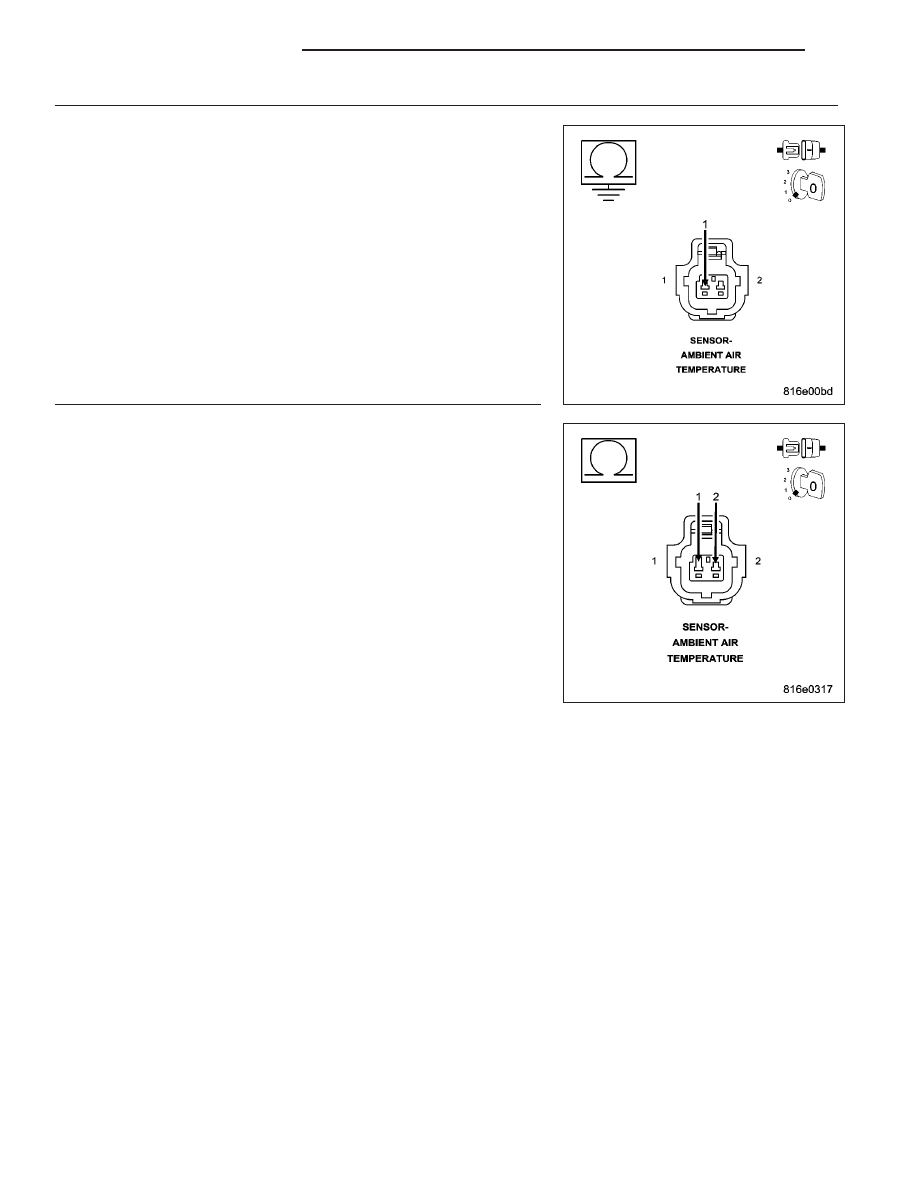

3.

AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the ECM harness connectors.

Disconnect the Ambient Air Temperature Sensor harness connector.

Measure the resistance between ground and the Ambient Air Tempera-
ture Sensor Signal circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 4

No

>> Repair the Ambient Air Temperature Sensor Signal circuit

for a short to ground.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

4.

AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO
SENSOR GROUND

Turn the ignition off.

Disconnect the ECM harness connectors.

Disconnect the Ambient Air temperature Sensor harness connector.

Measure the resistance between the Ambient Air Temperature Sensor
Signal circuit and the Sensor Ground circuit.

Is the resistance above 1000 ohms?

Yes

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Repair the Ambient Air Temperature Sensor Signal circuit

for a short to the Sensor Ground circuit.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 712

ENGINE DIESEL DIAG

KJ

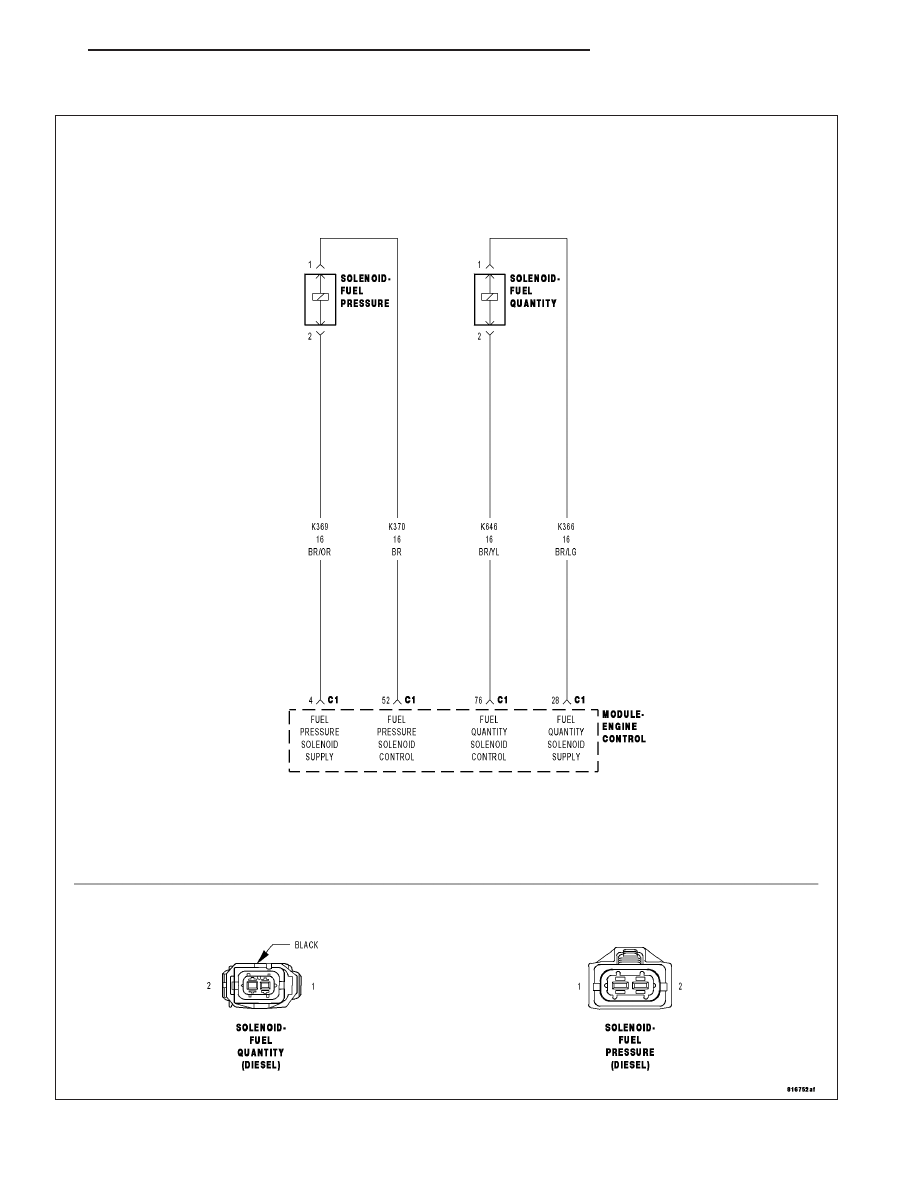

P0087-FUEL RAIL PRESSURE MALFUNCTION PRESSURE TOO LOW

For a complete wiring diagram Refer to Section 8W

KJ

ENGINE DIESEL DIAG

9 - 713
