*CHECKING THE VISCOUS/CABIN HEATER RELAY

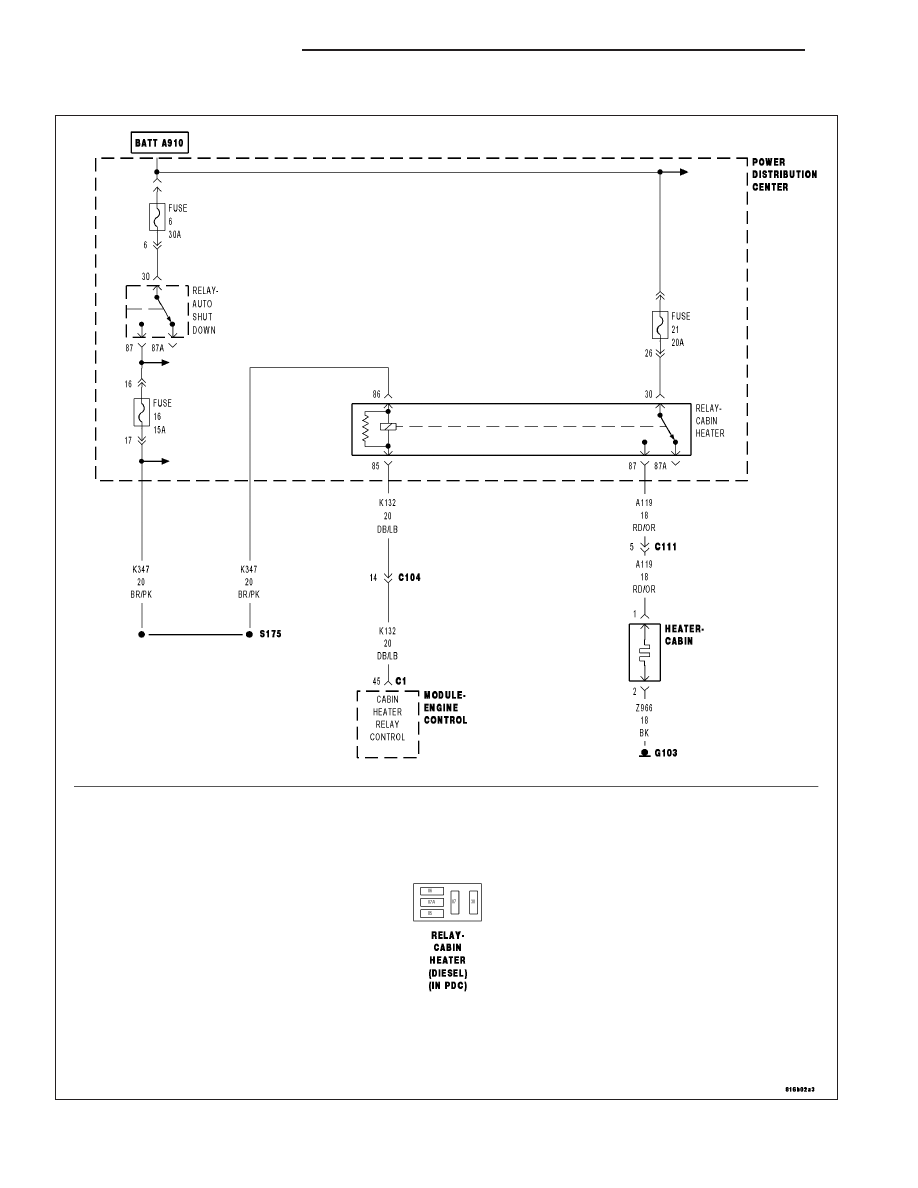

For a complete wiring diagram Refer to Section 8W

9 - 674

ENGINE DIESEL DIAG

KJ

Possible Causes

FUSED B+ CIRCUIT OPEN

(K132) CABIN HEATER RELAY OUTPUT CIRCUIT SHORTED TO VOLTAGE

(K347) CABIN HEATER RELAY OUTPUT CIRCUIT SHORTED TO GROUND

(A119) CABIN HEATER RELAY OUTPUT CIRCUIT OPEN

CABIN HEATER RELAY

Diagnostic Test

1.

VISCOUS/CABIN HEATER RELAY ACTUATOR TEST

Turn the ignition on.

With the scan tool, actuate the Viscous/Cabin Heater Relay.

Is the Cabin Heater Relay clicking during the actuator test?

Yes

>> Test Complete.

No

>> Go To 2

2.

FUSED B+ CIRCUIT OPEN

NOTE: If the Cabin Heater Relay fuse or fuselink is open, refer to
the system schematics for all circuits that are powered by the
Cabin Heater Relay fuse or fuselink to determine the cause of the
blown fuse/fuselink.
Remove the Cabin Heater Relay.

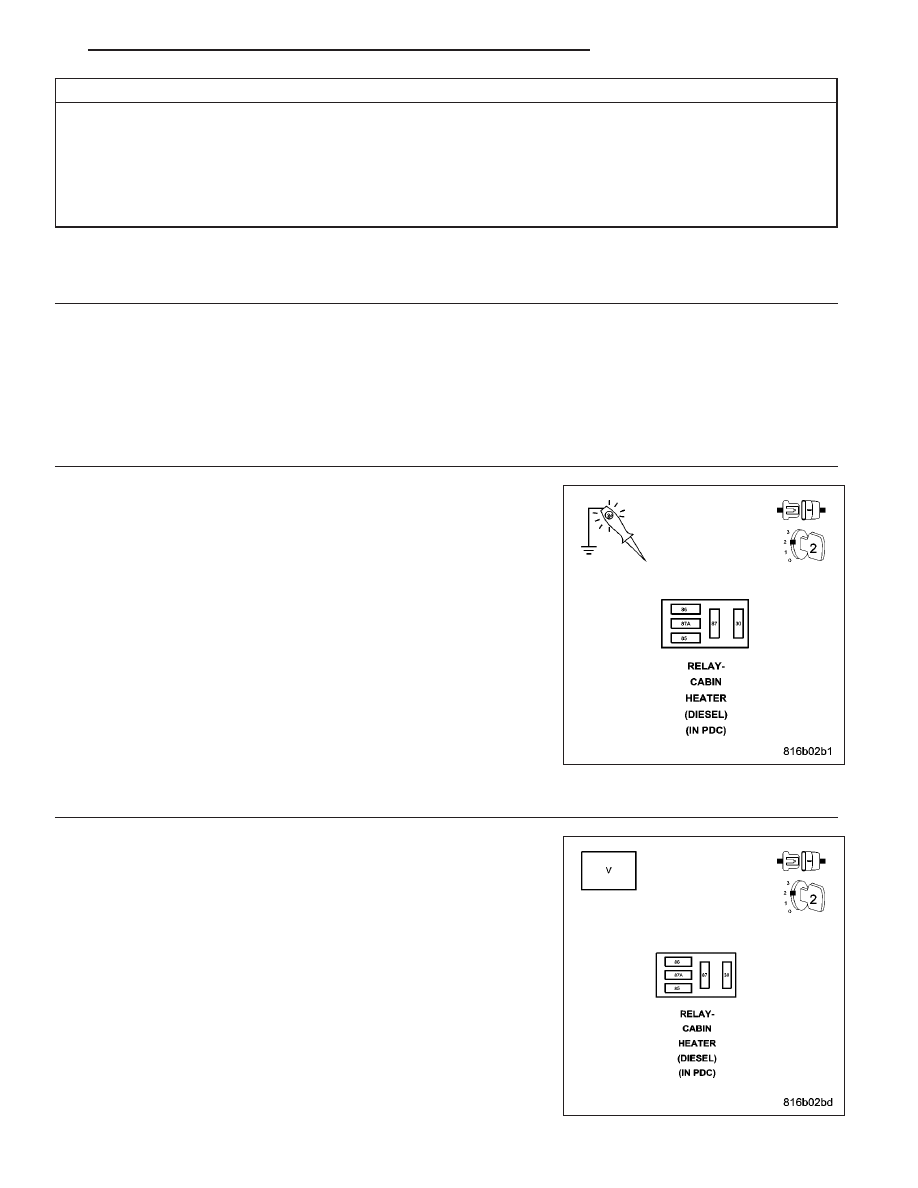

Using a 12-volt test light connected to ground, probe the Fused B+ cir-
cuit in the (cavity 30) Cabin Heater Relay connector.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the Fused B+ (Fuse/Fuselink) circuit for an open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

3.

CABIN HEATER RELAY OUTPUT CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Cabin Heater harness connector.

Remove the Cabin Heater Relay.

Turn the ignition on.

Measure the voltage on the (cavity 87) Cabin Heater Relay Output cir-
cuit.

Is the voltage above 1.0 volt?

Yes

>> Repair the (A119) Cabin Heater Relay Output circuit for a

short to voltage.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go To 4

KJ

ENGINE DIESEL DIAG

9 - 675

4.

CABIN HEATER RELAY OUTPUT CIRCUIT SHORTED TO GROUND

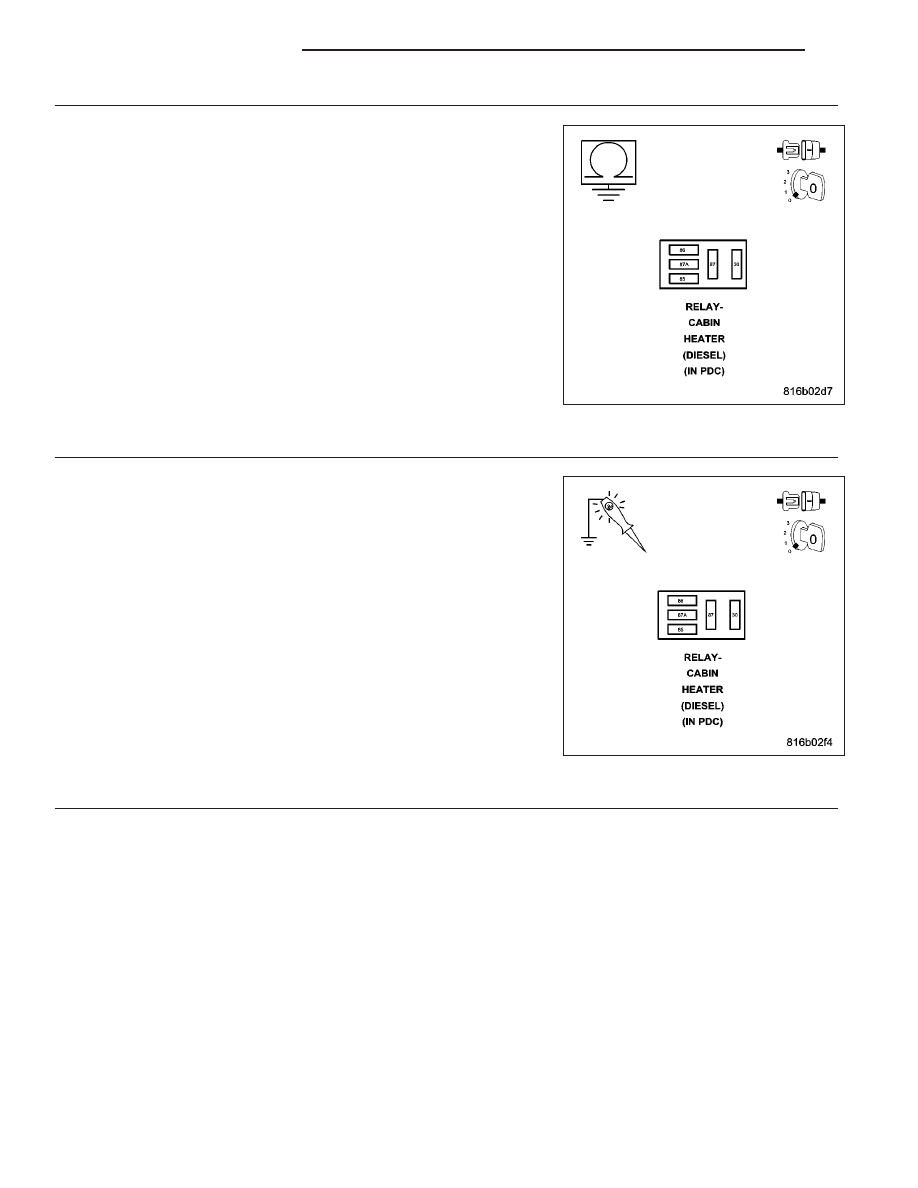

Measure the resistance between ground and the (cavity 87) Cabin
Heater Relay Output circuit.

Is the resistance above 1000 ohms?

Yes

>> Go To 5

No

>> Repair the (K132) Cabin Heater Relay Output circuit for a

short to ground. Inspect the fuse or fuselink and replace as
necessary.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

5.

CABIN HEATER RELAY OUTPUT CIRCUIT OPEN

Connect a jumper wire across Cabin Heater Relay connector (cavities
30 and 87).

Using a 12-volt test light connected to ground, check the (A119) Cabin
Heater Relay Output circuit in the Cabin Heater harness connector.

Does the test light illuminate brightly?

Yes

>> Go To 6

No

>> Repair the (A119) Cabin Heater Relay Output circuit for an

open.

Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

6.

CABIN HEATER RELAY

If there are no possible causes remaining, view repair.

Repair

Replace the Cabin Heater Relay.

Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

9 - 676

ENGINE DIESEL DIAG

KJ

*ENGINE WILL NOT CRANK

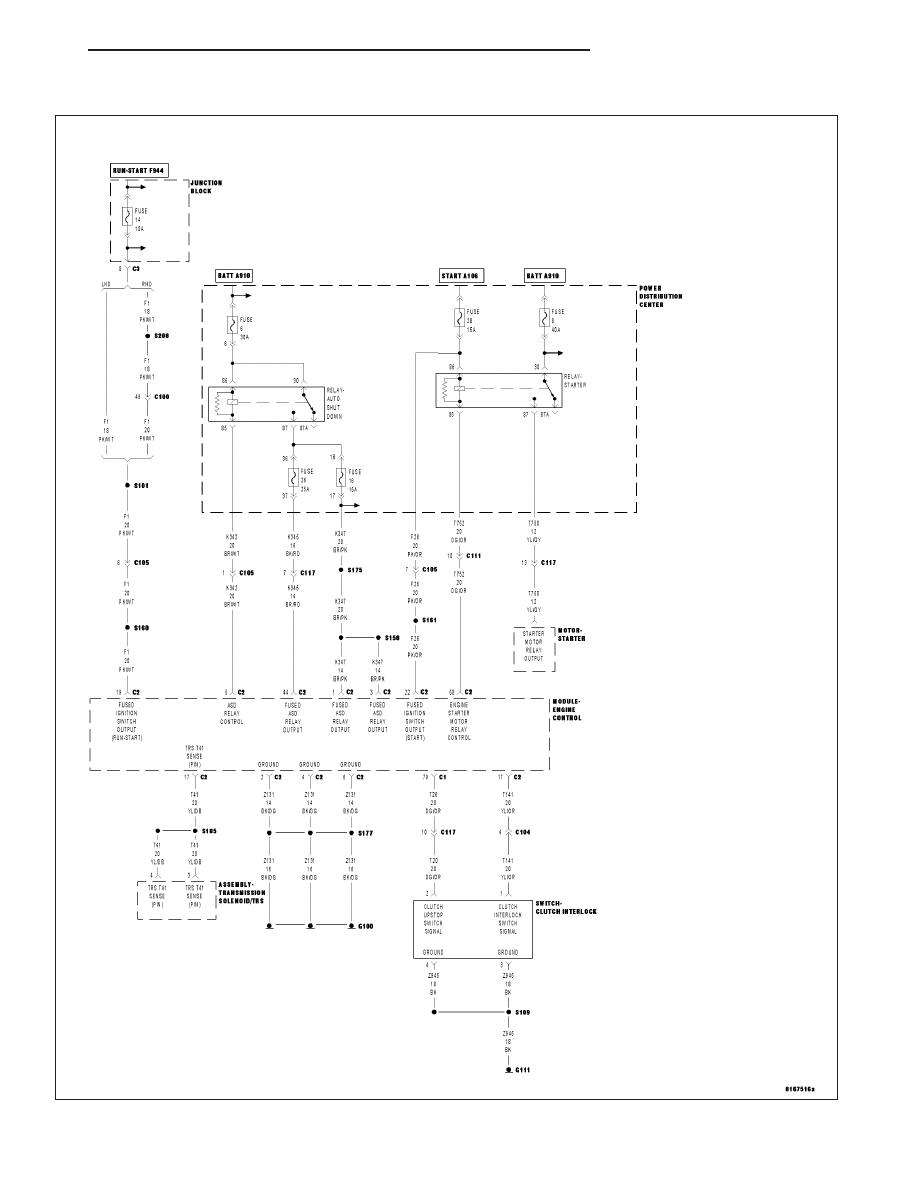

For a complete wiring diagram Refer to Section 8W
