SEAL-AXLE SHAFT

REMOVAL

1. Remove half shaft.

2. Remove axle shaft for right side seal removal.

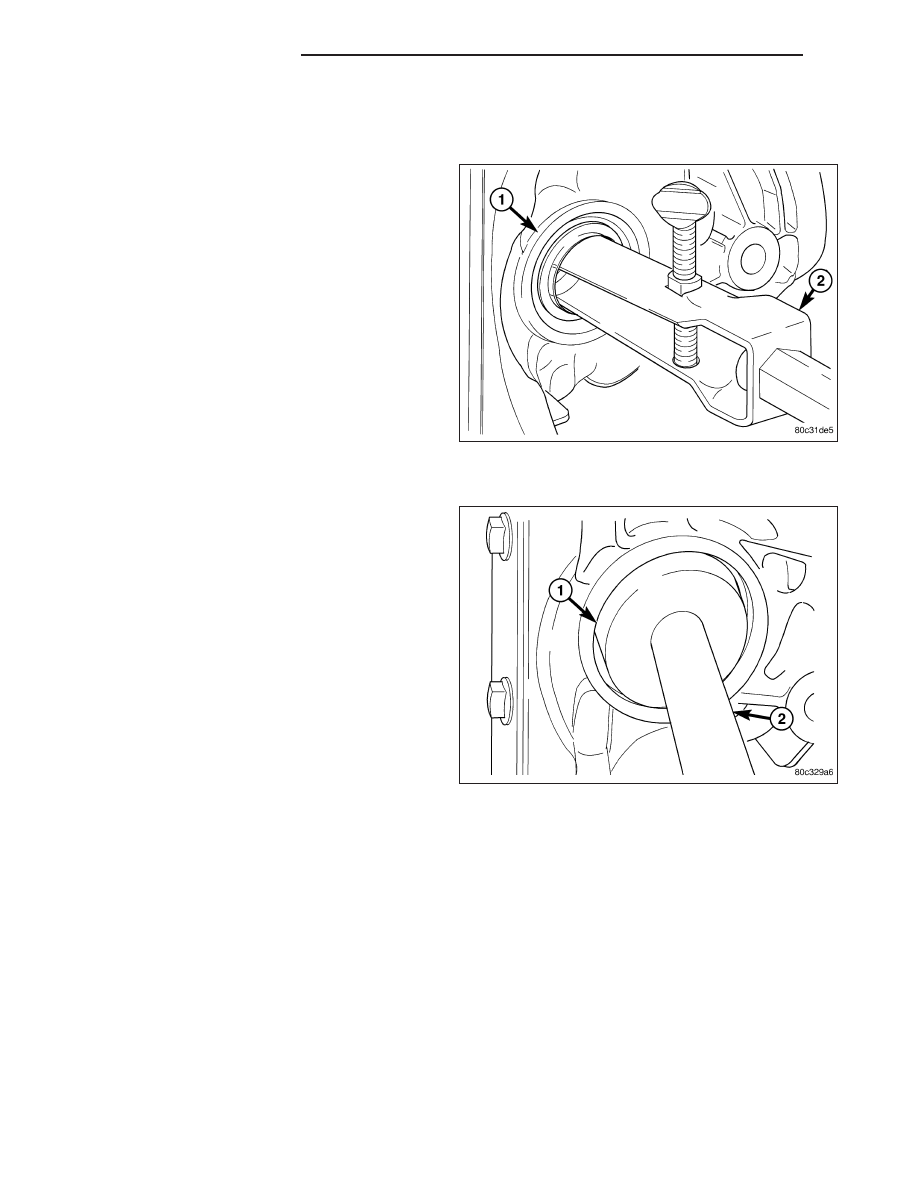

3. Remove shaft seal (1) with Remover 7794-A (2)

and a slide hammer.

INSTALLATION

1. Apply a light coat of lubricant on the lip of the shaft

seal.

2. Install new shaft seal with Installer 8806 (2) and

Handle C-4171(1).

3. Install right axle shaft if removed.

4. Install half shaft.

3 - 56

FRONT AXLE - 186FIA

KJ

BEARING-AXLE

REMOVAL

1. Remove half shaft.

2. Remove axle shaft for right side seal removal.

3. Remove shaft seal with Remover 7794-A and a

slide hammer.

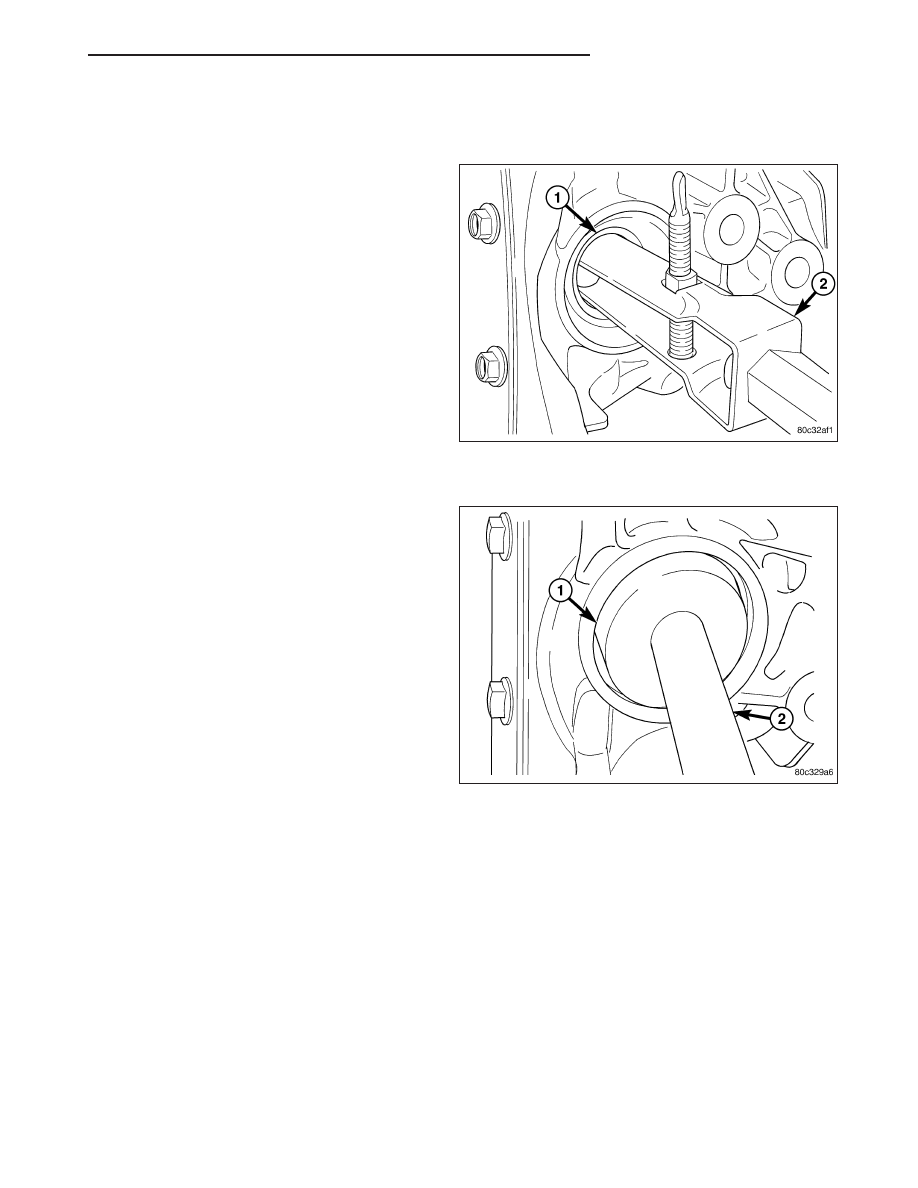

4. Remove shaft bearing (1) with Remover 7794-A (2)

and a slide hammer.

INSTALLATION

1. Install new shaft bearing with Installer 8805 and

Handle C-4171.

2. Apply a light coat of lubricant on the lip of the shaft

seal.

3. Install new shaft seal with Installer 8806 (1) and

Handle C-4171 (2).

4. Install right axle shaft if removed.

5. Install half shaft.

KJ

FRONT AXLE - 186FIA

3 - 57

SEAL-PINION

REMOVAL

1. With vehicle in neutral, position vehicle on hoist.

2. Remove brake calipers and rotors.

3. Remove propeller shaft.

4. Rotate pinion gear a minimum of ten times and

verify the pinion rotates smoothly.

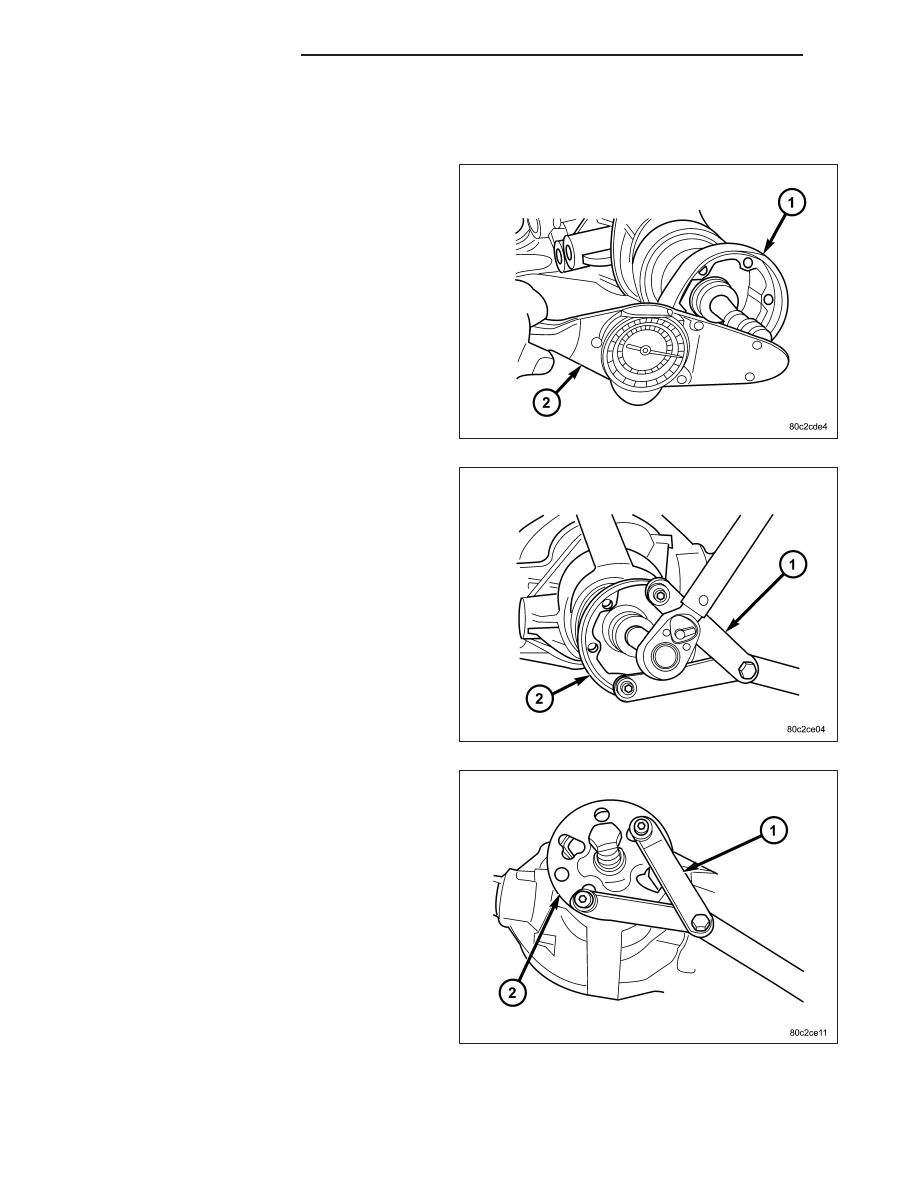

5. Record torque to rotate the pinion gear (1) with a

inch pound torque wrench (2).

6. Using a short piece of pipe and Spanner Wrench

6958 (1) to hold the pinion companion flange (2)
and remove the pinion nut.

7. Remove pinion companion flange with Puller C-452

(2) and Spanner Wrench 6958 (1).

8. Pry pinion seal out with a seal pick.

3 - 58

FRONT AXLE - 186FIA

KJ

INSTALLATION

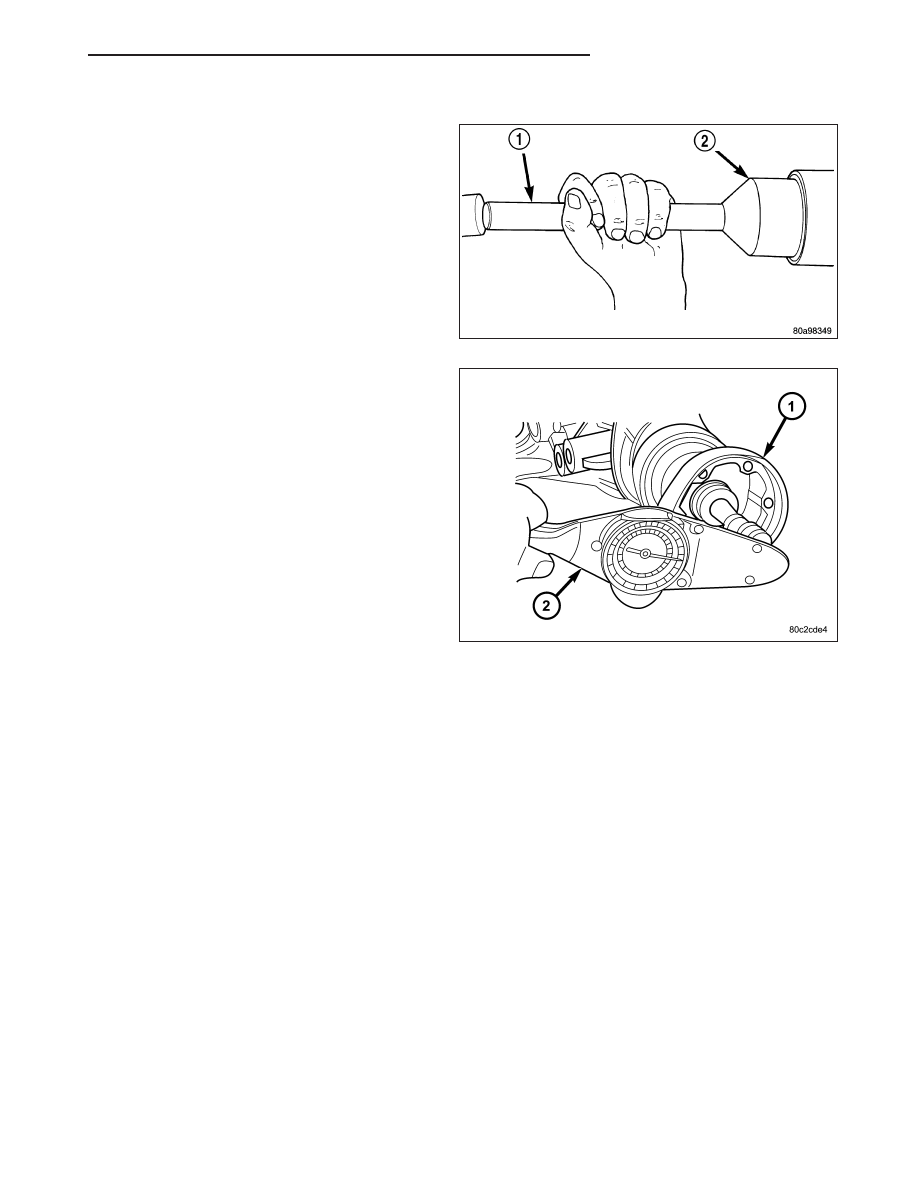

1. Apply a light coating of gear lubricant on the lip of

pinion seal. Install seal with Installer 8681(2).

2. Install pinion companion flange on the pinion gear

with Installer W-162-D, Cup 8109 and Wrench
6958.

CAUTION: Do not exceed the minimum tightening
torque 217 N·m (160 ft. lbs.) while installing pinion
nut at this point. Failure to follow these instruc-
tions will result in damage.

3. Install a new nut on the pinion gear. Tighten the

nut only enough to remove the shaft end play.

CAUTION: Never loosen pinion nut to decrease
pinion rotating torque and never exceed specified
preload torque. Failure to follow these instructions
will result in damage.

4. Rotate pinion a minimum of ten time and verify pin-

ion rotates smoothly. Rotate the pinion shaft (1) with an inch pound torque wrench (2). Rotating torque should be
equal to the reading recorded during removal plus 0.56 N·m (5 in. lbs.).

5. If rotating torque is low, use Spanner Wrench 6958 to hold the pinion companion flange and tighten the pinion

nut in 6.8 N·m (5 ft. lbs.) increments until proper rotating torque is achieved.

CAUTION: If maximum tightening torque is reached prior to reaching the required rotating torque, the col-
lapsible spacer may have been damaged. Failure to follow these instructions will result in damage.

6. Install propeller shaft.

7. Fill differential with gear lubricant.

KJ

FRONT AXLE - 186FIA

3 - 59
