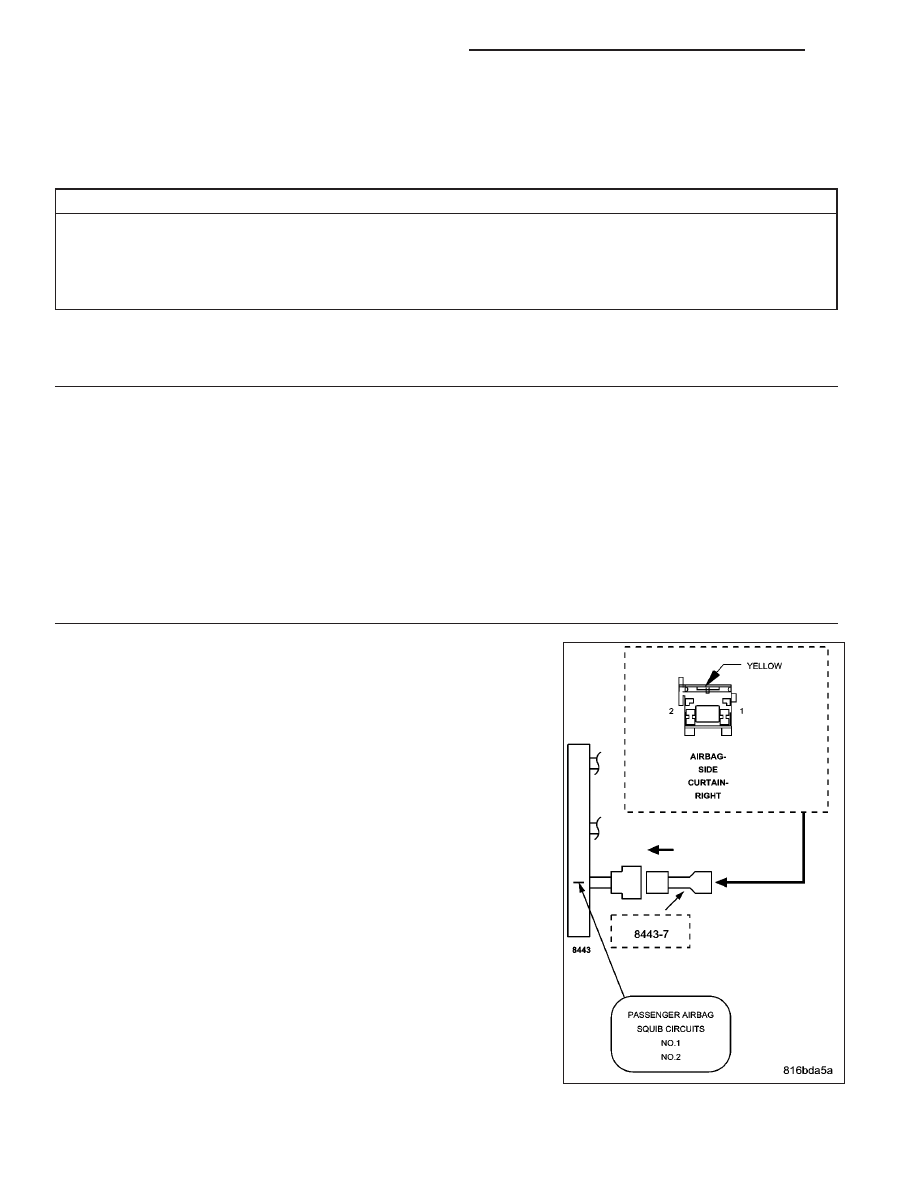

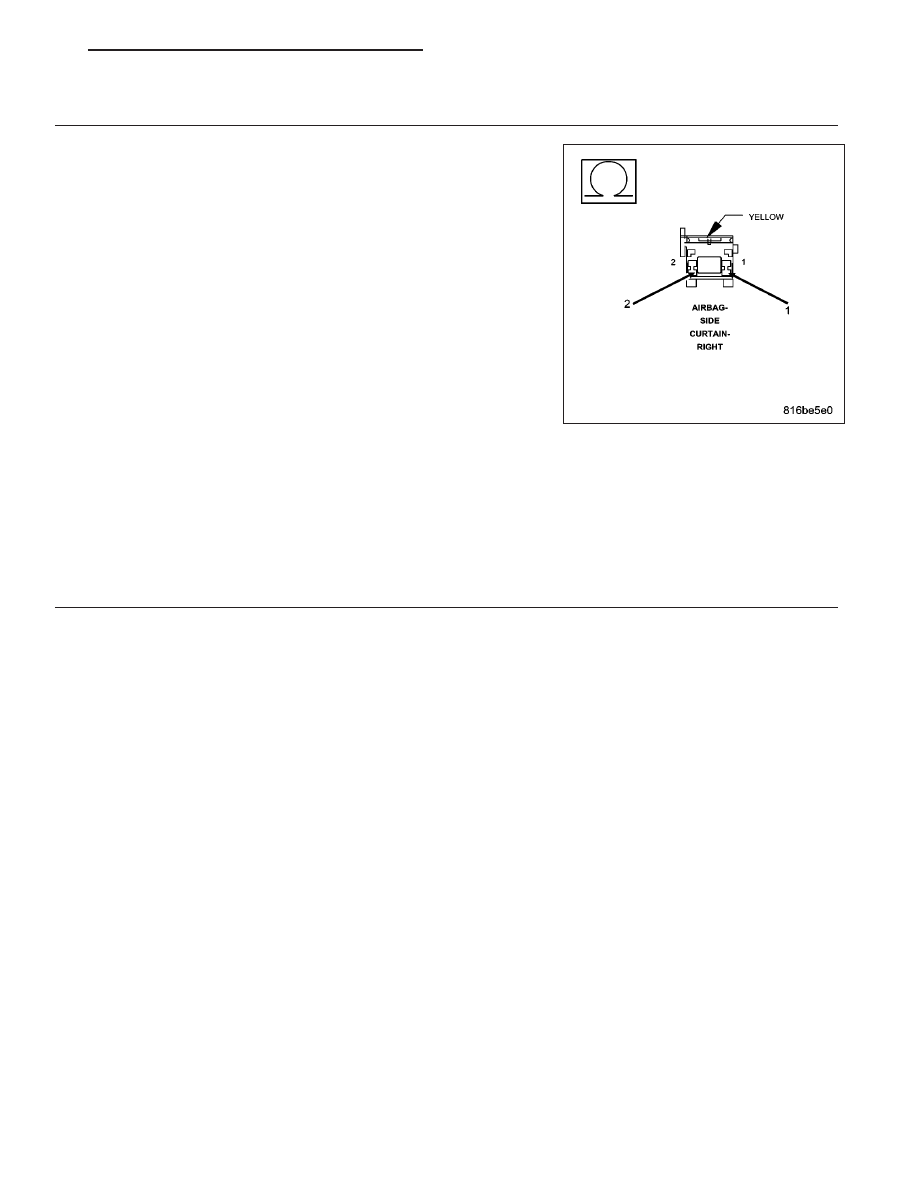

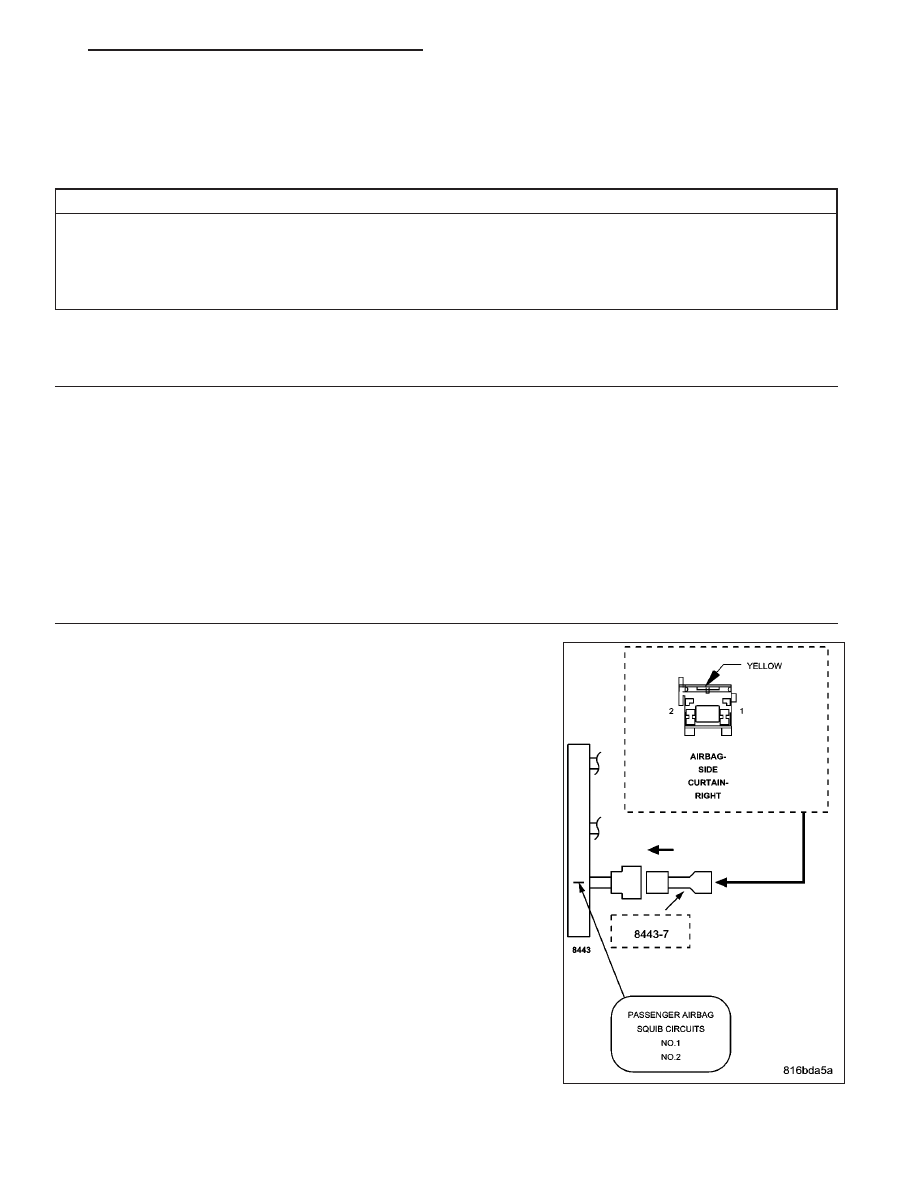

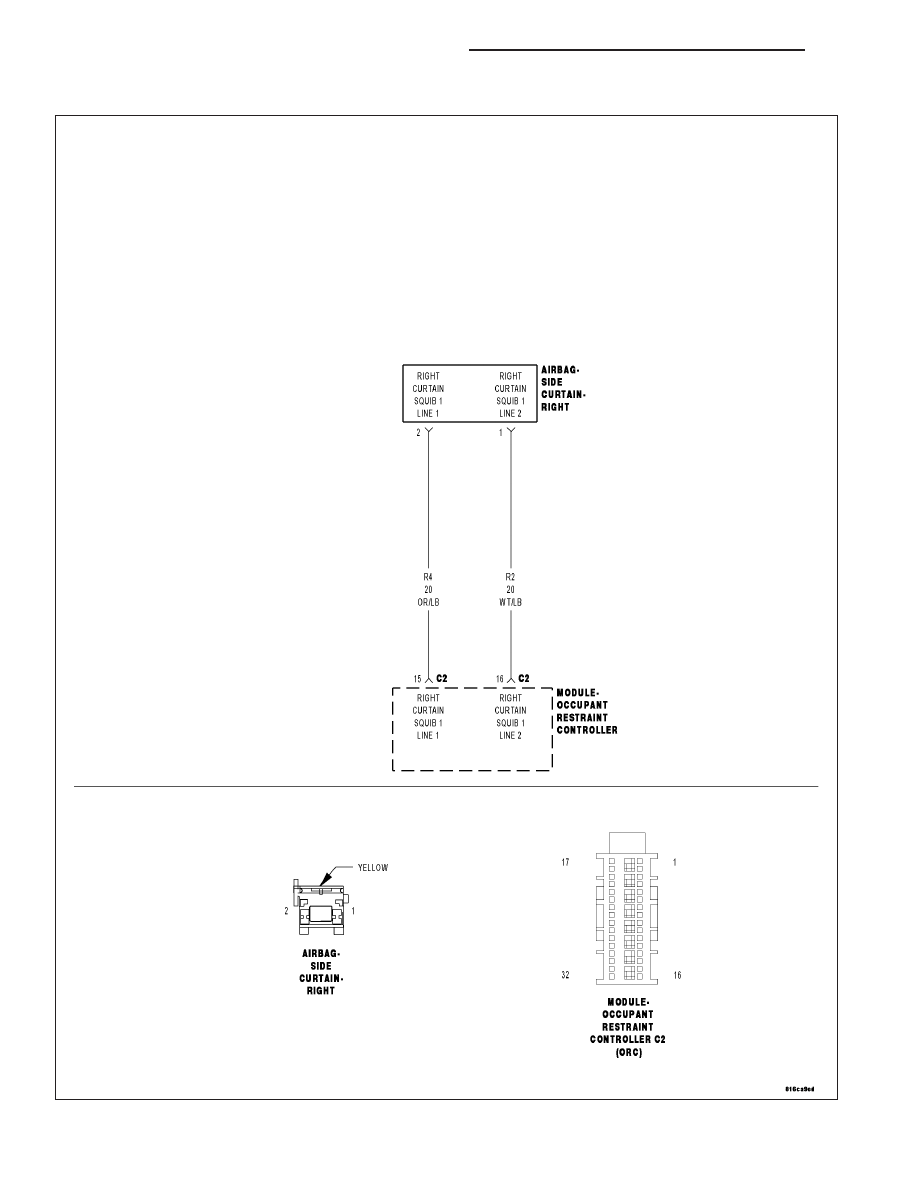

• When Monitored: • Set Condition: Possible Causes (R4) RIGHT CURTAIN SQUIB 1 LINE 1 CIRCUIT SHORTED TO (R2) RIGHT CURTAIN SQUIB 1 LINE 2 RIGHT SIDE CURTAIN AIRBAG ORC Diagnostic Test 1. DETERMINE ACTIVE OR STORED DTC NOTE: Ensure that the battery is fully charged. NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following SELECT ACTIVE or STORED DTC: ACTIVE DTC Go To 2 STORED DTC Go To 4 2. CHECK FOR SHORTED SQUIB CIRCUITS IN RIGHT SIDE CURTAIN AIRBAG WARNING: To avoid personal injury or death, turn the ignition off, WARNING: To avoid personal injury or death, do not place an NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: RIGHT CURTAIN SQUIB 1 CIRCUIT Yes >> Go to 3 No >> Replace the Right Side Curtain Airbag in accordance with the Service Information. Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. 8O - 194 RESTRAINTS - ELECTRICAL DIAGNOSTICS KJ |
