STANDARD PROCEDURE - RKE TRANSMITTER PROGRAMING

New Remote Keyless Entry (RKE) transmitters can be programed using the scan tool and the proper Diagnostic
Procedures manual, if no functioning transmitter is available. The scan tool can provide confirmation that the PCI
data bus is functional, and that all of the electronic modules are sending and receiving the proper messages on the
PCI data bus.

The following procedure can be used as long as one functioning transmitter is available:

1. Turn ignition to the RUN position (allow ignition chimes to stop).

2. Using any original (working) transmitter, press the UNLOCK button for 4 to 10 seconds.

3. Within the specified 4 to 10 seconds, continue pressing the UNLOCK button and press the PANIC button for 1

second, and release both buttons (a chime will sound to indicate that the transmitter programming mode has
been entered - allow 3 seconds for chime to sound).

4. Press LOCK and UNLOCK buttons simultaneously for 1 second and release.

5. Press and release any button on the same transmitter and a chime will sound after successfully programming the

transmitter.

6. Repeat steps 4 to 6 to program additional transmitters.

7. Turn ignition to the OFF position. Transmitter programming mode will discontinue after 60 seconds. All transmitter

programming must be completed within time specified.

STANDARD PROCEDURE - RKE TRANSMITTER BATTERIES

The Remote Keyless Entry (RKE) transmitter case snaps open and shut for battery access. To replace the RKE
transmitter batteries:

1. Using a thin coin, gently pry at the notch in the center seam of the RKE transmitter case halves near the key ring

until the two halves unsnap.

2. Lift the back half of the transmitter case off of the RKE transmitter.

3. Remove the two batteries from the RKE transmitter.

4. Replace the two batteries with new Panasonic 2016 (if equipped with one battery, use 2032), or equivalent. Be

certain that the batteries are installed with their polarity correctly oriented.

5. Align the two RKE transmitter case halves with each other, and squeeze them firmly and evenly together until

they snap back into place.

SPECIFICATIONS - REMOTE KEYLESS ENTRY TRANSMITTER

RANGE

Normal operation range is up to a distance of 3 to 7 meters (10 to 23 ft.) of the vehicle. Range may be better or
worse depending on the environment around the vehicle.

8N - 78

POWER LOCKS

KJ

TAILGATE CYLINDER LOCK SWITCH

DESCRIPTION

The tailgate cylinder lock switch is integral to the key lock cylinder inside the tailgate. The tailgate cylinder lock
switch is a normally-open momentary switch that is hard wired directly to the Body Control Module (BCM), and
closes a path to ground through an internal resistor when the lock cylinder is rotated to the unlock or lock position.

The tailgate cylinder lock switch cannot be adjusted or repaired.

OPERATION

The tailgate cylinder lock switch is actuated when the key is inserted in the lock cylinder and turned to the unlock
or lock position. The tailgate cylinder lock switch closes a path to ground through an internal resistor for the Body
Control Module (BCM) when the tailgate key lock cylinder is in the lock or unlock position, and opens the ground
path when the lock cylinder is in the neutral position. The BCM reads the switch status, then sends the proper
switch status messages to other electronic modules over the Programmable Communications Interface (PCI) data
bus network. The tailgate cylinder lock switch unlock status message is used by the BCM as an input for Vehicle
Theft Security System (VTSS) operation and to tell the BCM to lock or unlock the tailgate. There is no mechanical
linkage between the tailgate key cylinder and the latches.

DIAGNOSIS AND TESTING - TAILGATE CYLINDER LOCK SWITCH

1. Disconnect and isolate the battery negative cable.

2. Remove tailgate trim panel (Refer to 23 - BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL -

REMOVAL).

3. Disconnect tailgate cylinder lock switch harness connector.

4. Using a ohmmeter, test for resistances as shown in the Tailgate Cylinder Lock Switch Table.

TAILGATE CYLINDER LOCK SWITCH TABLE

SWITCH POSITION

RESISTANCE

NEUTRAL

0 OHMS

LOCK (CLOCKWISE)

2 K OHMS ± 10 %

UNLOCK (COUNTER-

CLOCKWISE)

470 OHMS ± 10 %

5. If switch resistance is not correct, replace switch.

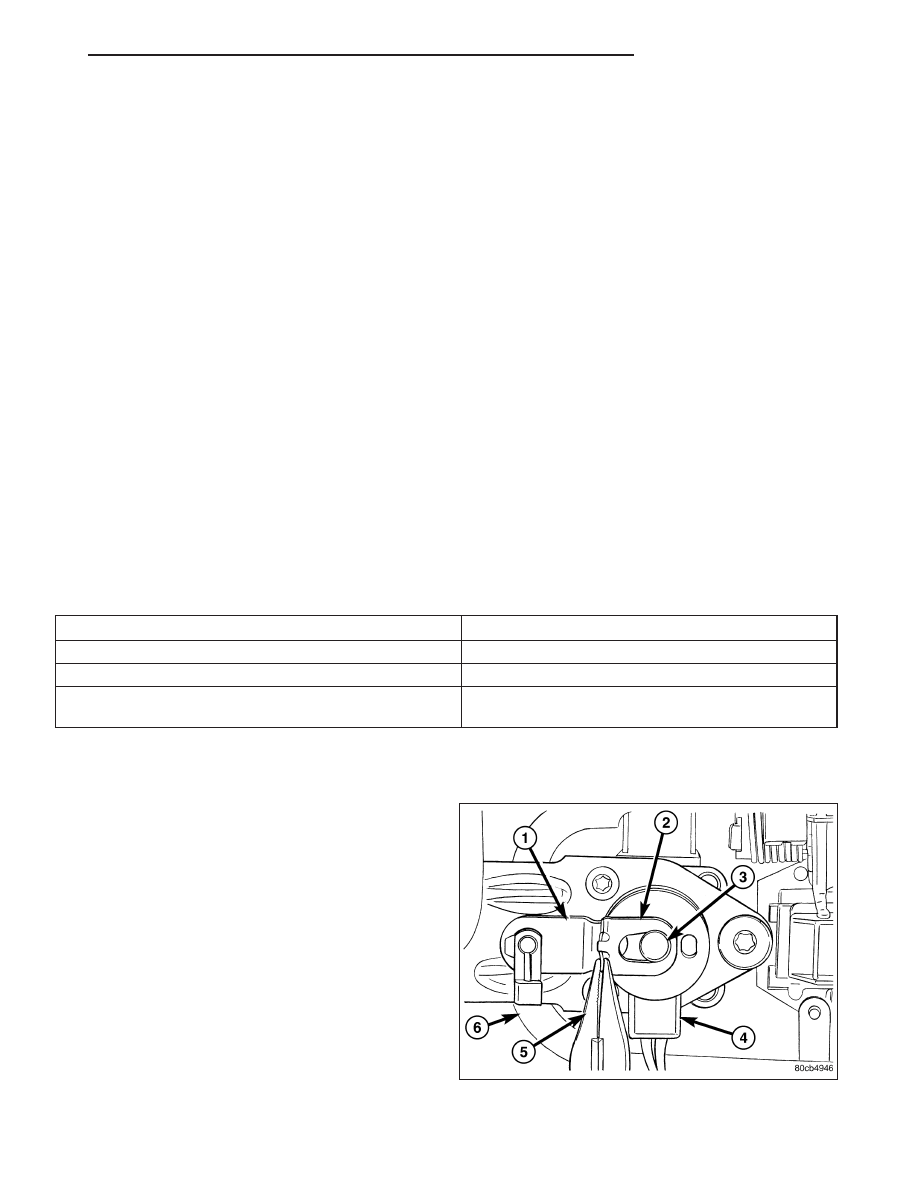

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the tailgate trim panel. (Refer to 23 -

BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/
TRIM PANEL - REMOVAL).

3. Remove the retainer clip from the pin on the back

of the door lock cylinder (3).

4. Remove the washer from the pin on the back of

the door lock cylinder.

5. Remove the door cylinder lock switch (4) from the

back of the lock cylinder.

KJ

POWER LOCKS

8N - 79

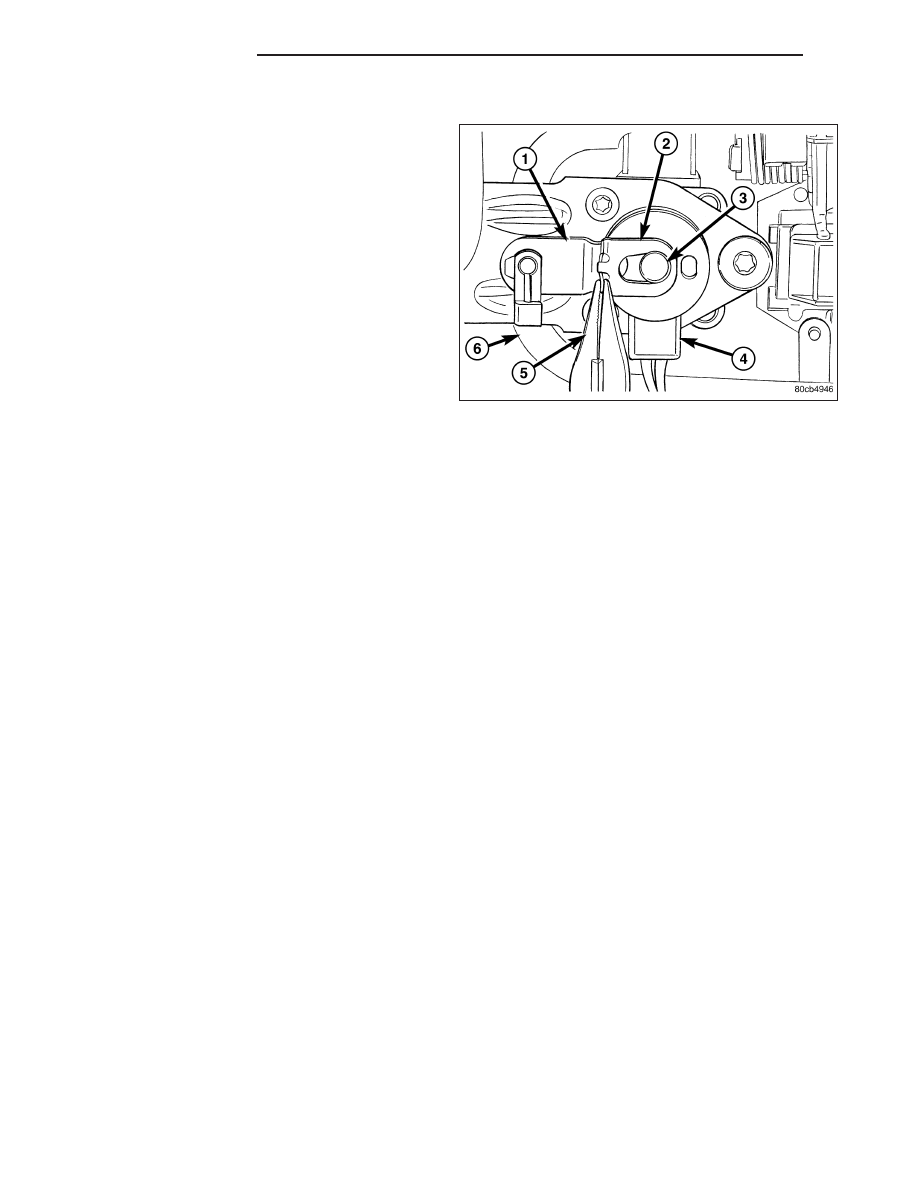

INSTALLATION

1. Position the tailgate cylinder lock switch (4) onto

the back of the lock cylinder (3) with the wire har-
ness oriented toward the bottom.

2. Position the washer over the switch.

3. Install the retainer (2) clip onto the pin on the back

of the tailgate lock cylinder. Be certain that the cen-
ter tab of the retainer is engaged in the retention
hole on the lock lever.

4. Install the trim panel (Refer to 23 - BODY/DECK-

LID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL -
INSTALLATION).

5. Connect the battery negative cable.

8N - 80

POWER LOCKS

KJ

POWER MIRRORS

TABLE OF CONTENTS

page

page

POWER MIRRORS

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
DIAGNOSIS AND TESTING - POWER

MIRRORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

AUTOMATIC DAY / NIGHT MIRROR

DESCRIPTION - REAR VIEW MIRROR . . . . . . . . . . 84
OPERATION - REAR VIEW MIRROR . . . . . . . . . . . . 84
DIAGNOSIS AND TESTING - AUTOMATIC DAY

/ NIGHT MIRROR . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

POWER FOLDAWAY MIRROR SWITCH -

EXPORT
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
DIAGNOSIS AND TESTING - POWER

FOLDAWAY MIRROR SWITCH - EXPORT . . . . . 86

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

POWER MIRROR SWITCH

DIAGNOSIS AND TESTING - POWER MIRROR

SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

SIDEVIEW MIRROR

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

KJ
