Jeep Liberty KJ. Manual - part 146





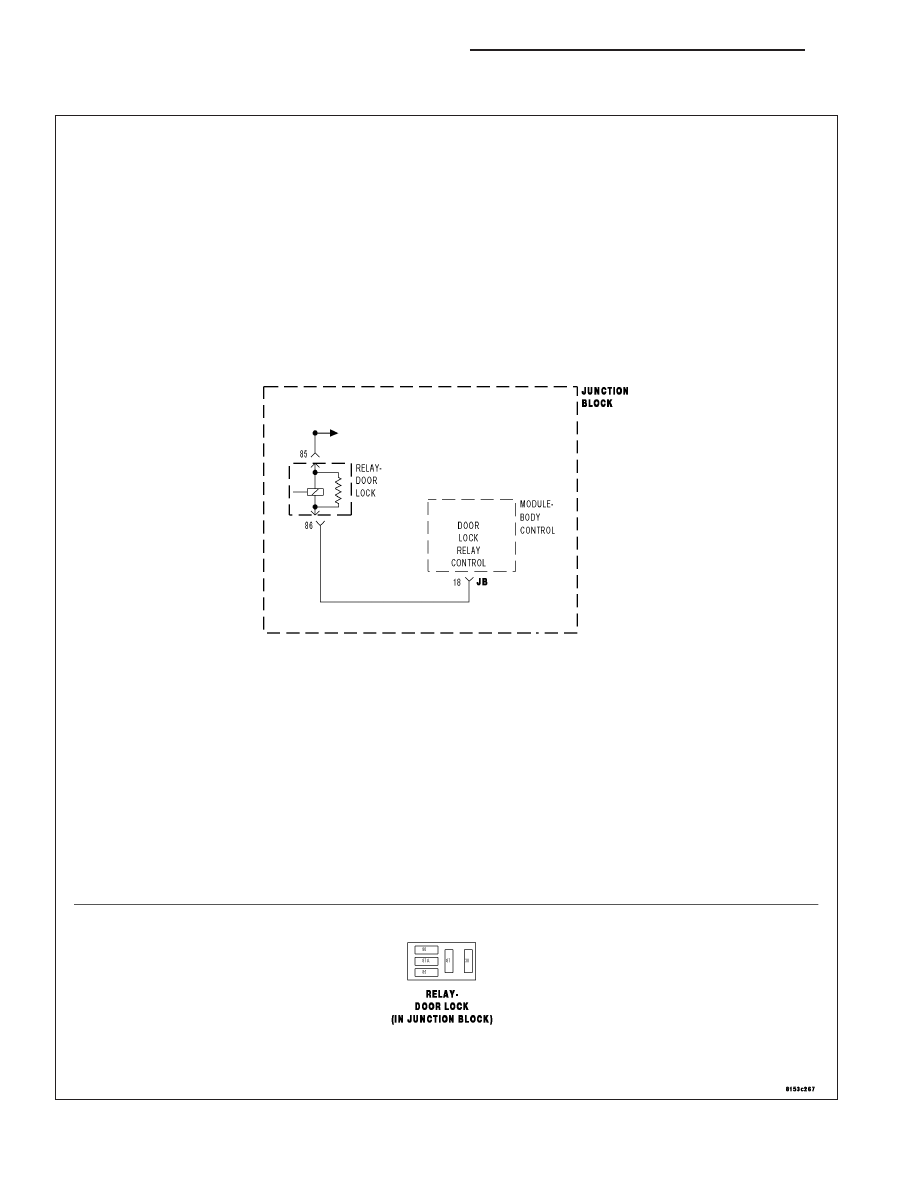

DOOR LOCK RELAY CONTROL CIRCUIT SHORT TO VOLTAGE

For a complete wiring diagram Refer to Section 8W.

8N - 6

POWER LOCKS - ELECTRICAL DIAGNOSTICS

KJ

When Monitored:
With ignition on.

Set Condition:
The BCM detects a high circuit on the Door Lock Relay Control circuit when it is attempting to lock the doors
for more than 5 seconds. If the BCM is not able to ground its side of the relay coil, the control circuit remains
high.

Possible Causes

RELAY SHORTED

JUNCTION BLOCK - DOOR LOCK RELAY CONTROL SHORT TO VOLTAGE

BODY CONTROL MODULE - SHORTED

Diagnostic Test

1.

CHECK TROUBLE CODE

NOTE: If the door locks are totally inoperative, check fuse No. 6 before proceeding.
Turn the ignition on.

With the scan tool, erase DTCs.

Operate the door locks several times.

With the scan tool, read DTCs.

Does the scan tool display DOOR LOCK RELAY CONTROL CIRCUIT SHORT TO VOLTAGE?

Yes

>> Go To 2

No

>> Problem is intermittent and not present at this time. Using the wiring diagram/schematic as a guide,

inspect the wiring and connectors and repair as necessary.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

2.

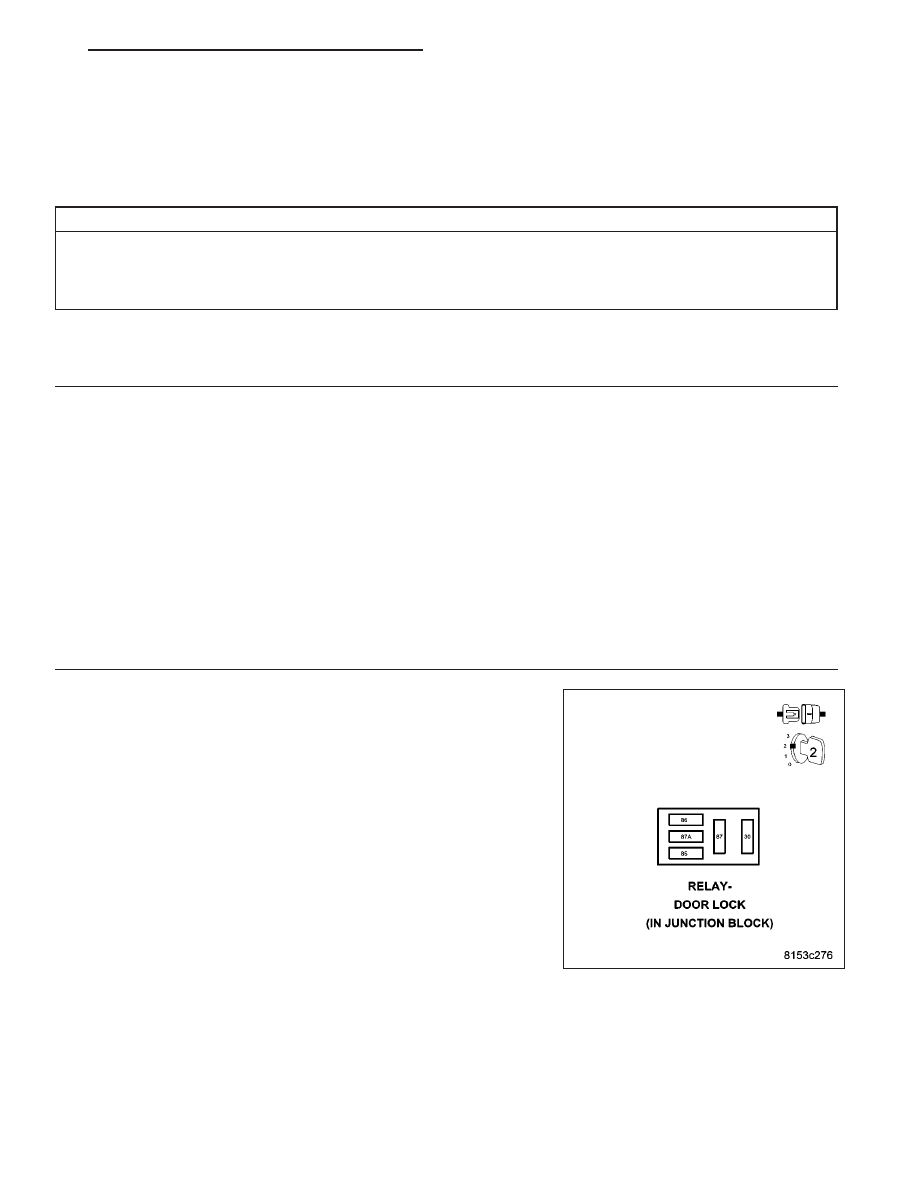

CHECK FOR SHORTED RELAY

Turn the ignition off.

Remove the Door Lock Relay from the Junction Block.

Install a substitute relay in place of the Door Lock Relay.

Turn the ignition on.

With the scan tool, erase DTCs.

Operate the Door Locks several times.

With the scan tool, read DTCs.

Does the scan tool display DOOR LOCK RELAY CONTROL CIR-
CUIT SHORT TO VOLTAGE?

Yes

>> Go To 3

No

>> Replace the original relay.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

KJ

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 7

3.

CHECK THE JUNCTION BLOCK FOR THE DOOR LOCK RELAY CONTROL CIRCUIT SHORT TO
VOLTAGE

Turn the ignition off.

Remove the Door Lock Relay from the Junction Block.

Remove the Body Control Module from the Junction Block.

NOTE: Ensure the Junction Block connectors are reconnected at
this time.
Turn the ignition on.

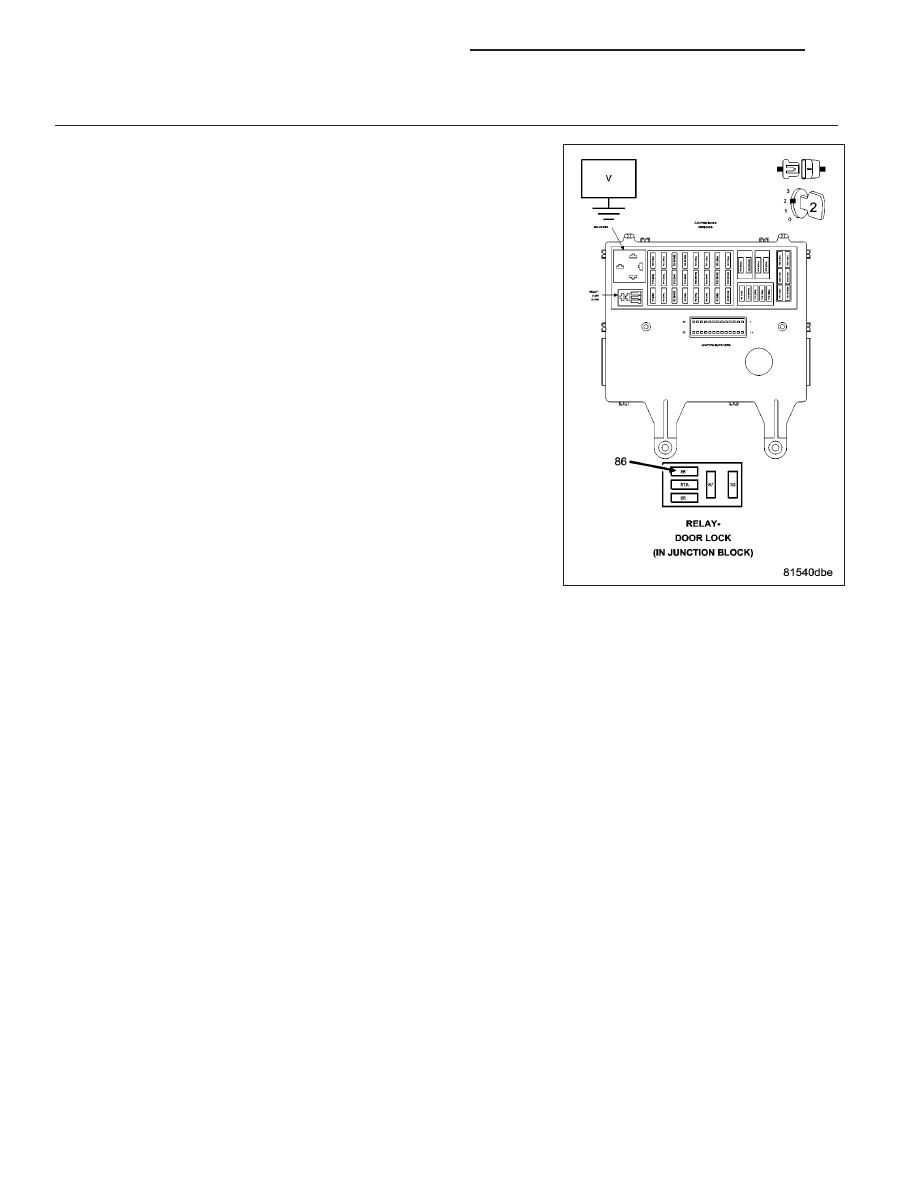

Measure the voltage between ground and the (P333) Door Lock Relay
Control circuit in the relay connector of the Junction Block.

Is there any voltage present?

Yes

>> Replace the Junction Block in accordance with service infor-

mation.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Replace the Junction Block.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

8N - 8

POWER LOCKS - ELECTRICAL DIAGNOSTICS

KJ

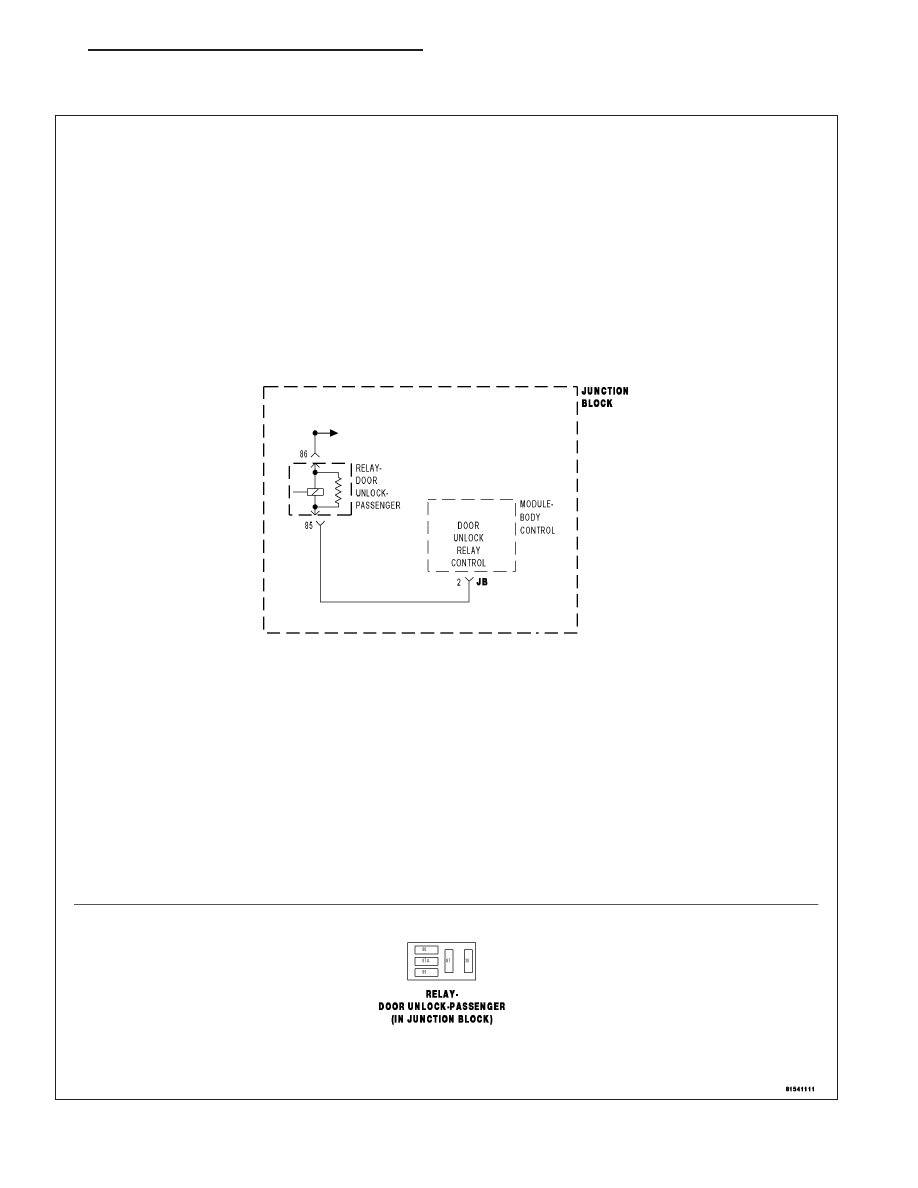

DOOR UNLOCK RELAY CONTROL CIRCUIT OPEN OR SHORT TO GROUND

For a complete wiring diagram Refer to Section 8W.

KJ

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 9
