GLOVE BOX LATCH

REMOVAL

1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/

INSTRUMENT PANEL - WARNING)

2. Remove the glove box. (Refer to 23 - BODY/INSTRUMENT PANEL/GLOVE BOX - REMOVAL)

3. Remove the nine screws and remove the glove box skin.

4. Remove the latch from the locators.

INSTALLATION

1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/

INSTRUMENT PANEL - WARNING)

2. Position the latch onto the locators.

3. Install the glove box skin onto the glove box and install the nine screws.

4. Install the glove box. (Refer to 23 - BODY/INSTRUMENT PANEL/GLOVE BOX - INSTALLATION)

23 - 160

INSTRUMENT PANEL

KJ

GLOVE BOX LATCH STRIKER

REMOVAL

1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/

INSTRUMENT PANEL - WARNING)

2. Open the glove box.

3. Remove the two striker screws and remove the latch striker.

INSTALLATION

1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/

INSTRUMENT PANEL - WARNING)

2. Install the striker and install the two screws.

3. Loosen the screws to adjust if necessary.

KJ

INSTRUMENT PANEL

23 - 161

INSTRUMENT PANEL ASSEMBLY

REMOVAL

NOTE: Before starting this procedure, be certain
to turn the steering wheel until the front wheels
are in the straight-ahead position.

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/INSTRUMENT PANEL - WARNING)

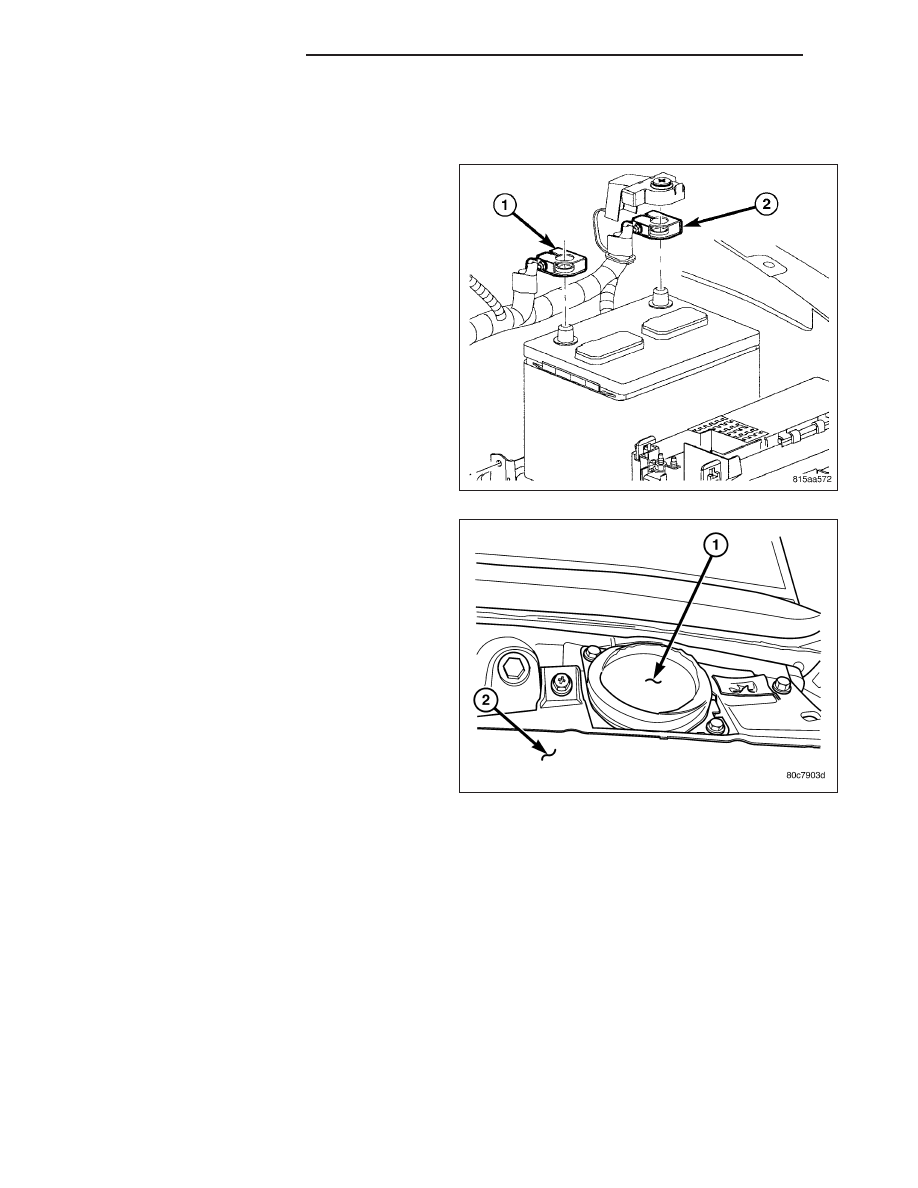

2. Disconnect and isolate the battery negative cable.

3. Remove the instrument panel speakers. (Refer to 8

- ELECTRICAL/AUDIO/SPEAKER - REMOVAL)

23 - 162

INSTRUMENT PANEL

KJ

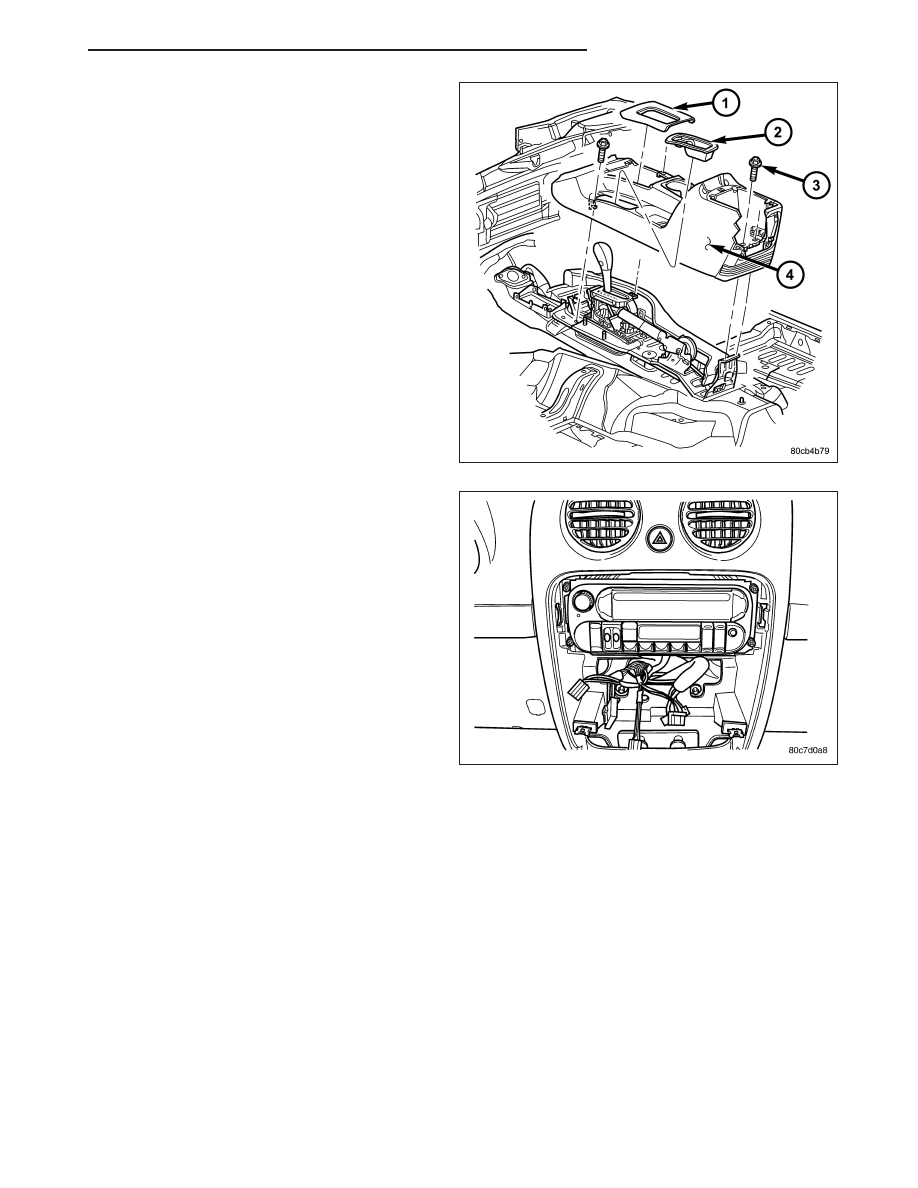

4. Remove the floor console. (Refer to 23 - BODY/IN-

TERIOR/FLOOR CONSOLE - REMOVAL)

5. Remove the radio. (Refer to 8 - ELECTRICAL/AU-

DIO/RADIO - REMOVAL)

KJ

INSTRUMENT PANEL

23 - 163
