TRANSPONDER
DESCRIPTION - PREMIUM SYSTEM
A transponder is located in three of the four wheel wells of the vehicle to provide the WCM/SKREEM with the loca-
tion of the tire pressure sensors on the vehicle. The transponders are located in the left front, right front and right
rear wheel wells. A fourth transponder is not necessary in the remaining wheel well due to the process-of-elimination
theory. Once the system knows the location of the first three sensors it assumes the location of the fourth tire pres-
sure sensor is in the left rear tire.
OPERATION - PREMIUM SYSTEM
Transponders located in three of the four wheel wells of the vehicle to provide the Wireless Control Module (WCM)
commonly referred to as the Sentry Key Remote Entry Module (SRKEEM) with the location of the tire pressure
sensors on the vehicle. The transponders are located in the left front, right front and right rear wheel wells. A fourth
transponder is not necessary in the remaining wheel well due to the process-of-elimination theory. Once the system
knows the location of the first three sensors it assumes the location of the fourth tire pressure sensor is in the left
rear tire.
REMOVAL
FRONT
1. Raise and support the vehicle.
2. Remove the front part wheel well housing cover
and pull it back toward the tire to gain access to
the transponder.

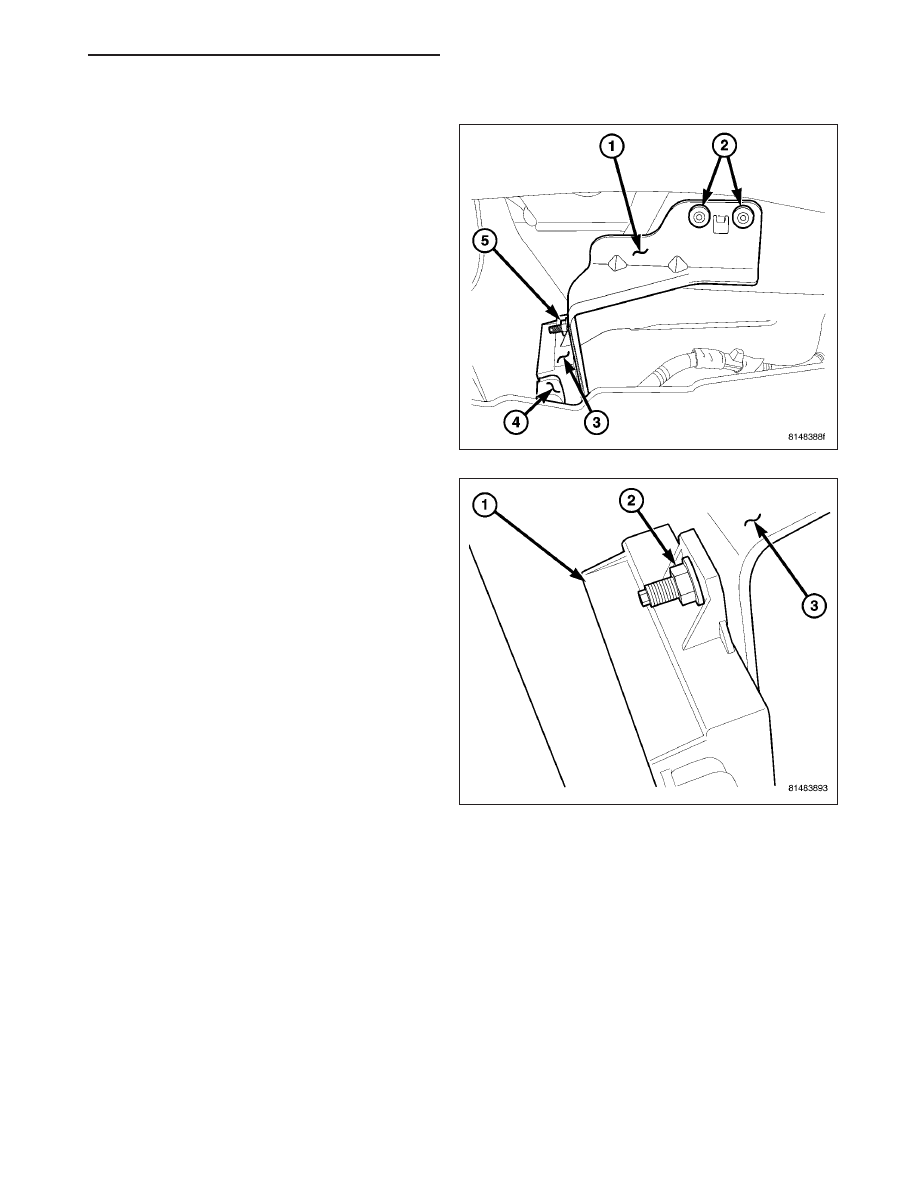

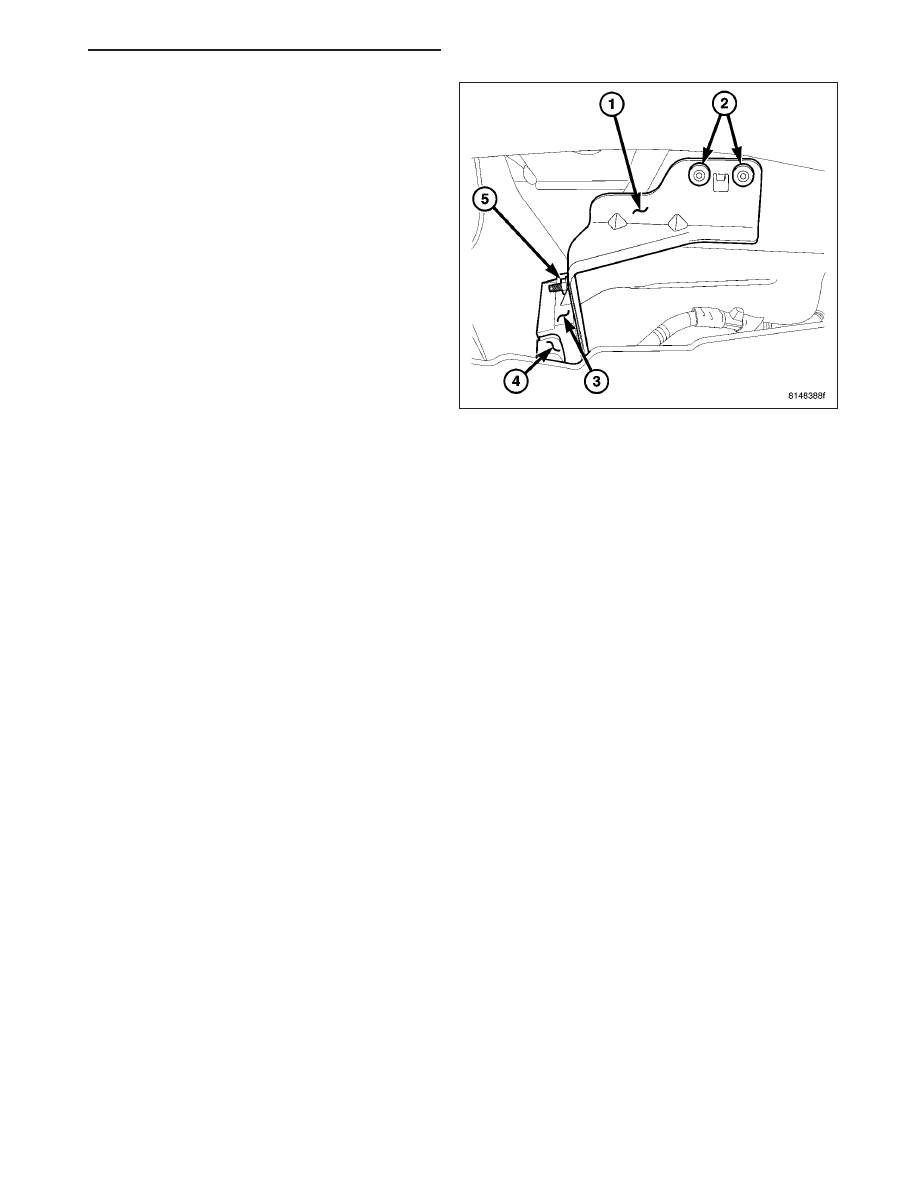

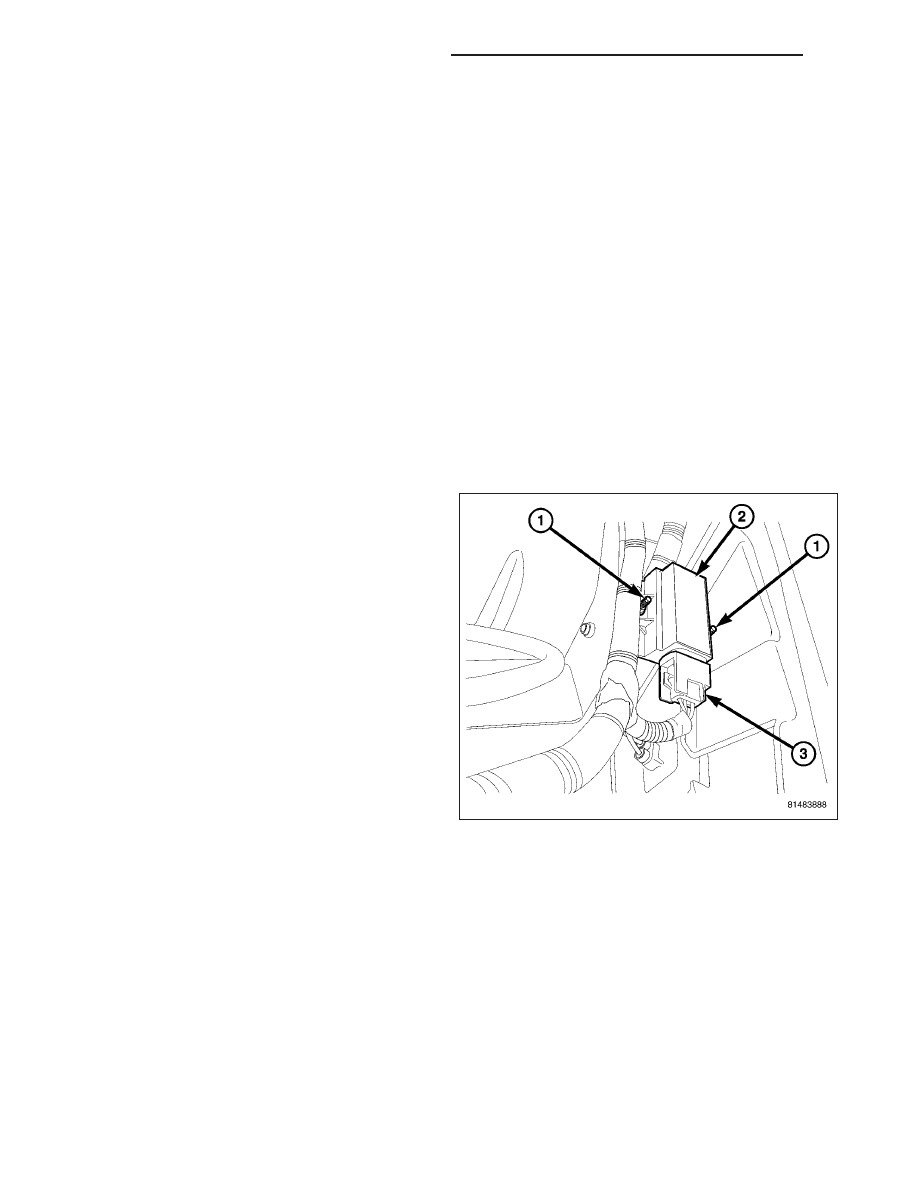

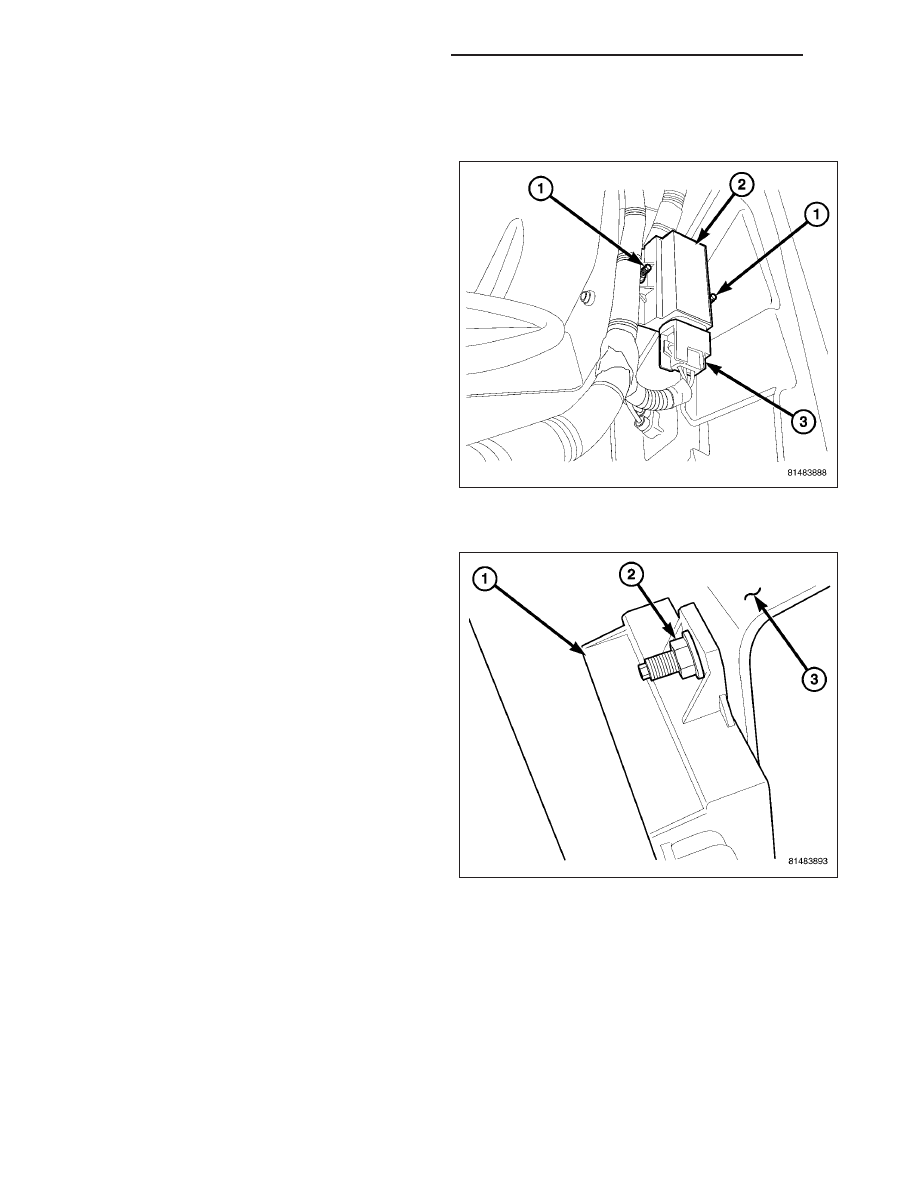

3. Remove the mounting nuts (1) for the transponder
(2) from the mounting bracket.
4. Disconnect the electrical connector (3) and remove
the transponder (2) from the vehicle.
