Jeep Liberty KJ. Manual - part 1144





5.

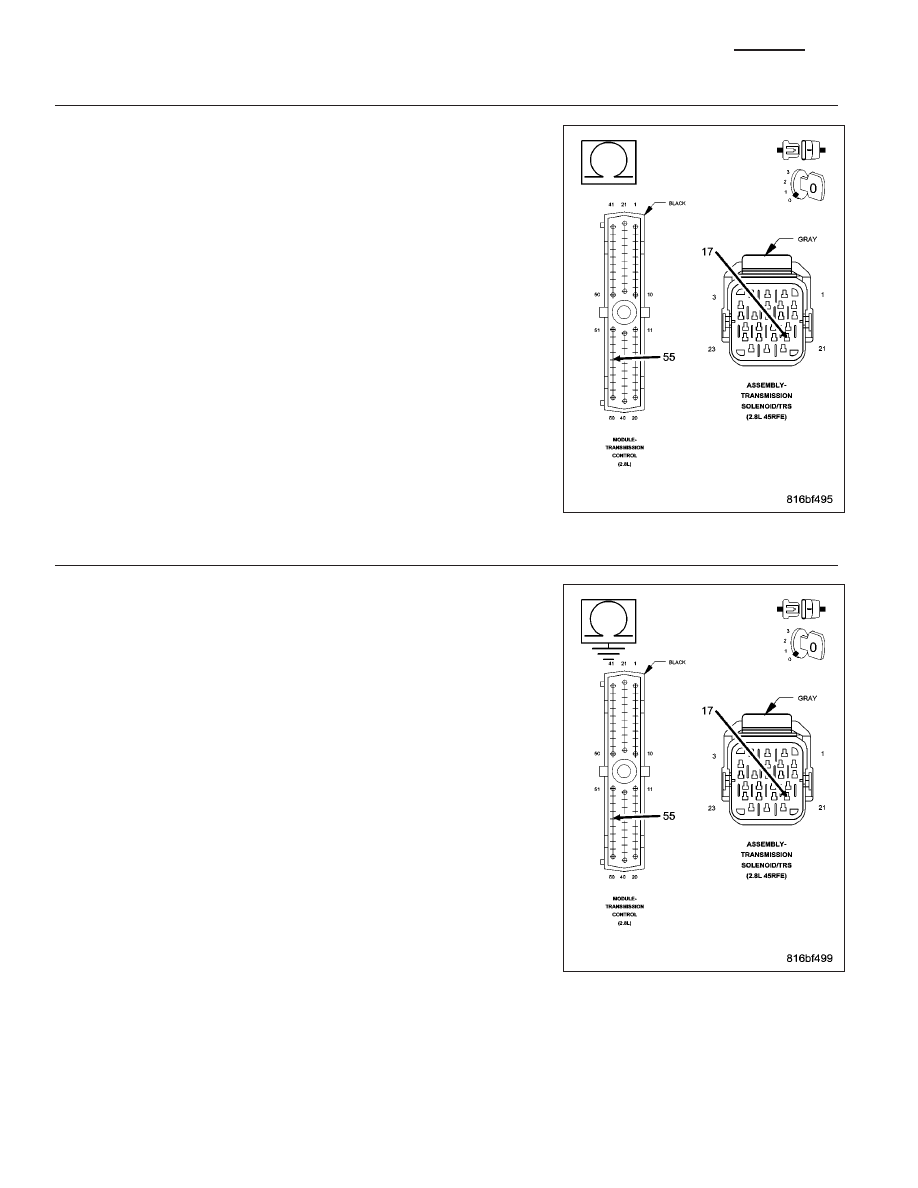

CHECK THE (T59) UD SOLENOID CONTROL CIRCUIT FOR AN OPEN

Measure the resistance of the (T59) UD Solenoid Control circuit
between the Transmission Solenoid/TRS Assembly harness connector
and the TCM harness connector.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T59) UD Solenoid Control circuit for an open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

No

>> Go To 6

6.

CHECK THE (T59) UD SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND

Measure the resistance between ground and the (T59) UD Solenoid
Control circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T59) UD Solenoid Control circuit for a short to

ground.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

No

>> Using the schematics as a guide, check the Transmission

Control Module (TCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. If no problems are found, replace the TCM
per the Service Information. With the scan tool, perform
QUICK LEARN.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

21 - 520

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

KJ

P0770-4C SOLENOID CIRCUIT

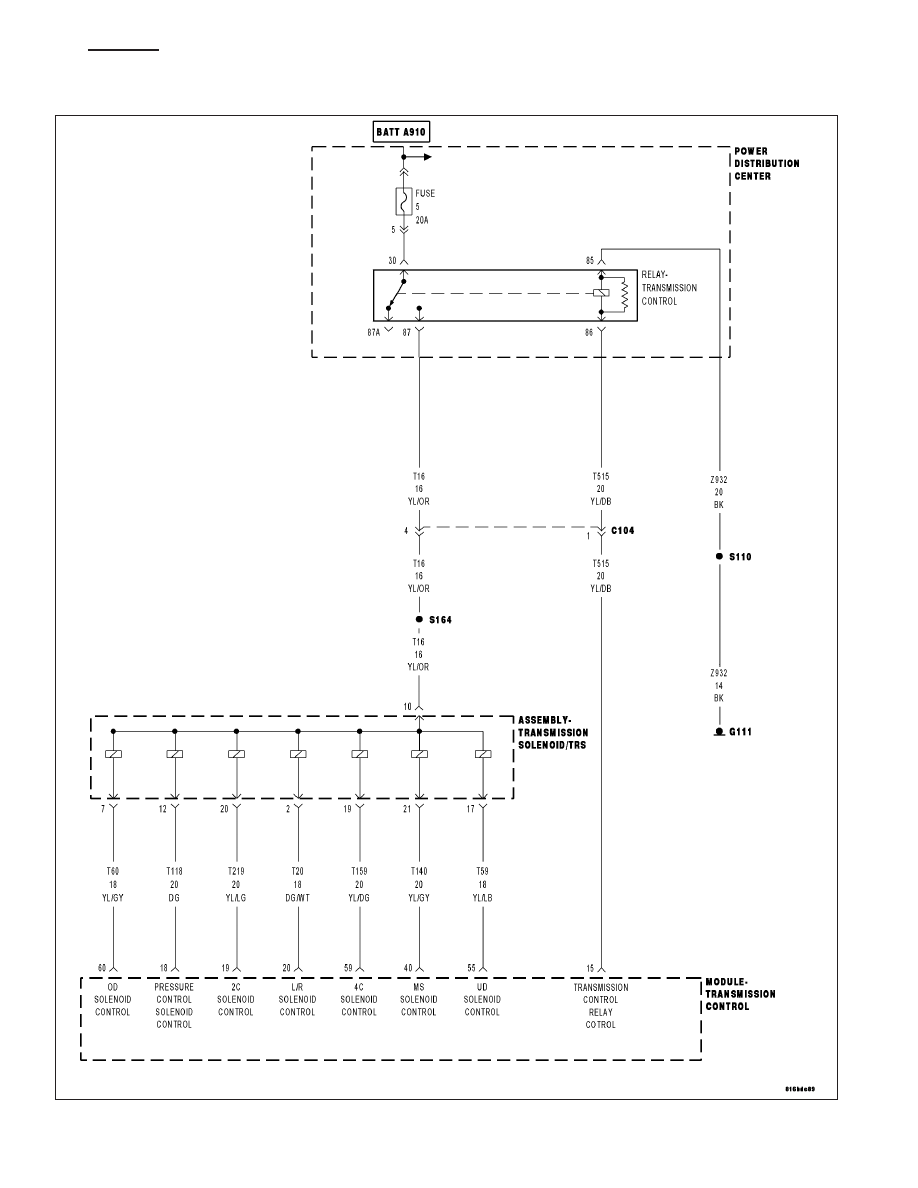

For a complete wiring diagram Refer to Section 8W

KJ

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

21 - 521

When Monitored:
Initially at power-up, then every 10 seconds thereafter. The solenoid circuits will also be tested immediately
after a gear ratio or pressure switch error is detected.

Set Condition:
After three consecutive solenoid continuity test failures, or one failure if test is run in response to a gear ratio
or pressure switch error. Note: This DTC is strictly an electrical fault and does not apply to any internal
transmission failures.

Possible Causes

RELATED TCM POWER INPUT DTCS PRESENT

(T48) 4C SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS

(T48) 4C SOLENOID CONTROL CIRCUIT OPEN

(T48) 4C SOLENOID CONTROL CIRCUIT SHORT TO GROUND

TRANSMISSION SOLENOID/TRS ASSEMBLY

TRANSMISSION CONTROL MODULE

Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

Theory of Operation

The Transmission Control System uses six electronically controlled solenoids that allow hydraulic fluid to be applied
to various friction elements (clutches), which enables the gear requested. The continuity of each solenoid circuit is
periodically tested. Each inactive solenoid is turned on for a few milliseconds, then off. Each active solenoid is
turned off for a few milliseconds, then on. This pulsing of voltage to the solenoid causes an inductive spike which
can be sensed by the Transmission Control System. If an inductive spike is not sensed by the Transmission Control
System during the continuity check, it is tested again. If the test fails three consecutive times, the appropriate Diag-
nostic Trouble Code (DTC) is set. If the solenoid test is run in response to a gear ratio or pressure switch error, one
failure will result in setting the appropriate DTC. Note: This DTC is strictly an electrical fault and does not apply
to any internal transmission failures.

Diagnostic Test

1.

CHECK FOR RELATED TRANSMISSION RELAY DTCS

With the scan tool, check for other transmission DTCs.

Are there any Transmission Control Relay DTCs present?

Yes

>> Refer to the Transmission category and perform the appropriate symptom.

No

>> Go To 2

2.

CHECK IF DTC P0770 IS PRESENT

Turn the ignition off to the lock position.

Remove the Starter Relay.

CAUTION: Removal of the Starter Relay will prevent the vehicle from being started in gear.

WARNING: The Starter Relay must be removed from the PDC. Failure to do so can result in personal injury
or death.

NOTE: Failure to remove the Starter Relay can cause a Transmission - No Response condition.
Install Transmission Simulator, Miller tool #8333.

Ignition on, engine not running.

With the scan tool, actuate the 4C Solenoid.

21 - 522

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

KJ

Monitor the 4C Solenoid LED on the Transmission Simulator.

Did the 4C Solenoid LED on the Transmission Simulator blink on and off?

Yes

>> Go To 3

No

>> Go To 4

3.

CHECK THE TRANSMISSION SOLENOID/TRS ASSEMBLY

With the scan tool, continue to actuate the 4C Solenoid for the period of 2 minutes with the Transmission Simulator
still connected.

After 2 minutes of actuation, with the scan tool, stop the actuation and check for transmission DTCs.

Did the DTC P0770 reset during the actuation test?

Yes

>> Go To 4

No

>> Replace Transmission Solenoid/TRS Assembly per the Service Information. (Refer to 21 - TRANSMIS-

SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE/TRANS SOLENOID/TRS ASSY - REMOVAL)

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

4.

CHECK THE (T48) 4C SOLENOID CONTROL CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT

Turn the ignition off to the lock position.

Disconnect the Transmission Simulator, Miller tool #8333.

Disconnect the TCM harness connector.

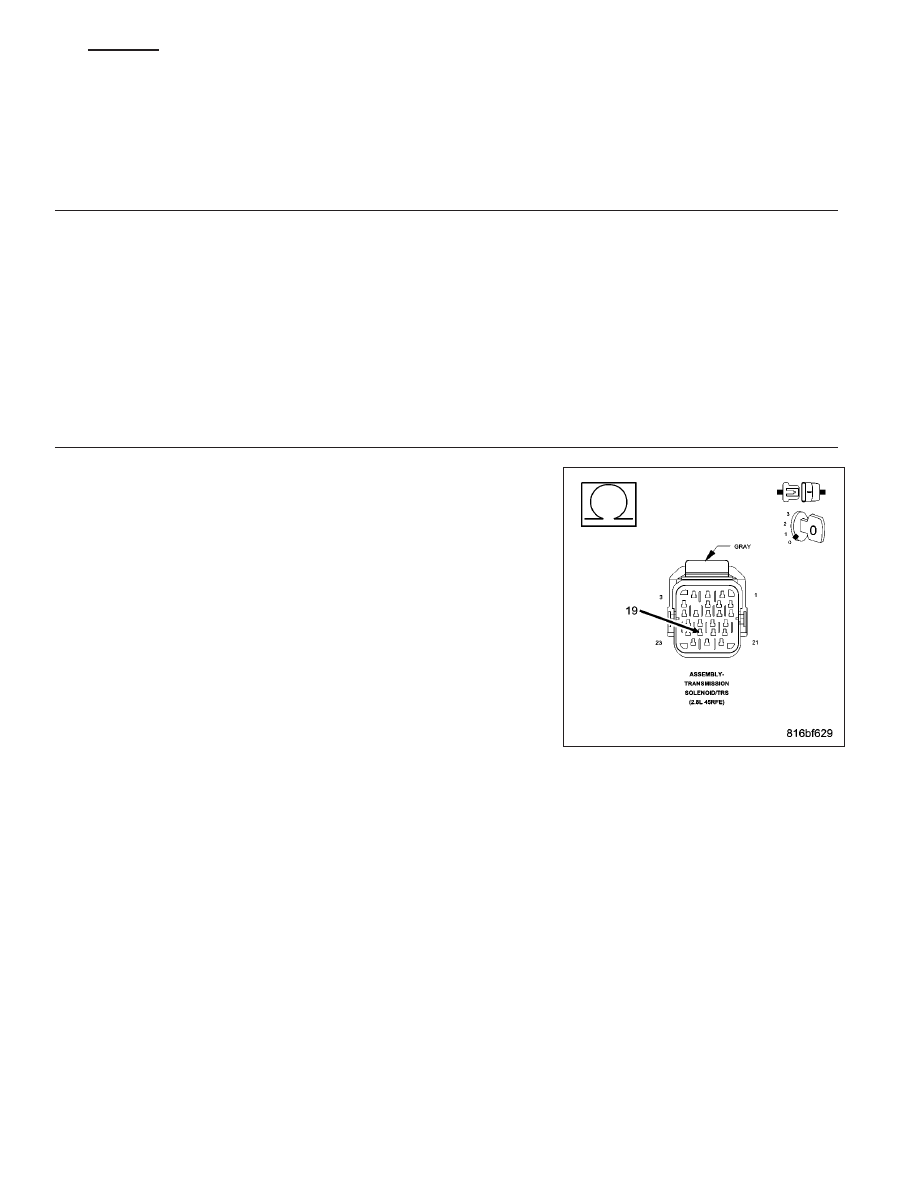

Measure the resistance between the (T48) 4C Solenoid Control circuit
and all other circuits in the Transmission Solenoid/TRS Assembly har-
ness connector.

Is the resistance below 5.0 ohms between the (T48) 4C Sole-
noid Control circuit and any other circuit(s) in the Transmis-
sion Solenoid/TRS Assembly harness connector?

Yes

>> Repair the (T48) 4C Solenoid Control circuit for a short to

another circuit(s).

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)

No

>> Go To 5

KJ

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS - (DIESEL)

21 - 523
