(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED BATTERY TO VOLTAGE

Turn the ignition off.

Disconnect the BCM C2 harness connectors.

Ignition on, engine not running.

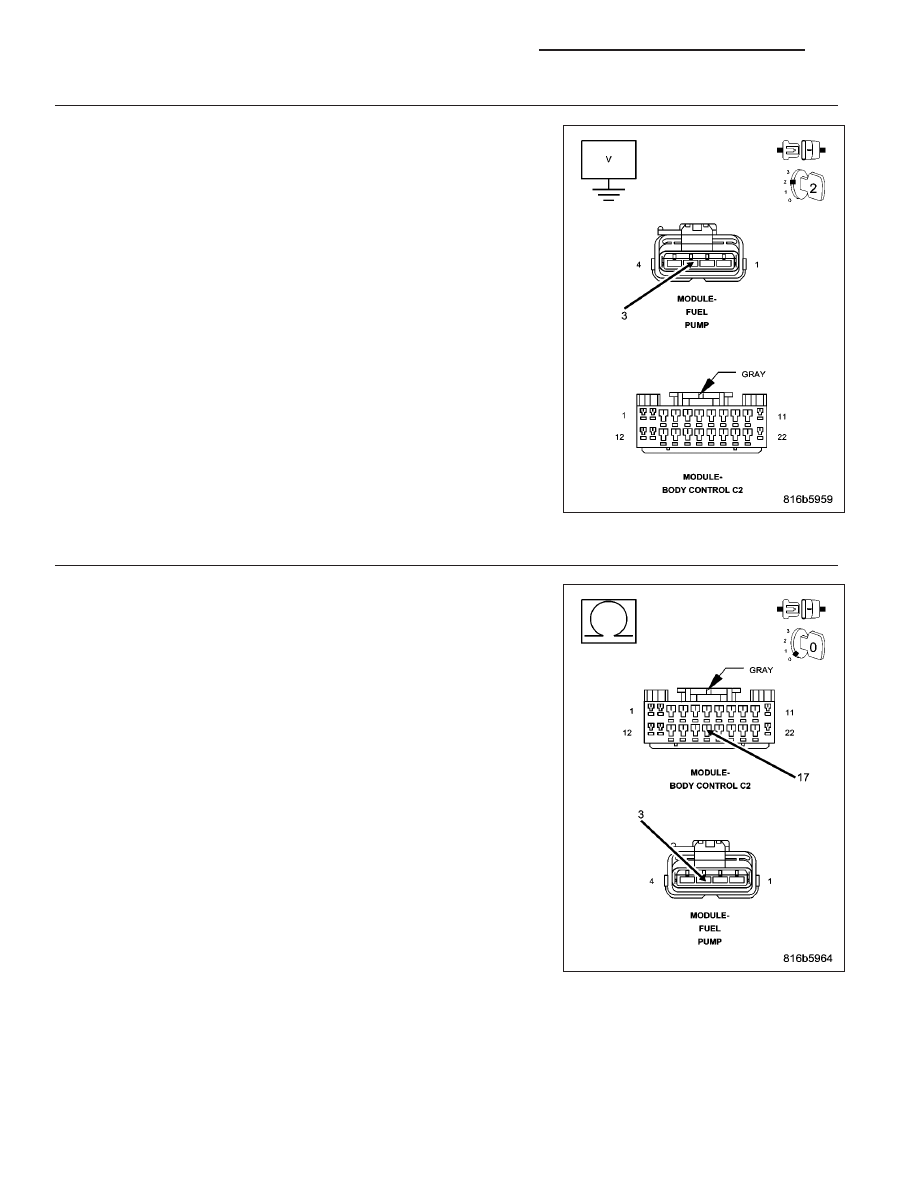

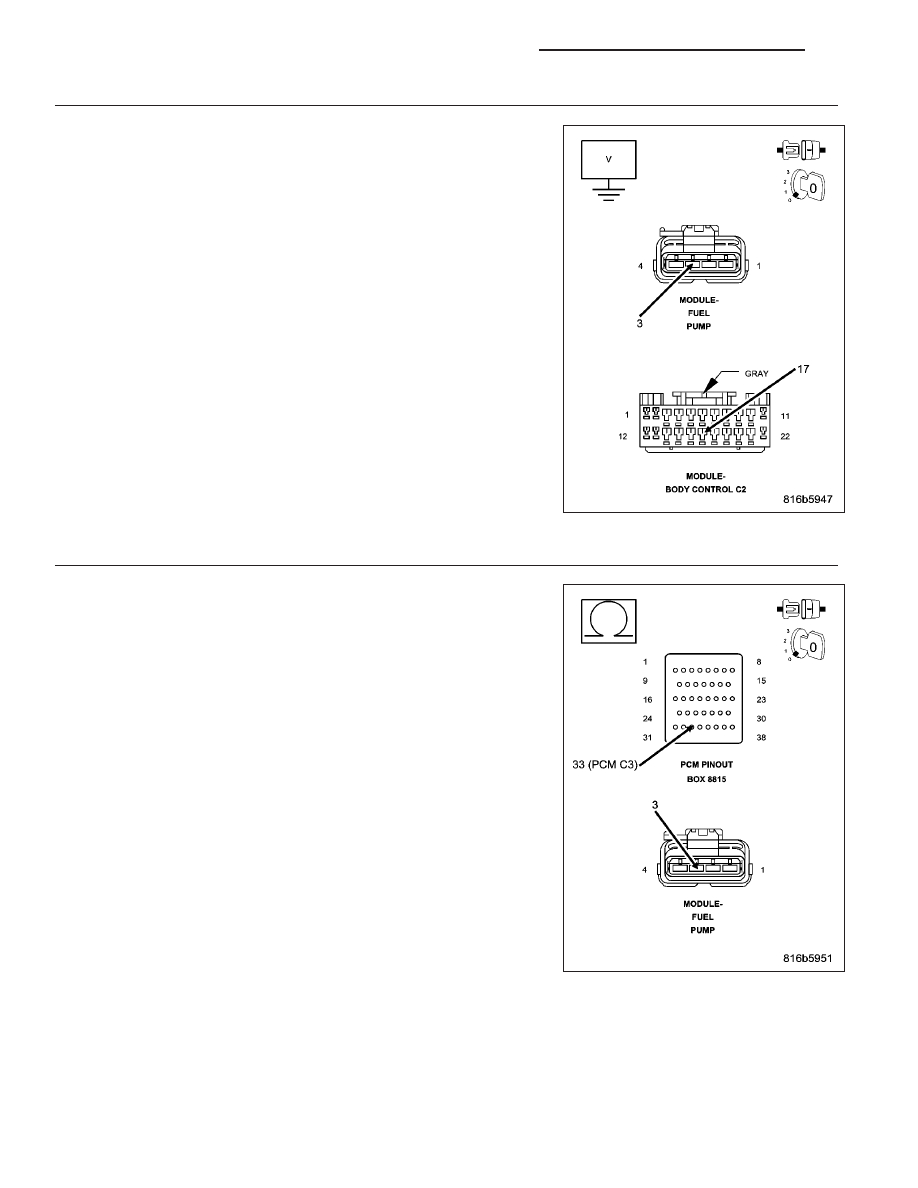

Measure the voltage on the (N4) Fuel Level Signal circuit at the Fuel
Pump Module harness connector.

Is the voltage above 5.3 volts?

Yes

>> Repair the short to voltage in the (N4) Fuel Level Signal cir-

cuit.

Perform BODY VERIFICATION TEST VER -1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 9

9.

(N4) FUEL LEVEL SIGNAL CIRCUIT OPEN

Turn the ignition off.

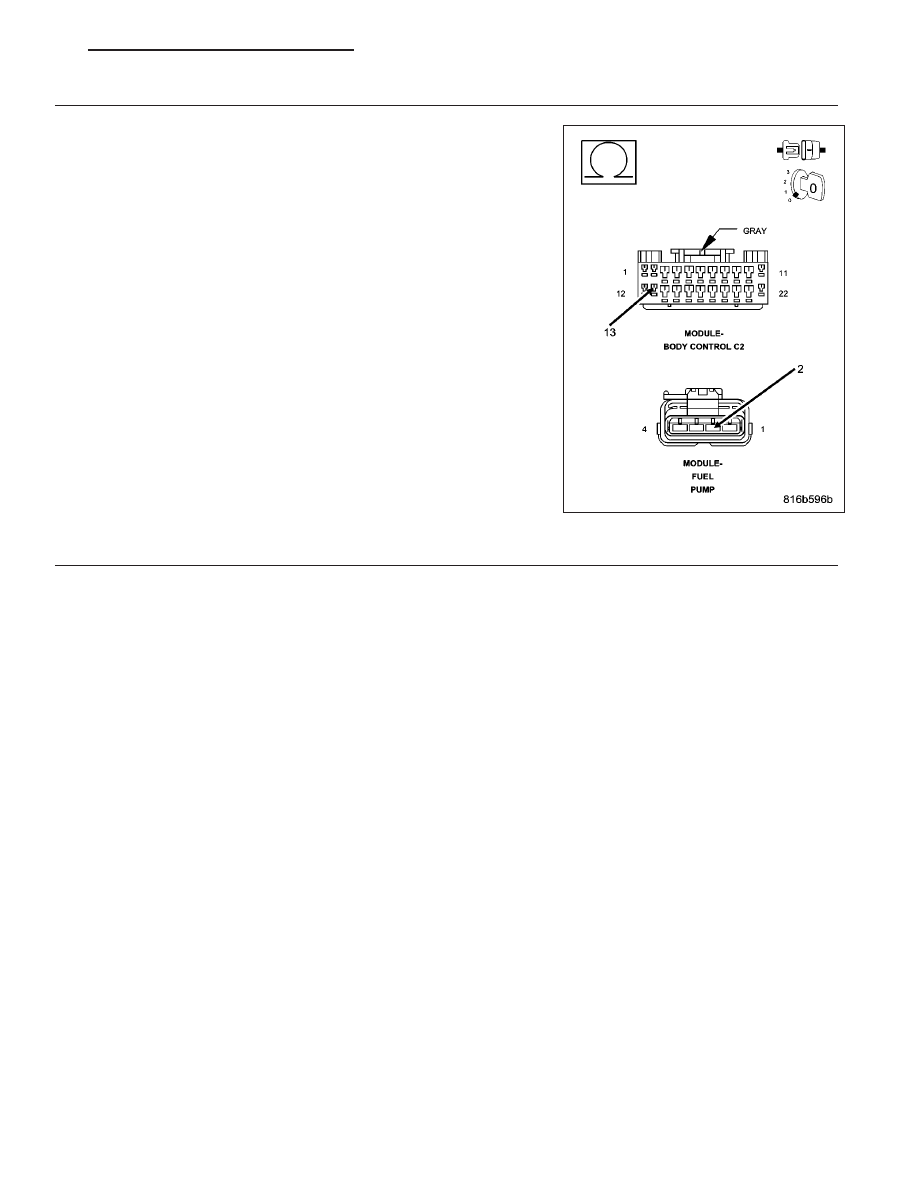

Measure the resistance of the (N4) Fuel Level Signal circuit from the
Fuel Pump Module harness connector to the appropriate terminal in
Miller Special Tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 10

No

>> Repair the open in the (N4) Fuel Level Signal circuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

8J - 34

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

KJ

10.

(K310) SENSOR GROUND CIRCUIT OPEN

Measure the resistance of the (K310) Sensor ground circuit from the
Fuel Pump Module harness connector to the appropriate terminal of
Miller Special Tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 11

No

>> Repair the open in the (K310) Sensor ground circuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

11.

BCM

NOTE: Before continuing, check the BCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

If there are no possible causes remaining, view repair.

Repair

Replace and program the Body Control Module per Service Information.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

KJ

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 35

12.

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the BCM C2 harness connectors.

Ignition on, engine not running.

Measure the voltage on the (N4) Fuel Level Signal circuit at the Fuel
Pump Module harness connector.

Is the voltage above 5.3 volts?

Yes

>> Repair the short to voltage in the (N4) Fuel Level Signal cir-

cuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 13

13.

(K304) FUEL LEVEL SIGNAL CIRCUIT OPEN

Turn the ignition off.

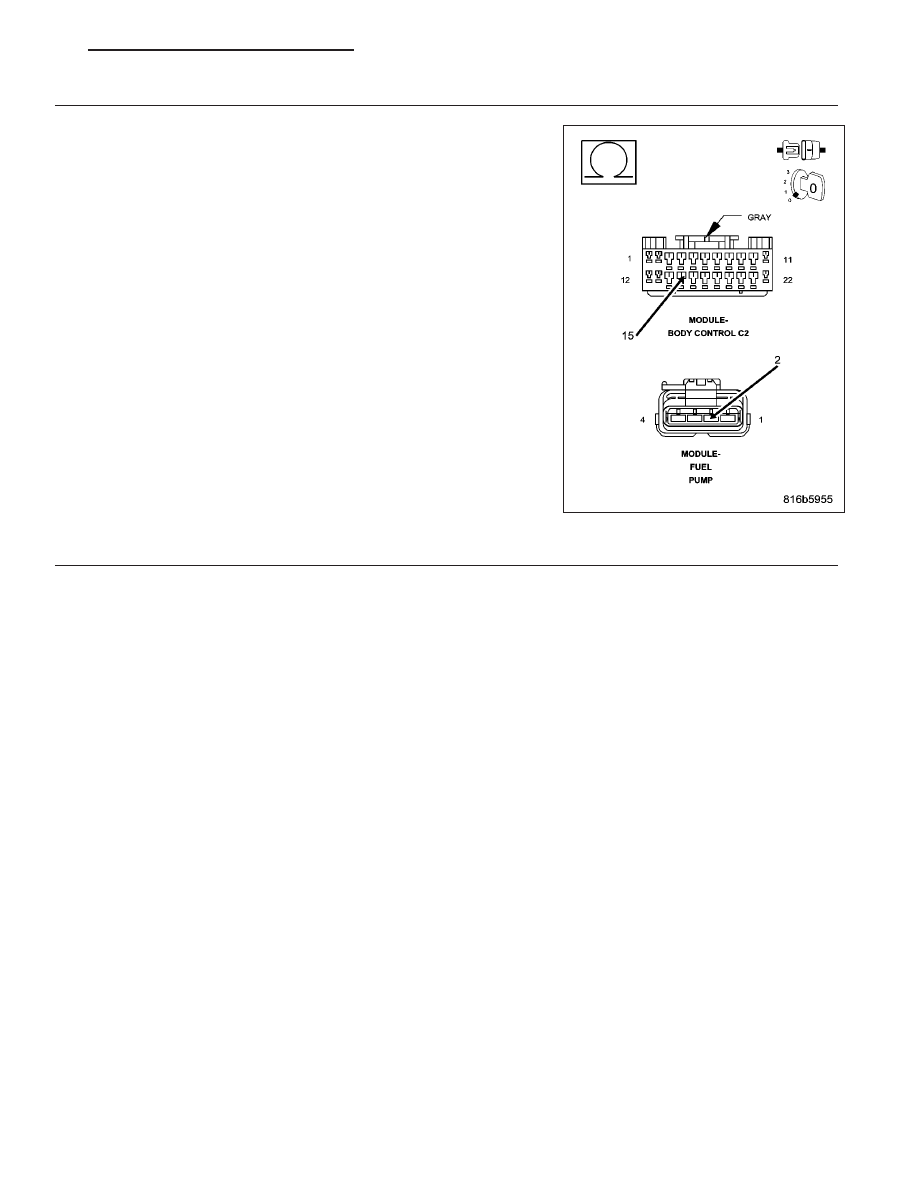

Measure the resistance of the (K304) Fuel Level Signal circuit from the
Fuel Pump Module harness connector to the appropriate terminal in
Miller Special Tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 14

No

>> Repair the open in the (K304) Fuel Level Signal circuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

8J - 36

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

KJ

14.

(K300) SENSOR GROUND CIRCUIT OPEN

Measure the resistance of the (K300) Sensor ground circuit from the
Fuel Pump Module harness connector to the appropriate terminal of
Miller Special Tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 15

No

>> Repair the open in the (K300) Sensor ground circuit.

Perform BODY VERIFICATION TEST VER - 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

15.

BCM

NOTE: Before continuing, check the BCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

If there are no possible causes remaining, view repair.

Repair

Replace and program the Body Control Module per Service Information.

Perform BODY VERIFICATION TEST VER - 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).
