TORQUE REFERENCES

DESCRIPTION

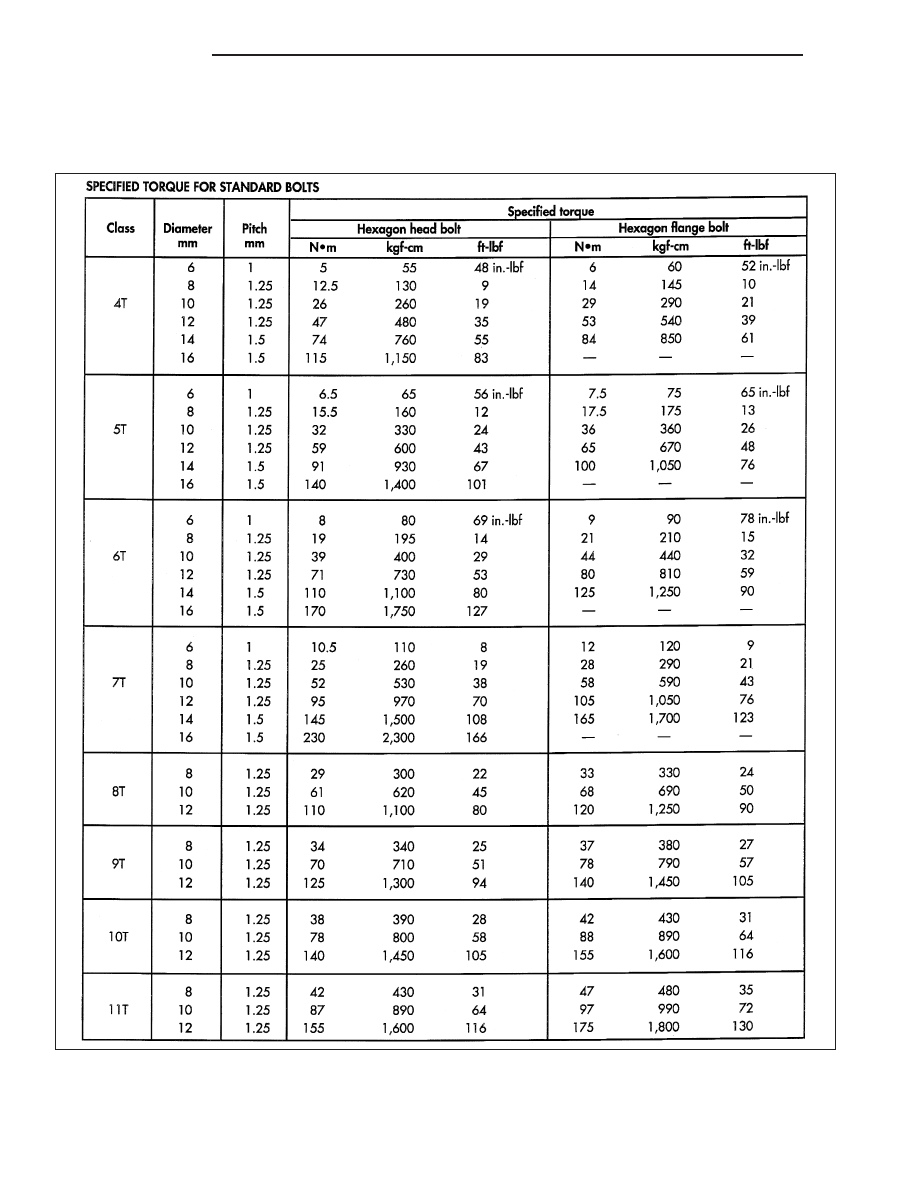

Individual Torque Charts appear within many or the Groups. Refer to the Standard Torque Specifications Chart for
torque references not listed in the individual torque charts.

8

INTRODUCTION

KJ

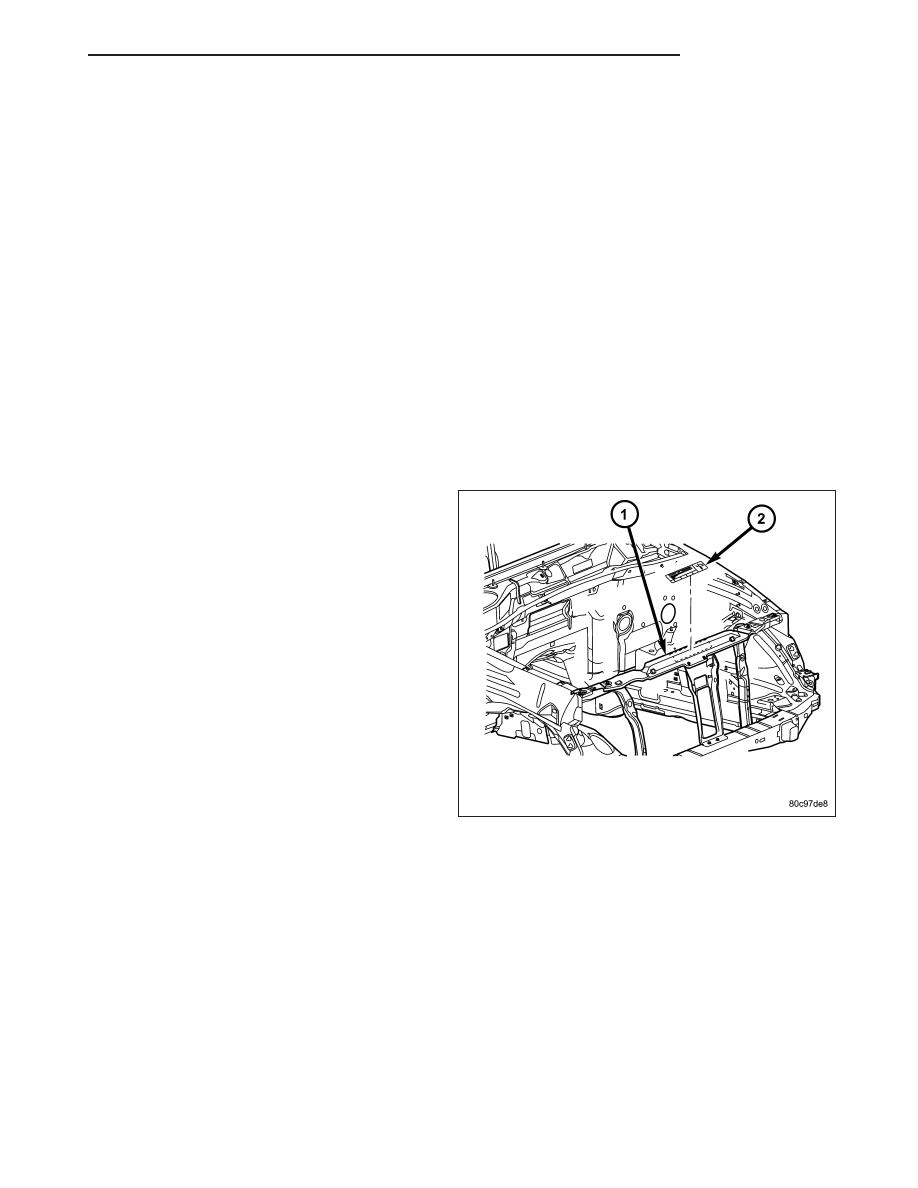

VEHICLE EMISSION CONTROL INFORMATION (VECI) LABEL

DESCRIPTION

All models have a Vehicle Emission Control Information (VECI) Label. DaimlerChrysler permanently attaches the
label in the engine compartment. The label cannot be removed without defacing label information and destroying
label.

The label contains the vehicle’s emission specifications and vacuum hose routings. All hoses must be connected
and routed according to the label.

The label also contains an engine vacuum schematic. There are unique labels for vehicles built for sale in the state
of California and the country of Canada. Canadian labels are written in both the English and French languages.

The VECI label contains the following:

Engine family and displacement

Evaporative family

Emission control system schematic

Certification application

Engine timing specifications (if adjustable)

Idle speeds (if adjustable)

Spark plug and gap

KJ

INTRODUCTION

9

VEHICLE IDENTIFICATION NUMBER

DESCRIPTION

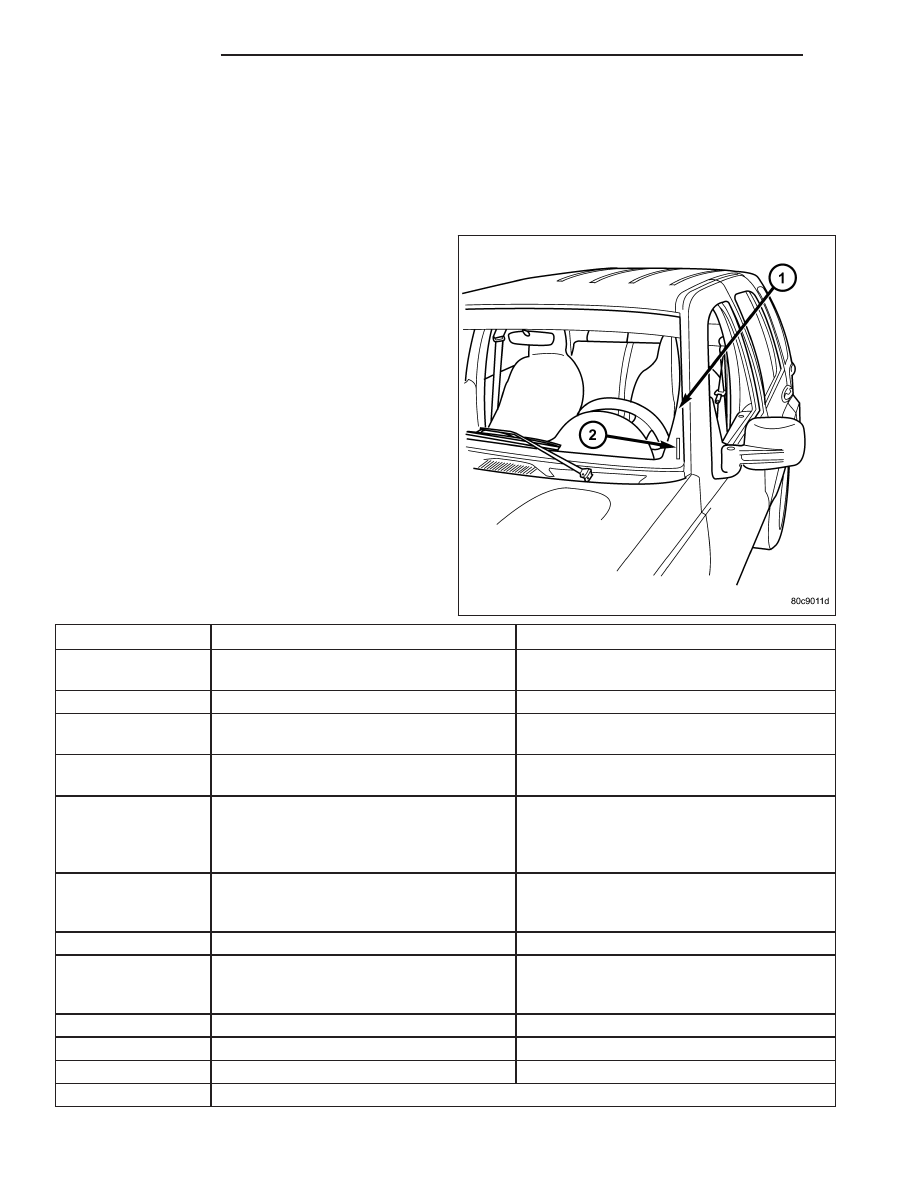

The Vehicle Identification Number (VIN) plate is located on the lower left A-pillar and is visible through the wind-
shield. The VIN contains 17 characters that provide data concerning the vehicle. Refer to the VIN decoding chart to
determine the identification of a vehicle.

The Vehicle Identification Number is also imprinted on
the:

Vehicle Safety Certification Label.

Frame rail.

To protect the consumer from theft and possible fraud
the manufacturer is required to include a Check Digit
at the ninth position of the Vehicle Identification Num-
ber. The check digit is used by the manufacturer and
government agencies to verify the authenticity of the
vehicle and official documentation. The formula to use
the check digit is not released to the general public.

VEHICLE IDENTIFICATION NUMBER DECODING
CHART

POSITION

INTERPRETATION

CODE = DESCRIPTION

1

Country of Origin

1 = Manufactured by DaimlerChrysler

Corporation

2

Make

J = Jeep

3

Vehicle Type

4 = MPV W/O Side Airbags.
8 = MPV With Side Airbags.

4

Gross Vehicle Weight Rating

F = 4001 - 5000 lbs.

G = 5001 - 6000 lbs.

5

Vehicle Line

K = Liberty 4X2 (LHD)

L = Liberty 4X4 (LHD) wihtout ABB

M = Cherokee 4X4 (RHD)

6 = Cherokee (LHD) with ABB

6

Series

3 = Liberty/Renegade

4 = Liberty Sport/Cherokee Sport

5 = Liberty Limited/Cherokee Limited

7

Body Style

8 = Sport Utility - 4 Door

8

Engine

K = 3.7L 6 cyl MPI Gasoline

1 = 2.4L 4 cyl MPI Gasoline

5 = 2.8L 4 cyl Diesel

9

Check Digit

0 through 9 or X

10

Model Year

6=2006

11

Assembly Plant

W = Toledo North Assembly Plant

12 thru 17

Vehicle Build Sequence

10

INTRODUCTION

KJ

VEHICLE CERTIFICATION LABEL

DESCRIPTION

A vehicle certification label is attached to every
DaimlerChrysler Corporation vehicle. The label certi-
fies that the vehicle conforms to all applicable Federal
Motor Vehicle Standards. The label also lists:

Month and year of vehicle manufacture.

Gross Vehicle Weight Rating (GVWR). The gross
front and rear axle weight ratings (GAWR’s) are
based on a minimum rim size and maximum cold
tire inflation pressure.

Vehicle Identification Number (VIN).

Type of vehicle.

Type of rear wheels.

Bar code.

Month, Day and Hour (MDH) of final assembly.

Paint and Trim codes.

Country of origin.

The label is located on the driver-side door shut-face.

KJ

INTRODUCTION

11
