P0463-FUEL LEVEL SENSOR 1 CIRCUIT HIGH (CONTINUED)

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on and battery voltage above 10.4 volts.

Set Condition:
The fuel level sensor signal voltage at the PCM goes above 4.9 volts for more than 90 seconds. One Trip
Fault. Three good trips to turn off the MIL.

Possible Causes

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

(Z912), (Z210) GROUND CIRCUIT OPEN

FUEL LEVEL SENSOR

INSTRUMENT CLUSTER

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

FUEL LEVEL SENSOR VOLTS ABOVE 4.9 VOLTS

NOTE: Diagnose any CAN - B and CAN - C Communication DTCs before continuing.
Ignition on, engine not running.

With a scan tool, read the Fuel Level Sensor voltage.

Is the Fuel Level Sensor voltage above 4.9 volts?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.

FUEL LEVEL SENSOR

Turn the ignition off.

Disconnect the Fuel Pump Module electrical harness connector.

Ignition on, engine not running.

Did the Fuel Level gauge change from full to empty?

Yes

>> Replace the Fuel Level Sensor.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 3

9 - 524

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0463-FUEL LEVEL SENSOR 1 CIRCUIT HIGH (CONTINUED)

3.

(N4) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

Turn the ignition off.

Disconnect the C1 Cluster harness connector.

Ignition on, engine not running.

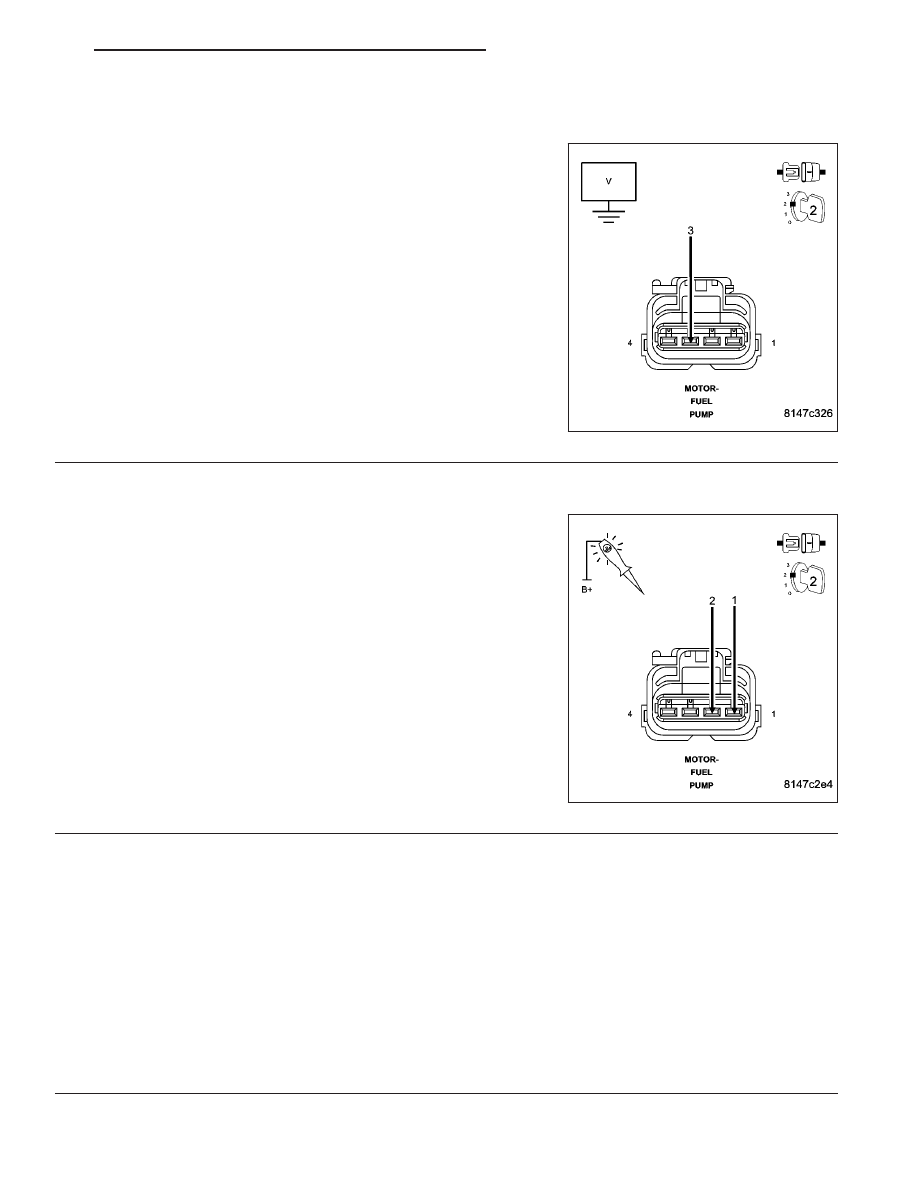

Measure the voltage on the (N4) Fuel Level Signal circuit in the Fuel
Pump Module harness connector.

Is the voltage above 0 volts?

Yes

>> Repair the short to battery voltage in the (N4) Fuel Level

Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

4.

(Z910), (Z210) GROUND CIRCUIT OPEN

Turn the ignition off.

Using a 12-volt test light connected to B+, probe (Z910) and (Z210)
Ground circuits at the Fuel Pump Module harness connector.

Does the test light illuminate brightly?

Yes

>> Go To 5

No

>> Repair the open in the (N4) Fuel Level Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

5.

INSTRUMENT CLUSTER

NOTE: Before continuing, check the Instrument Cluster harness connector terminals for corrosion, damage,
or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform BODY VERIFICATION TEST-VER 1.

No

>> Replace and program the Instrument Cluster per Service Information.

Perform BODY VERIFICATION TEST-VER 1.

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 525

P0480-COOLING FAN 1 CONTROL CIRCUIT

9 - 526

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0480-COOLING FAN 1 CONTROL CIRCUIT (CONTINUED)

For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on. Battery voltage greater than 10 volts.

Set Condition:
An open or shorted circuit is detected in the radiator fan relay control circuit. One Trip Fault. Three good trips
to turn off the MIL.

Possible Causes

(A16) FUSED B+ CIRCUITS

(N201) COOOLING FAN NO.1 RELAY CONTROL CIRCUIT OPEN

(N201) COOOLING FAN NO.1 RELAY CONTROL CIRCUIT SHORTED TO GROUND

LOW SPEED RADIATOR FAN RELAY

FRONT CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

LOW SPEED RADIATOR FAN RELAY OPERATION

Ignition on, engine not running.

With a scan tool, actuate the Low Speed Radiator Fan Relay.

Is the Cooling Fan Relay operating?

Yes

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 2

2.

(A16) FUSED B+ CIRCUITS

Turn the ignition off.

Remove the Low Speed Radiator Fan Relay.

Using a 12-volt test light connected to ground, probe the (A16) Fused B+ circuits.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the open or short to ground in the (A16) Fused B+ circuits. Inspect the related fuse and repair

as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 527
