Jeep Grand Cherokee WK. Manual - part 721





B1439-PHONE SWITCH STUCK

8T - 30

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

WK

B1439-PHONE SWITCH STUCK (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects voltage between 2.8 volts and 3.3 volts on the (X730) Voice Recognition/
Phone Switch Signal circuit for more than 30 seconds.

Possible Causes

INSIDE REAR VIEW MIRROR

HANDS FREE MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTCS

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

2.

CHECK THE VOLTAGE OF THE (X730) VOICE RECOGNITION/PHONE SWITCH SIGNAL

Turn the ignition off.

Disconnect the Inside Rear View Mirror C2 harness connector.

Turn the ignition on.

With the scan tool, monitor the VR Phone Switch voltage.

While monitoring the VR Phone Switch voltage, momentarily connect a
jumper wire between (X730) Voice Recognition/Phone Switch Signal
circuit and ground.

NOTE: The scan tool sensor voltage should switch from above
4.7 volts when the jumper is not connected to below 0.6 volts
when the jumper is connected.

Does the sensor voltage switch from above 4.7 volts to below
0.6 volt as described?

Yes

>> Replace the Inside Rear View Mirror in accordance with

the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace and program the Hands Free Mod-
ule in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

WK

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 31

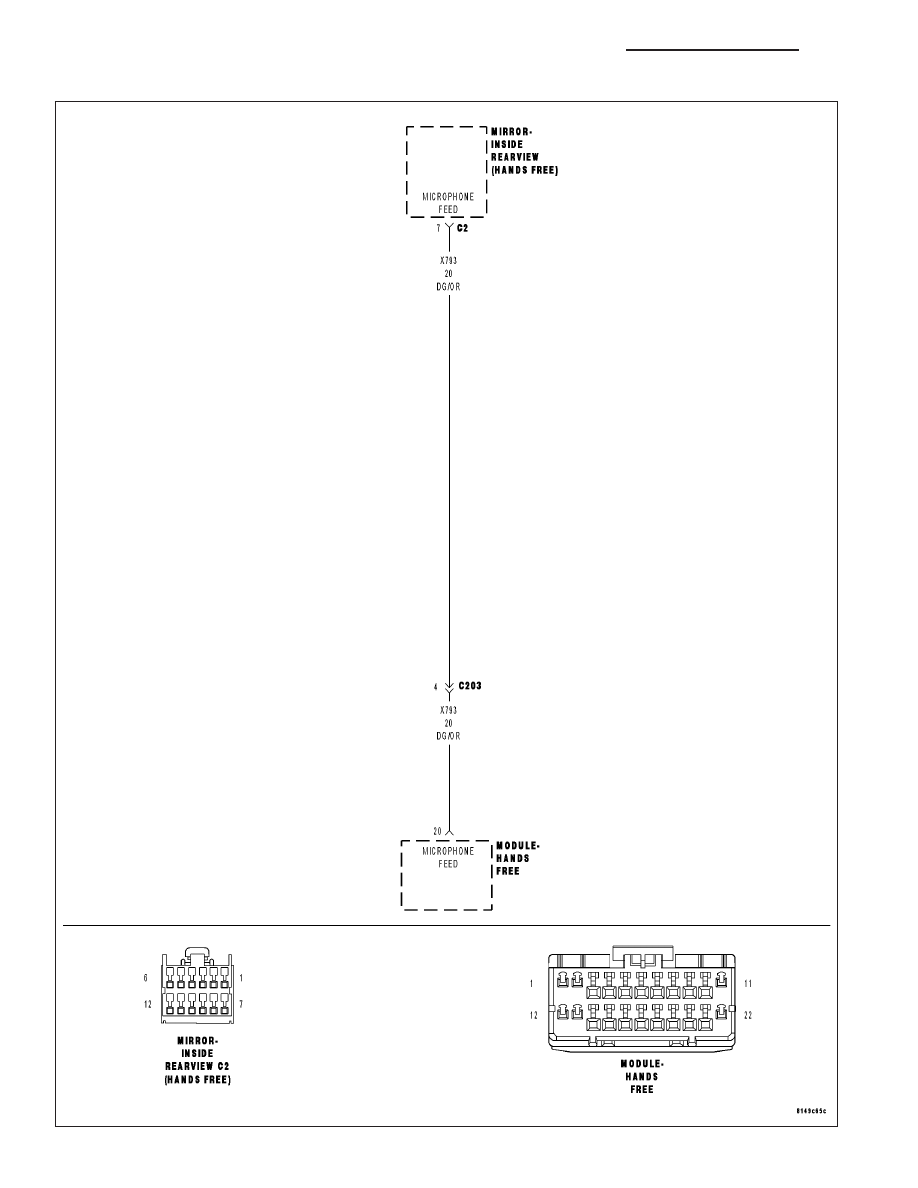

B145A-TELEMATICS MIRROR CONTROL CIRCUIT HIGH

8T - 32

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

WK

B145A-TELEMATICS MIRROR CONTROL CIRCUIT HIGH (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects high voltage on the (X793) Microphone Feed circuit.

Possible Causes

(X793) MICROPHONE FEED CIRCUIT OPEN

(X793) MICROPHONE FEED CIRCUIT SHORT TO VOLTAGE

INSIDE REAR VIEW MIRROR

HANDS FREE MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

Attempt to make a phone call with the system.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

WK

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 33
