Jeep Grand Cherokee WK. Manual - part 699





B2320-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT HIGH (CONTINUED)

For the Wiper/Washer system circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The FCM detects an open condition.

Possible Causes

(W10) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

(W20) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

FRONT CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC’s.

Turn the Washers on.

With the Scan Tool, read the Wiper/Washers DTC’s.

Does the Scan Tool read: B2320-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

8R - 18

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

WK

B2320-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT HIGH (CONTINUED)

2.

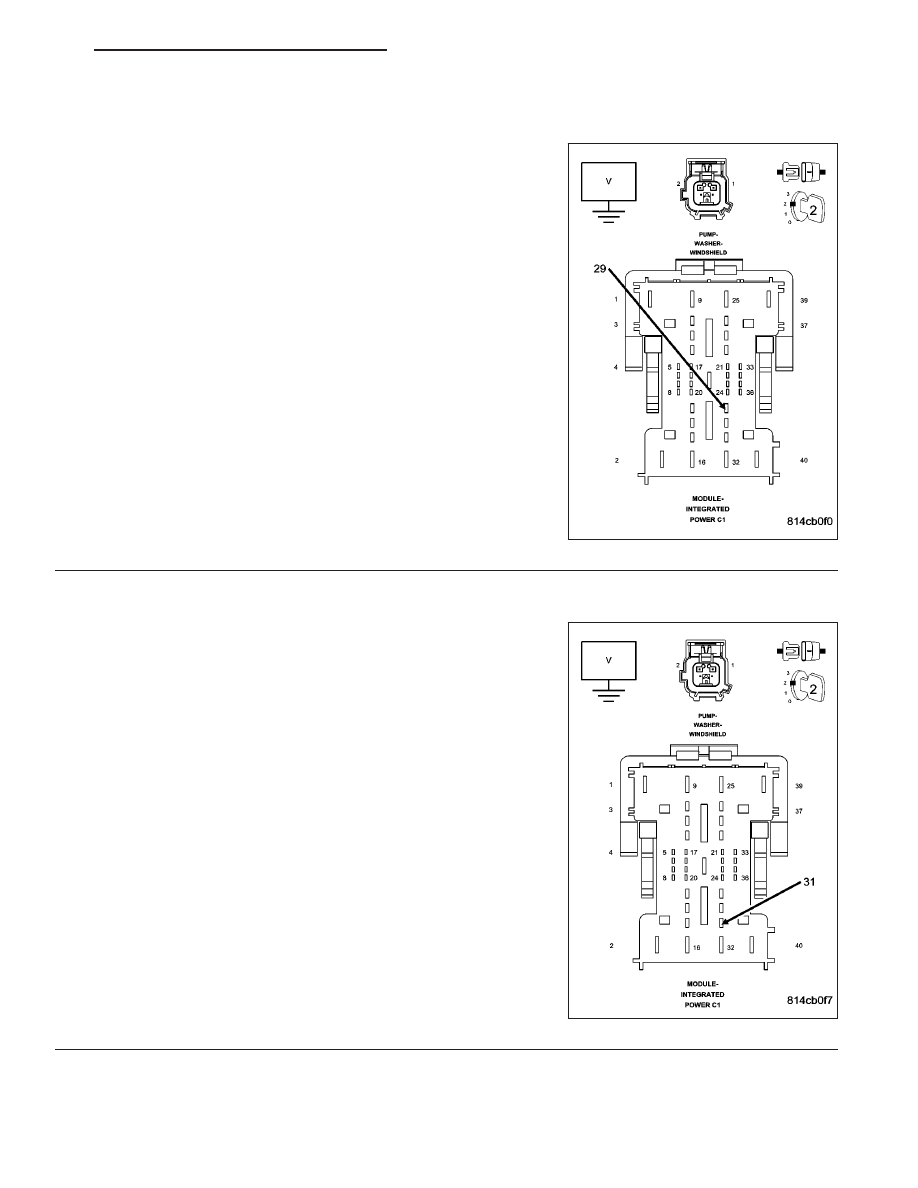

(W10) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the IPM C1 harness connector.

Disconnect the Washer Pump Motor harness connector.

Turn the ignition on.

Measure the voltage of the (W10) Washer Pump Motor Control circuit.

Is the voltage above 5.0 volts?

Yes

>> Repair the (W10) Washer Pump Motor Control circuit for a

short to voltage.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Go To 3

3.

(W20) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

Measure the Voltage of the (W20) Washer Pump Motor Control circuit.

Is the voltage above 5.0 volts?

Yes

>> Repair the (W20) Washer Pump Motor Control circuit for a

short to voltage.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Replace the Front Control Module in accordance with the

service information.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

WK

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 19

B2328-WASHER FLUID LEVEL SENSOR INPUT CIRCUIT HIGH

8R - 20

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

WK

B2328-WASHER FLUID LEVEL SENSOR INPUT CIRCUIT HIGH (CONTINUED)

For the Rear Wipers/Washers circuit diagram (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS AND
DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
When the FCM detects a high condition.

Possible Causes

(W1) WASHER FLUID LEVEL SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

FRONT CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC’s.

Turn the Wipers on.

With the Scan Tool, read the Wiper DTC’s.

Does the Scan Tool read: B2328-WASHER FLUID LEVEL SENSOR INPUT CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

2.

(W1) WASHER FLUID LEVEL SENSOR SIGNAL CIRCUIT
SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the Washer Fluid Level Sensor connector.

Disconnect the Front Control Module C1 connector.

Turn the ignition on.

Measure the voltage of the (W1) Washer Fluid Level Sensor Signal cir-
cuit.

Is the voltage above 5.0 volts?

Yes

>> Repair the (W1) Washer Fluid Level Sensor Signal circuit

for a short to voltage.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Replace the Front Control Module in accordance with the

service information.

Perform the BODY VERIFICATION TEST — VER 1.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

WK

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 21
