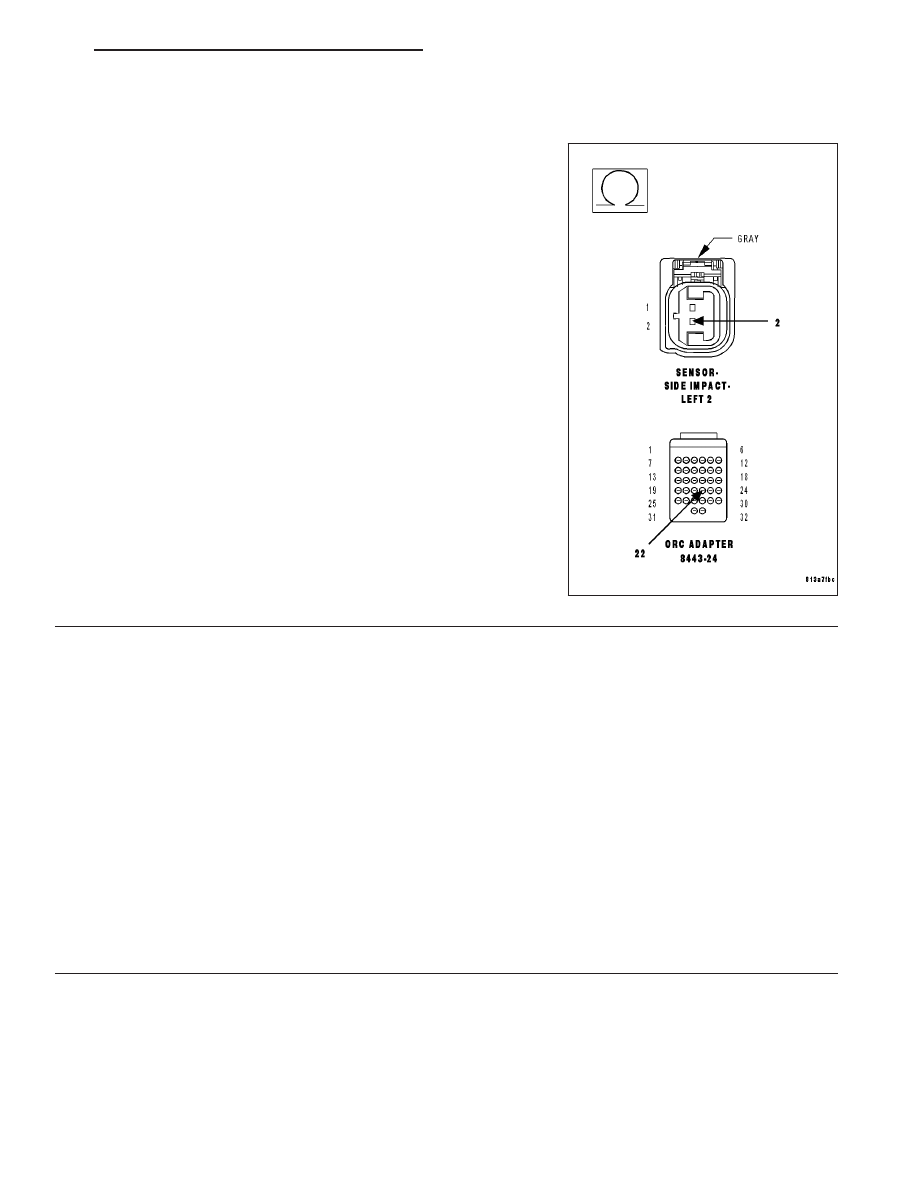

U0173-LOST COMMUNICATION W/LEFT SIDE SATELLITE ACCELERATION SENSOR 2 (CONTINUED) 4. CHECK THE (R17, R19) LEFT SIDE IMPACT SENSOR 2 CIRCUITS FOR A SHORT TOGETHER Measure the resistance between the (R17) Left Side Impact Sensor 2 Is the resistance below 100K ohms? Yes >> Repair the (R17, R19) Left Side Impact Sensor 2 circuits shorted together. Perform the ORC VERIFICATION TEST - VER 1. No >> Go To 5 5. CHECK THE (R19) LEFT SIDE IMPACT SENSOR 2 GROUND CIRCUIT FOR AN OPEN OR HIGH Connect the 8443 Load Tool ORC Adaptor to the Occupant Control Measure the resistance of the (R19) Left Side Impact Sensor 2 Is the resistance below 1 ohm? Yes >> Go To 6 No >> Repair the (R19) Left Side Impact Sensor 2 Ground circuit for an open or high resistance. Perform the ORC VERIFICATION TEST - VER 1. 8O - 398 RESTRAINTS - ELECTRICAL DIAGNOSTICS WK |
