B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFORMANCE

8O - 254

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFORMANCE (CONTINUED)

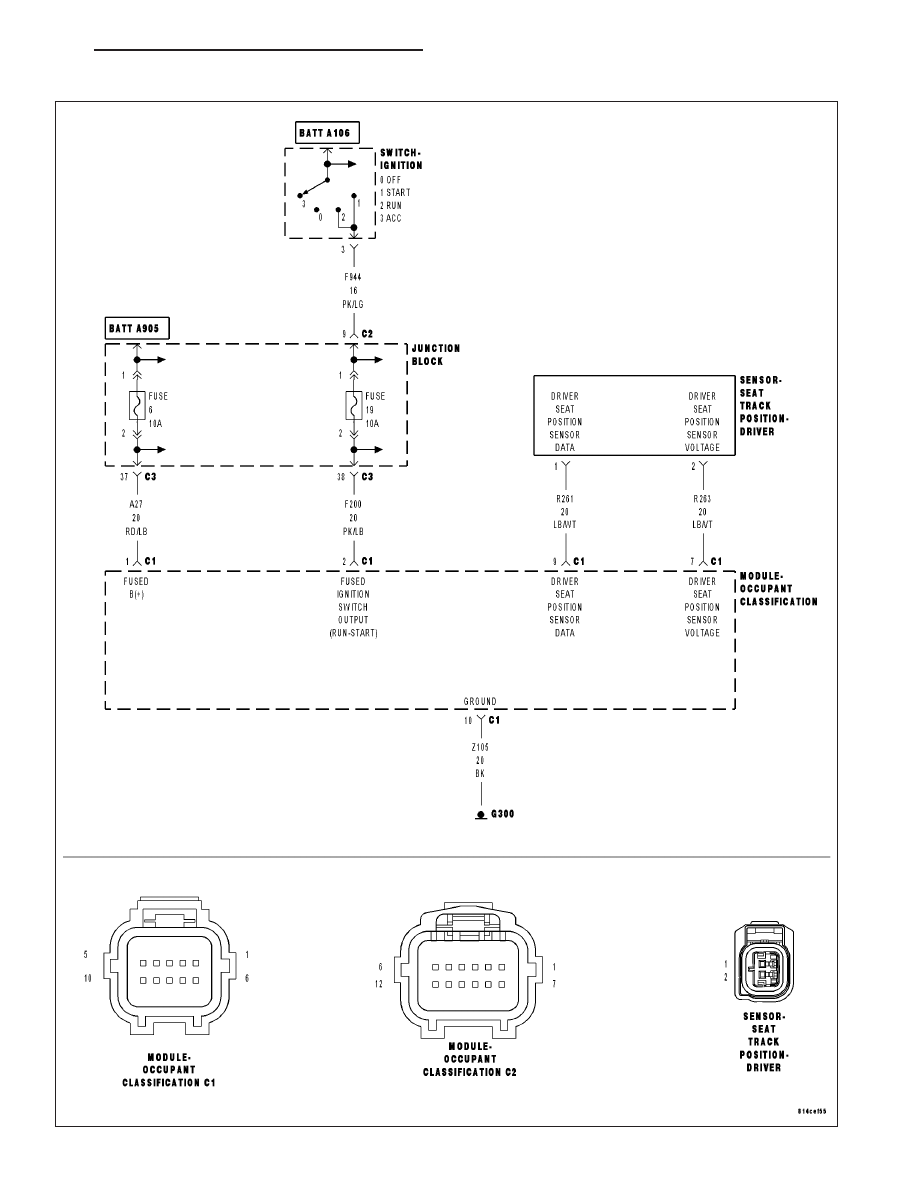

For the Occupant Classification System circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS
AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
While the CAN bus ignition status is in IGN_RUN, the module checks the sensor input ranges.

Set Condition:
If the module detects that the sensor input is between 8 and 12 mA.

Possible Causes

DRIVER SEAT TRACK POSITION SENSOR

OCCUPANT CLASSIFICATION MODULE (OCM)

Diagnostic Test

1.

CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, BATTERY FAULTS, & SEAT TRACK
POSITION SENSOR CIRCUIT HIGH OR LOW FAULTS IN THE OCCUPANT CLASSIFICATION MODULE
(OCM)

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
Turn the ignition on, then off, and then on again.

With the scan tool, read Occupant Classification Module (OCM) DTCs.

Does the scan tool display any active DTCs relating to internal faults, ignition faults, battery faults, or
Seat Track Position Sensor Circuit High or Low faults?

Yes

>> Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of

symptoms.

No

>> Go To 2

2.

VERIFY THAT B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFORMANCE IS ACTIVE

With the scan tool, read OCM DTCs.

Does the scan tool display active: B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFOR-
MANCE?

Yes

>> Go To 3

No

>> Go To 4

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 255

B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFORMANCE (CONTINUED)

3.

PERFORM SEAT TRACK POSITION SENSOR PERFORMANCE TEST

With the scan tool, erase OCM DTCs.

Turn the ignition off, wait 10 seconds and then turn the ignition on.

Cycle the driver seat to the full forward position and then to the full rearward position.

Return the driver seat to its approximate original position.

Wait two minutes, and then with the scan tool, read OCM DTCs.

Does the scan tool display active: B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFOR-
MANCE?

Yes

>> Replace the Driver Seat Track Position Sensor in accordance with the Service Information.

Perform the OCS VERIFICATION TEST-VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNO-
SIS AND TESTING) If DTC B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFOR-
MANCE returns active, replace the OCM in accordance with the Service Information.

No

>> Perform the OCS VERIFICATION TEST-VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNO-

SIS AND TESTING)

4.

TEST FOR AN INTERMITTENT CONDITION

With the scan tool, record and erase all DTC’s from the OCM.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If only stored codes return continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate symptom from Symptom List.

No

>> No problem found at this time. Erase all codes before returning vehicle to customer.
