Jeep Grand Cherokee WK. Manual - part 587





B1B71-UP-FRONT RIGHT SATELLITE ACCELERATION SENSOR INTERNAL (CONTINUED)

8.

REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the
proper precautions could result in accidental airbag deployment and personal injury or death.

If there are no possible causes remaining, view repair.

Repair

Replace the Occupant Restraint Controller in accordance with Service Instructions.

Perform the ORC VERIFICATION TEST - VER 1.

9.

TEST FOR AN INTERMITTENT CONDITION

With the scan tool, record and erase all DTC’s from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate symptom from Symptom List.

No

>> No problem found at this time. Erase all codes before returning vehicle to customer.

8O - 170

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 171

B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL (CONTINUED)

For the Airbag System circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
The Occupant Restraint Controller (ORC) continuously communicates with the Left Side Impact Sensor 1 over
the sensor signal circuit. The sensor communication and on board diagnostics are powered by the ORC signal.

Set Condition:
This code will set, if the ORC and the Left Side Impact Sensor 1 do not establish and maintain valid data
communications.

Possible Causes

(R13) SIGNAL CIRCUIT SHORTED TO BATTERY

(R13) SIGNAL CIRCUIT SHORTED TO GROUND

(R13, R15) LEFT SIDE IMPACT SENSOR 1 CIRCUITS SHORTED TOGETHER

(R15) LEFT SIDE IMPACT SENSOR 1 GROUND CIRCUIT OPEN

(R13) LEFT SIDE IMPACT SENSOR 1 SIGNAL CIRCUIT OPEN

ORC, LEFT SIDE IMPACT SENSOR 1

Diagnostic Test

1.

VERIFY THAT DTC B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL 1 IS ACTIVE

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
Turn the ignition on.

With the scan tool, read ORC DTCs.

Does the scan tool display active: B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL?

Yes

>> Go To 2

No

>> Go To 9

8O - 172

RESTRAINTS - ELECTRICAL DIAGNOSTICS

WK

B1B72-LEFT SIDE SATELLITE ACCELERATION SENSOR 1 INTERNAL (CONTINUED)

2.

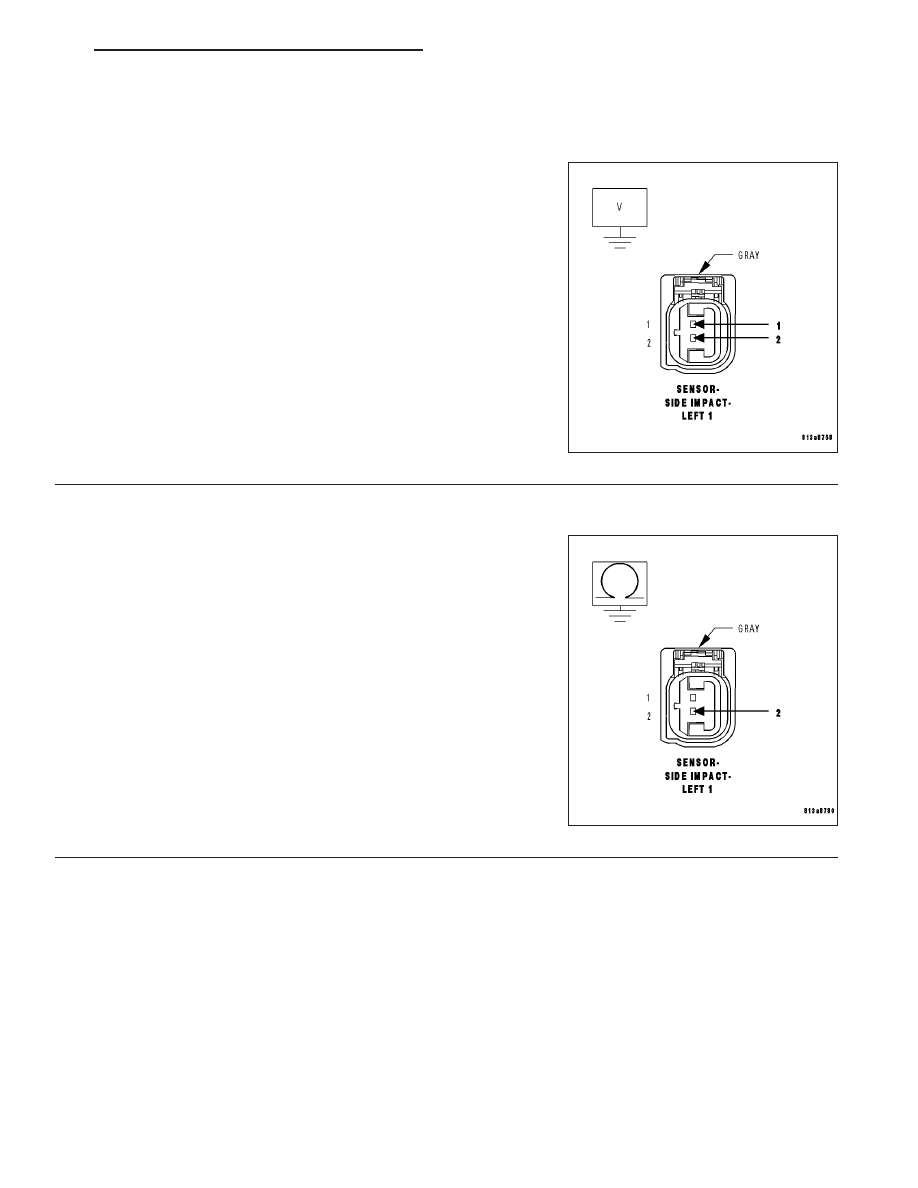

CHECK THE (R13, R15) LEFT SIDE IMPACT SENSOR 1 SIGNAL AND GROUND CIRCUITS FOR A SHORT
TO BATTERY

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the Left front Impact Sensor 1 connector.

Disconnect the ORC connector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
Measure the voltage of the (R13) Left Side Impact Sensor 1 Signal
circuit and (R15) Sensor Ground circuit at the Left Side Impact Sensor
1 connector and ground.

Is there any voltage present?

Yes

>> Repair the (R13, R15) Left Side Impact Sensor 1 circuits

for a short to battery.

Perform the ORC VERIFICATION TEST - VER 1.

No

>> Go To 3

3.

CHECK THE (R13) LEFT SIDE IMPACT SENSOR 1 SIGNAL CIRCUIT FOR A SHORT TO GROUND

WARNING: To avoid personal injury or death, turn ignition on,
then reconnect the battery.
Measure the resistance of the (R13) Left Side Impact Sensor 1 Signal
circuit between the Left Side Impact Sensor 1 connector and ground.

Is the resistance below 100K ohms?

Yes

>> Repair the (R13) Left Side Impact Sensor 1 Signal circuit

for a short to ground.

Perform the ORC VERIFICATION TEST - VER 1.

No

>> Go To 4

WK

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 173
