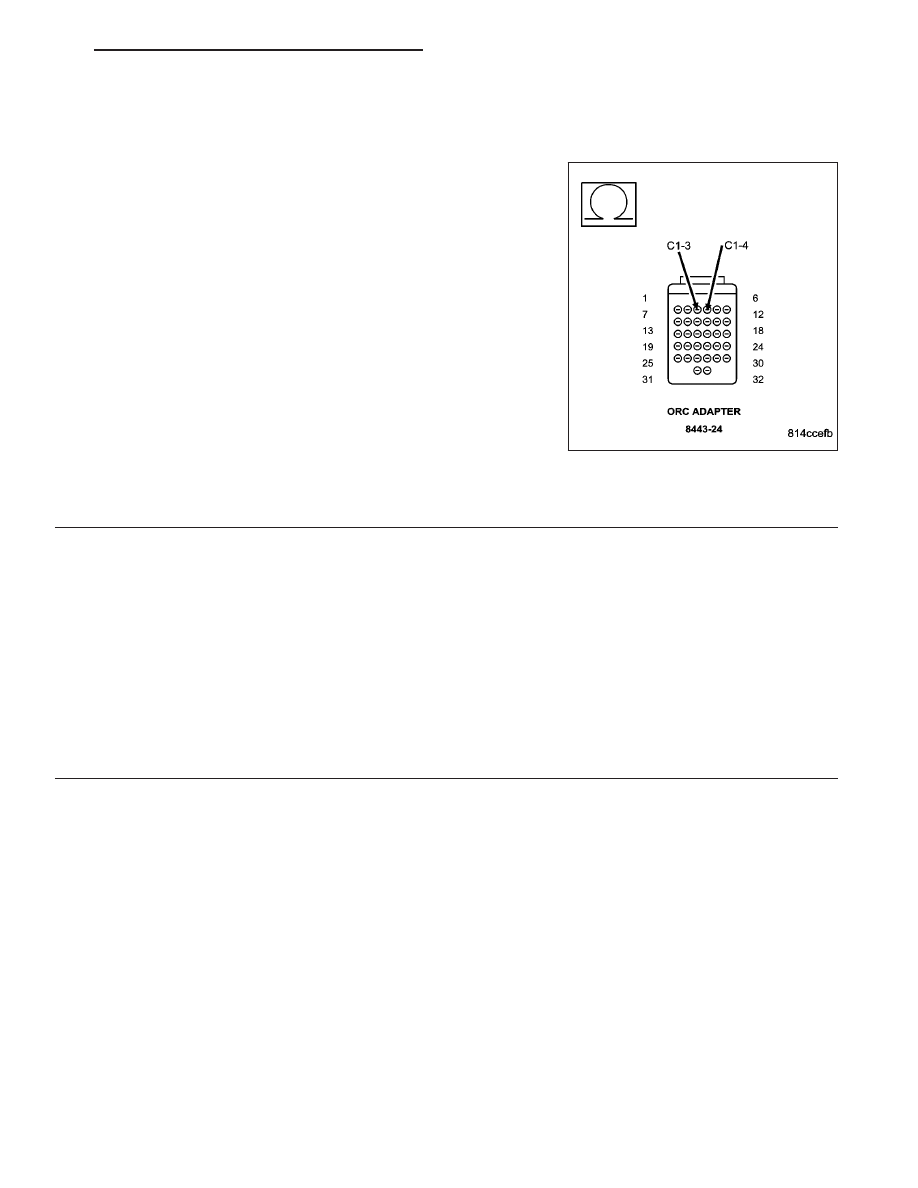

B1B2E-1st ROW PASSENGER SEAT BELT PRETENSIONER CIRCUIT OPEN (CONTINUED) 3. CHECK (R56) PASSENGER SEAT BELT TENSIONER LINE 1 CIRCUIT FOR AN OPEN WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min- Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. Measure the resistance of the (R56) Passenger Seat Belt Tensioner Line 1 circuit between the Passenger Seat Belt Is the resistance below 1.0 ohm? Yes >> Go To 4 No >> Repair the (R56) Passenger Seat Belt Tensioner Line 1 circuit for an open. Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS 4. CHECK (R54) PASSENGER SEAT BELT TENSIONER LINE 2 CIRCUIT FOR AN OPEN Measure the resistance of the (R54) Passenger Seat Belt Tensioner Line 2 circuit between the Passenger Seat Belt Is the resistance below 1.0 ohm? Yes >> Go to 5 No >> Repair the (R54) Passenger Seat Belt Tensioner Line 2 circuit for an open. Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS 5. REPLACE THE ORC WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must Repair Replace the ORC in accordance with Service Information. Perform ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS 8O - 154 RESTRAINTS - ELECTRICAL DIAGNOSTICS WK |
