Jeep Grand Cherokee WK. Manual - part 468





B1804 DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK UNLOCK – DRIVER
MEMORY MIRROR MODULE

8N - 32

POWER LOCKS - ELECTRICAL DIAGNOSTICS

WK

B1804 DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK UNLOCK – DRIVER MEMORY MIRROR
MODULE (CONTINUED)

For the Power Door Lock circuit diagram (Refer to 8 - ELECTRICAL/POWER LOCKS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Driver Door Lock Switch Mux circuit is under 1.5 volts for over 30 seconds.

Possible Causes

(G161) DRIVER DOOR LOCK SWITCH MUX WIRE PARTIAL SHORT TO GROUND

(P439) MEMORY SELECT SWITCH MUX WIRE PARTIAL SHORT TO GROUND

(P439) MEMORY SELECT SWITCH MUX CIRCUIT SHORTED TO THE (G920) MEMORY SELECT SWITCH
RETURN CIRCUIT

MEMORY SELECTOR SWITCH

DRIVER WINDOW/DOOR LOCK SWITCH STUCK

DRIVER MEMORY MIRROR MODULE

Theory of Operation

This code will only set in vehicles that have the Memory System. The supply circuit for the Memory Mirrors are
supplied by the Memory Mirror Module, therefore both the Memory Select Switch Mux or the Door Lock Switch Mux
circuits can cause this DTC.

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC’s

Operate the Driver Door Lock Switch in both positions several times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK UNLOCK?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

WK

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 33

B1804 DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK UNLOCK – DRIVER MEMORY MIRROR
MODULE (CONTINUED)

2.

DRIVER DOOR LOCK SWITCH SHORTED TO GROUND

With the scan tool, erase DTC’s.

Disconnect the Driver Window/Door Lock Switch connector.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display DRIVER DOOR LOCK/UNLOCK
SWITCH CIRCUIT STUCK UNLOCK?

No

>> Replace the Driver Window/Door Lock Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

Yes

>> Go to 3

3.

(G161) DRIVER DOOR LOCK SWITCH MUX WIRE SHORT TO GROUND

Turn the ignition off.

Disconnect the Driver Memory Mirror Module C1 connector.

Measure the resistance between ground and the (G161) Driver Door
Lock Switch Mux circuit in the Memory Mirror Module connector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (G161) Driver Door Lock Switch Mux circuit for

a short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Go to 4

8N - 34

POWER LOCKS - ELECTRICAL DIAGNOSTICS

WK

B1804 DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK UNLOCK – DRIVER MEMORY MIRROR
MODULE (CONTINUED)

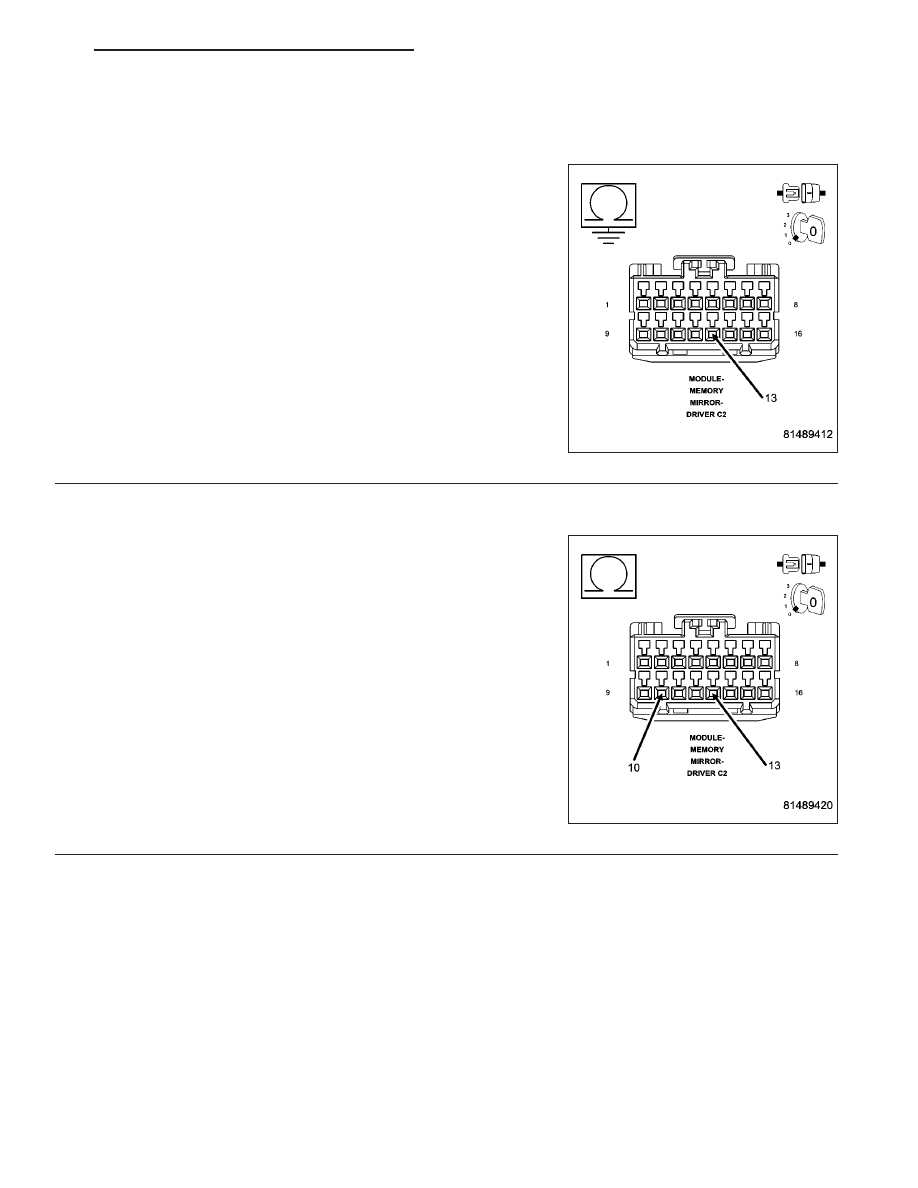

4.

(P439) MEMORY SELECT MUX WIRE SHORT TO GROUND

Disconnect the Driver Memory Mirror Module C2 connector.

Measure the resistance between ground and the (P439) Memory
Select Switch Mux circuit.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (P439) Memory Select Switch Mux wire for a

short to ground.

Perform the BODY VERIFICATION TEST - VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES
- STANDARD PROCEDURE)

No

>> Go to 5

5.

(P439) MEMORY SELECT SWITCH MUX CIRCUIT SHORTED

Measure the resistance between the (P439) Memory Select Switch
Mux circuit and the (G920) Memory Select Switch Return circuit in the
Driver Memory Mirror Module C2 connector.

Is the resistance below 10000.0 ohms?

Yes

>> Go to 6

No

>> Replace the Driver Memory Mirror Module.

Perform BODY VERIFICATION TEST - VER 1.

WK

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 35
